Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth

China ZHENGZHOU TIANCI HEAVY INDUSTRY MACHINERY CO., LTD. certification
China ZHENGZHOU TIANCI HEAVY INDUSTRY MACHINERY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

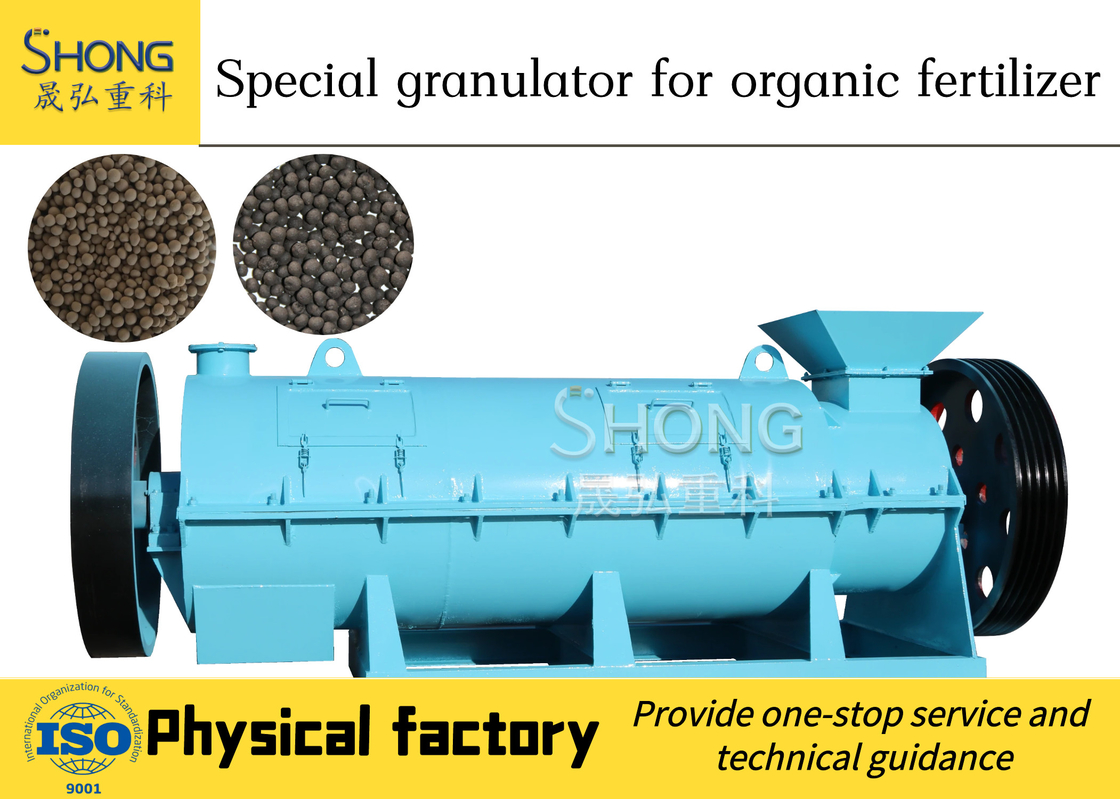

Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth

Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth
Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth

Large Image :  Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Tianci
Certification: BV ISO SGS
Model Number: YSL-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs per day
Detailed Product Description
Function: Making Organic/eco/bio Fertilizer Main Market: AFRICA,Southeast Asia Etc Organic Fertilizer Granulator
Raw Material:: All Kinds Of Organic Materials Output Capacity: 8-10t/h
Granule Size: 0.3-3.0 Mm Can Ba Adjustable Dimension(l*w*h): Customized
Condition: New Voltage: All Countries Are Ok
Color: Customer's Request Installation: Guided By Our Engineer
High Light:

Poultry Manure Organic Fertilizer Granulator

,

Stirring Tooth Organic Fertilizer Granulator

,

Organic Fertilizer Granulator 10t/H

Poultry manure organic fertilizer stirring tooth granulator

Introduce:

The principle of the stirring tooth granulator is to use the centrifugal force of the air from the high-speed rotation of the main shaft to continuously stir, collide, inlay, spheroidize, granulate, and compact the fine materials to achieve granulation.







Application:

This machine is widely used in the granulation of livestock and poultry manure, carbon black, clay, kaolin, three wastes, green manure, sea manure, microorganisms and other municipal waste organic fermented fertilizers. It is especially suitable for light powder materials and basic materials. The finer the particles, the higher the sphericity and uniformity of the particles.



Diamater of organic fertilizer granulator making machine





Installation Angle 2º-2.5º

2º-2.5º 2º-2.5º 2º-2.5º 2º-2.5º
Capacity
1-1.5T/H
1.5-2.5T/H 2-4T/H 4-6T/H 6-8T/H
Total Power
37KW
55KW 75KW 90KW 110KW
Moisture of feeding material
20%-40%
20%-40% 20%-40% 20%-40% 20%-40%
Size of feeding material 50mesh 50mesh 50mesh 50mesh 50mesh
Dimension 4.1*1.6*1.15m 4.25*1.85*1.3m 4.7*2.35*1.6m 4.9*2.55*1.8m

5.5*2.8*2m




Features of Organic Fertilizer Granulator:

High capacity new type pig manure recycling granulator of Characteristics
The organic content can be high to 100%, make pure organic granulate
The product granule is round ball
Using organic matter particles with mutual mosaic growing up under a certain force, no need to add binder when granulating.

No need drying to reduce the energy consumption, moisture of the raw material can be in 20%-40%



Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth 0

Poultry Manure Organic Fertilizer Granulator 10t/H With Stirring Tooth 1

Advantage process:

This equipment has high balling rate, low energy consumption and simple operation. The shell adopts thickened spiral steel pipe, which is strong and durable. Not deformed. Lined with stainless steel plate, corrosion resistance and long service life. The stable base makes the equipment run smoothly, which is your choice of granulation equipment. The wet stirring tooth granulator uses the high-speed rotating mechanical stirring force and the resulting aerodynamic force to continuously realize the mixing, granulation, spheroidization, and densification of the fine powder in the machine, so as to achieve the purpose of granulation.
