Chicken Manure Organic Fertilizer Production Line 10t/H With Batching System

Farming plant pig and chicken manure organic fertilizer fertilizer machine

Introduce:

The production process of pig and chicken manure organic fertilizer in the breeding plant is closely related to the equipment configuration of the organic fertilizer production line. Generally, the complete set of organic fertilizer production line equipment is mainly composed of fermentation system, drying system, crushing system, batching system, mixing system, granulation system, screening system and finished products. Packaging system composition.

Production Process:

The production process of pig and chicken manure organic fertilizer in the breeding plant is: organic fertilizer raw materials (animal manure, domestic garbage, dead branches, rotten leaves, biogas residue, waste bacteria, etc.) are fermented into a semi-wet material pulverizer for pulverization, and then nitrogen and phosphorus are added Potassium and other elements (pure nitrogen, phosphorus pentoxide, potassium chloride, ammonium chloride, etc.) make the contained mineral elements reach the required standard, and then a mixer is used for stirring, and then enters the granulation mechanism for granules, and then they are dried and passed The screening machine screens, the qualified products are packaged, and the unqualified products are returned to the granulator for granulation.

System equipment requirements for each link of the organic fertilizer production process:

The fermentation system consists of a feed conveyor, a mixing mixer, a lifting-type turning and throwing machine and an electrical automatic control system, etc.;

The main equipment of the drying system includes belt conveyor, drum dryer, cooler, induced draft fan, hot blast stove, etc.;

The crushing system includes a new type of semi-wet material crusher, LP chain crusher or cage crusher, belt conveyor, etc.;

The batching system includes equipment including electronic batching system, disc feeder, vibrating screen, 6-8 kinds of raw materials can be configured at a time;

The mixing system consists of optional horizontal mixer or pan mixer, vibrating screen, mobile belt conveyor, etc.;

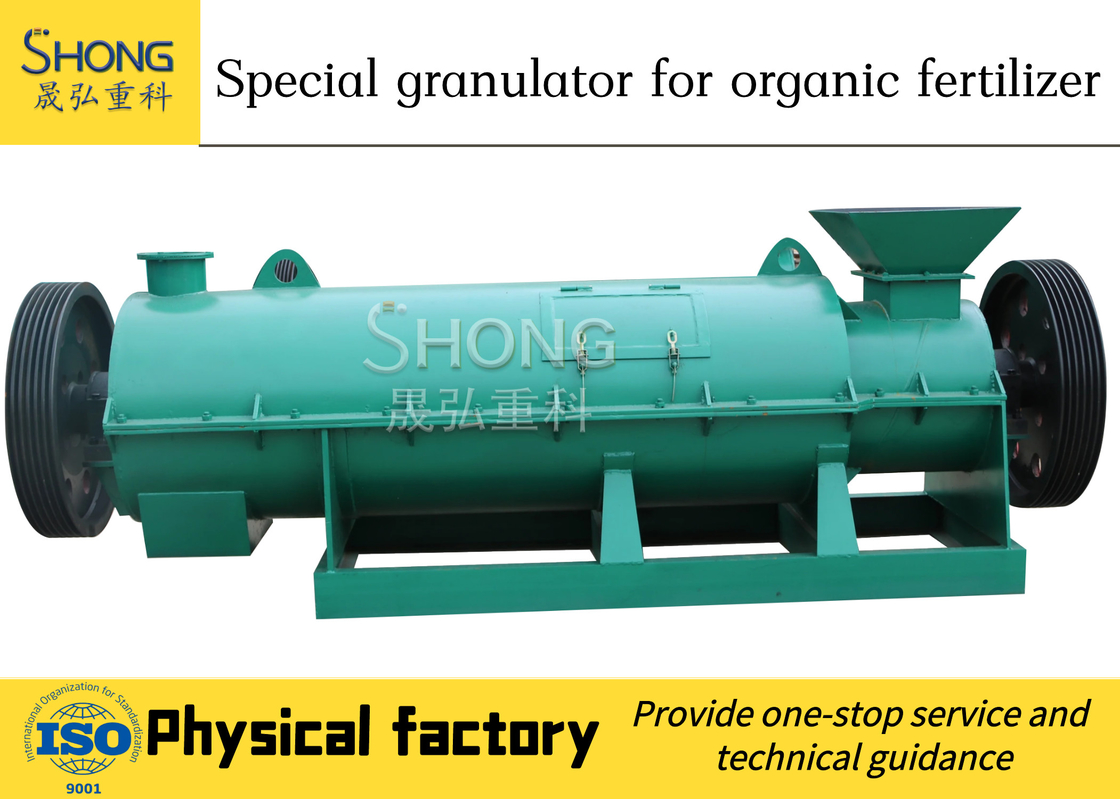

The granulation system requires granulator equipment. The optional granulator equipment includes: double-roller extrusion granulator, disc granulator, flat die granulator, drum granulator, round-throwing machine, Organic fertilizer double-mode fast granulator, etc.;

The screening system is mainly completed by a drum screening machine, which can be equipped with a primary screening machine and a secondary screening machine, so that the yield is high and the particles are good;

Finished product packaging systems generally include electronic quantitative packaging scales, silos, automatic sewing machines, etc. In this way, the fully automatic non-intermittent production of the organic fertilizer production line can be realized.

The construction scale of the equipment configuration of the chicken manure organic fertilizer production line is generally 30,000 to 100,000 tons per year. It is necessary to comprehensively consider local resources, market capacity, and market coverage.

Raw and auxiliary materials

1. Organic main raw materials: solid wastes such as livestock manure, domestic sludge, and domestic garbage account for about 50-80% of the formula;

2. Inorganic main raw materials: urea, ammonium phosphate, ordinary calcium, heavy calcium, potassium chloride, potassium sulfate, etc. account for about 10-30% of the formula;

3. Medium and trace element additives account for about 10% of the formula;

4. Bio-organic compound fertilizer also needs to add biological bacteria powder: 5‰-10%;

5. Raw materials that may be used according to needs: grass charcoal, oil feet, fly ash, etc.;

6. Auxiliary energy: water, electricity, coal;

Tianci organic fertilizer equipment manufacturer:

The above is the equipment and cost required for a small chicken manure organic fertilizer processing plant. Based on the above content in the corresponding cost prices in each region, it can be estimated. The cost of investing in a small chicken manure organic fertilizer processing plant should also be considered over time. Many factors include price fluctuations, changes in personnel wage levels, and changes in technical levels. These factors will also have a lot of interference with the actual situation of prices. If you want to invest in chicken manure organic fertilizer processing equipment, please consult Tianci Heavy Industry to provide you with advanced production technology, reliable quality equipment, reasonable infrastructure guidance and processing technology guidance, and perfect after-sales service.
