Granules Shapes: | Ball Shape | Machine Type: | Disc Fertilizer Granulator Machine |
---|---|---|---|
Machine Capacity: | 0.3-6 Ton/hour | Condition: | New |
Weight: | 2 Tons | Warranty: | 1 Year |
Raw Material: | Powder | Service: | Engineers Guide |
High Light: | Organic Fertilizer Granulator Machine,6t/H Disc Granulator,BV Disc Fertilizer Granulator Machine |

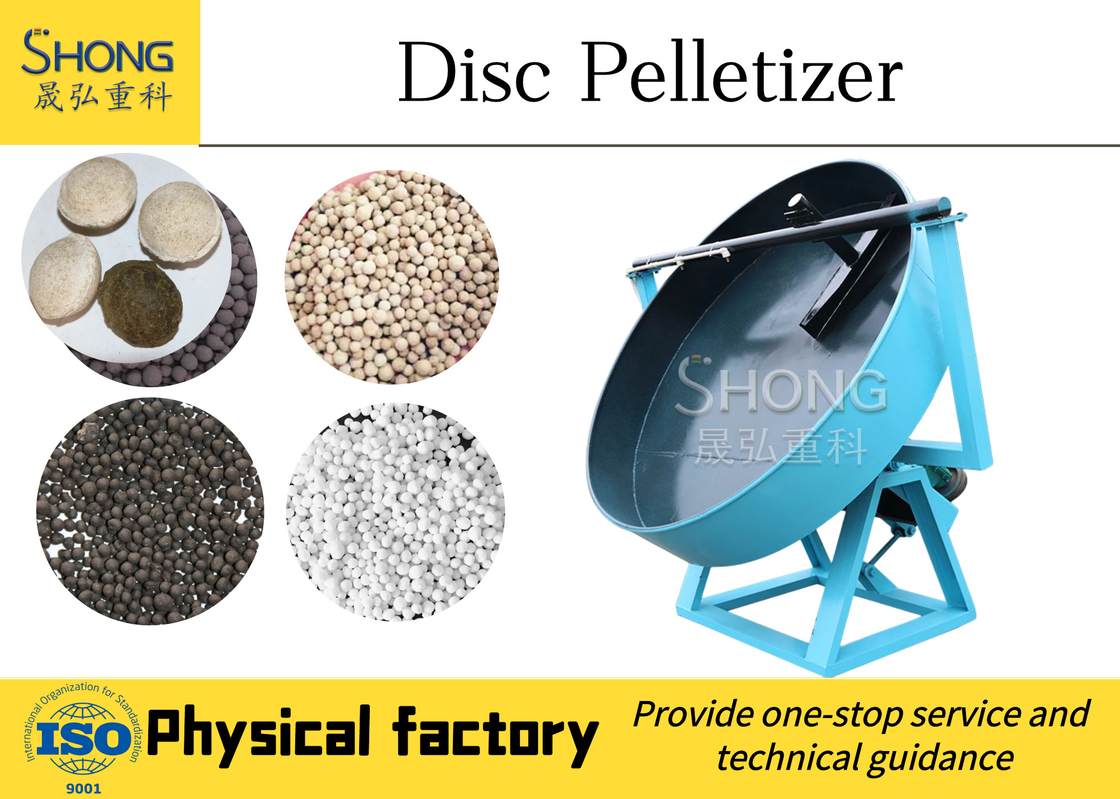

Organic fertilizer disc type powder ball granulator
Introduce:
Disc granulator is also called granulator, pellet machine, pelletizer, mud pellet machine, spheronizer, etc. It is a kind of granulating and pelletizing equipment with mature technology and a wide range of applications. It can be applied to: fertilizer, Chemical, pharmaceutical, food, handicraft and other industries have different production requirements and equipment names in different industries. In terms of production materials, users can choose carbon steel and stainless steel according to different requirements.

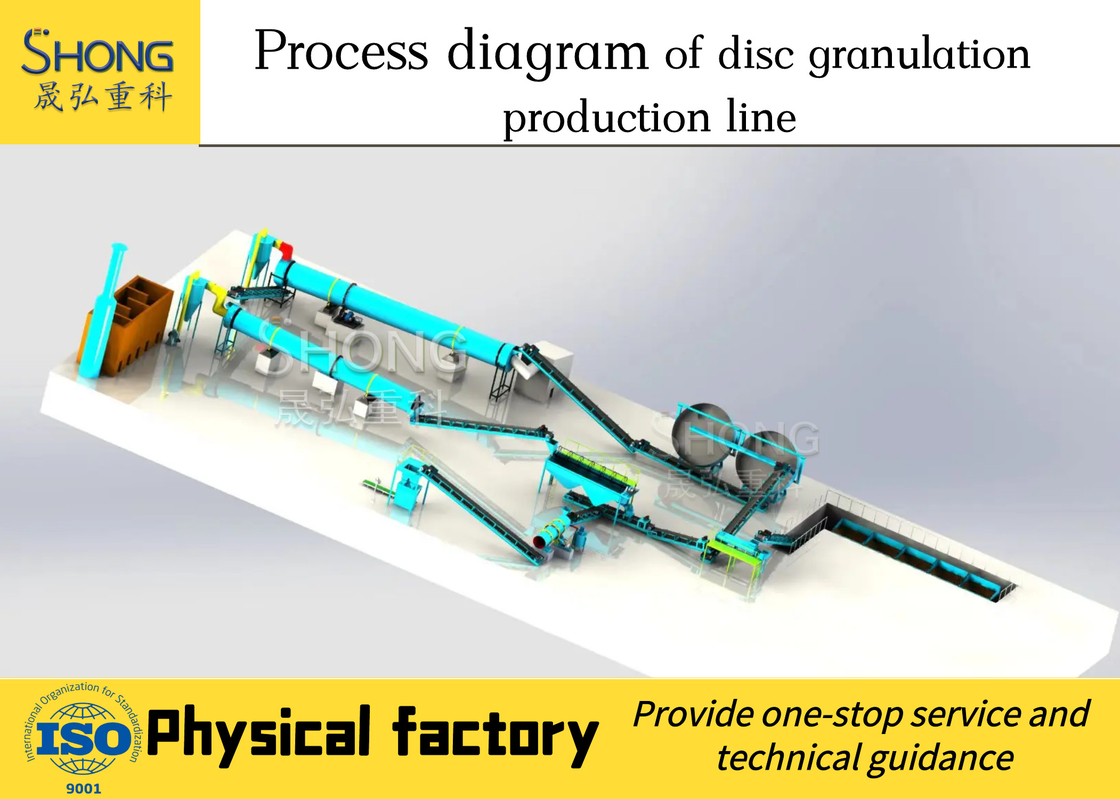

1. The disc granulator belongs to the processing technology of pellets using centrifugal force. In the early stage, the livestock and poultry manure is fermented in the fermentation tank with appropriate auxiliary materials, and the pellets are made after the fermentation is decomposed.
2. Crushing and mixing: The fermented and decomposed animal powder organic fertilizer raw materials are crushed to make them reach the appropriate particle size, and then transported to the horizontal mixer for mixing, and then transported to the granulator to feed the bin.
3. Feeding and granulation: the powdery raw materials are evenly fed through the feeding bin, and fed into the disc of the disc granulator at a uniform speed; according to the moisture condition of the material, it is sprayed on the disc by the automatic moisture shower of the disc granulator The surface of the material in the medium makes the powder reach a reasonable humidity; the powder uses the centrifugal force of the disk rotation and the friction force of the disk to produce axial rolling. During the rolling process, the powder particles are kneaded and squeezed to form a relatively large moisture. Of organic fertilizer particles.
4. Drying and cooling: The processed moisture-rich particles are conveyed to the organic fertilizer drum dryer by a belt conveyor, and the heat energy blown from the hot blast stove is converted during the tumbling process of the particles in the dryer to achieve drying and granular organic fertilizer. After being dried to a reasonable water content, it is conveyed to a cooler, where the temperature is quickly reduced, and the cooled particles are sent to a sieving machine to achieve particle classification.
5. Screening and coating: In the drum screening machine, the qualified organic fertilizer particles are sent to the coating machine through the conveyor for coating; the unqualified particles are transported back to the crushing and mixing process before being granulated.
6. Packing and warehousing: the coated particles are measured and packaged by a fully automatic weighing and packaging scale, and then warehousing.
7. Dust removal process: drying, cooling and workshop dust disposal, using cyclone dust collector or water curtain wet dust removal three-stage treatment, and emptying after reaching the standard.
1. The disc granulator can directly observe the real-time situation of granulation, the granulation process is abnormal and can be adjusted at any time.
2. The particle size can be adjusted and the degree of freedom is relatively large. This is because the size of the particles depends on the inclination angle and rotation speed of the disc. The Zhengzhou Tianci brand disc granulator can adjust the inclination angle and rotation speed, so the particle size control range is relatively wide.
3. The organic fertilizer production line of the disc granulator has a short production process, an uncomplicated process structure, and a relatively small investment in equipment, which is more suitable for small and medium-sized enterprises.
Model no. | ZL10 | ZL15 | ZL18 | ZL20 | ZL25 | ZL28 | ZL30 | ZL32 | ZL36 | ZL45 |
Production(t/h) | 0.3-0.5 | 0.5-0.8 | 0.6-1.0 | 0.8-1.2 | 1.0-1.5 | 1.0-2.5 | 2.0-3.0 | 2.0-3.5 | 3.0-5.0 | 4.0-6.0 |
Motor Power (kw) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
Innerdiam(mm) | 1000 | 1500 | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 | 4500 |
Side height(mm) | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 550 | 600 |
Volume(m³) | 0.4 | 1.1 | 1.4 | 1.8 | 2.5 | 3.3 | 3.9 | 4.3 | 5.5 | 6.5 |
Rotation speed(r/min) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |

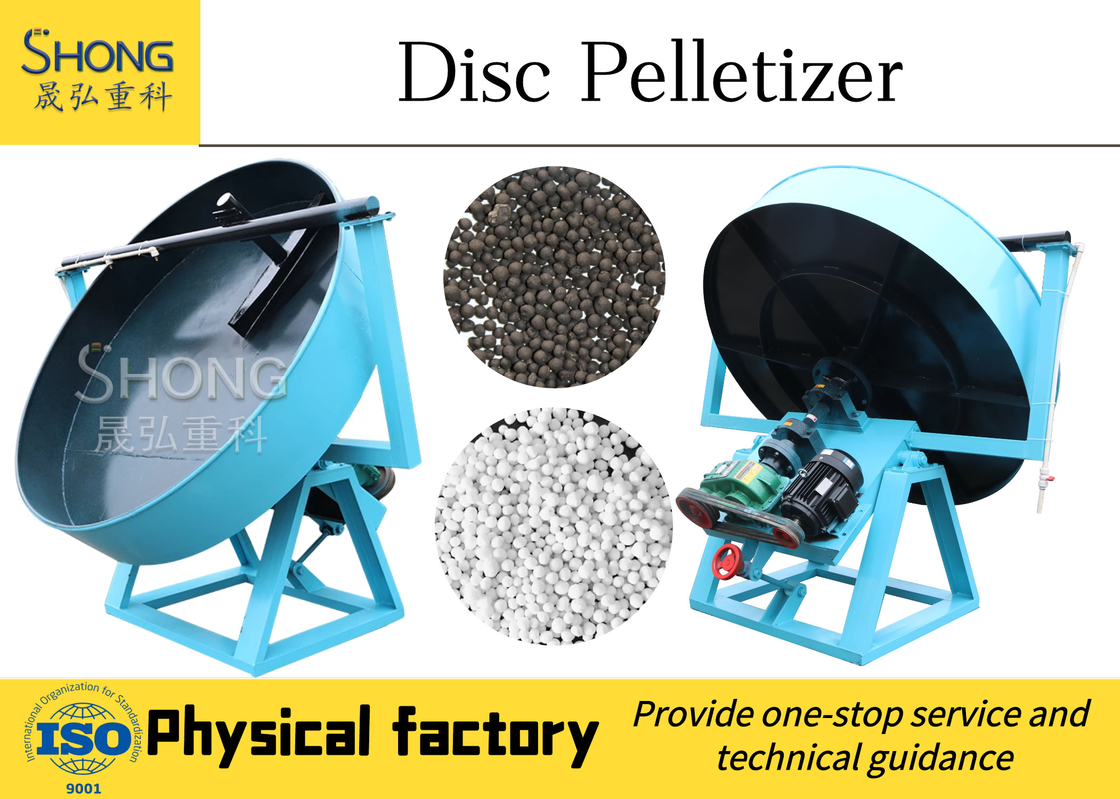

The characteristics of the organic fertilizer disc powder pelletizing machine:
1. The organic fertilizer disc granulator is made of carbon steel plate by one-time molding, with high flatness, smoothness and beautiful appearance.
2. The organic fertilizer disc granulator is made of standard profiles, with excellent welders, strong and durable.
3. The organic fertilizer disc granulator uses a high-quality reducer as the core of the equipment, which has stable performance, no noise, low failure rate, and convenient refueling and maintenance.
4. The organic fertilizer disc granulator adopts pure copper motor, which is powerful, energy-saving and maintenance-free. Three guarantees for one year.
5. For the organic fertilizer disc granulator, the angle can be adjusted according to actual use requirements, and the size and shape of the granulation can be controlled.
