Potassium Phosphate Fertilizer Double Roller Granulator 22KW

The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

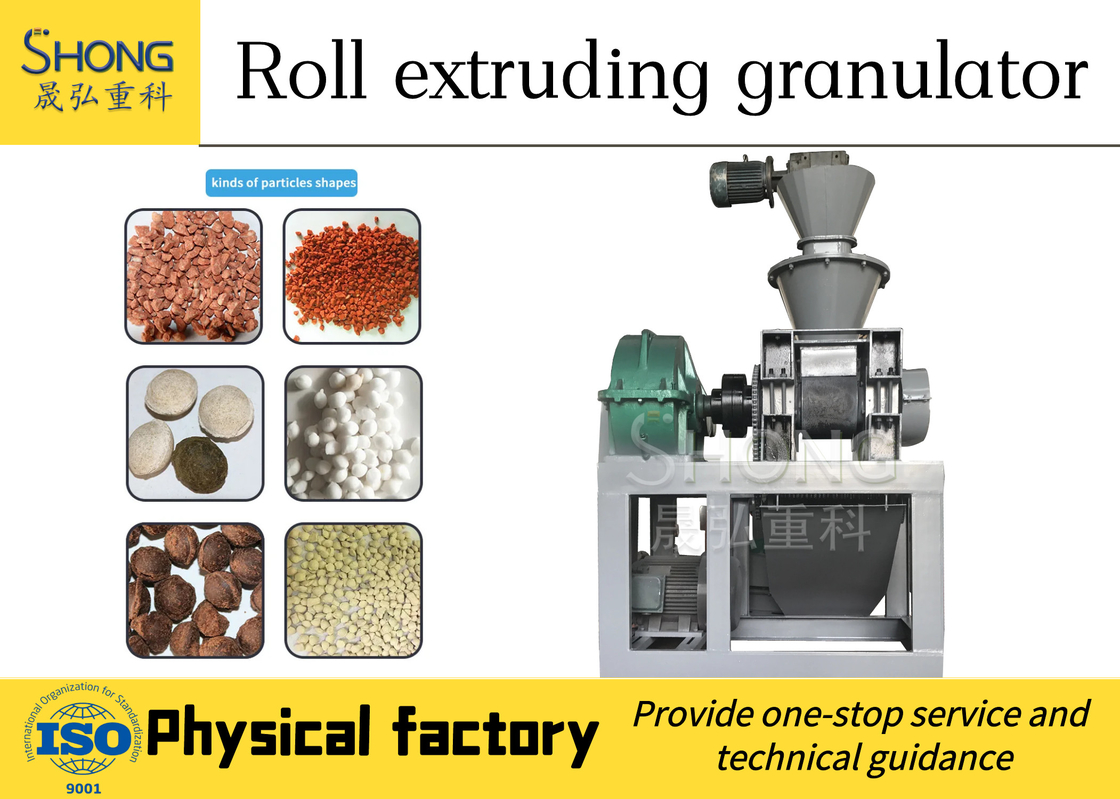

Potassium Phosphate Fertilizer Double Roller Granulator 22KW

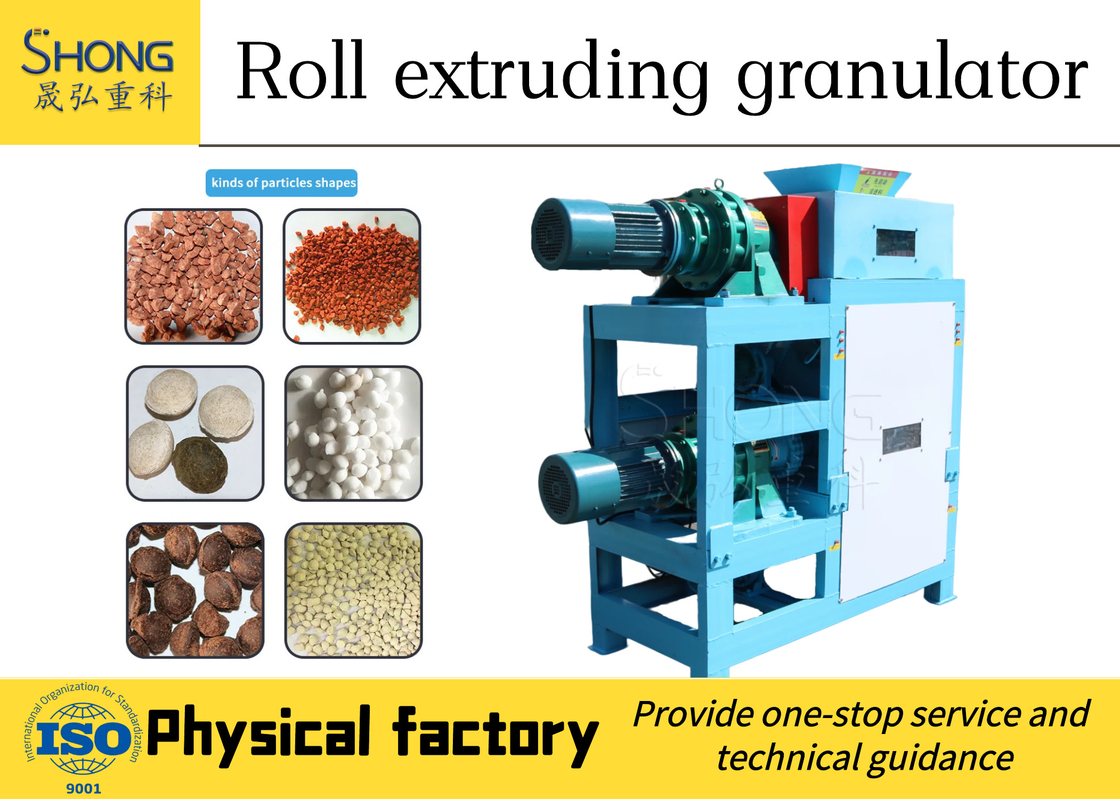

Potassium Phosphate Fertilizer Double Roller Granulator 22KW

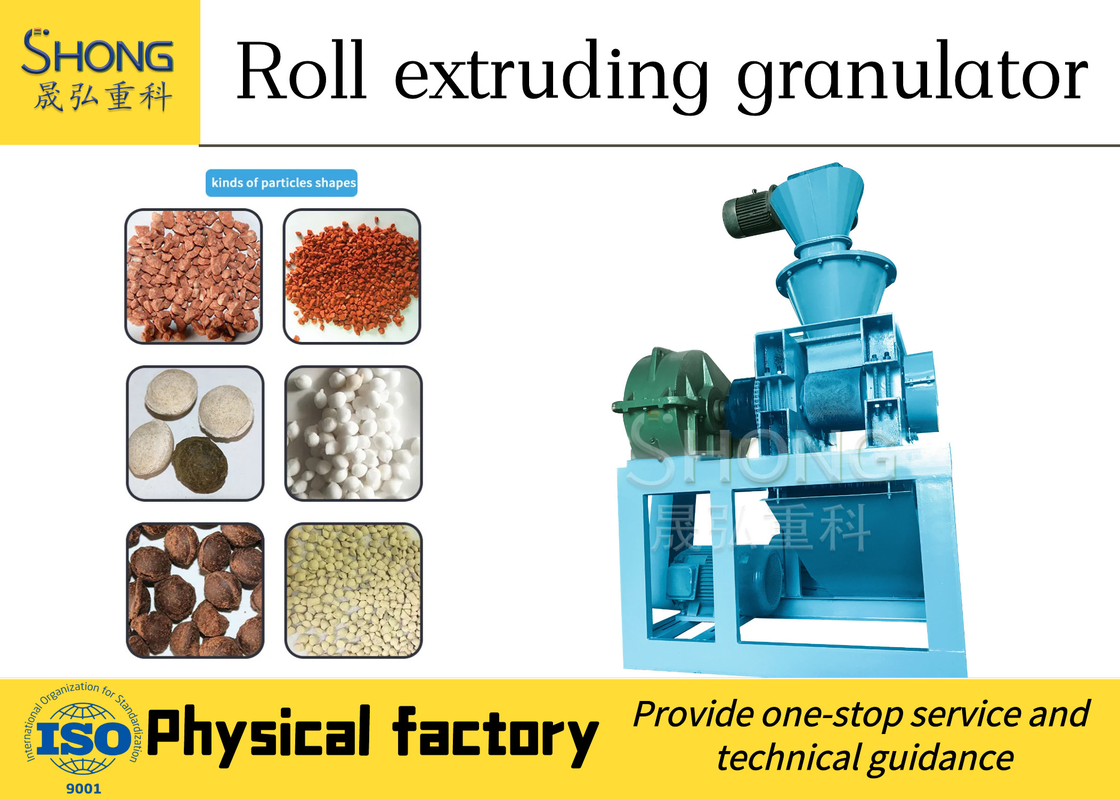

Potassium Phosphate Fertilizer Double Roller Granulator 22KW
video play

Large Image :  Potassium Phosphate Fertilizer Double Roller Granulator 22KW

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: SGS BV ISO
Model Number: DZJ-II-1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Package or Container
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 pcs per day
Detailed Product Description
Application: Fertilizer Granulator Machine Material Moisture: 2%-5%
Powder: 15-22KW Material: Carbon Steel
Model: DZJ Weight: 1.2T
Capacity: 1-4 T/h Suit For: NPK Compound Fertilizer
Warranty: 12 Months Pellet Diameter: 2-10mm
High Light:

Fertilizer Double Roller Granulator


Potassium Phosphate Double Roller Granulator


Double Roller Granulator 22KW

Compound Fertilizer Potassium Phosphate Fertilizer Double Roll Granulator


This machine is especially suitable for the granulation of light and fine powder materials, and it is more suitable for the granulation of organic-inorganic compound fertilizers. The finer the basic particles of the fine powder material, the higher the sphericity of the particles, and the better the quality of the pellets. It is generally required that the particle size of the material before granulation should be less than 50 mesh. Typical application materials: chicken manure, pig manure, cow manure, carbon black, clay, kaolin, nitrogen, phosphorus, potassium and other organic-inorganic compound fertilizers are suitable.

Potassium Phosphate Fertilizer Double Roller Granulator 22KW 0

Technical Parameters

Model DZJ-I 1.0 DZJ-I 2.0 DZJ-I3.0 DZJ-I 4.0 DZJ-II 1.0 DZJ-II 2.0
Capacity 1-1.5 1.5-2.5 2.5-3.5 3.5-4.5 1-2 1.5-2.5
Power 15Kw 18.5Kw 30Kw 45Kw 15Kw 18.5Kw
Press Roller Φ150×22O Φ150×30O Φ186×30O Φ300×30O Φ150×22O Φ150×30O
Feed Size 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm
Product Size Φ2.5~Φ10 Φ2.5~Φ10 Φ2.5~Φ20 Φ2.5~Φ20 Φ2.5~Φ10 Φ2.5~Φ10
Speed Reducer ZQH350 ZQH400 ZQH400 ZQH500
Material Mositure 2%~5% 2%~5% 2%~5% 2%~5% 2%~5% 2%~5%

Granule Strength  and Apperance Type:

Shape of finished products

oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.

Material moisture requirement

not more than 10%

The rate of ball formation



1-4t/h ( can combine multiple granulators work together to increase output, see below

technical process chart).

Granule size

3-8mm (popular market granule diameter: 2.8-4mm)

Process of non-drying roller extrusion granulator:

1. Add the qualified raw materials into the mixer according to the ratio requirements and mix them evenly.

2. Transport to the disc feeder, and remove the metallic substances from the material during the transportation process.

3. The material in the disc feeder evenly enters the extrusion granulator, and the material is forced to pass between the two pressure rollers to be squeezed into flakes, and the flakes are broken into pieces by the coarse crusher under the pressure rollers. Sieving. The materials on the screen continue to be crushed and sieved.

4. The semi-finished products are transported to the finished screening machine. The fine particles after screening are returned directly to the disc feeder. The large particles are crushed by the pulverizer and then returned to the disc feeder.

5. The qualified products after screening are transported to the fully automatic packaging scale for weighing, packaging, and storage.

Potassium Phosphate Fertilizer Double Roller Granulator 22KW 1

Advantages of NPK graphite without drying double roller extrusion granulator:

1. It has the characteristics of low investment, visible effects, and good economic benefits. .

2. The structure of this machine adopts granulating, forming and sieving as a whole, which makes it have the characteristics of beautiful appearance, simple operation and low energy consumption.

3. The raw material has wide adaptability. The machine can not only be used for granulation in fertilizer, feed and chemical industries, but also especially for rare earth, metallurgy, coal and biological production.


Uses and characteristics of the roller extrusion granulator:

The roller extrusion granulator is a new generation of granulation equipment developed by our company. It is produced by non-drying room temperature process, and it is formed in one time. The equipment has low investment, quick results and good economic benefits. The complete set of equipment has a compact layout, scientific and reasonable, and advanced technology. Energy saving and consumption reduction, no three wastes are discharged, stable operation, reliable operation and convenient maintenance. The raw materials have wide adaptability, suitable for the granulation of various raw materials such as compound fertilizer, medicine, chemical industry, feed, etc., and the product granulation rate is high. It can produce compound fertilizers of various concentrations and types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, etc.).

Potassium Phosphate Fertilizer Double Roller Granulator 22KW 2

Tianci non-drying double roll extrusion granulator manufacturer:

Zhengzhou Tianci Heavy Industry has rich experience, good design concepts, and equipment upgrades in the process design of the double-roll extrusion granulator. Relatively speaking, the granulation rate is high and the return material is low, which is a popular product in the market. Dry extrusion granulator process equipment.
