Place of Origin:
Zhengzhou China
Brand Name:
Shenghong
Certification:
SGS BV ISO
Model Number:
ZL10~ZL45

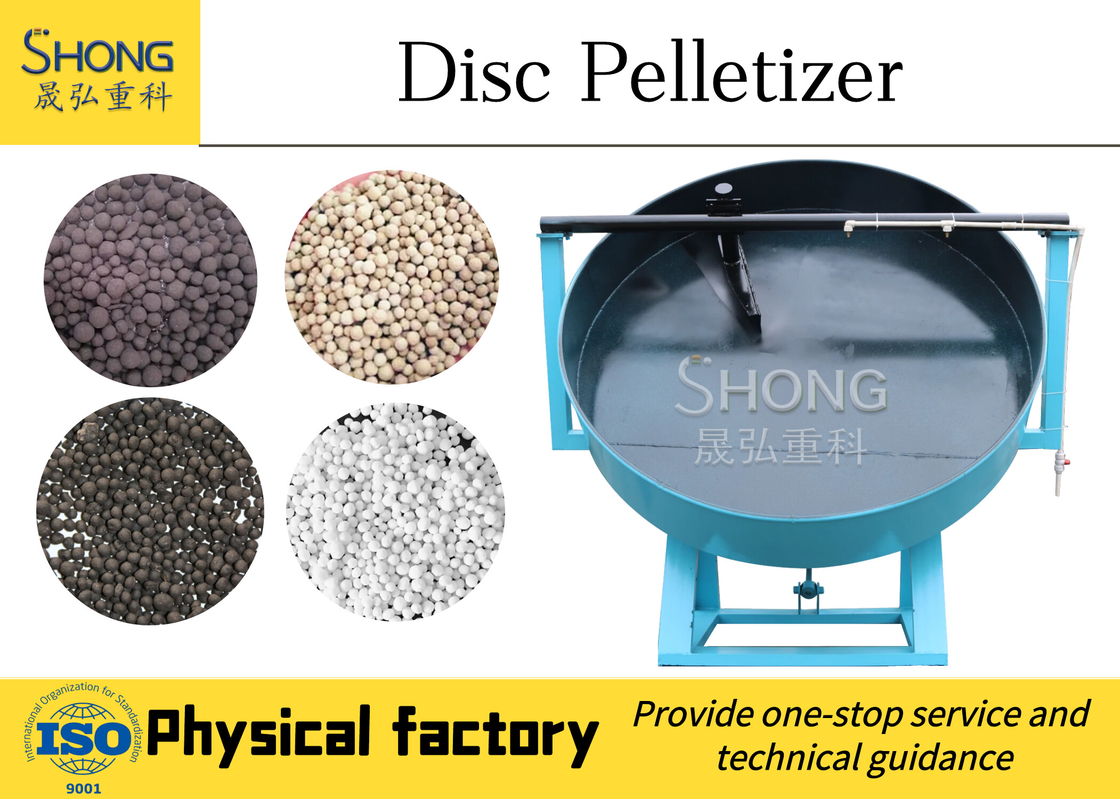

1-2t/h disc granulator disc pelletizer disc ball
Introduction:
The disc revolves at a certain angle with the horizontal plane. Add basic fertilizer powder mixed according to the formula into disc in the process of revolving. The powder will rise along with the revolving disc under the friction between the powder and the disc, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is swun towards the disc edge out of the centrifugal force. With the spraying of cementing agent water, the powder material rolls in a certain trace under the function of these three forces. It gradually shapes in the required size, then overflows by the disc edge.
Disc granulation machine could product
Raw material classification | Specific application |
Inorganic fertilizer | BB and compound fertilizer powder |
Biologics | Western medicine granules etc |
Coal industry | Carbon granule etc |
Others | Kinds of inorganic powder that you need manufacture granules |
Disc granulator—Advantage
1).High efficiency.The circular granulation machine adopts the whole circular arc structure, the granulation rate can reach more than 93%.
2). Granulation disk has three discharging holes which are convenient for intermittent production, thus can greatly reduce the labor intensity and improve working efficiency.
3). Driven by flexible belt, the retarder and electromotor start stable, which decrease the impulse force and lengthen the life-span of the equipment.
4). The bottom of granulating disk was strengthened by many radiation steel-plates, which is firm, durable and never distortion.
5). The thickened , weighted and firm base can run stably without the holding down bolts to fix.
6). The main gear of granulation is hardened by high freque
Main technical parameters
Model no. | ZL10 | ZL15 | ZL18 | ZL20 | ZL25 | ZL28 | ZL30 | ZL32 | ZL36 | ZL45 |
Production(t/h) | 0.3-0.5 | 0.5-0.8 | 0.6-1.0 | 0.8-1.2 | 1.0-1.5 | 1.0-2.5 | 2.0-3.0 | 2.0-3.5 | 3.0-5.0 | 4.0-6.0 |
Motor Power (kw) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
Innerdiam(mm) | 1000 | 1500 | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 | 4500 |
Side height(mm) | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 550 | 600 |
Volume(m³) | 0.4 | 1.1 | 1.4 | 1.8 | 2.5 | 3.3 | 3.9 | 4.3 | 5.5 | 6.5 |
Rotation speed(r/min) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
