Double Roller Pressing Fertilizer Granulator Machine 15kw Granulation Plant Machine

Minimum Order Quantity : 1PC Price : Negotiable
Packaging Details : Package or Container Delivery Time : 15 Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 pcs per day
Place of Origin: Zhengzhou China Brand Name: Tianci
Certification: SGS BV ISO Model Number: DZJ-II-1.0

Detail Information

Application: Fertilizer Granulator Machine Material Moisture: 2%-5%
Powder: 15-22KW Material: Carbon Steel
Model: DZJ Weight: 1.2T
Capacity: 1-4 T/h Suit For: NPK Compound Fertilizer
Warranty: 12 Months Pellet Diameter: 2-10mm
High Light:

Pressing Fertilizer Granulator

,

Double Roller Fertilizer granulator

,

15kw Granulation Plant Machine

Product Description

Double roller pressing fertilizer granulator machine Granulation plant machine



Brief introduction of double roller pressing fertilizer granulator machine

1) Double roller pressing fertilizer granulator machine adopts no-drying process palletizing at normal temperature and once forming.

2) It can produce 2-6mm irregular pellets, φ3.8-φ10mm oblate pellets and all kinds of slice products.
3) It is a multi purpose machine and widely used to pelletize the powder materials of fertilizers, medicine,chemicals and so on, especially suitable for the production of palletized fertilizers such as ammonium bicarbonate,carbamide, ammonium chloride , ammonium sulfate, potassium chloride, potassium sulfate, salt, binary,ternary compound fertilizers(Nutrient content 2553), blended fertilizers and so on.

4)The complete sets of the equipment are in compact layout process, scientific and rational, leading technology,energy saving, environmental protection without waste emissions, operation stability, and easy maintenance.

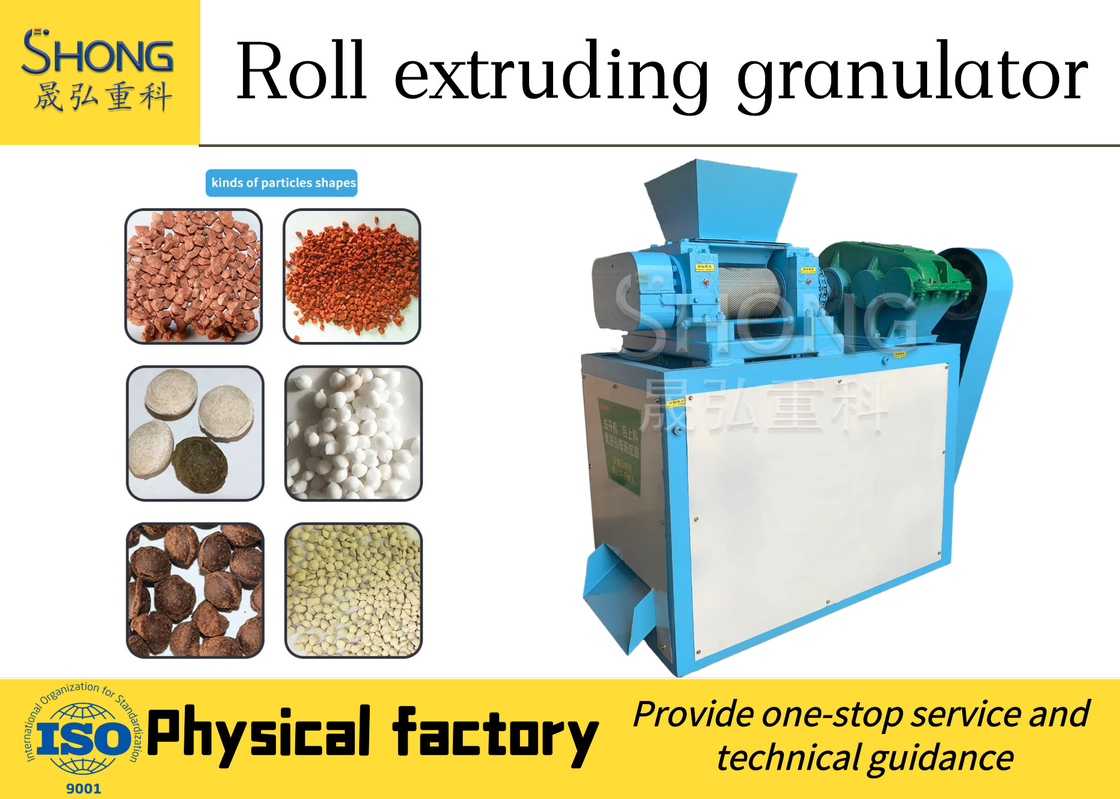

Double Roller Pressing Fertilizer Granulator Machine 15kw Granulation Plant Machine 0

Technical Parameters



Model

DZJ-I 1.0

DZJ-I 2.0

DZJ-I3.0

DZJ-I 4.0

DZJ-II 1.0

DZJ-II 2.0

Capacity

1-1.5

1.5-2.5

2.5-3.5

3.5-4.5

1-2

1.5-2.5

Power

15Kw

18.5Kw

30Kw

45Kw

15Kw

18.5Kw

Press Roller

Φ150×22O

Φ150×30O

Φ186×30O

Φ300×30O

Φ150×22O

Φ150×30O

Feed Size

0.5mm

0.5mm

0.5mm

0.5mm

0.5mm

0.5mm

Product Size

Φ2.5~Φ10

Φ2.5~Φ10

Φ2.5~Φ20

Φ2.5~Φ20

Φ2.5~Φ10

Φ2.5~Φ10

Speed Reducer

ZQH350

ZQH400

ZQH400

ZQH500





Material Mositure

2%~5%

2%~5%

2%~5%

2%~5%

2%~5%

2%~5%







Features of Double Roller Pressing Fertilizer Granulator Machine

1). Room temperature can be directly material compressing the powder partly, not only to production of urea ammonium bicarbonate, chloride, ammonia, potassium chloride and other materials for the multeity compound fertilizer

2). And also applies to rare earth magnetic fertilizer granulation, without drying Equipment, particle high intensity. Production process with the right materials roller friction coefficient, low temperature.low energy consumption, pollution free.

3). Meanwhile in order to meet user needs, reach small investment and quick benefit, the plant also for users equipped with mixers, mills Bucket Elevator, pole and other fertilizer production of complete sets of equipment.

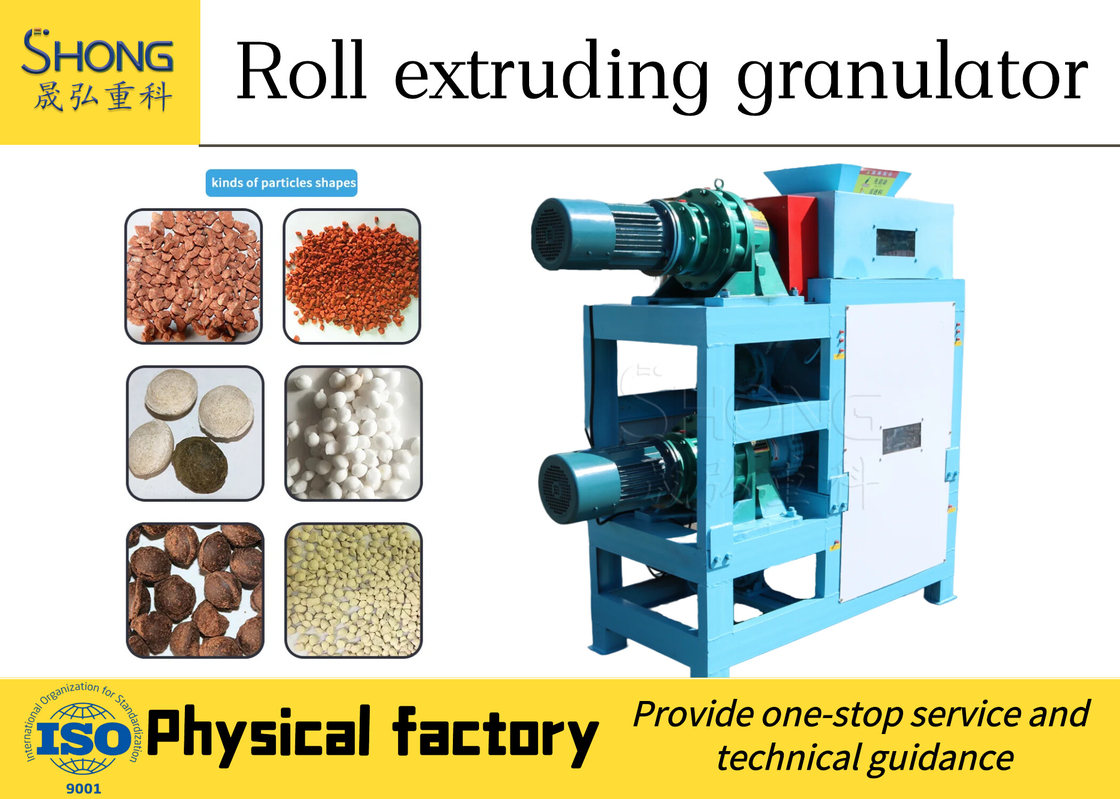

Double Roller Pressing Fertilizer Granulator Machine 15kw Granulation Plant Machine 1

The double roller granulator/Rollers pressing granulator machine instruction:



1.No drying technology, normal temperature granulating, once forming.

2,Low investment, quick profit, good economic returns, etc.

3,Combine granulating, forming, screening into one machine, making beautiful appearance granules, easy operation and low energy consumption, etc.

4,The main components, such as the roller body, is made of a new type of metal which is anticorrosive,wearable and impact resistance.

5,Especially, YHDZJ-II not only has the above features, but also upgrades its rack. The bearing frame body is made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller’s service life.Double Roller Press Granulator Machinery.

6,The Power Transmission part adopts dual-input transfer mode, not only to improve the power input ratio, and also to ensure the transmission gear lubrication and sealing performance.

7,The machine has compact structure, good stability, good sealing, low noise, easy operation and maintenance, etc. The new machine has won the users praise after coming into the market.

8,Wide adaptability for raw materials, such as fertilizer, feed, chemical industry, and especially good adaptability for rare earth,metallurgy, coal, biologics environmental protection. To some extent, it fills the gap and leading the domestic advanced level. On the other hand, it is also the promotion of environmental projects.



Double Roller Pressing Fertilizer Granulator Machine 15kw Granulation Plant Machine 2
