5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine

5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine
5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine 5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine 5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine

Large Image :  5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: Tianci
Certification: BV, SGS, ISO
Model Number: YSL-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: customer demand, usually in container
Delivery Time: 8-12 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 60 Sets per month
Detailed Product Description
Product Name: Organic Fertilizer Granulator Warranty: 12 Month
Application: Compost Waste Feed Moisture: 20%-40%
Condition: New Voltage: 380V, 50hz
High Light:

Organic Fertilizer Disc Pelletizer

,

5mm Granules Organic Fertilizer Disc Pelletizer

,

Sludge Ball Making Machine

2-5mm Granules Organic Fertilizer Disc Pelletizer / Sludge Ball Making Machine

Brief introduction

Disc granulator is the main equipment to make powder materials into balls, mainly used in cement industry, iron and steel industry and compound fertilizer industry, with uniform ball, ball water easy to control, high ball strength, with simple structure, convenient control, low energy consumption, smooth operation and other advantages.

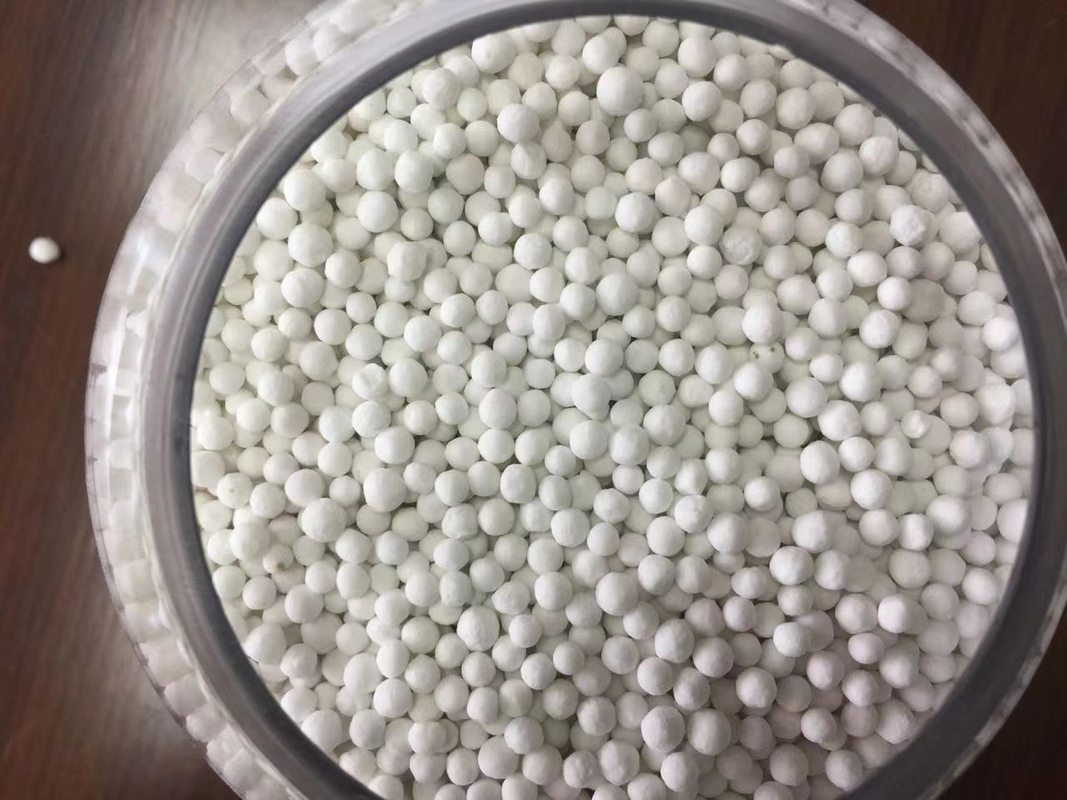

5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine 0

Working principle

1. The disk pre-water granulator is in the raw material into the disk granulator before adding an appropriate amount of water (generally between 11-15% of the dry powder in the mixer), in the form of spray to join the mixer, and then fully stirring penetration, so that the raw material particles evenly attached to the water, and adhere to each other into particles, the core is a part of the diameter of 1-2mm. The ball core and wet raw material powder enter the disk granulator and roll to form a pellet. Because the ball wall and fine powder are wet, a large number of balls and powder rolling in the disk granulator are easy to adhere to, and the ball diameter grows rapidly. When the diameter of the ball grows to a certain size, beyond the area of the ball, stay in the area for a little roll can be obtained.

2. Disk granulator is mainly composed of disk body, cleaning device, main bearing part, main transmission device, Angle adjustment device, frame and other components.

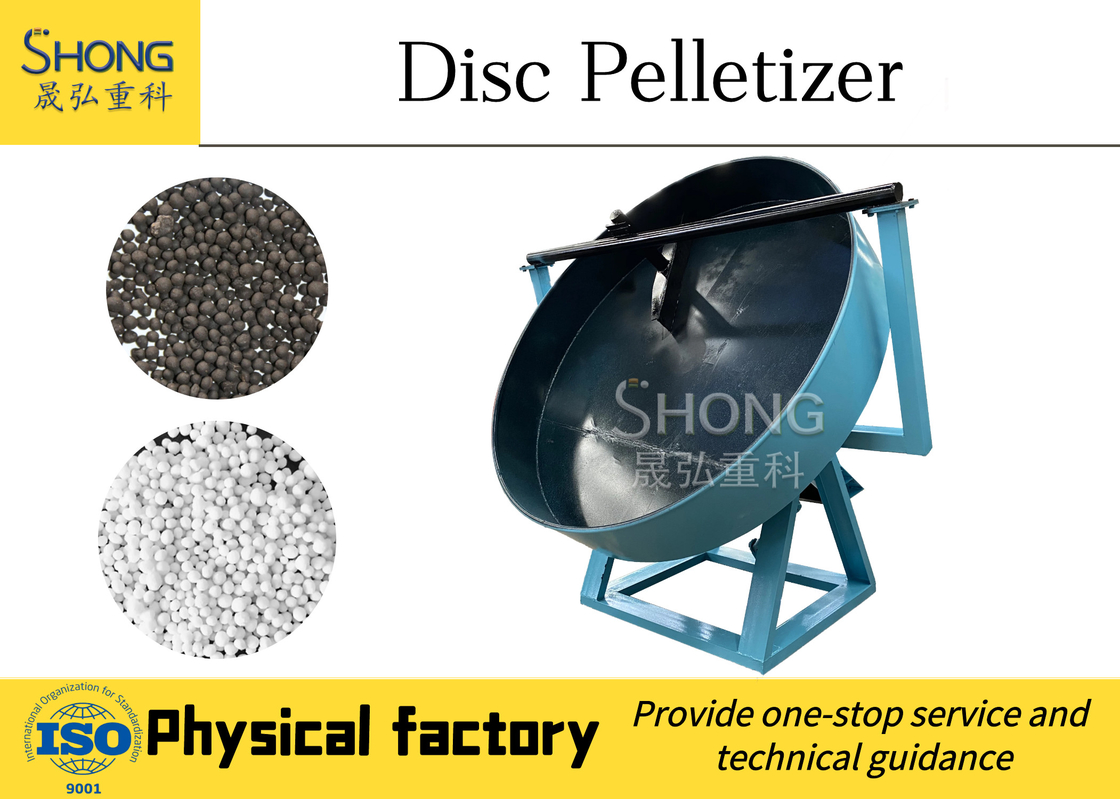

5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine 1

The main advantage

(1) Circular arc structure design is adopted for the disk Angle. Therefore, the pelleting rate can reach 93% or above.

(2) Our disc granulator disc design has three discharge holes, convenient for intermittent production work. This greatly reduces the intensity of labor and improves the work efficiency.

(3) The disc pelletizer reducer and motor are driven by flexible belt, smooth start, small impact force, long service life.

(4) The bottom of the plate adopts a number of radiation steel plate reinforcement, wear-resistant, durable, never deformation.

(5) Thickening and strengthening of the pelletizer base, so that our disk pelletizer stable operation. Therefore, our disk granulator without anchor bolts fixed.

(6) The main gear is processed by high-frequency quenching technology. Therefore, the service life of our disk granulator is greatly extended.

(7) Granulator plate lined with glass steel, corrosion resistance, durable.

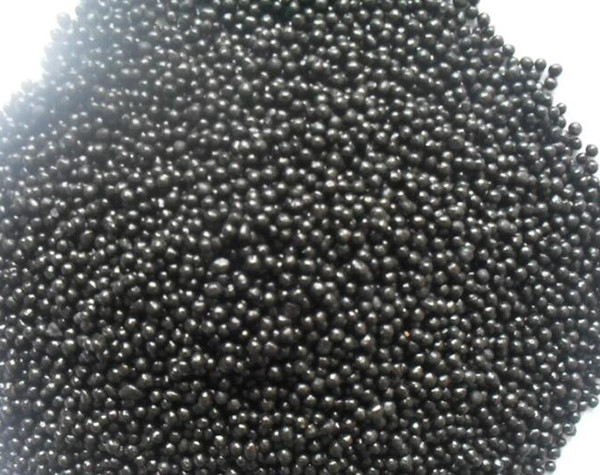

5mm Granules Organic Fertilizer Disc Pelletizer Sludge Ball Making Machine 2

Technical parameter

Model Capacity(t/h) Power(kw) Moisture
YSL-60 1-2 37 20%-40%
YSL-80 2-4 45 20%-40%
YSL-100 3-6 55 20%-40%
YSL-120 5-8 75 20%-40%
YSL-150 6-10 90 20%-40%
