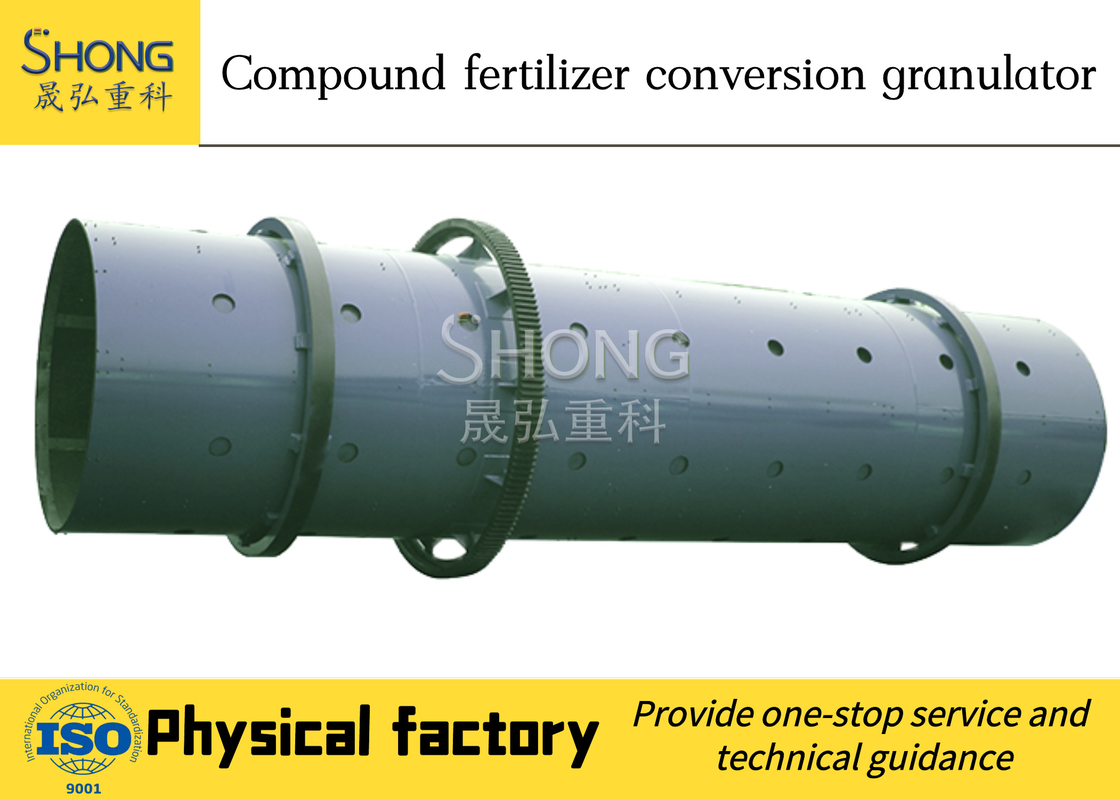

Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making

Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making
Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making
video play

Large Image :  Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO,CE
Model Number: ZG1.6*6
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 Pieces Per Month
Detailed Product Description
Product Name: Rotary Drum Granulator Pelletizer For DAP And NPK Compound Fertilizer Making Material: Carbon Steel/ Stainless Steel
Raw Material: Powder Power: 5-8t/h
Voltage: 380V/415V Speed: 11.5r/min
High Light:

Compound Fertilizer Making Granulator

,

415V Fertilizer Granulator

,

Granulator Pelletizer For DAP

Rotary drum granulator pelletizer for DAP and NPK compound fertilizer making

Introduce:

Rotary drum granulator pelletizer is one of the key equipment of compound fertilizer industry, suitable for cold and hot and high and low concentration granulation mass production of fertilizer. Main means for aggregate wet granulation, through a certain amount of water or steam, the basis of fertilizers in the cylinder body after full wet chemical reaction, in certain conditions, by the performance of the rotating cylinder, between particles into the ball pressure reunion.



Model Dip angle Inner dia Length Speed Power Capacity Dimension
ZG1.2*4 2-2.5 1.2m 4m 17r/min 5.5kw 1-3t/h 4.6*2.2*2m
ZG1.4*5 2-2.5 1.4m 5m 14r/min 7.5kw 3-5t/h 4.8*2.8*2.3m
ZG1.6*6 2-2.5 1.6m 6m 11.5r/min 11kw 5-8t/h 7.0*3.2*3.1m
ZG1.8*7 2-2.5 1.8m 7m 11.5r/min 15kw 8-10t/h 8.3*3.5*3.3m
ZG2.0*8 2-2.5 2.0m 8m 11r/min 18.5kw 10-15t/h 9.1*3.6*3.5m
ZG2.2*8 2-2.5 2.2m 8m 10.5r/min 22kw 15-20t/h 9.5*4.4*3.9m




Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making 0

Use:

The conversion granulator is a granulation equipment commonly used in the production of compound fertilizers, organic fertilizers,biological fertilizers, controlled release fertilizers, etc. It is suitable for large-scale cold and hot granulation and high,medium and low concentration compound fertilizers produce. The main working mode is granulation wet granulation. Through quantitative water or steam, the basic fertilizer is fully chemically reacted after being conditioned in the cylinder. Under the set liquid conditions, the rotation of the cylinder is used to make the material particles Produces a crushing force to agglomerate into a ball.



Product packaging

1. In order to avoid mechanical damage, we use wooden boxes or containers, and fix the machine inside to ensure the integrity of the machine.

2. Delivery time: The productc will be shipped within 15 days once receipt the deposit payment.



Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making 1

Features:
1.The rotary drum granulator pelletizer has high granulation rate of 70% into a ball, back to the small particle size, can be re-granulation.
2.Hot steam improves material temperature, which makes compound fertilizer granulation easy
3.The compound fertilizer granulator finished inside of polyethylene makes raw materials difficult to stick the body, anti-corrosion insulation.

4. The rotary drum fertilizer granulator has high yields,low power consumption and low maintenance costs because of its simple structure.



Company information:

Zhengzhou Tianci Heavy Industry machine Co., Ltd.(Short for “Tianci”) is recognized globally as an expert in process design and equipments manufacturer on fertilizer industry. we have professional technical force, high-quality staff and advanced production equipment, and has the Zhengzhou municipal organic fertilizer environmental protection machinery engineering research and design center. Our products are mainly; Compound fertilizer production line with double roller granulator, NPK fertilizer production line with rotary drum granulator, organic fertilizer production line. we have fertilizer granulator machine, organic fertilizer and compound fertilizer granulator, new type organic fertilizer granulator, rotary drum granulator, roller press granulator, pan granulator, flat-die press granulator, round polishing granulator machine, high pressure on roller dry granulation machine. As a factory only focus on organic fertilizer and compound fertilizer production equipments, we have our modernized workshops which covers about 13,000 square meters with advanced equipments such as CNC machines tools , all equipments before delivery will be tested strictly following the standard of ISO9001:2015, Or custom manufacturing follow BV or SGS standard. with expert on fertilizer equipments manufacturer over 18 years experience, we have expand our equipments and service to all over the world. such as American, Australia, Saudi Arabia, Nigeria, India, Algeria, Indonesia, Turkmenistan. we can provide best service to make it a turnkey project, such as,formula,process design, installation, start-up,training,emergency assistance, field support, spare parts,routine and preventative maintenance We sincerely welcome all the customers at home and abroad to our company

Rotary Drum 415V Granulator Pelletizer For DAP Compound Fertilizer Making 2
