5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste

The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste

5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste
5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste
video play

Large Image :  5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: YSL-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: customer demand, usually in container
Delivery Time: 8-12 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 60 Sets per month
Detailed Product Description
Product Name: Organic Fertilizer Granulator Warranty: 12 Month
Application: Compost Waste Feed Moisture: 20%-40%
Condition: New Voltage: 380V, 50hz
High Light:

Organic Fertilizer Making Pellet Production Line


5T/H Organic Fertilizer Pellet Production Line


Fertilizer Pellet Production Line 50hz

5 Ton/Hour Animal waste organic fertilizer making pellet production line


Product Description

With the rapid development of animal husbandry, there's a lot of manure and sewage. The harmful elements in the excrement seriously exceed the standard, and it is difficult to use traditional ways to return them to the farms. In view of this situation, our company has developed the organic fertilizer production line, which uses mobile, efficient solid-liquid separation technology as the core, then integrates with efficient flip machine, crusher, screening machine, and packaging machine to compose the whole production line.

Production of organic fertilizer

The organic solid waste resource is utilized by building an organic fertilizer plant. The raw materials can be chicken, duck, pig, cattle, sheep manure, biogas residue, mushroom residue, potato residue and crushed crop straw. Through biological fermentation technology and scientific processing (bio-fermentation, high-temperature sterilization, deodorization, drying, crushing, etc.), they're turned into environmentally-friendly and high-efficiency organic fertilizer with good quality and stable effect. Thus, efficient and resourceful utilization of organic waste is realized and it also achieves a win-win situation for both economic and environmental benefits.

5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste 0
Features of Animal waste organic fertilizer making pellet production line
1. The line takes animal manure and agricultural waste as its main material, not only turns the waste into valuable things, but also protects
the environment.
2. The whole fertilizer production process is centralized controlled, so this series of fertilizer machines are highly automatic and easy to
3. Both batching system and packing system are controlled by the computer, thus ensuring the precision of material batching and fertilizer
4. High-quality, stable performance, compact process layout, advanced technology, and convenient maintenance.
5 Ton/Hour Organic Fertilizer Making Pellet Production Line Animal Waste 1

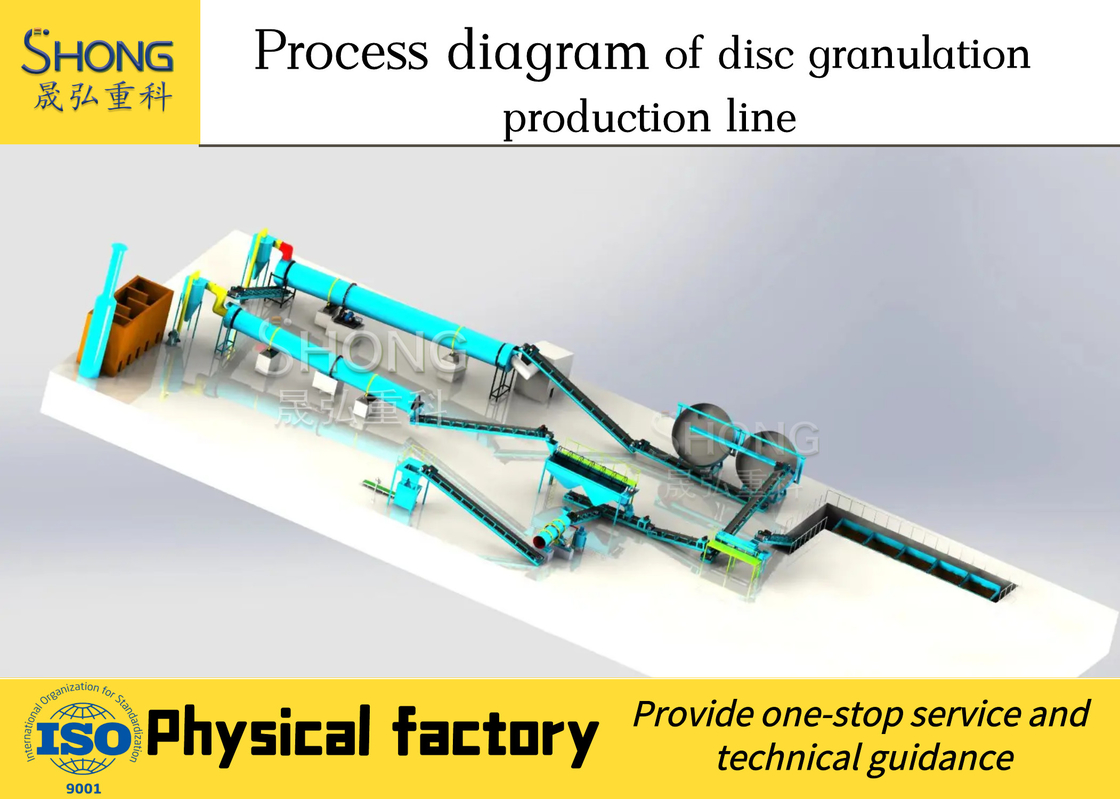

The process of Animal waste organic fertilizer making pellet production line
Bio-organic Fertilizer Production plant is a complete set of equipment from raw materials collection to the organic fertilizer packing.

The whole organic fertilizer production line include the following machines:Raw material Fermentation→ fertilizer crushing machine→ fertilizer mixing machine → rotary drum granulator → rotary drum drying machine → rotary drum cooling machine → rotary drum coating machine → rotary screening machine → packaging machine → spraying granulating system→ belt conveyor → and other accessories.

1.Organic materials fermentation process plays the preliminary but indispensable role in the whole production line. Two main types of compost turner are widely used to turn and mix the compost and accelerate the fermentation speed: Self-propelled compost turner and hydraulic compostturner.

2.Crushing Process: The compost lump materials should be ground before the granulating process. But we can leave out crushing process when the compost material is fine enough. Vertical chain crusher and double-shaft horizontal crusher, two types of crushing machine can be used to crush lump compost fertilizer raw materials.

3.Mixing Process, two types of mixing machine are applied to mix raw materials in the fertilizer production line: horizontal mixer and vertical mixer.

4.Drying process. When granulating, the moisture of fertilizer raw materials should be less than 25%, so we should dry the raw materials if the moisture is more than 25%. Rotary drum drying machine is mainly used for drying the fertilizer with a certain degree of humidity and particle size.

5.Granulator Process. Granulating process is the core part in this production line, so we choose the suitable model of fertilizer granulator according to customers detailed requirements.
Optional granulator equipment: organic fertilizer combination granulator, organic fertilizer special granulator, pair roll extrusion granulator, disc granulator, flat film granulator, bio organic fertilizer spherical granulator, Drum granulator, round tossing machine, etc.; Typical application materials: chicken manure, cow dung, kaolin, etc.
Organic manure, animal manure, manure, manure, composted manure, green manure, sea manure, cake manure, peat, microbes and other organic manure fermented fertilizer granules, the particles are irregular spherical. The granulation rate of Huaqiang Organic Fertilizer Granulator is over 95%, which is suitable for a variety of different formulas. The compressive strength of organic fertilizer is higher than that of disc and drum granulator, and the particle size is uniform. It is suitable for direct granulation after fermentation, saving drying process and reducing manufacturing cost.

6.Rotary Drum Cooling Machine is used for cooling fertilizer to make fertilizer particles stronger.

7.Screening process:Rotary drum screening machine is used to separate the granules from the large particles which need to be returned for the second crushing and granulating. Rotary drum coating machine is used to coat the fertilizer and prevent the fertilizer from sticking together.

8.The last process is packaging process. Fertilizer packaging machine can package bags quantitatively and automatically.Including electronic quantitative packaging scale, silo, automatic sewing machine, etc. It also need some auxiliary equipment for connection such as belt conveyor, bucket elevator, etc.


Function of Organic Fertilizer

1. It can improve and fertilize soil. The organic fertilizer contains mainly organic matter, so its application will increase the organic matter in the soil, loose soil, and also fertilizes the soil.
2. It can increase crop yield and improve crop quality by providing crops with effective nutrients such as nitrogen, phosphorus, potassium, amino acids, etc., meanwhile, it can also promote soil microbial activities.
3. It can improve fertilizer utilization, as organic fertilizer and fertilizer will promote each other, which is conducive to crop absorption.
4. It can increase the soil gap, make the soil loose, so as to promote the development of roots, and improve the drought tolerance of crops.
5. The rational use of organic fertilizer can reduce environmental pollution, protect the environment and ecological balance.
