Place of Origin:
China
Brand Name:
Shenghong
Certification:
CE, ISO9001
Model Number:
Organic Fertilizer Pellet Production Line

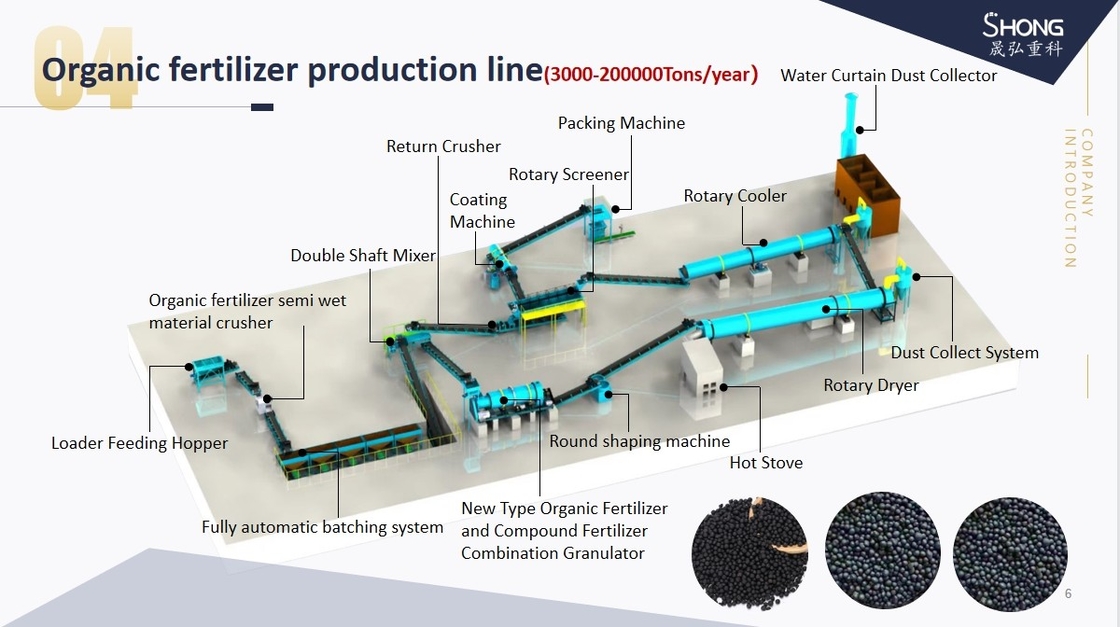

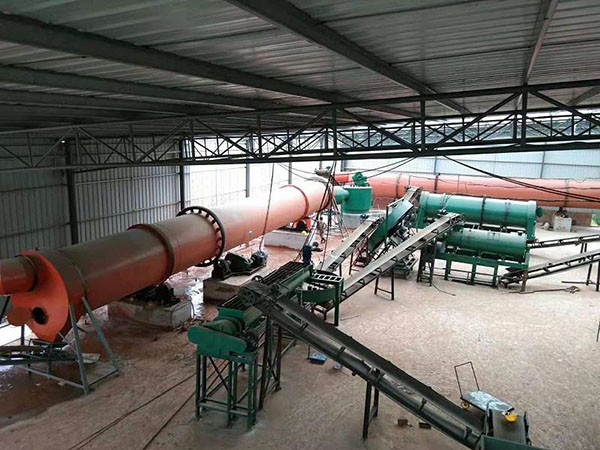

New type Humic acid organic fertilizer stirring teeth drum granulating production line
Introduction to Humic acid organic fertilizer stirring teeth drum granulating production line
This series of Humic acid organic fertilizer stirring teeth drum granulating production line is a new patented product developed by our company and the Agricultural Machinery Research Institute. The machine can not only granulate a variety of organic matter, especially for the coarse fiber materials which are difficult to be granulated by conventional equipment, such as crop straw, wine residue, mushroom residue, drug residue, animal dung and so on. The granulation can be made after fermentation, and it also can be achieved the better effect of grain making to acid and municipal sludge.
Features of Humic acid organic fertilizer stirring teeth drum granulating production line
The first section of the housing is split type assembly without lifting device or manual dismantling. It is easy to clean the inner wall of the shell.
Operation principle: first, the material enters the first granulation section from the uniform feeding part (through the speed regulating feed volume) and prepare for granulation through high speed and adjustable mixing knife, then push to the second granulation section. Granulation material in the two granulation section, through the internal mixing teeth two times granulation and outer cylinder molding, achieve the purpose of granulation, so that the particles have better quality assurance. We designed suction ports and dust outlets in silos, and users can connect vacuum cleaners to meet environmental discharge requirements. We also designed the observation door and the nozzle of the spray tube. The user can spray the liquid into the particles in the drum according to the requirement of particle size.
Parameter of Humic acid organic fertilizer stirring teeth drum granulating production line
| Model |
Cylinder |
Power(kw) |
Capacity(t/h) |
Length*width*height (mm) |
|||
Inclination(0) |
Inner diameter (m) |
Length(m) |
Speed(r/min) |
||||
| SH1.2×4 | 2-2.5 | 1.2 | 4 | 17 | 5.5 | 1-3 | 4600*2200*2000 |
| SH1.5×6 | 2-2.5 | 1.5 | 6 | 11.5 | 7.5 | 3-7 | 7000*1800*1800 |
| SH1.8×7 | 2-2.5 | 1.8 | 7 | 11.5 | 15 | 8-15 | 8300*3500*3300 |
| SH2.0×8 | 2-2.5 | 2 | 8 | 11 | 18.5 | 15-25 | 9100*3600*3500 |
| SH2.2x10 | 2-2.5 | 2.2 | 10 | 10.5 | 30 | 18-30 | 9500*4400*3900 |
| SH2.4x10 | 2-2.5 | 2.4 | 10 | 10 | 37 | 20-30 | 10000*2912*3923 |
| SH2.8x10 | 2-2.5 | 2.8 | 10 | 13 | 75 | 25-50 | 10000*3100*4000 |
Company Profile
Zhengzhou Shenghong Heavy Industry Technology Co., Ltd. is a modern high-tech comprehensive manufacturing enterprise established in 2001 in China.
Its predecessor was the Xingyang Mining Machinery Plant,we have 19 years working experience now.
With a fertilizer machine manufacturing factory which covers about 13,000 square meters, we employ 30 high-quality talents and 70 specialized workers.
Since 2010, we have been providing OEM services for customers. We have strong technical force, highly qualified staff members and R&D, design, manufacturing teams.
We provide customers with process design, equipment manufacturing, installation and commissioning, with full one-stop services.
We are the designated production enterprise of Agriculture Department. We are engaged in agricultural environmental technology development,reducing waste recycling and BB fertilizer equipment research and development. We self-develop multi-functional compound fertilizer equipment,which has the advantages of compact structure, small footprint, and reliable operation.
