Payment & Shipping Terms:
|Granules Shapes:||Powder||Application:||Organic Fertilizer Production|
|Voltage:||380V Or 220V Or Demand||Moisture Of Material:||Below 10%|
|Name:||Organic Fertilizer Production Line||Raw Material:||Chicken Manure, Cow Manure, Pig Manure, Etc.|
|Productivity:||1-20 Thousand Tons Per Year||Type:||Fertilizer Plant, Fertilizer Production|
Organic Fertilizer Disc Granulator Making Machine,
Animal Manure Organic Fertilizer Disc Granulator,
Animal Manure Fertilizer Disc Granulator

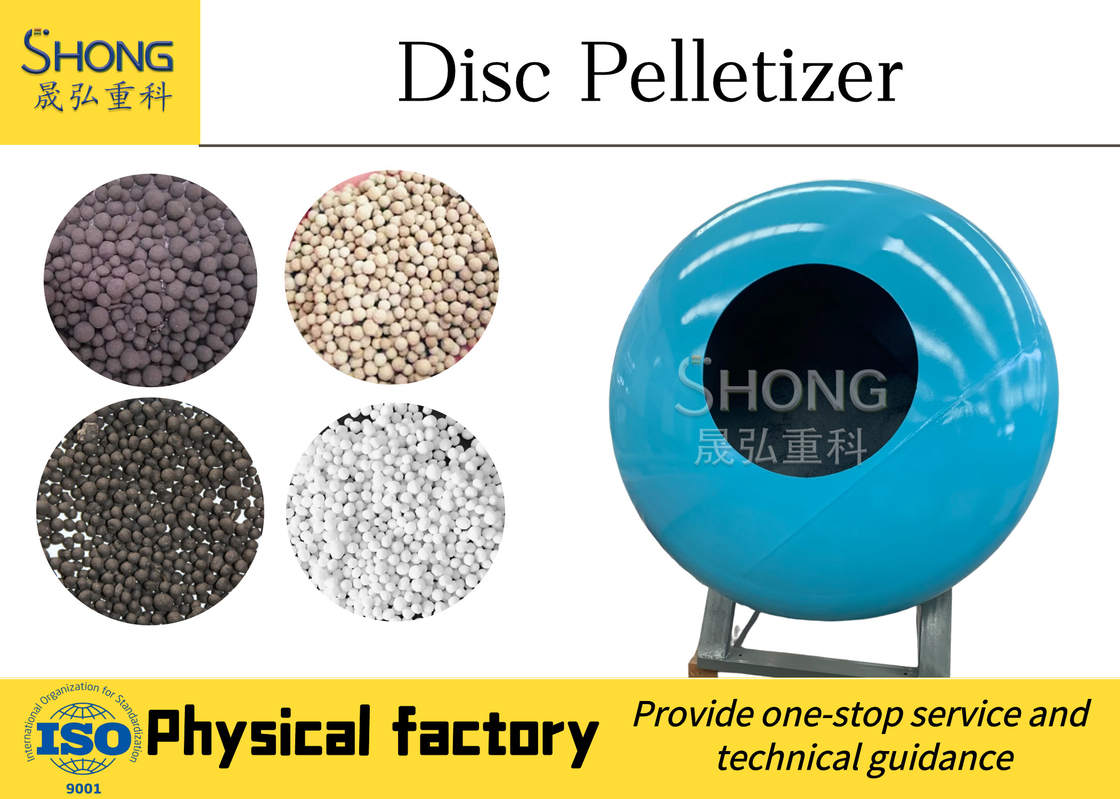

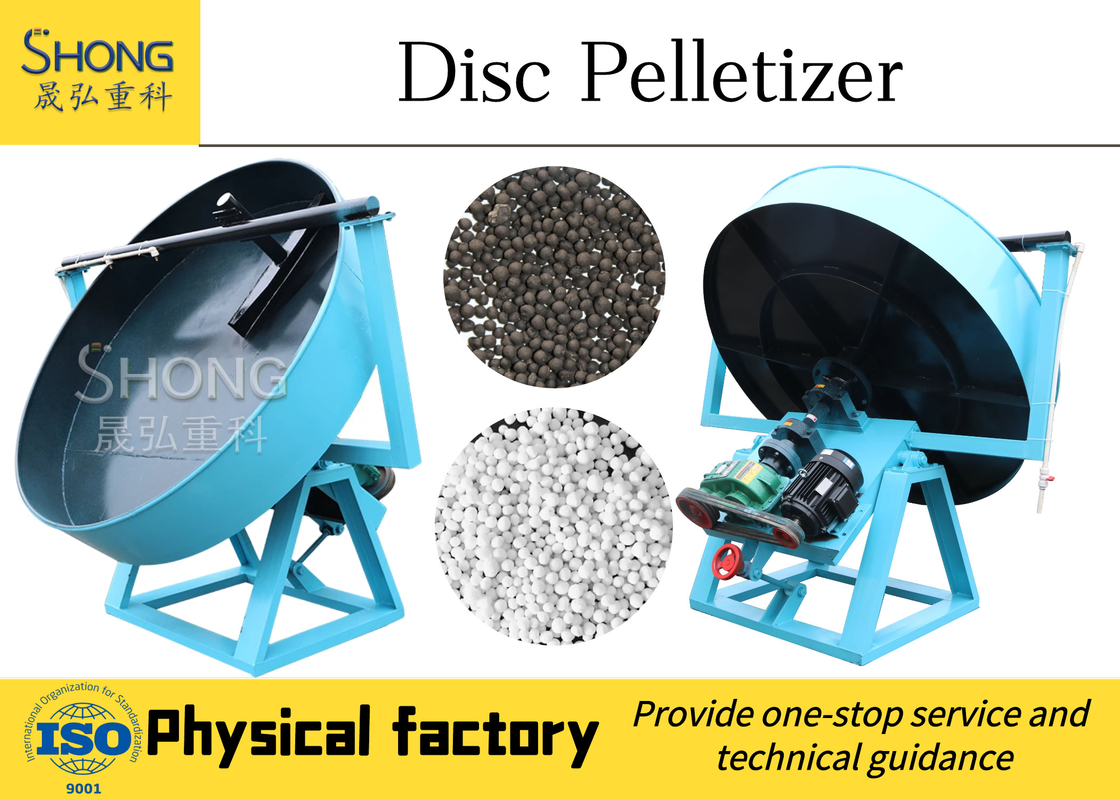

Animal Manure Organic Fertilizer Disc Granulator Making Machine
Disc granulator is country new core patents fertilization equipment. Granulation tray's angle use a whole arc structure, rate of granule-becoming up to 93%. Granulating disc have three feed-out mouth, convenient for intermittent production, greatly reduced the labor intensity, improve labor efficiency. Reducer and motor use flexible belt transmission, have a smooth start-up, slow down impact, improve using life of equipment. Granulation tray's bottom using a number of radiation steel plate to strengthen, sturdiness and durability, never deformation. Solid base design, not need been fixed by anchor bolt, smooth operation. Disc pelletizer main gear use high-frequency quenching, life increase to 1 time. Disc granulator plate lined with high-strength glass fiber, anti-corrosion and durable.
The angle of granulation disk adopts the whole round arc structure, which can make sure the rate of granulation is up to 93% and even above it.
2. Granulation disk has three discharging holes which are convenient for intermittent production, thus can greatly reduce the labor intensity and improve working efficiency.
3. Driven by flexible belt, the retarder and electromotor start stable, which decrease the impulse force and lengthen the life-span of the equipment.
4. The bottom of granulating disk was strengthened by many radiation steel-plates, which is firm, durable and never distortion.
5. The thickened, weighted and firm base can run stably without the holding down bolts to fix.
6. The main gear of granulation is hardened by high frequency.
Powder raw materials will be fed from the top equipment to join, the degassing, spiral compression and transmission to the two roll arc wall, two roll speed, reverse rotation, the material bite into the slot and forced compression, material by compressing area after the pressure gradually decreases, and its natural prolapse, surface tension and gravity into the broken machine. After entering the vibrating screen for screening, qualified products are sent to the finished product warehouse or directly packed through the conveyor, and materials under the powder screen are sent back to the raw material warehouse for secondary roller pressing through the return device. The size of extrusion pressure can be adjusted by the hydraulic system according to the need of particle strength. By changing the groove form of the roll surface, materials such as sheet, strip, olive and flat ball can be obtained.
Tianci Machinery has won many honors through outstanding products and advanced technology and we always see product quality as life and customers as God. Customers mean everything and we will always carry out the quality principle of being responsible for every procedure, every product and every customer and serve every customer with heart and soul. Everything we do, we do it for your benefit and we deeply believe that our sincerity will be finally paid back.
