Bio Fertilizer Granulator Production Line With Discs Agricultural Waste

Bio Fertilizer Granulator Production Line With Discs Agricultural Waste
Bio Fertilizer Granulator Production Line With Discs Agricultural Waste Bio Fertilizer Granulator Production Line With Discs Agricultural Waste Bio Fertilizer Granulator Production Line With Discs Agricultural Waste

Large Image :  Bio Fertilizer Granulator Production Line With Discs Agricultural Waste

Product Details:
Place of Origin: China
Brand Name: Shenghong
Certification: CE, ISO9001
Model Number: Organic Fertilizer Pellet Production Line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 piece per month
Detailed Product Description
Granules Shapes: Powder Application: Organic Fertilizer Production
Voltage: 380V Or 220V Or Demand Moisture Of Material: Below 10%
Name: Organic Fertilizer Production Line Raw Material: Chicken Manure, Cow Manure, Pig Manure, Etc.
Productivity: 1-20 Thousand Tons Per Year Type: Fertilizer Plant, Fertilizer Production
Highlight:

Bio Fertilizer Granulator Production Line

,

Bio Fertilizer Granulator With Discs

,

Agricultural waste Bio Fertilizer Granulator

Bio Fertilizer Production Line with Discs Fertilizer Granulator

Raw material of Bio fertilizer production line with discs fertilizer granulator
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran, etc.
2. Animal manure: mixture of poultry litter and animal waste, such as the wastes of slaughterhouse, fish market, urine and dung of cattle,
pigs, sheep, chicken, ducks, geese, goat, etc.
3. Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue, etc.
4. Home scrap: food waste, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, sewer, etc.


Bio Fertilizer Granulator Production Line With Discs Agricultural Waste 0
Introduction of Bio fertilizer production line with discs fertilizer granulator
The bio-organic fertilizer production plant is commonly used to process different fermented organic substance into bio-organic fertilizer. It adopts one-step molding technology. Animal manure and agricultural waste are recycled as the main raw materials, thus manure or dung waste is not only creating economic benefits for the enterprise, but also making a great contribution to environmental projects for mankind.
Bio Fertilizer Granulator Production Line With Discs Agricultural Waste 1


Characteristics of Organic Fertilizer Production Line

1.Strong adaptability. Suitable for the different formulations, different moisture content, and different concentrations of the compound fertilizer and organic fertilizer.

2.Unique drying and cooling processing and handling. It can be sufficient to drying and cooling material, and again spheronization and polishing on pellets.
3.Low temperature drying technology. It can produce the rich in active microbial ecological fertilizer.
4.Advanced technological processing design. The advantage of equipment layout is reasonable, compact structure, small spatial footprint.
5.Using the rotary drum dryer by the main hosts of system. The advantage is strong adaptability, easy operation, and running stability, and most reliability.
6.The hot air furnace could choose oil, gas, coal, biomass and other efficient automatic (or manual) hot air furnace as heat
source. The advantage is reasonable design, high thermal efficiency, and low drying cost.
7.Unique sealing device. It can be increasing the efficiency, without dust particles, and improve the operating environment
8.Suitable for the different desired customers that have different production capacity requirement. For example, the requirement capacity of 1-20 million tons per year.


Bio Fertilizer Granulator Production Line With Discs Agricultural Waste 2
The process of Bio fertilizer production line with discs fertilizer granulator
Bio-organic Fertilizer Production plant is a complete set of equipment from raw materials collection to the organic fertilizer packing.

The whole organic fertilizer production line include the following machines:Raw material Fermentation→ fertilizer crushing machine→ fertilizer mixing machine → rotary drum granulator → rotary drum drying machine → rotary drum cooling machine → rotary drum coating machine → rotary screening machine → packaging machine → spraying granulating system→ belt conveyor → and other accessories.

1.Organic materials fermentation process plays the preliminary but indispensable role in the whole production line. Two main types of compost turner are widely used to turn and mix the compost and accelerate the fermentation speed: Self-propelled compost turner and hydraulic compostturner.

2.Crushing Process: The compost lump materials should be ground before the granulating process. But we can leave out crushing process when the compost material is fine enough. Vertical chain crusher and double-shaft horizontal crusher, two types of crushing machine can be used to crush lump compost fertilizer raw materials.
3.Mixing Process, two types of mixing machine are applied to mix raw materials in the fertilizer production line: horizontal mixer and vertical mixer.
4.Drying process. When granulating, the moisture of fertilizer raw materials should be less than 25%, so we should dry the raw materials if the moisture is more than 25%. Rotary drum drying machine is mainly used for drying the fertilizer with a certain degree of humidity and particle size.

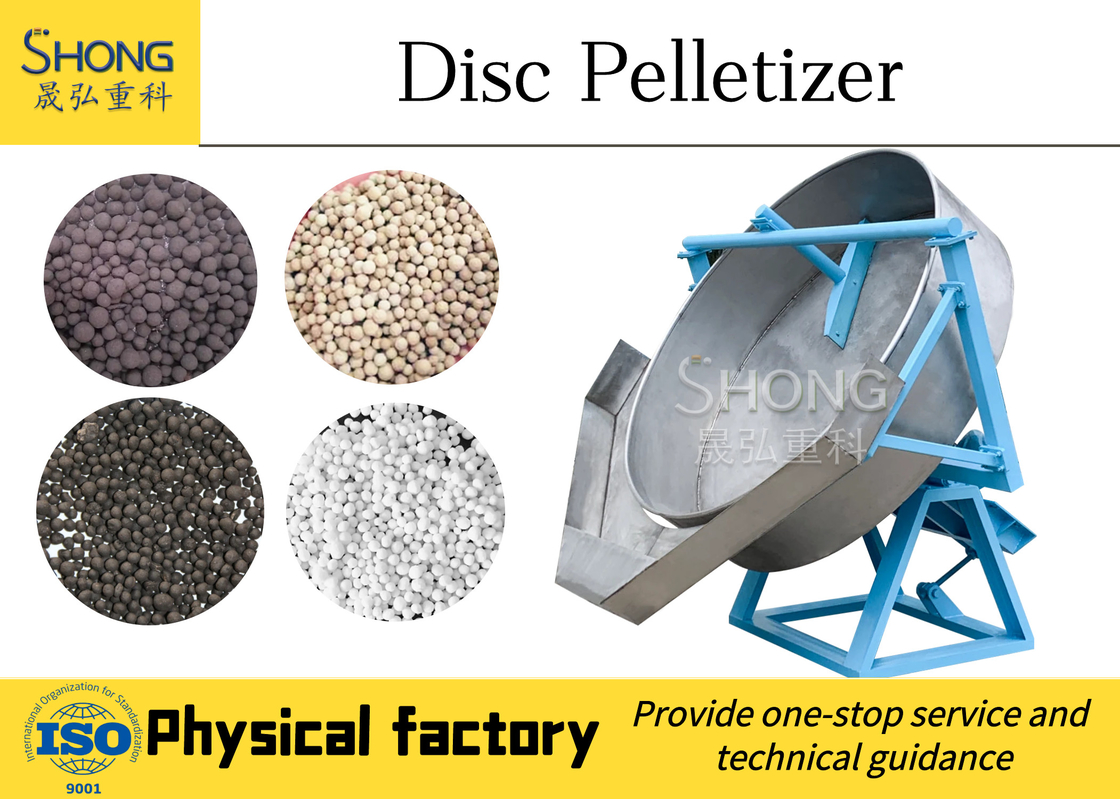

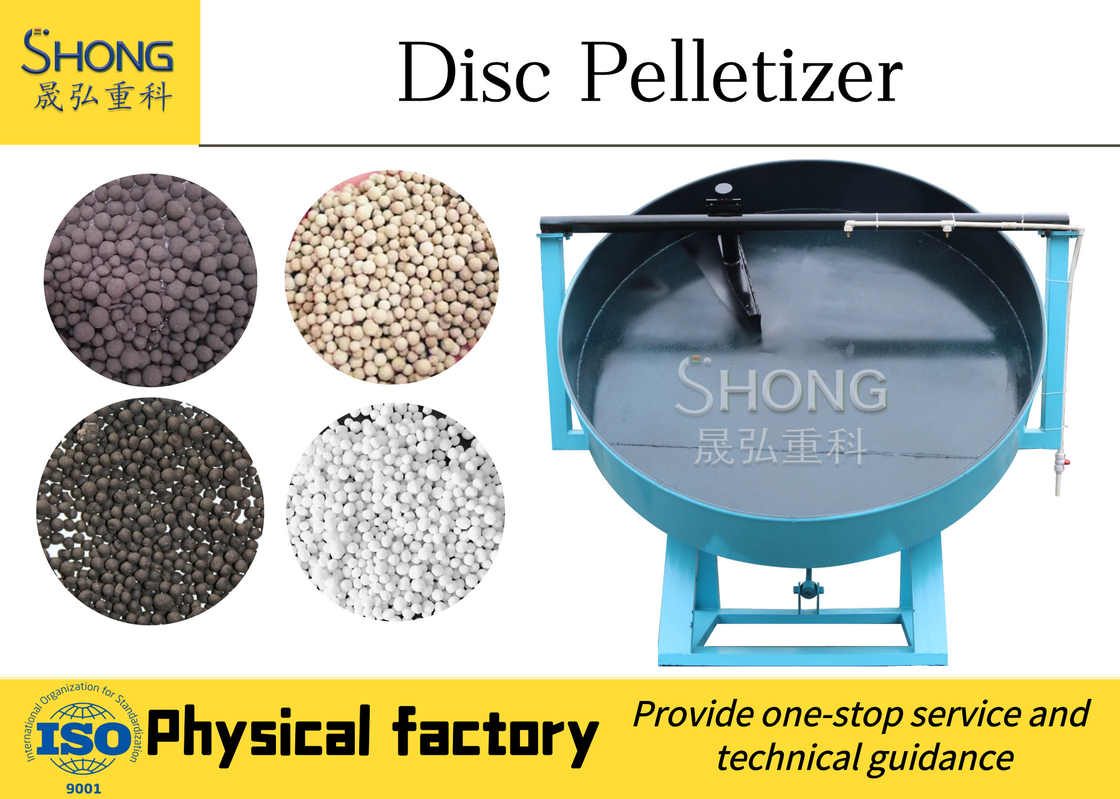

5.Granulator Process. Granulating process is the core part in this production line, so we choose the suitable model of fertilizer granulator according to customers detailed requirements.
Optional granulator equipment: organic fertilizer combination granulator, organic fertilizer special granulator, pair roll extrusion granulator, disc granulator, flat film granulator, bio organic fertilizer spherical granulator, Drum granulator, round tossing machine, etc.; Typical application materials: chicken manure, cow dung, kaolin, etc.
Organic manure, animal manure, manure, manure, composted manure, green manure, sea manure, cake manure, peat, microbes and other organic manure fermented fertilizer granules, the particles are irregular spherical. The granulation rate of Huaqiang Organic Fertilizer Granulator is over 95%, which is suitable for a variety of different formulas. The compressive strength of organic fertilizer is higher than that of disc and drum granulator, and the particle size is uniform. It is suitable for direct granulation after fermentation, saving drying process and reducing manufacturing cost.
6.Rotary Drum Cooling Machine is used for cooling fertilizer to make fertilizer particles stronger.
7.Screening process:Rotary drum screening machine is used to separate the granules from the large particles which need to be returned for the second crushing and granulating. Rotary drum coating machine is used to coat the fertilizer and prevent the fertilizer from sticking together.
8.The last process is packaging process. Fertilizer packaging machine can package bags quantitatively and automatically.Including electronic quantitative packaging scale, silo, automatic sewing machine, etc. It also need some auxiliary equipment for connection such as belt conveyor, bucket elevator, etc.
