When producing 1 ton -20 tons per hour organic fertilizer powder granule production line equipment

Composting production linechicken manure recycling organic fertilizer production plant

Due to the high humidity and stickiness of chicken manure. Our tumble dryers have been optimized over conventional tumble dryers to be more efficient when handling high moisture and sticky materials. The dryer is designed with a higher diameter/length ratio, unique flight distribution and shape, and an efficient internal crushing mechanism.

Chicken manure is rich in nutrients and trace elements and is a good organic fertilizer. The development of poultry manure compound organic fertilizer can not only turn waste into wealth, but also reduce environmental pollution and prevent the spread of diseases. It has good economic and social benefits. The manure dryer produced by our company belongs to the compound organic fertilizer production line equipment.

Production Process

1. The organic material fermentation process plays a primary but indispensable role in the entire production line. There are two main types of compost turners for turning and mixing compost to speed up fermentation: self-propelled compost turners and hydraulic compost turners.

2. Crushing process: Compost block materials should be crushed before granulation. But when the compost material is fine enough, we can omit the crushing process. Vertical chain crusher and double-shaft horizontal crusher, both types of crushers can be used to crush lumpy fertilizer raw materials.

3. Mixing process, there are two types of mixers for mixing raw materials in the fertilizer production line: horizontal mixers and vertical mixers.

4. Drying process. When granulating, the moisture of fertilizer raw materials should be less than 25%, and the raw materials with moisture greater than 25% should be dried. The rotary drum dryer is mainly used for drying fertilizers with certain humidity and particle size.

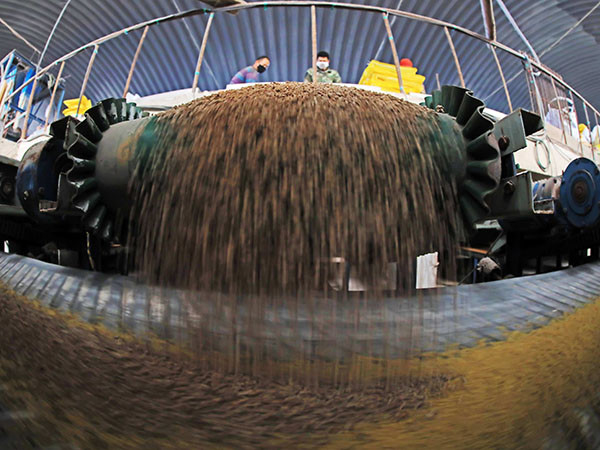

5. Granulation process. The granulation process is the core part of this production line, so we choose the appropriate type of fertilizer granulator according to the specific requirements of customers.

Optional granulation equipment: organic fertilizer combination granulator, organic fertilizer special granulator, double-roll extrusion granulator, disc granulator, flat film granulator, bio-organic fertilizer spherical granulator, drum Granulator, circular throwing machine, etc.; typical application materials: chicken manure, cow dung, kaolin, etc.

Organic fertilizer, animal manure, manure, organic fertilizer, compost, green manure, sea manure, cake fertilizer, peat, microorganism and other organic fertilizer fermented fertilizer particles, the particles are irregular spherical. The granulation rate of Huaqiang organic fertilizer granulator is over 95%, which is suitable for many different formulas. The compressive strength of organic fertilizer is higher than that of disc and drum granulator, and the particle size is uniform. It is suitable for direct granulation after fermentation, saving drying process and reducing manufacturing cost.

6. Drum cooler is used to cool the fertilizer to make the fertilizer granules more solid.

7. Screening process: The rotary drum screening machine is used to separate the particles from the large particles, and needs to be returned for secondary crushing and granulation. The drum coater is used to coat the fertilizer to prevent the fertilizer from sticking together.

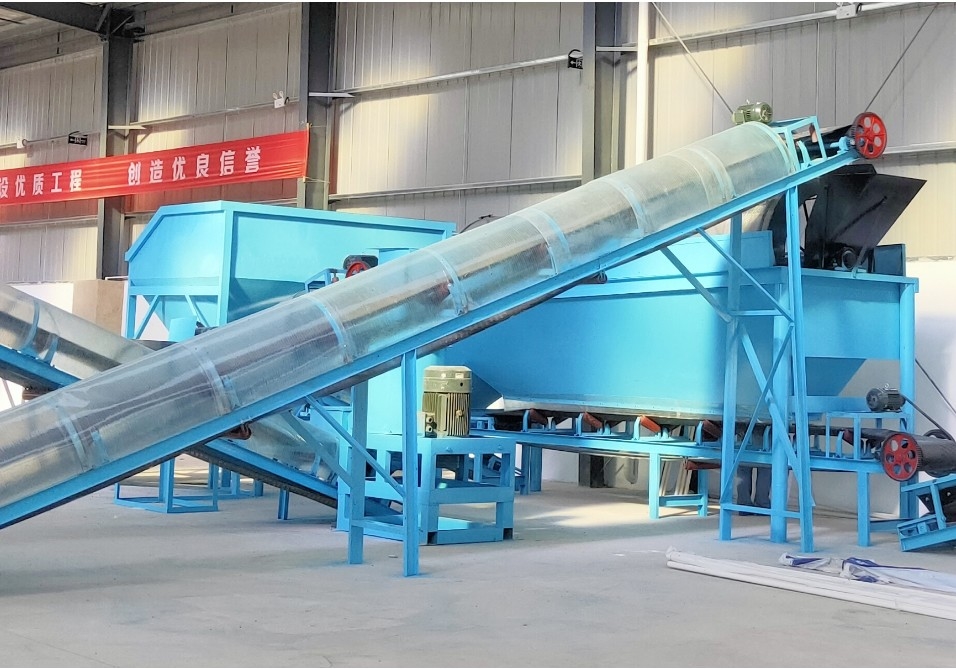

8. The last process is the packaging process. The fertilizer packaging machine is a quantitative automatic packaging bag equipment, including electronic quantitative packaging scales, silos, automatic bag sewing machines, etc., and some auxiliary equipment is needed for connection, such as belt conveyors, bucket elevators, etc.

Features

1. High degree of mechanization, large production capacity, continuous operation characteristics.

2. Well-organized, easy to operate, the material runs smoothly through the resistance of the cylinder,

3. Good quality, low power consumption and low maintenance cost.

4. Wide application range; good drying uniformity.

5. While drying materials, the dryer can also achieve the purpose of sterilization and deodorization.
