Hydraulic Roller Extrusion Granulator with Adjustable Speed and Dry Granulation Process for 2-10mm Pellets
Hydraulic Roller Extrusion Granulator with Adjustable Speed and Dry Granulation Process for 2-10mm Pellets

Hydraulic Roller Extrusion Granulator with Adjustable Speed and Dry Granulation Process for 2-10mm Pellets

Product Details

Place of Origin: China,henan

Brand Name: Shenghong Heavy Industry

Certification: CE,ISO

Model Number: SDZ

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: can be negotiated

Packaging Details: Customer demand, usually in container

Delivery Time: 15 days

Payment Terms: L/C,T/T,D/P

Supply Ability: 80 sets per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

High Performance Fertilizer Granulator Machine

,

Optimal Fertilizer Production Granulator Machine

,

Compound Fertilizer Granulator Machine

Type Of Machine:
Compound Fertilizer Granulator
Pellet Diameter:
2-10mm
Speed:
Adjustable
Granulation Type:
Dry Type
Moisture:
2%-6%
Function:
Making NPK Compound Fertilizer
Color:
Customizable
Weight:
1200kg
Type Of Machine:
Compound Fertilizer Granulator
Pellet Diameter:
2-10mm
Speed:
Adjustable
Granulation Type:
Dry Type
Moisture:
2%-6%
Function:
Making NPK Compound Fertilizer
Color:
Customizable
Weight:
1200kg
Product Description

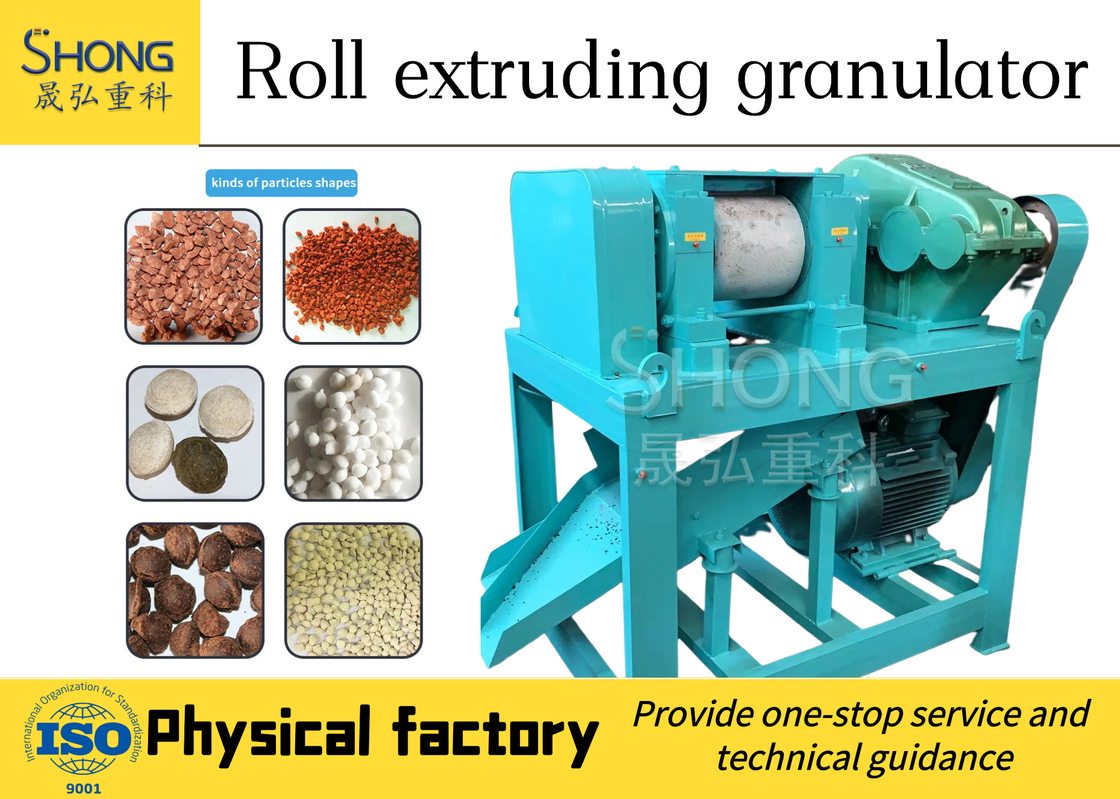

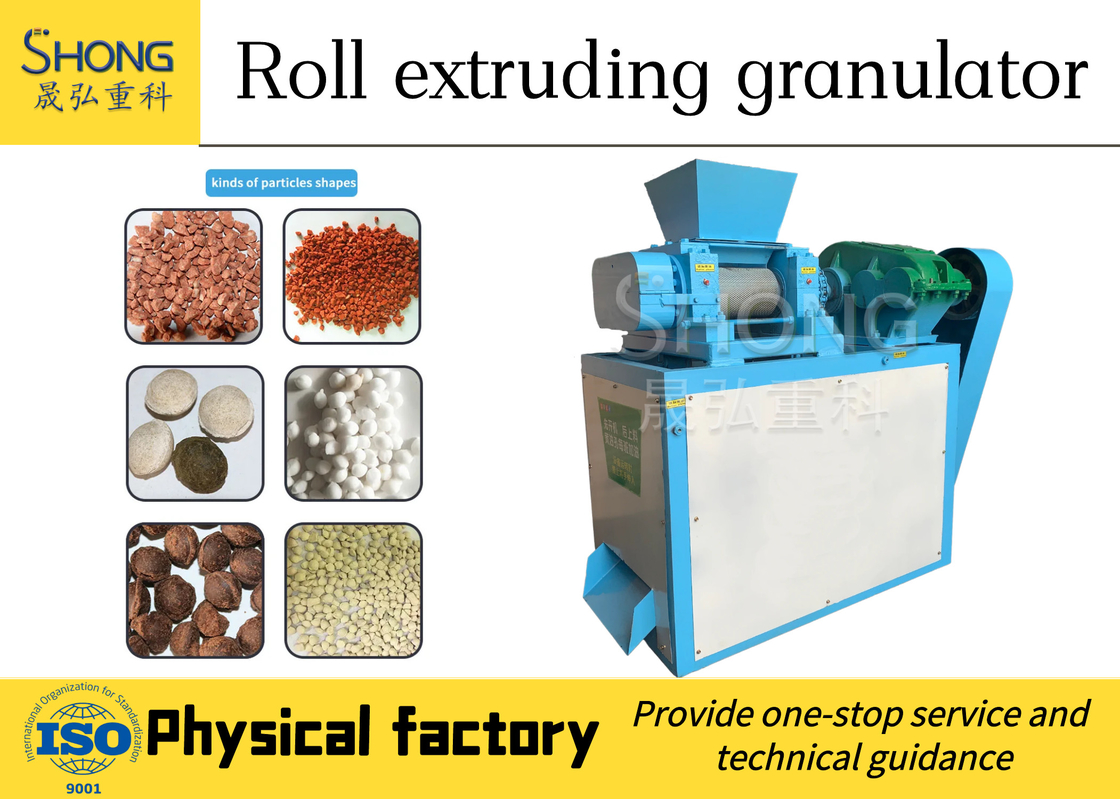

Heavy-Duty Hydraulic Roller Extrusion Granulator – SHZ Series for Industrial Granulation
Product Overview

The SHZ series hydraulic roller extrusion granulator is a robust dry granulation solution built for continuous industrial operation. Featuring an advanced hydraulic pressure control system, this machine delivers consistent, high-intensity extrusion force, making it ideal for processing difficult-to-granulate materials into high-density, uniform particles.

Hydraulic Roller Extrusion Granulator with Adjustable Speed and Dry Granulation Process for 2-10mm Pellets 0
Industries & Materials
Industry Typical Materials
Fertilizer Compound fertilizer, NPK, organic-inorganic blends
Chemical Sodium sulfate, potassium chloride, calcium carbonate
Pharmaceutical & Feed Active ingredients, additives, premixes
Metallurgy & Mining Ore fines, rare earth concentrates, slag powders
Environmental Protection Dust collection fines, solid waste recycling
Coal & Energy Coal fines, coke powder, biomass materials
Key Features
  • Hydraulic roller adjustment Precise pressure control for optimal granulation results
  • Dry granulation process No binder or drying required, significant energy savings
  • Heavy-duty roller construction Corrosion-resistant, wear-resistant, impact-resistant alloy
  • High capacity range 2 to 10 tons per hour to suit different production scales
  • Adjustable particle size Finished granules from 3mm up to 60mm
  • Low maintenance design Sealed structure reduces dust leakage; easy roller access
How It Works
  1. Feeding - Raw material enters the hopper evenly.
  2. Extrusion - Hydraulic system forces two counter-rotating rollers together, compressing material into dense sheets or strips.
  3. Crushing & Shaping - Sheets fall into a crushing chamber and are broken into small granules.
  4. Screening - Vibrating screen separates qualified granules from fines.
  5. Discharging - Finished product exits via the discharge chute; fines are recycled.
Technical Specifications
Model Main Power (kW) Rotation Speed (r/min) Output (t/h) Particle Size (mm) Overall Dimensions (mm)
SHZ-30 55 1450 2～4 3～30 2300×2480×2050
SHZ-45 75 1480 3～6 3～50 2580×2100×2110
SHZ-60 90 1485 5～10 5～60 3000×2800×2200
Key Benefits
Criterion Benefit
Energy Cost No drying = lower electricity and fuel consumption
Product Quality High-density granules with low dust and high strength
Operational Safety Hydraulic overload protection prevents equipment damage
Environmental Compliance Dry process, zero wastewater, minimal dust emission

Get a Quote

Tell us your material characteristics and required capacity. Our engineering team will recommend the most suitable SHZ model for your production line.
