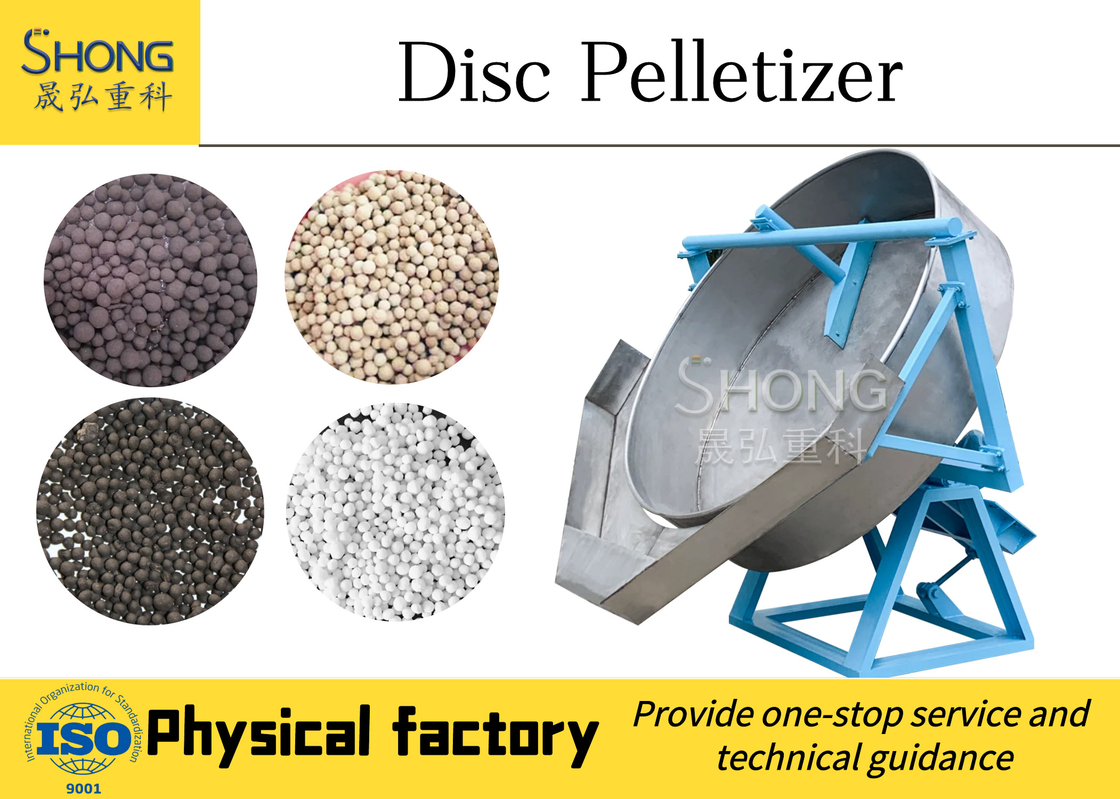

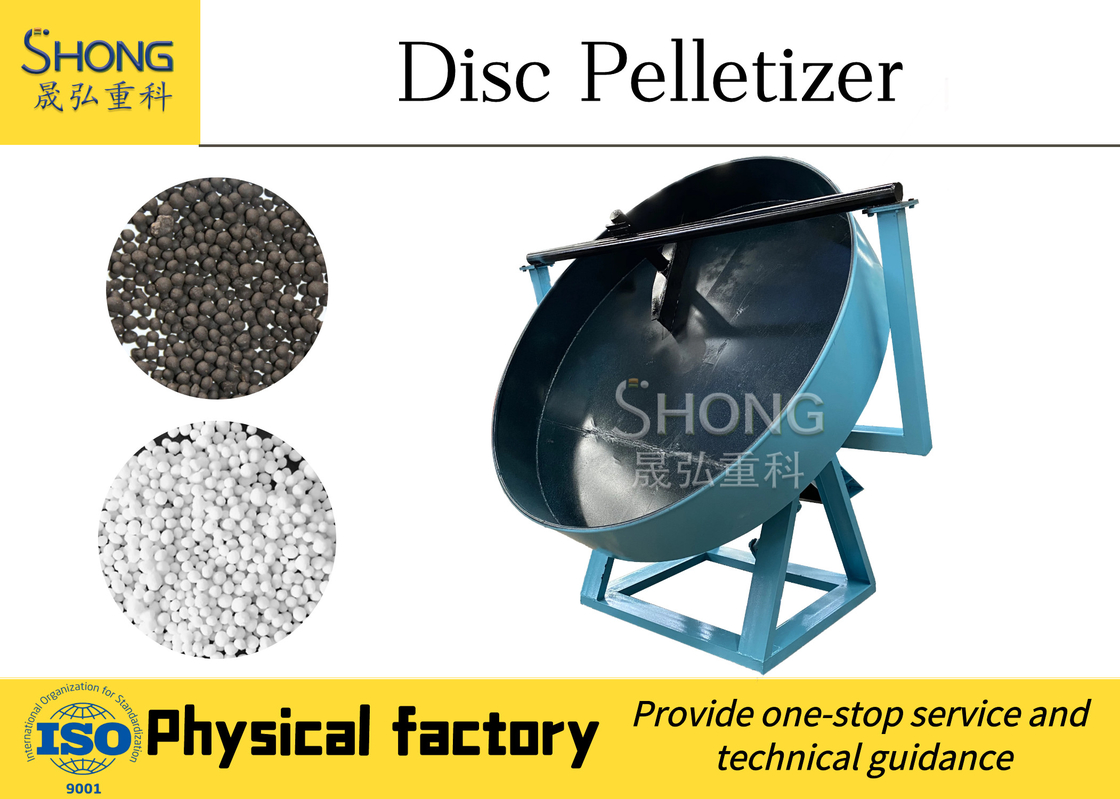

Disc Compound Fertilizer Granulator with 90% Qualified Pellets Featuring Unpowered And Powered Scrapers and Adjustable Disc Inclination

SHQ disc compound fertilizer granulator is available in both unpowered scraper and powered scraper configurations. Both types feature simple structure, convenient operation, easy moisture control, and produce pellets with high hardness.

The disc compound fertilizer granulator employs a massive structure with disc bottom reinforced by multiple radiation steel plates. The motor and reducer utilize flexible belt driving, ensuring smooth startup, low impact, and extended service life.

• Novel structure with light weight and low height for convenient process layout
• Adjustable disc inclination for optimal operation
• Disc composed of disc bottom and adjustable sections with protective flange to prevent pellet strain
• Dual scraper system (unpowered and powered) ensures thorough cleaning of disc bottom and sides, achieving excellent pelletizing results with over 90% qualified pellets

Raw material powder forms uniform particle cores that are fed into the disc. Through centrifugal force, friction, and gravity, these cores follow a parabolic trajectory within the disc. During rolling, moisture evaporates from the core surface, and due to material cohesiveness and plasticity, the cores gradually enlarge by accumulating additional raw powder.

The natural volatilization of surface liquid film combined with material cohesiveness produces pellets with excellent intensity. When disc inclination, edge height, rotation speed, and moisture are properly set, pellets of varying diameters roll down from the disc edge at different angles due to gravity differences, ultimately discharging from the rotating inclined disc body.

The compound fertilizer granulator is carefully packaged to ensure safe delivery. Each unit is wrapped in protective plastic to prevent scratches and damage, then placed in sturdy cardboard boxes sealed securely with tape. Packages are clearly labeled with product information for easy identification.

Shipping: We provide free shipping to all locations within the United States. Orders are processed within 24 hours and shipped via standard ground shipping, with delivery typically within 3-7 business days. Expedited shipping options are available for an additional fee.

Zhengzhou Shenghong Heavy Industry Technology Machinery Co., Ltd. (Shenghong Machinery) is globally recognized as an expert in process design and equipment manufacturing for the fertilizer industry. We specialize in organic fertilizer production lines (5,000 to 100,000 tons annually) and compound fertilizer production lines (5,000 to 200,000 tons annually).

Shenghong consistently helps clients turn ideas into realized processes, solve material and process challenges, and create lasting value.

We serve customers from over 40 countries including Australia, Germany, South Korea, Nigeria, Pakistan, Malaysia, Chile, Turkey, Malawi, Algeria, and Saudi Arabia. Clients consistently praise our machinery quality and performance.

We actively participate in international exhibitions such as Indonesia Exhibition, Kenya Exhibition, and Shanghai CAC Exhibition, successfully securing orders and expanding our global presence.

We provide comprehensive support including equipment consultation, process design, site planning, technical support, operation training, and free test runs. Our professional team offers on-site installation services to ensure proper equipment setup and debugging.

We conduct reasonable layout and installation based on your specific site conditions and equipment requirements, ensuring operational stability and safety.

Pre-sale Services:

• Comprehensive technical and business consultation services
• Proposing optimal schemes and equipment for client needs
• Designing and fabricating customized products according to special requirements
• Regular training of highly qualified service technicians

After-sales Services:

• Rigorous quality inspection throughout all working procedures
• Fast and secure delivery
• Assistance with equipment foundation construction
• Dispatching engineers for installation and debugging
• On-site training for first-line operators
• Regular client visits to resolve production challenges
• Life-long maintenance service and technical exchange

1. Are you a manufacturer or trading company?
We are a professional manufacturer specializing in fertilizer process machines including granulators, crushers, mixers, packing machines, feeding equipment, and conveyor systems.

2. What is the delivery time?
In-stock machines ship immediately, while out-of-stock items typically ship within 5-7 days.

3. How long is the warranty?
12-month warranty covering manufacturing defects, excluding artificial or deliberate damage.

4. What support is available for operational issues?
We provide English manuals and operation videos. For complex issues, we can dispatch engineers to your facility.

5. Do you provide installation services?
Single machines include user instructions and operation videos. Production lines include professional construction drawings and engineer guidance for installation and worker training.

6. Can we visit your factory for machine testing?
We warmly welcome clients to visit our factory for machine testing and demonstrations.

7. Can we see fertilizer plants using your equipment?
We can arrange visits to fertilizer plants operating with our equipment.
