Double Roller Extrusion Compound Fertilizer Granulator With CE Certificate

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : customer demand, usually in container Delivery Time : 5-8 working days
Payment Terms : L/C, T/T, D/A, Western Union Supply Ability : 80 sets per month
Place of Origin: Zhengzhou, China Brand Name: Tianci
Certification: BV, SGS, ISO Model Number: DZJ-II-2.0

Detail Information

Raw Material Of Fertilizer: Dry Powder Raw Material Of Machine: Carbon Steel
Condition: New Granules Dia: 2.5-20mm
Power: 18.5kw Type Of Machine: Compound Fertilizer Granulator
Warranty: 1year Capacity: 1.5 Tons Per Hour
High Light:

fertilizer blending equipment

,

fertilizer blending machine

Product Description

Double Roller Extrusion Compound Fertilizer Granulator With CE Certificate



Introduction of compound fertilizer granulator

Double roller press compound fertilizer granulator, belong to the extrusion slip model, its working principle is: the motor drive the belt and pulley, transfer to the drive shaft through the speed reducer, through the open gear synchronously with the driven shaft, the double rollers rotate in the opposite direction. The raw material input through the feed hopper, and after the extrusion molding, demoulding granulating, through a chain transfer to crushing and screening, after separating , the finished granules come out, and the powder will be back to the mixer, for granulation again. With the continuous rotation of the motor, the continuous input of material, to achieve mass production.

Our compound fertilizer granulator is a key fertilizer equipment in compound fertilizer granulation. Roller-type granulator is a new-designed fertilizer roller compaction granulation device developed & researched by ourselves. Materials are granulated at room temperature, and there is no drying process, more energy-saving and cost-reducing. With the characteristics of small investment, large profits, and quick results, the double roller compactor granulator will bring investors bigger economic returns. It can be used in compound fertilizer production with high, medium and low concentration.



Application of compound fertilizer granulator
The compound fertilizer granulator is used in 30,000 t/y compound fertilizer production line & other products manufacturing, such as capsule filling particles, pigments, detergents, catalysts, fertilizer, inorganic salts, calcium hypochlorite, pesticides, oxides, etc., industrial dust recovery materials: such as foundry dust, lead, zinc, aluminum dust, converter dust, grinding dust, etc.



Parameter of compound fertilizer granulator

Model DZJ-II-2.0
Product name Compound fertilizer granulator
Voltage 380V/50Hz, as your request
Capacity 1.5-2.5 tons per hour
Granular dia 2.5-20mm
Moisture 2%-5%
Feeding size <=0.5mm
Power 18.5kw

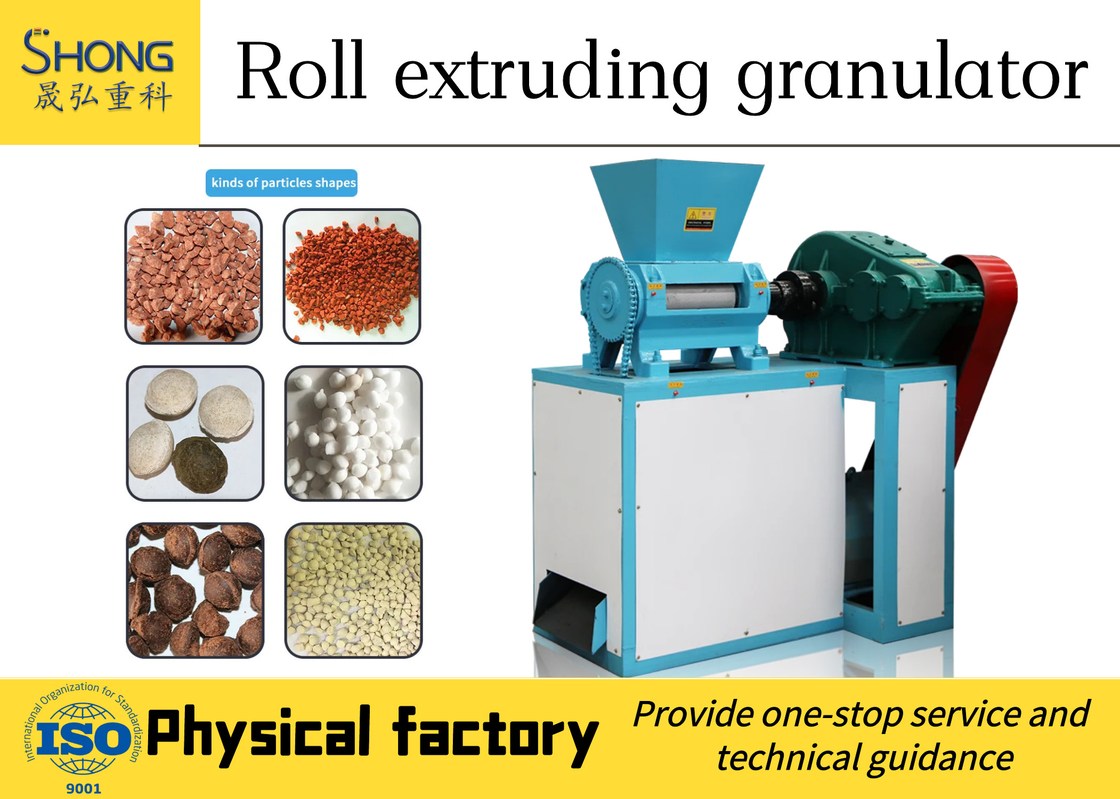

Picture of compound fertilizer granulator

Double Roller Extrusion Compound Fertilizer Granulator With CE Certificate 0Double Roller Extrusion Compound Fertilizer Granulator With CE Certificate 1
