Hydraulic Crawler Type Compost Windrow Turner Bio Organic Manure Turning Machine

Hydraulic Crawler Type Compost Windrow Turner Bio-Organic Manure Turning Machine

Introduction of automatic batching system

The self-propelled manure composting fermentation turning machine is the main machine in the production of bio-organic fertilizer special equipment. The machine adopts four-wheel walking design, which can advance, reverse, turn and be driven by one person. During the driving, the whole vehicle rides on the long-shaped fertilizer base piled up beforehand, and the rotating base shaft mounted under the frame is used to turn over, fluffy and transfer the fertilizer-based raw materials, and the new strip is formed after the vehicle passes. Shaped piles. You can work in an open space or in a workshop shed. A major technological breakthrough of the machine is the integration of the crushing function in the later stage of material fermentation. As the material is gradually dehydrated, the cutter shaft with the crushing device can effectively break the plate formed by the fertilizer during the fermentation process, which not only saves a pulverizer, but also greatly improves the pulverization efficiency and reduces the cost. Fundamentally solved the problem that the production volume is affected by the crushing mechanism.

Parameter:

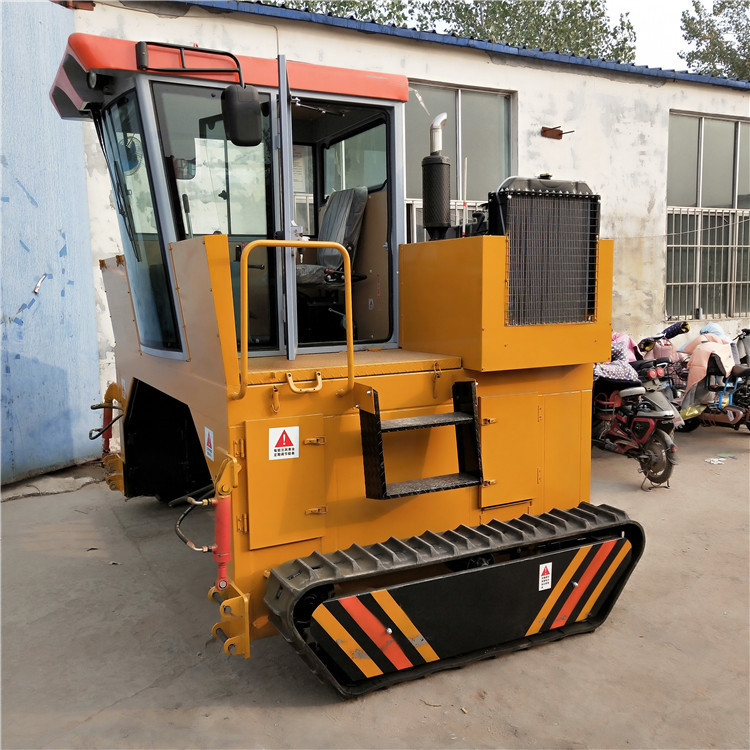

1. Brief introduction of crawler type compost turner:

Crawler type compost turner is a kind of large compost turner, fully hydraulic operating system, lever type steering wheel operation, crawler type walking, strong and durable, strong power, advanced technology, large output, strong turning and throwing ability, turning and throwing drum hydraulic pressure Lifting adjustment, high degree of automation, simple operation and easy to master. It is a professional turning and throwing equipment for aerobic fermentation of organic materials into organic fertilizers.

2. The product is applied to livestock and poultry manure, agricultural waste, sugar factory filter mud, sludge, domestic garbage, etc.

3. Product features Reasonable design structure, high efficiency, low energy consumption, high degree of automation, convenient use and wide application.

4. Working principle

Using the turning and throwing machine can give full play to its stirring function. In the fermentation of raw fertilizers, some auxiliary agents need to be added to meet the requirements of moisture and pH. . It can also improve the permeability of the raw material, making the raw material fluffy and elastic. At the same time, it absorbs the air of the big children and raises the temperature of the compost pile. If the temperature is too high, it can also absorb fresh air, and the temperature is lowered, thus forming The alternating state of medium and high temperature is beneficial to the growth and reproduction of microorganisms.

5. The crawler self-propelled turning and throwing machine has three advantages compared with the traditional wheel turning and throwing machine:

1)The walking process is stable, the contact surface between the track and the ground is large, and it does not slip

2)The two sides of the track can be controlled separately, and can be turned around on the spot, saving labor.

3)The drive is stronger, and the built-in stacker can automatically stack, which saves the trouble of traditional stacking and then turning.
