Machine Type: | Granulator | Granulation Rate: | More Than 95% |
---|---|---|---|
Condition: | New | Use: | Making Fertilizer |
Product: | Fertilizer | Material: | Steel |
Prod Capacity: | 1-3 T/h | Installation: | Customer |
Parcticality: | Fertilizer | Powder: | 30kw |
Power: | Motor | Warranty: | 12 Months |
High Light: | fertilizer granule machine,fertilizer pellet machine |
High pressure physical fertilizer compaction granulating including packaging machine
Our company offers a wide range of machine sizes for high pressure granulating, which covers nearly all requirements of the clients.If your production is low,you can choose small type machine, if you have high production, you can choose one or more sets of machines according to your requirements.And certainly the process of granulating is dry.
Working principle
1. We use mixer mix the raw material.---Mixer
2. We use bucket elevator lift the material up to the silo.----Bucket elevator and Silo

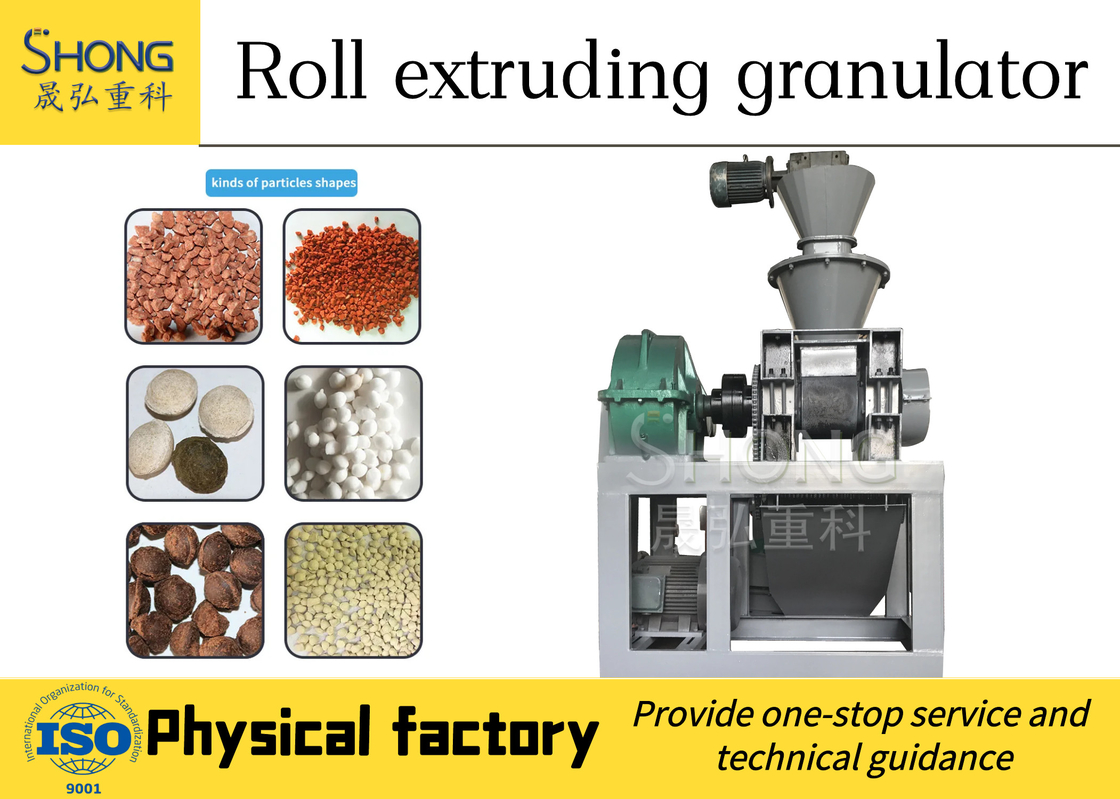

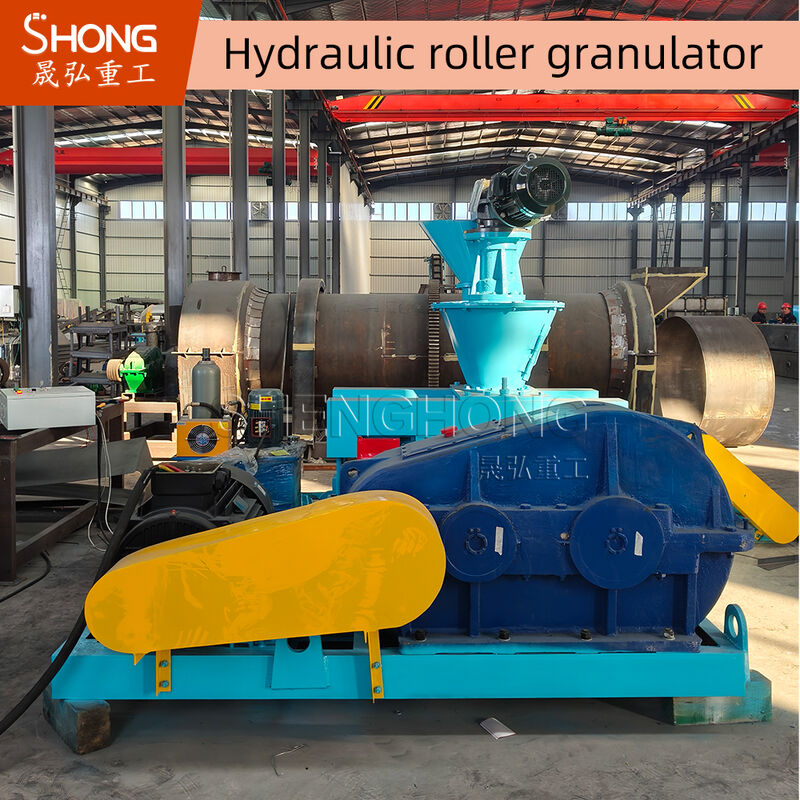

3. The DH650 granulator compress the raw material by double rollers, it mainly depending on the mechanical pressure to compress the dry powder, so the hardness of granular is very high.---------DH650 granulator (including three parts: dosage screw feeder, forced feeder and flaking machine.)
4. Then we get the bar shape products, just as following:
So we need a crusher to crush the bar shape products into 2-4mm irregular granules.
----Crusher (you can decide the size of granules, we will design the size of crusher mesh.)
5. Finally, we will use rotary screen to sieve the final products, the unqualified products, such as dust, big granular and very small granular will be recycled for the next time granulation process. You will get the qualified 2-4mm irregular shape granules successfully.--------Rotary Screen
6. Next we use the second time rotary screen, the purpose is we want to get better result of irregular shape granules after second time screening, the appearance of irregular shape granular will looks more beautiful. -------Second Time Rotary Screen (if you don’t need this, you can delete this process.)
7. The last step is automatic packaging machine. This machine will help you pack the final granular into bags. ----Automatic Packaging Machine
Technical Parameters
Specification of ball press granule:
model | JZL3.6 | JZL4.5 | JZL6.0 |
Roller diameter | Φ360 | Φ450 | Φ600 |
Roller rotation speed | 14-30 | 10-25 | 10-25 |
Maximum molding pressure | 16 | 21 | 30 |
Maximum thickness | 10 | 14 | 18 |
Finished Size | 0.5-5 | 0.5-5 | 0.5-5 |
Product output | 1500-2000 | 2000-35000 |
3500-4000 |
Company Information
Zhengzhou Tianci Heavy Machinery CO.,LTD. Is the agricultural technology research and development of Henan Provincial Department of Agriculture Soil and fertilizer station designated enterprises. The company has strong technical force, high-quality staff and advanced production equipment, and has the Zhengzhou municipal organic fertilizer environment protection machinery engineering research and design center. Long term commitment to organic, inorganic compound fertilizer production equipment development. For the organic , inorganic biological fertilizer plant, garbage, sewage treatment plant, opened up a precedent for harmless treatment of organic waste.
The main products are 1-20 million tons of organic, inorganic, compound fertilizer production line equipment, biological, environmental protection complete sets of equipment, Non drying extrusion molding equipment, chicken manure and other high wet material drying, fermentation equipment, among them, the development of multifunctional bio organic fertilizer equipment, with compact structure, small area, reliable operation, low dust entrainment.
Our advantages:
1.Main products: compound and organic fertilizer granulator, mixer, belt conveyor, dryer, screening machine, dewatering machine, crusher, weighing packaging machine, etc.
2.Designated production enterprise by Agriculture Department
3.We account for 80% market shares in compound and bio-organic fertilizer manufacturing filed in China.
4.Processional Research and Development team
5.Strict quality control system
6.We provide competitive prices, reliable quality products and swift delivery time.
7.Exported to more than 30 countries in Africa, South America, Mid East, Central America and other area, such as, India, Korea, Australia, etc.
Our Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing th e most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
Our after-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
FAQ:
1.Are you manufacturer or trade company?
We are a professional manufacturer for producing fertilizer process machines and related machine(granulator, crusher, mixer, packing, feeding machines and conveyor belt) etc.
2.How about the delivery time?
It can be shipped immediately for the machine in stock,and 5-7days for the machine out of stock
3.How long is the guarantee?
Warranty for 12 months without artificial and deliberate damage.
4.How should to do if I meet some trouble while using?
The English manual book and video will be provide for showing how to resolve the problems, if necessary, we will dispatch our engineer to your factory.
5. Do you provide the installation service after ordering your machines?
As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workers.
6.Can we visit your factory for machine testing operations?
We warmly welcome the clients to visiting our factory for trying machine.
7.Can we see some fertilizer plant with your machine?
We can take the customer to visit fertilizer plants with our equipment.
