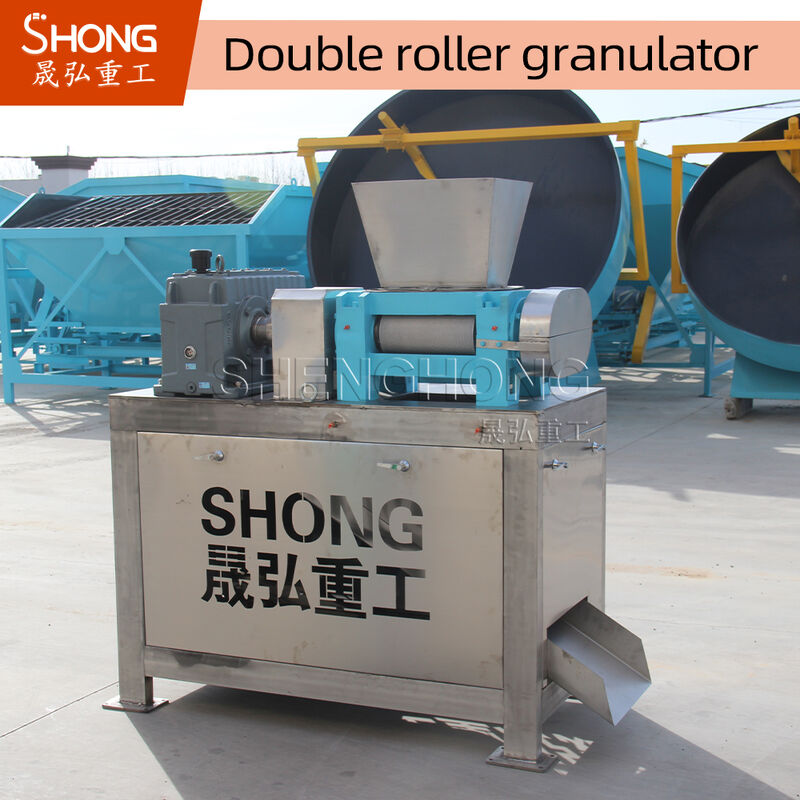

Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter
Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter

Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter

Product Details

Place of Origin: Zhengzhou China

Brand Name: Shenghong

Certification: SGS BV ISO

Model Number: SDZ-I-1.0

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Package or Container

Delivery Time: 15 Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 20 pcs per day

Get Best Price

Product Details

Product Description
Product Details
Highlight:

fertilizer granule machine

,

fertilizer pellet machine

Material:
Carbon Steel
Model:
1mm-15cm
Capacity:
1-4 T/h
Suit For:
NPK Compound Fertilizer
Warranty:
12 Months
Pellet Diameter:
2-10mm
Brand Name:
SHENGHONG
Voltage:
380V
Usage:
Making Fertilizer Granules
Material:
Carbon Steel
Model:
1mm-15cm
Capacity:
1-4 T/h
Suit For:
NPK Compound Fertilizer
Warranty:
12 Months
Pellet Diameter:
2-10mm
Brand Name:
SHENGHONG
Voltage:
380V
Usage:
Making Fertilizer Granules
Product Description
NPK Compound Fertilizer Granulation Equipment, Press Pellet Granulator
This granulation equipment features beautiful appearance, simple operation, low energy consumption, long service life, and high granulation rate. It represents the most advanced compound fertilizer granulation technology in China and is widely used throughout the country.
Key Features
  • No drying process required - room temperature granulation with single-step forming
  • Low investment with quick returns and excellent economic benefits
  • Reliable operation with no waste discharge, stable performance, and easy maintenance
  • Wide range of raw material compatibility including compound fertilizer, medicine, chemical industry, feed, coal, and metallurgy
  • Capable of producing various concentrations including organic, inorganic, biological, and magnetic fertilizers
  • Specialized capability for rare earth, ammonium bicarbonate, and ammonium sulfate compound fertilizer granulation
NPK Compound Fertilizer Granulation Equipment operational view
Machine Specifications
  • No drying technology required - normal temperature granulating with single-step forming
  • Combines granulating, forming, and screening into one machine
  • Produces beautiful appearance granules with easy operation and low energy consumption
  • SDZ models feature upgraded rack with high-quality anti-corrosive cast materials for enhanced stability and extended roller service life
Technical Parameters
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Granule Specifications
Shape of Finished Products
Oval, irregular, wheat shaped, etc. Custom shapes available per customer requirements
Material Moisture Requirement
Not more than 10%
Rate of Ball Formation
95%
Output
1-4t/h (multiple granulators can be combined to increase output)
Granule Size
3-8mm (popular market diameter: 2.8-4mm)
Working Principle
The roller granulation system operates on an extrusion sliding model. Driven by motor belt and pulley through the reducer to the drive shaft, and synchronized with the passive shaft via open gears, the system works in opposite rotation. Material is fed from the hopper, extruded through the roll, stripped and pelletized, then transferred via chain to the crushing sieve studio where finished product pellets are separated. The feed is mixed with new material for continuous granulation. With continuous motor rotation and material input, mass production is achieved.
Fertilizer granulator working principle diagram
