Product Details:
Payment & Shipping Terms:
|
| Brand Name: | SHENGHONG | Material: | Carbon Steel |
|---|---|---|---|
| Model: | 1mm-15cm | Weight: | 1.2T |
| Capacity: | 1-4 T/h | Suit For: | NPK Compound Fertilizer |
| Warranty: | 12 Months | Pellet Diameter: | 2-10mm |
| Voltage: | 380V | Usage: | Making Fertilizer Granules |
| High Light: | fertilizer granule machine,fertilizer pellet machine |
||

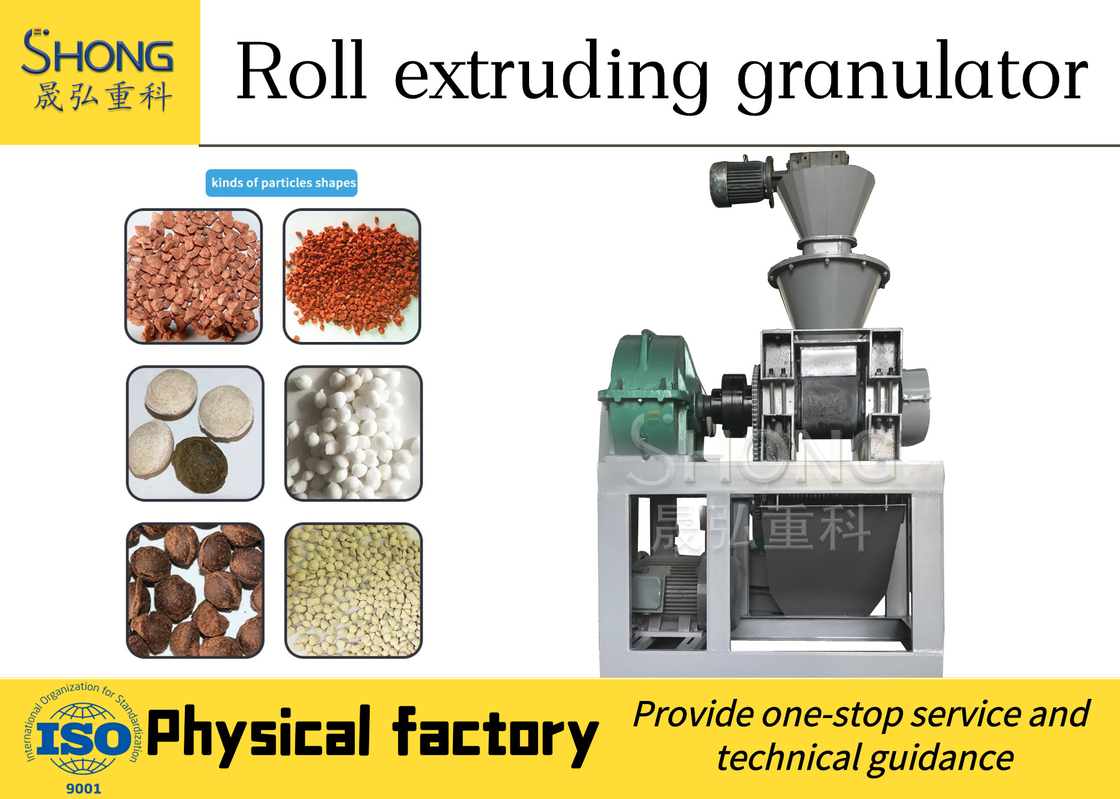

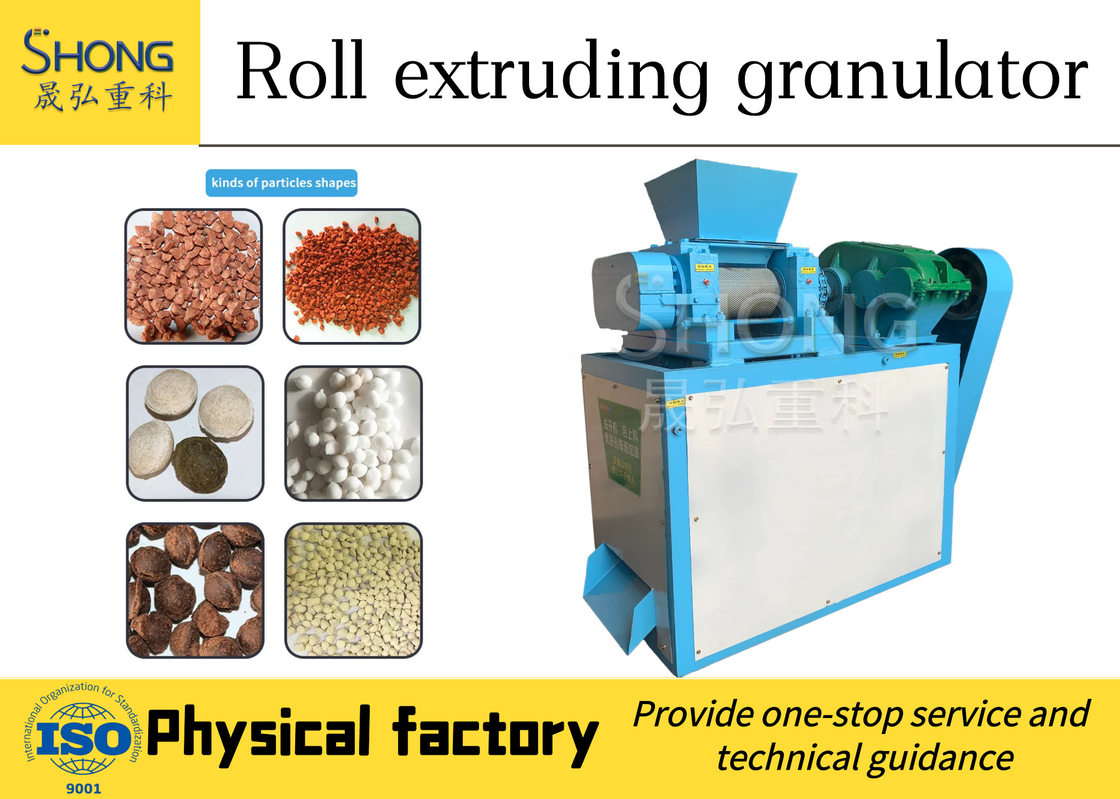

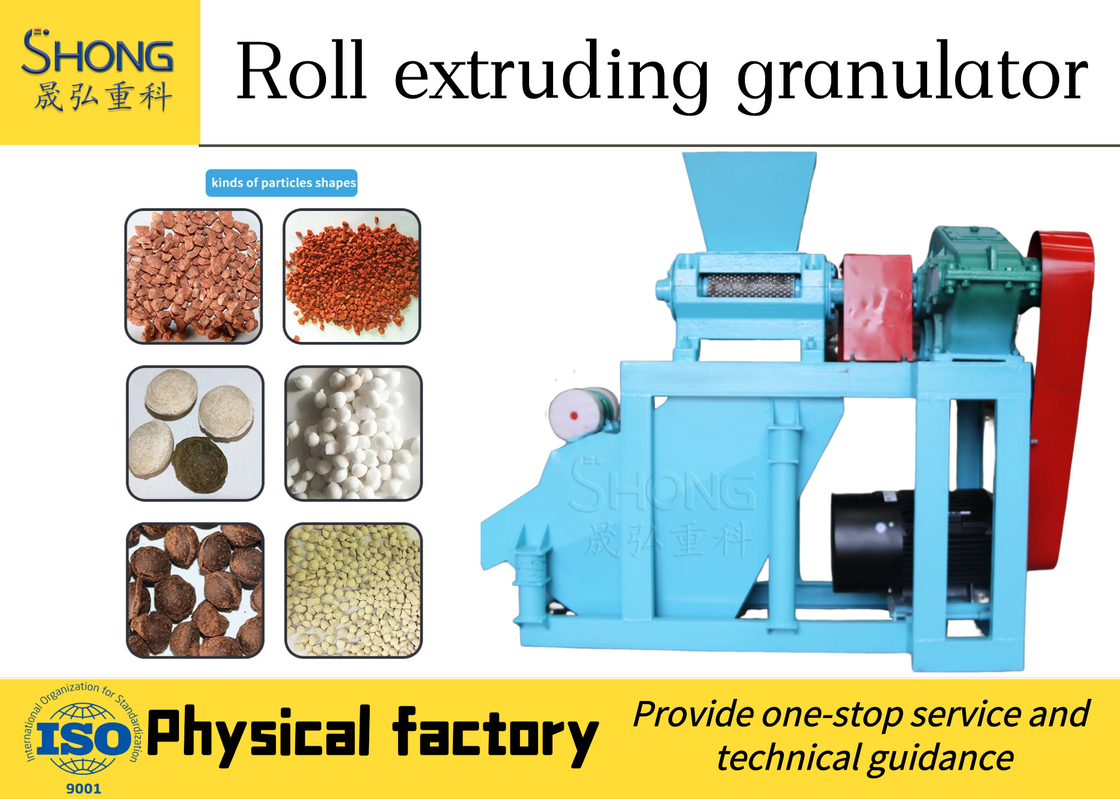

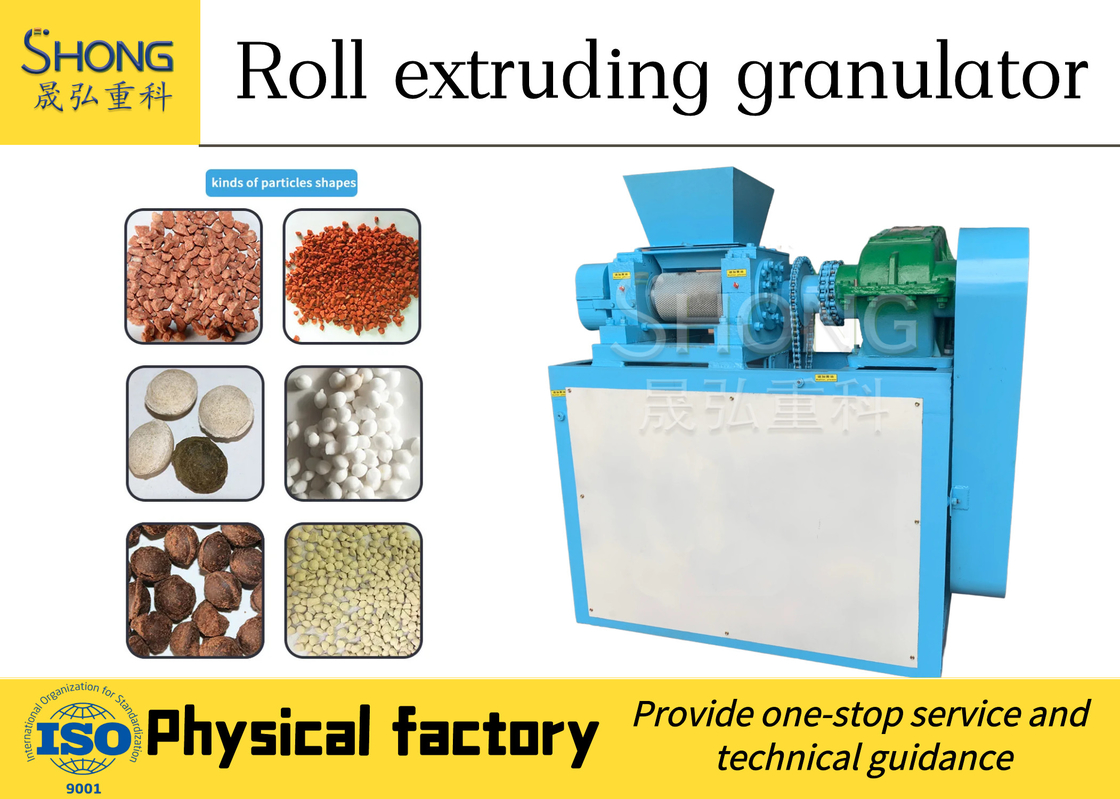

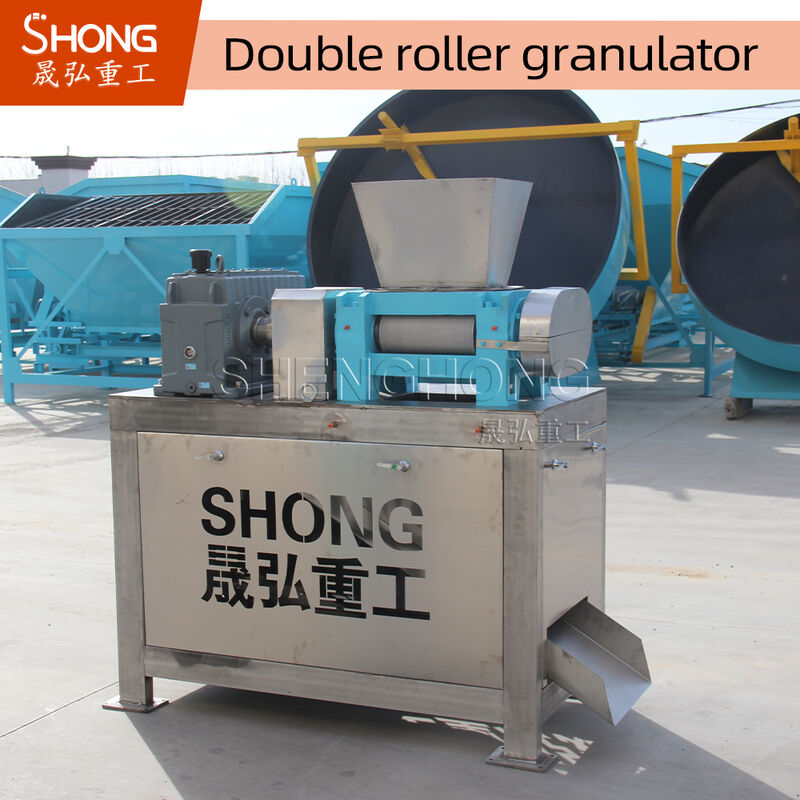

NPK Compound Fertilizer Granulation Equipment , Press Pellet Granulator
Description of Granulator
It has the advantages of beautiful appearance, simple operation, low energy consumption, long service life and high granulation rate. It is the most advanced compound fertilizer granulation equipment in China, and it is a kind of advanced compound fertilizer granulation equipment, Products throughout the country. The series of granulator for a wide range, with the following characteristics:
1. No drying process, room temperature granulation, a molding, less investment, quick, good economic returns.
2. Powerful operation is reliable, no waste discharge, stable operation, easy maintenance, process layout is reasonable, advanced technology, low production costs.
3. Raw materials are widely used for granulation of various raw materials such as compound fertilizer, medicine, chemical industry, feed, coal, metallurgy and so on, and can produce various kinds of concentrations, including organic fertilizer, inorganic fertilizer, biological Fertilizer, magnetic fertilizer, etc.) compound fertilizer.
4. In particular, rare earth, ammonium bicarbonate, ammonium sulfate compound fertilizer granulation, to fill the gaps, ranking the leading domestic level, is the national environmental protection technology for the promotion of the project.
The instruction of the fertilizer granulator machine
1. No drying technology, normal temperature granulating, once forming.
2. Low investment, quick profit, good economic returns, etc.
3.Combine granulating,forming,screening into one machine,making beautiful appearance granules, easy operation and low energy consumption, etc.
4.Especially, DZJ 5.0not only has the above features, but also upgrades its rack.The bearing frame body is
made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller’s service life.
Technical Parameters
| Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
| Capacity | 1-1.5 | 1.5-2.5 | 2.5-3.5 | 3.5-4.5 | 1-2 | 1.5-2.5 |
| Power | 15Kw | 18.5Kw | 30Kw | 45Kw | 15Kw | 18.5Kw |
| Press Roller | Φ150×22O | Φ150×30O | Φ186×30O | Φ300×30O | Φ150×22O | Φ150×30O |
| Feed Size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Product Size | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ20 | Φ2.5~Φ10 | Φ2.5~Φ10 |
| Speed Reducer | ZQH350 | ZQH400 | ZQH400 | ZQH500 | ||
| Material Mositure | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |
Granule Strength and Apperance Type:
|
Shape of finished products |
oval, irregular, wheat shaped, etc., can also be customized according to customer requirements. |
|
Material moisture requirement |
not more than 10% |
|
The rate of ball formation |
95% |
|
Output |

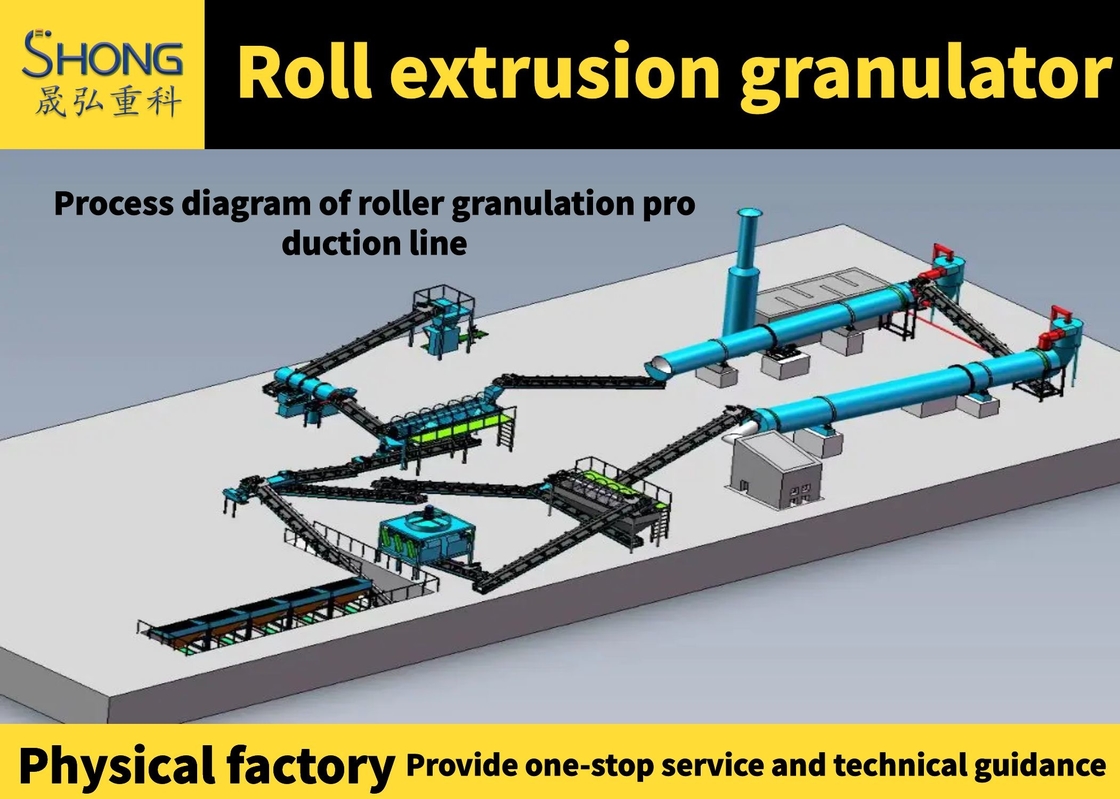

1-4t/h ( can combine multiple granulators work together to increase output, see below technical process chart). |
|
Granule size |
3-8mm (popular market granule diameter: 2.8-4mm) |
Working principle
The series of roller granulation is extrusion sliding model, its working principle is driven by the motor belt and pulley, through the reducer to the drive shaft, and through the open gear and passive shaft synchronization, the opposite work. The material is fed from the hopper, extruded through the roll, stripped and pelletized, and passed through a chain, transferred to the crushing sieve studio, sieved and separated from the finished product pellets, and then the feed is mixed with the new material Granulation. With the continuous rotation of the motor, the material continues to enter, in order to achieve mass production.
