Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity

China ZHENGZHOU TIANCI HEAVY INDUSTRY MACHINERY CO., LTD. certification
China ZHENGZHOU TIANCI HEAVY INDUSTRY MACHINERY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity

Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity
Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity

Large Image :  Ball Shape Compound Organic Fertilizer Granulator with 1 - 20 Ton / Hour Capacity

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Tianci
Certification: BV ISO SGS
Model Number: YSL2-60/120~YSL2-120/220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per day
Detailed Product Description
Features: Automatic Product Name: Fertilizer
Color: Green Power: 30KW
Specification: 1400*750*1170 Shipping: Ocean Seas
Transport Package: Pallet Warranty: 12 Months
Factory Visit: Welcome Pellet Diameter: 3-30mm
High Light:

fertilizer granulation equipment

,

fertilizer pellet machine

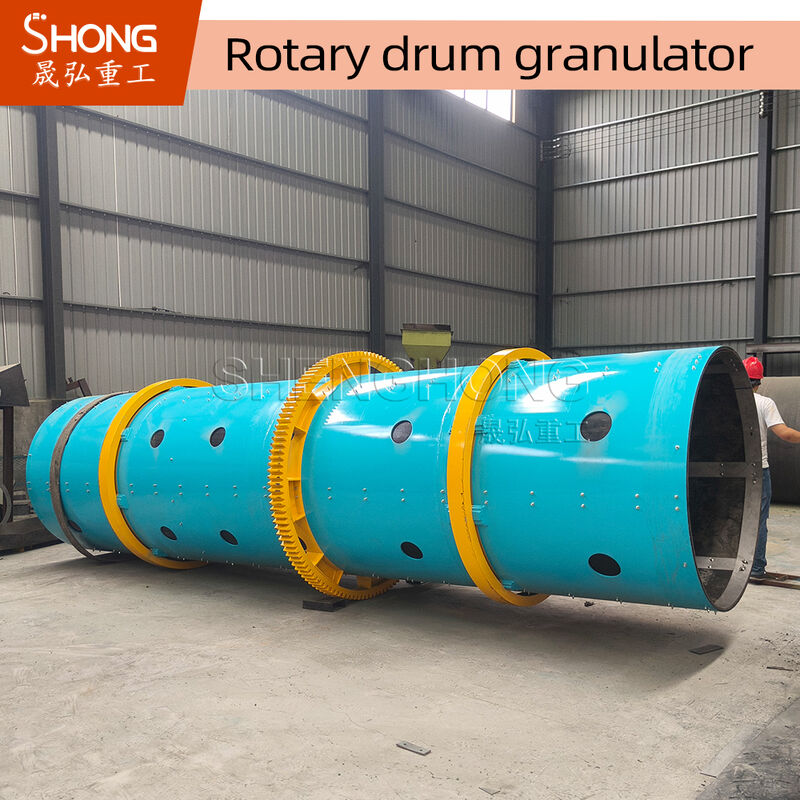

1-20 T/H Ball Shape Compound Organic Fertilizer Granulator With Rotary Drum

Introduction
Drum granulator is a kind of molding machinery that can make material into specific shapes. Drum granulator is one of the key equipment of compound fertilizer industry, applicable to cold and hot granulating as well as the mass production of high, low and medium concentration compound fertilizer. Main work method for aggregate wet granulation, through a certain amount of water or steam, the basis for fertilizers in the cylinder body after full wet chemical reaction, in a certain liquid under the conditions of the rotating cylinder with campaign, reunion between particles to produce extrusion pressure of material into a ball.

Drum type pelleting machine features:
1, 70% is the ball, there is a small amount of returns, return product particle size small, to granulation;
2. Bubbled into steam heating, and improve the material temperature, make the material into the ball low moisture, improve the efficiency of drying;
3, with rubber lining engineering plastics, raw material is not easy to stick, and anti-corrosion insulation effect;
4, large output, low power consumption, low maintenance cost.
5, less investment, quick effect, good economic benefits, reliable in performance


The working principle
This series of drum granulator's working principle is: The main motor drive belt and pulley, through the reducer drive to drive shaft. With the open gear installed on the drive shaft and big gear ring gear fixed on the body of the machine, relative to one another. Material entered into the drum from the feed end, go though the internal cylinder. Under the effect of cylinder internal special structure, granules, and finally get out by the discharge hole. Due to the material into the granulator and rotation continuously, can realize the mass production.


 Main technical parameters

Model no.

YSL-60

YSL-80

YSL-100

YSL-120

YSL-150

Production(t/h)

1.0-2.0

2-4

3-6

5-8

6-10

Power (kw)

37

45

55

75

90



Raw material classification

Specific application

Livestock manure

Chicken, duck, rabbit, pig, cow etc

Pond sludge

Fish pond, shrimp pond, Loach pond etc

Food processing remaining waste

Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc.

Others

Gardening waste, mud scum,straw etc





Our advantages:

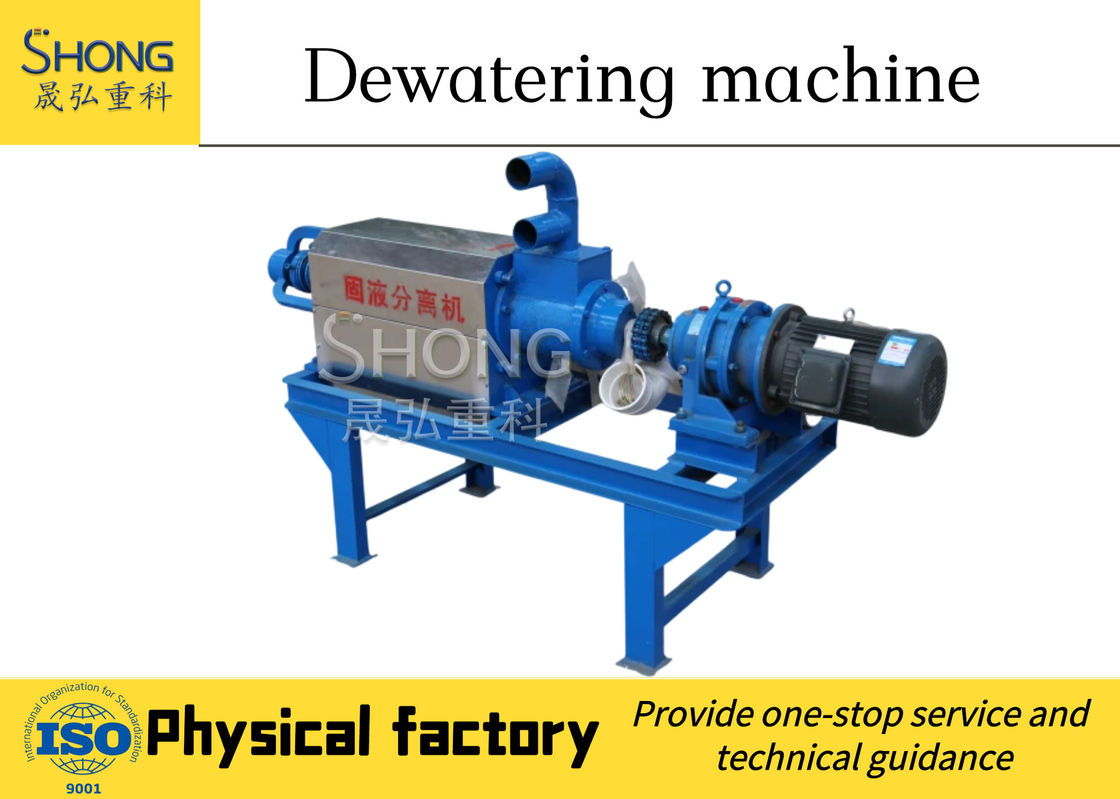

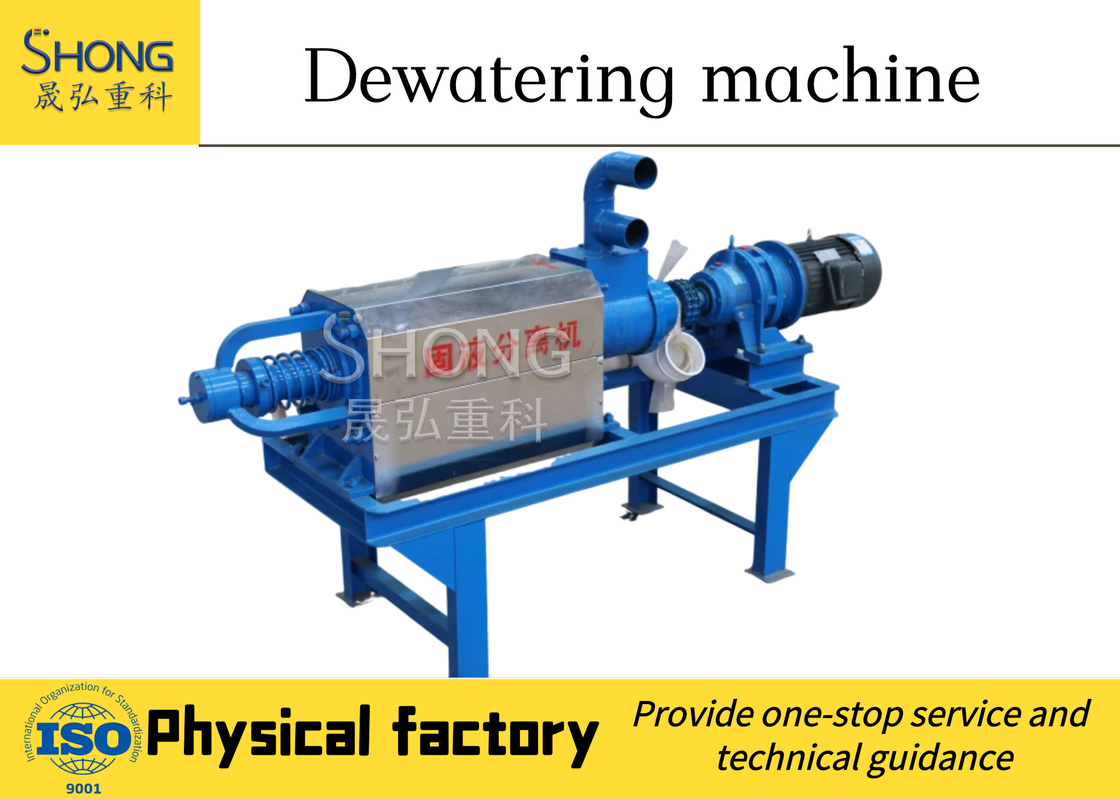

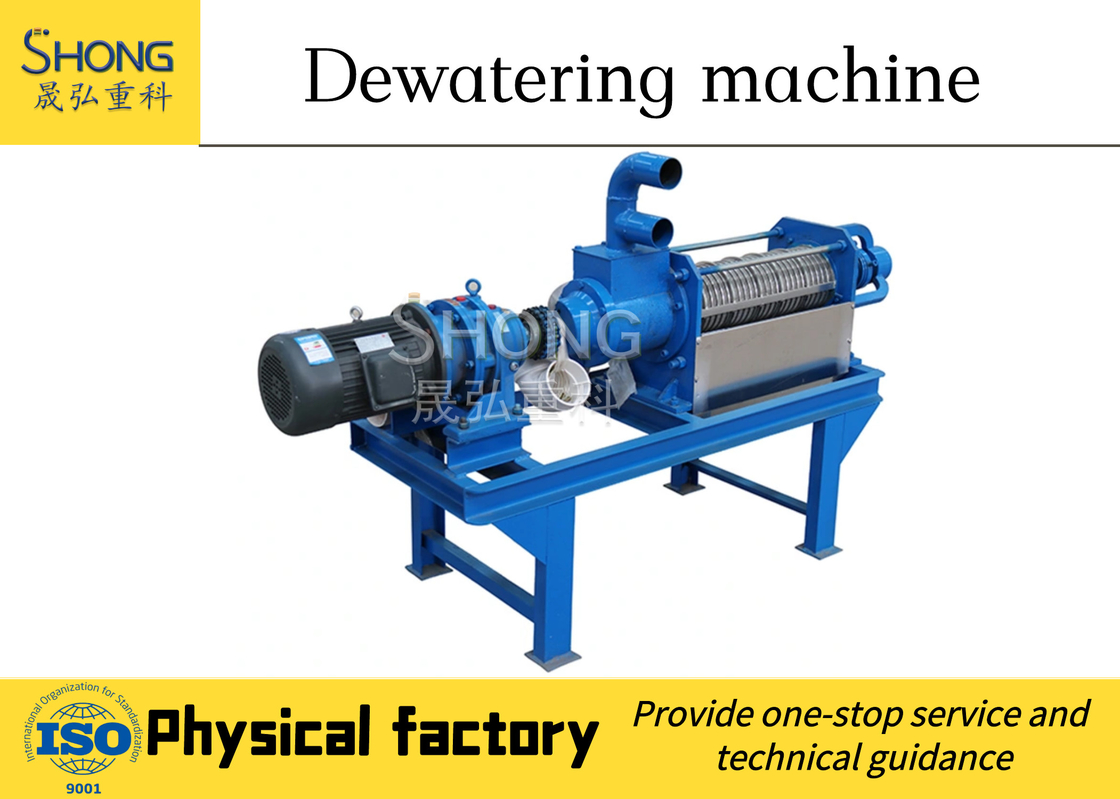

1. Main products: compound and organic fertilizer granulator, mixer, belt conveyor, dryer, screening machine, dewatering machine, crusher, weighing packaging machine, etc.
2. Designated production enterprise by Agriculture Department
3. We account for 80% market shares in compound and bio-organic fertilizer manufacturing filed in China.
4. Processional Research and Development team
5. Strict quality control system
6. We provide competitive prices, reliable quality products and swift delivery time.
7. Exported to more than 30 countries in Africa, South America, Mid East, Central America and other area, such as, India, Korea, Australia, etc.


We promise

All the products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free. And provides technical support and fittings for life.
After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
