NPK Granules Fertilizer Packaging Machine For 1-2t/h Small Factory

NPK Granules Fertilizer Packaging Machine For 1-2t/h Small Factory

fertilizer packing machine

fertilizer bagging equipment

Place of Origin:

Zhengzhou city, China

Brand Name:

Shenghong

Certification:

BV, ISO, SGS

Model Number:

DCS-25F-1

Contact Us
Request A Quote
Product Details
Power:
2.2kg
Color:
Gray
Raw Material:
Stainless Steel
Weighing Speed:
200-3000 Bag/h
Weighting Range:
10-25 Kg/bag
Allowable Error:
0.2%
Machine Net Weight:
650kg
Distance Of Conveyor Transmission:
2m
Highlight:

fertilizer packing machine

,

fertilizer bagging equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Can be negotiated
Packaging Details
Wooden packaging or container: 4500*2500*350000mm
Delivery Time
8-10 days
Payment Terms
L/C, T/T, Western Union,, D/A, D/P
Supply Ability
30 sets per month
Product Description

NPK Granules Fertilizer Packagaing Machine For 1-2t/h Small Factory

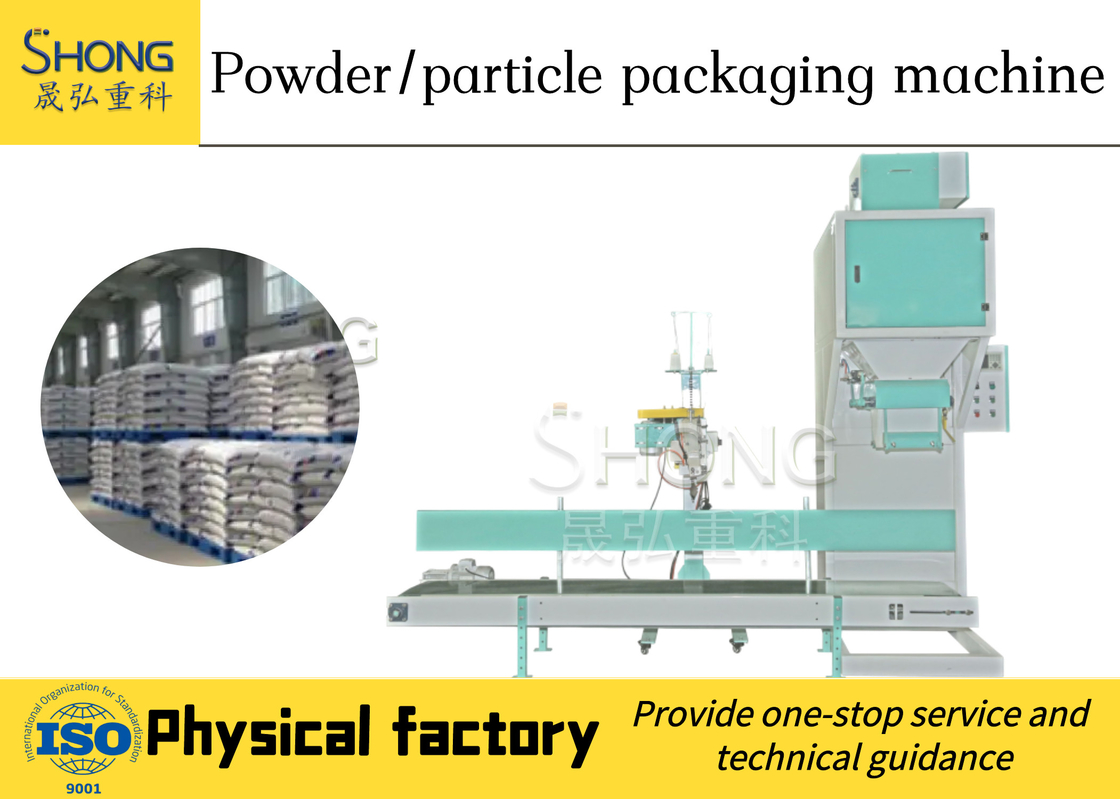

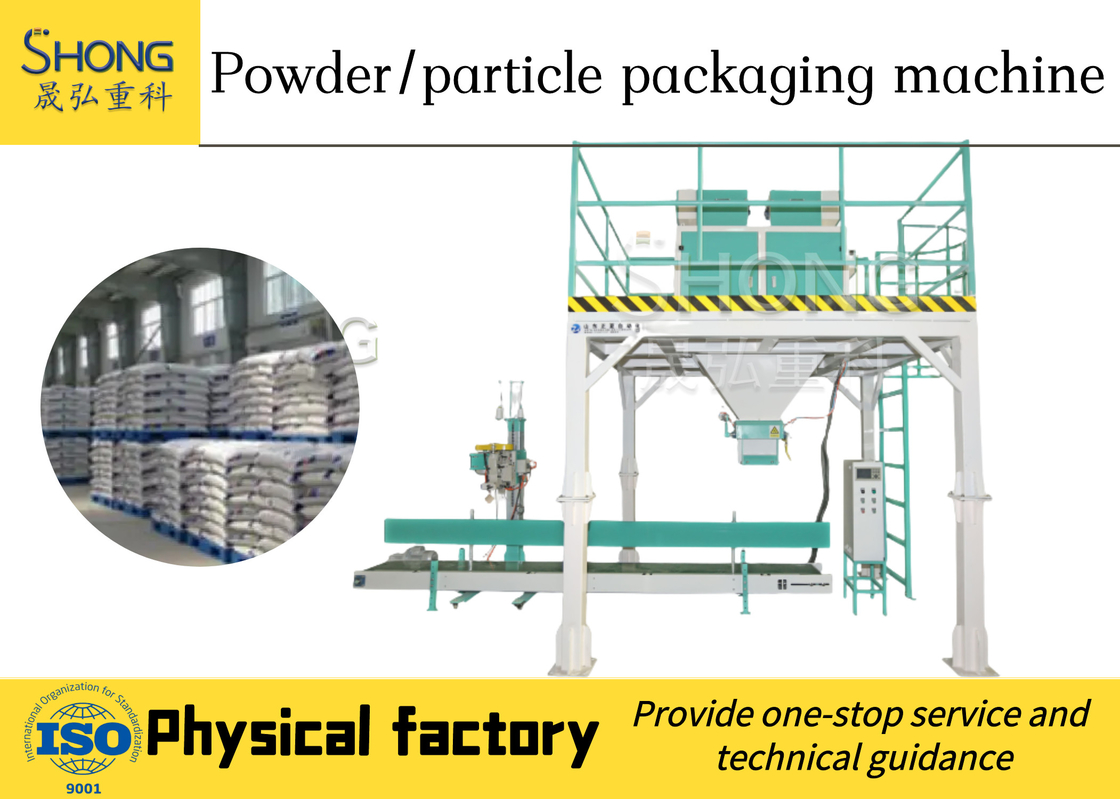

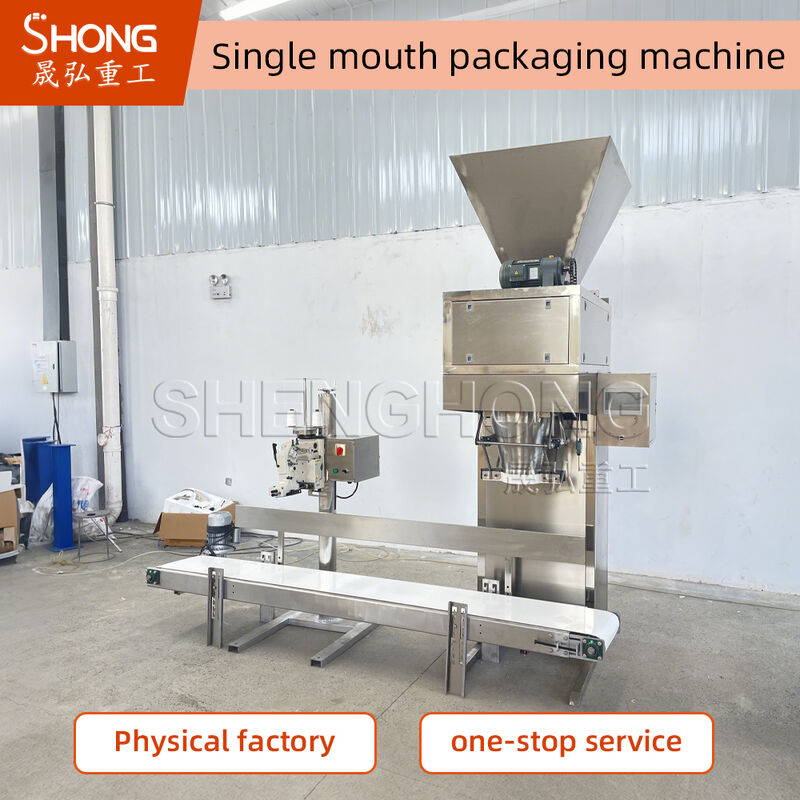

Main Parts Of Fertilizer Packaging Machine



A packaging machine maily involves compouter quantitative scale, weighing control instrument, bag clamping mechanism, conveyor and slot machine. Hopper is carton steel with ani-corrosion painting; packaging machine contacted with the fertilizer is stainless steel.



Feature Of Fertilizer Packaging Machine



High precision: choose high precision weighing controller, good reliability. Overall good, small footprint, flexible installation.
Speed adjustable: feeding methods of powder type of equipment is the spiral feeding. Fast and slow feeding are controlled by controller and the speed can set at random.
Environmentally operation: sealing cyclical system, prevented from flying, improved working environment protected the health of staff.

Reasonable structure: compact structure, small body, can make fixed or movable body machine according to user requirements. Vibration feeder, more efficient, all stainless steel structure. Manual bagging, photoelectric sensors.



Advantage Of Fertilizer Packaging Machine



1. Imported PLC and color touch screen,,it can complete the whole procedure of metering,filling,bagging,exhausting,counting automatically.

2. Separate pneumatic control and power control,noise is low,and the circuit is more stable.

3. English and Chinese screen display,it is simple to operate.

4. The function of PLC computer system is more stable, and it’s more easy to adjust any parameters.

5. It can stock ten datas, and it’s simple to change the parameters.

6. Quiet work circumstance, low noise

7. Electronic scale direct measurement, loading is more accurate.
8. Microcomputer control. Using more reliable.



Technical Parameters of Fertilizer Packgaing Machine



Model DCS-25F
Air Consumption 0.65Mpa, 4m³/Min, 6kg/cm2
Maximal Packing Film Width Max.520mm
Bag Length 80-350mm
Bag Width 80-250mm
Packing Film Roll Diameter Max. 360mm
Packing Speed 5-70bags/min
Film Thickness 0.04-0.08mm
Power Supply 220V. 50/60hz. 3kw

Machine Size

(L)1550x(W)1200x(H)1800mm



Application Of Fertilizer Pacaging Machine



The packaging machine is mainly used for automatic quantitative packaging of pesticides, fertilizers, veterinarydrugs, animalfeed, premix, additives, detergents, salt, MSG, seeds, rice and other grains, powdered materials packing.
In fertilizer production line, it is used at the end of production line, then through mobile conveyor to truck.




NPK Granules Fertilizer Packaging Machine For 1-2t/h Small Factory 0
