Place of Origin:
Zhengzhou city, China
Brand Name:
Shenghong
Certification:
BV, ISO, SGS
Model Number:
DCS-25F-1

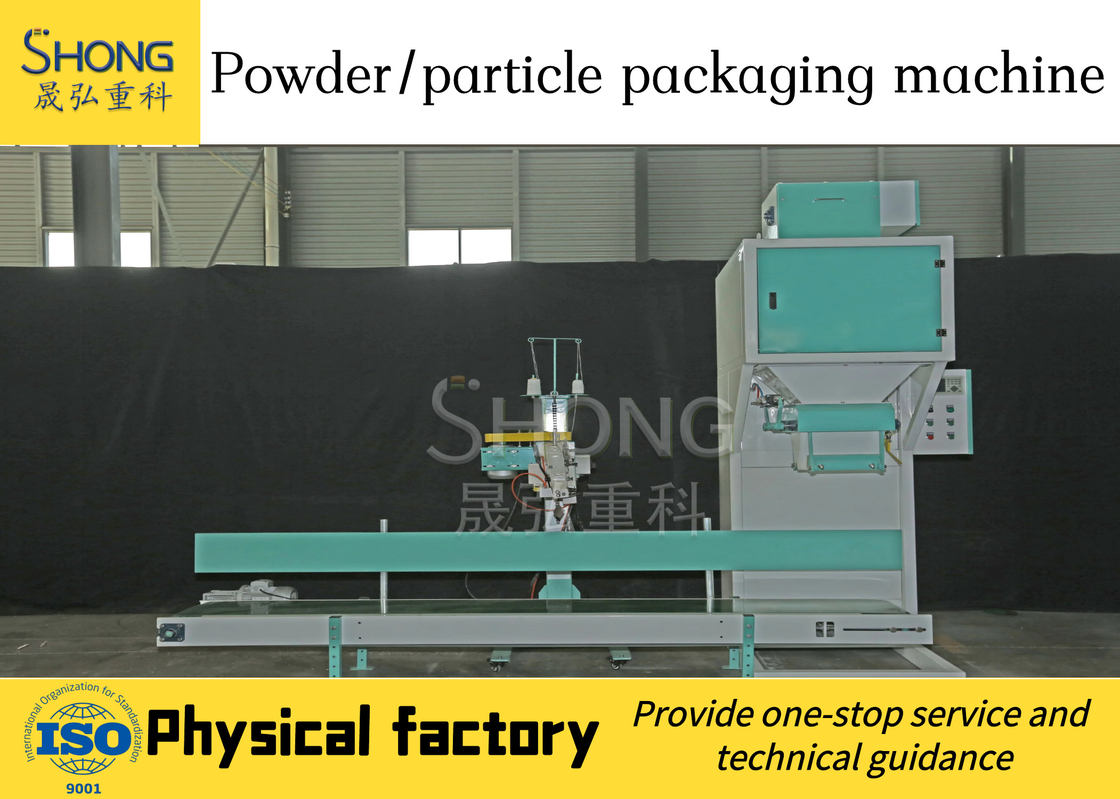

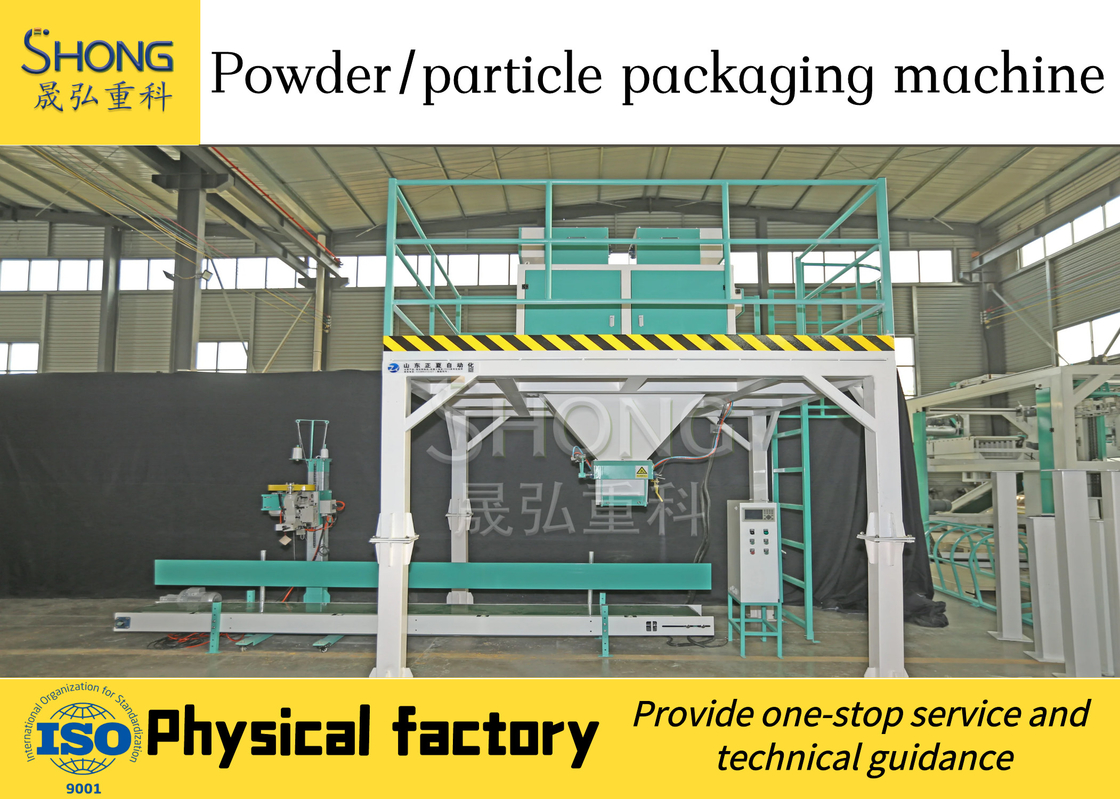

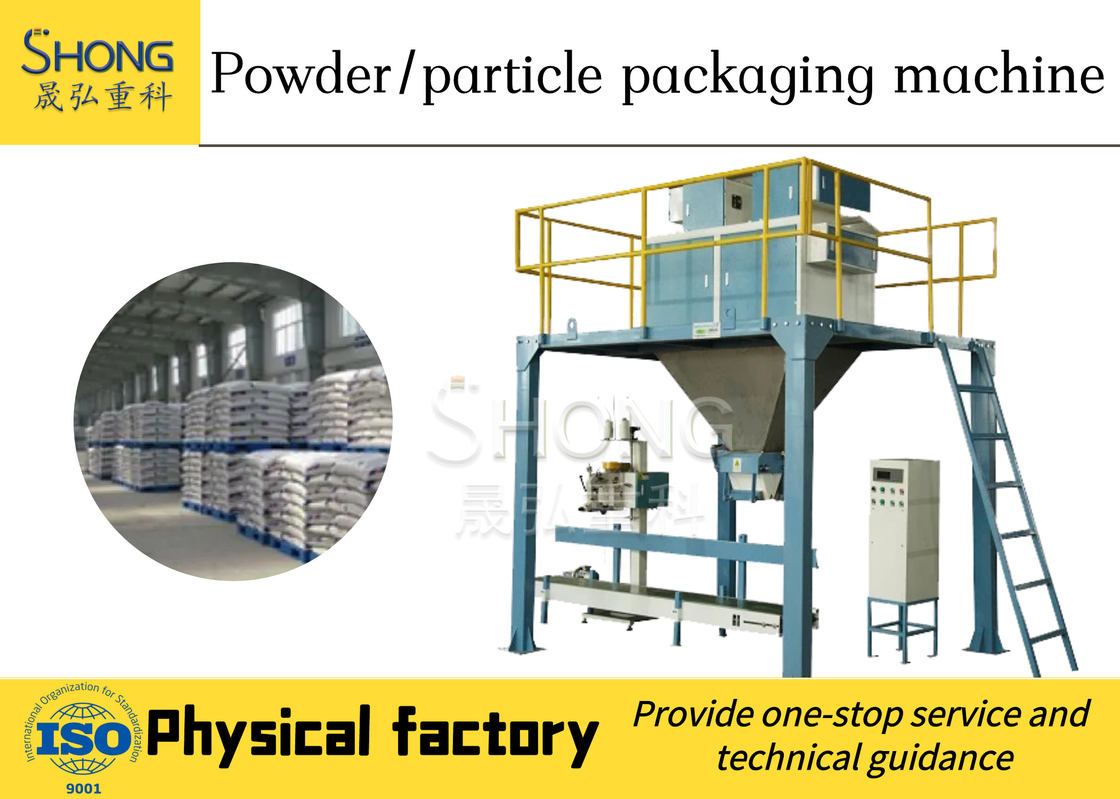

MAP Fertilizer Packaging Machine , Carbon Steel With Green Color
Main Parts Of Fertilizer Packaging Machine
A packaging machine maily involves compouter quantitative scale, weighing control instrument, bag clamping mechanism, conveyor and slot machine.
Feature Of Fertilizer Packaging Machine
High precision: choose high precision weighing controller, good reliability. Overall good, small footprint, flexible installation.
Speed adjustable: feeding methods of powder type of equipment is the spiral feeding. Fast and slow feeding are controlled by controller and the speed can set at random.
Environmentally operation: sealing cyclical system, prevented from flying, improved working environment protected the health of staff.
Reasonable structure: compact structure, small body, can make fixed or movable body machine according to user requirements. Vibration feeder, more efficient, all stainless steel structure. Manual bagging, photoelectric sensors.
Advantage Of Fertilizer Packaging Machine
1. Imported PLC and color touch screen, it can complete the whole procedure of metering,filling,bagging,exhausting,counting automatically.
2. Separate pneumatic control and power control,noise is low,and the circuit is more stable.
3. English and Chinese screen display,it is simple to operate.
4. The function of PLC computer system is more stable, and it’s more easy to adjust any parameters.
5. It can stock ten datas, and it’s simple to change the parameters.
6. Quiet work circumstance, low noise
7. Electronic scale direct measurement, loading is more accurate.
8. Microcomputer control. Using more reliable.
Technical Parameters of Fertilizer Packgaing Machine
Model | DCS-25F |
Air Consumption | 0.65Mpa, 4m³/Min, 6kg/cm2 |
Maximal Packing Film Width | Max.520mm |
Bag Length | 80-350mm |
Bag Width | 80-250mm |
Packing Film Roll Diameter | Max. 360mm |
Packing Speed | 5-70bags/min |
Film Thickness | 0.04-0.08mm |
Power Supply | 220V. 50/60hz. 3kw |
Machine Size |
(L)1550x(W)1200x(H)1800mm |
Application Of Fertilizer Pacaging Machine
The packaging machine is mainly used for automatic quantitative packaging of pesticides, fertilizers, veterinarydrugs, animalfeed, premix, additives, detergents, salt, MSG, seeds, rice and other grains, powdered materials packing.
In fertilizer production line, it is used at the end of production line, then through mobile conveyor to truck.
