Place of Origin:
Zhengzhou, China
Brand Name:
Shenghong
Certification:
BV, SGS, ISO
Model Number:
DCS-25F
Semi Automatic Fertilizer Packing Machine Fertilizer Packaging Machine
Introduction of packing machine
The belt quantitative packaging machine adopts advanced microcomputer control instrument panel, which automatically diagnoses faults. The parts in contact with the materials are made of stainless steel. It is suitable for mixed materials and materials with large moisture. It is widely used in organic fertilizer, chemical, feed and friction materials. And refractory materials and other industries.
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.
Features of packing machine
1. The machine needs manual assistance for bagging, automatic weighing, bagging, filling, automatic conveying and sewing;
2. using the way of belt feeding, through the instrument control, to ensure the speed and accuracy of cutting;
3. Solve the problem of packaging of specialized raw materials, with wide application range and simple operation;
4. using high-precision sensors, high intelligent weighing controller, high calculation accuracy, stable performance;
5. The contact part with the material is made of stainless steel, which has high corrosion resistance;
6. Electrical and pneumatic components are imported components with long service life and high stability;
7. The control cabinet is sealed and suitable for harsh dust environment;
8. Automatic correction of material tolerance, automatic tracking of zero point, overshoot detection and suppression, excessive over-under alarm;
9. optional: you can randomly choose folding machine, automatic sealing machine, dust removal unit and other devices.
Packing Machine Working Process
The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,the weighing hopper installation load cell to weighing, manual giving the bag to the packing machine bag clame device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag,bag release and on conveyor to the sewing machine for bag closed by thread stitching.
Parameter of packing machine
Weighing range | 10-25kg |
Speed | 200-3000bag/h |
Error | <=0.2% |
Power | 2.2kw |
Weight | 500kg |

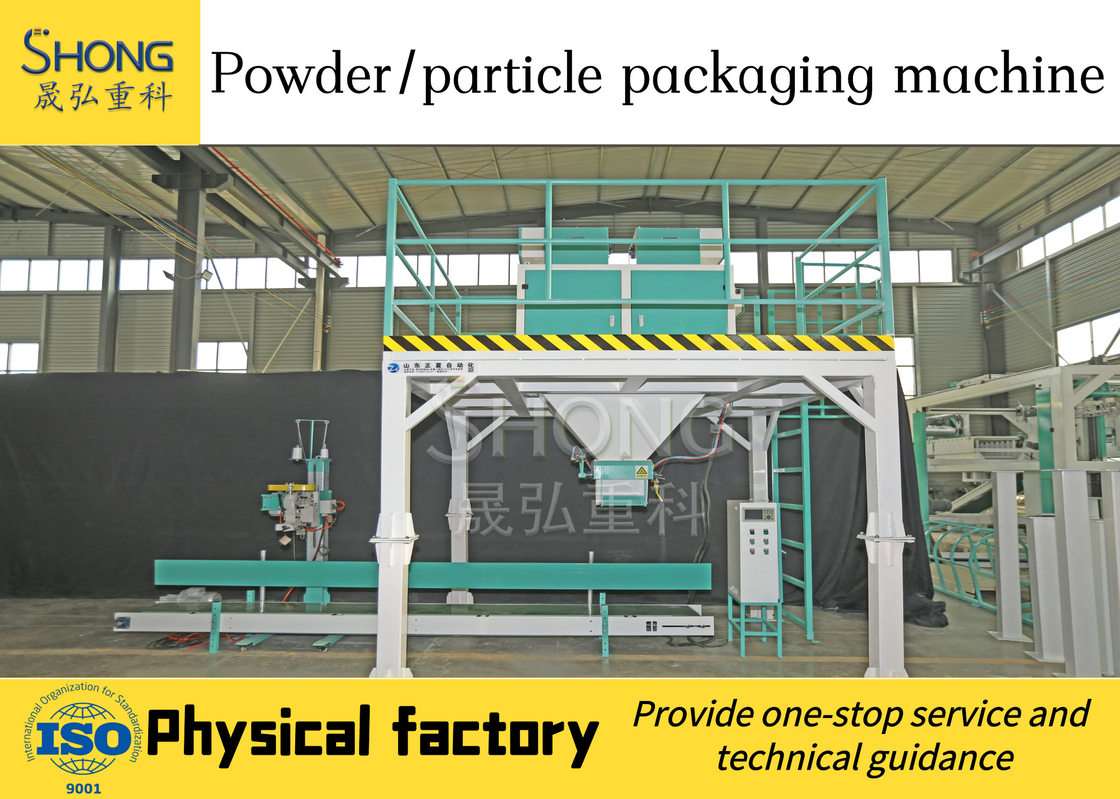

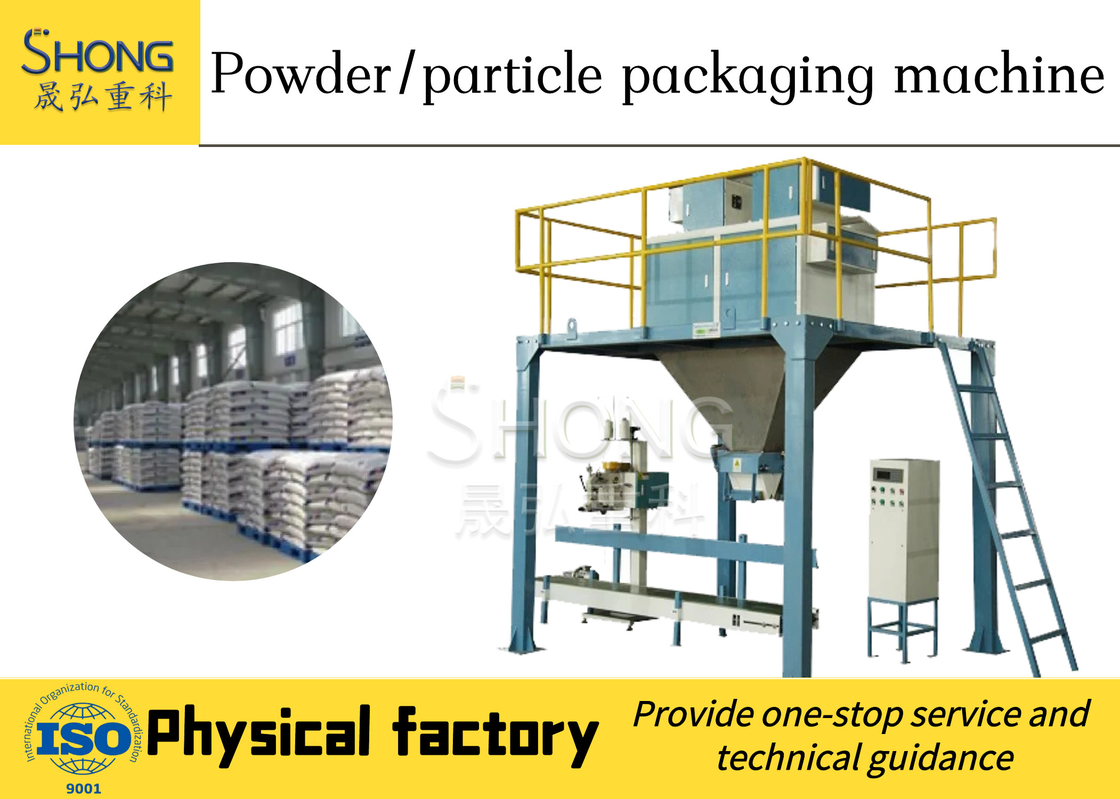

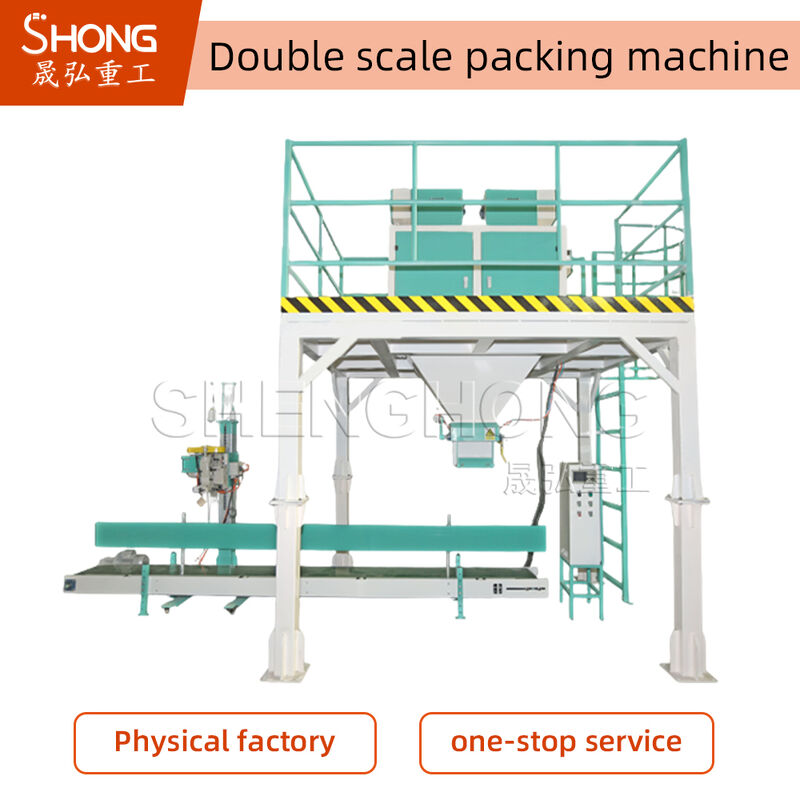

Picture of packing machine
