Ball Shape Compound Granulator Equipment , Dry Powder Fertilizer Pellet Granulator

Ball Shape Compound Granulator Equipment , Dry Powder Fertilizer Pellet Granulator
Ball Shape Compound Granulator Equipment , Dry Powder Fertilizer Pellet Granulator
video play

Large Image :  Ball Shape Compound Granulator Equipment , Dry Powder Fertilizer Pellet Granulator

Product Details:
Place of Origin: Zhengzhou China
Brand Name: Shenghong
Certification: SGS BV ISO
Model Number: ZG1.2*4~ZG2.2*8
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Package or container
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per day
Detailed Product Description
Application: Compound Fertilizer Production Raw Material: Kinds Of Dry Powder
Machine Capacity: 1-20 Tons Per Hour Service: Engineer Available To Service Machinery Overseas
Powder: 22KW-75KW Certificate: ISO BV SGS
Capacity: 1-50 T/H Model Number: ZL-2.8*8
Place Of Origin: Zhengzhou China Brand: SHEENGHONG
High Light:

fertilizer granulation equipment

,

fertilizer granule machine

Ball Shape Fertilizer Granulator Machine , Compound Fertilizer Pellet Granulator

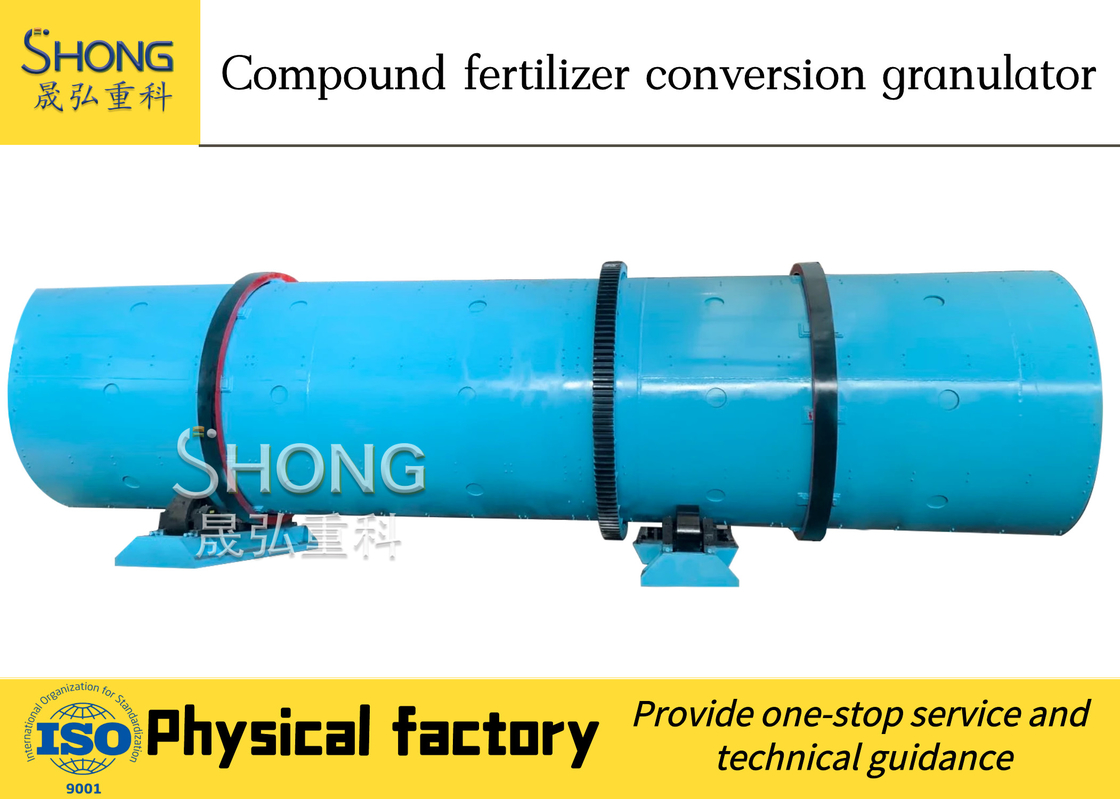

Introduction of Rotary Drum Granulator

Drum granulator is a kind of machine can make the material into a specific shape. Drum granulator is one of the key equipment of the compound fertilizer industry. It is suitable for large-scale production of cold &hot granulation line and high and low concentration compound fertilizer line. Main work method for aggregate wet granulation, through a certain amount of water or steam, the basis for fertilizers in the cylinder body after full wet chemical reaction, in a certain liquid under the conditions of the rotating cylinder with campaign, reunion between particles to produce extrusion pressure of material into a ball.

1,We provide single machine, such as material crusher,material mixer,fertilizer dryer, fertilizer cooling machine and so on. We can also provide the whole line of compound fertilizer pellets production line.

2,Chemical compound fertilizer material is many kinds of chemical single fertilizer.

3,Chemical compound fertilizer pellets produciton line includes the organic raw material crushing, mixing, granulating,drying,cooling,packing.


Features of Rotary Drum Granulator


1, The granulate rate is 70%, there is a small amount of returns, return product particle size small, can be granulated again.
2, Put into the steam heating, improve the material temperature, the material into the ball after the water is low, improve drying efficiency;
3, with rubber engineering plastics for lining, raw materials is not easy to stick, and play a role in anti-corrosion insulation;
4, Large output, low power consumption, low maintenance cost.



Raw material classification

Specific application

Inorganic fertilizer

BB and compound fertilizer powder

Biologics

Western medicine granules etc

Coal industry

Carbon granule etc

Others

Kinds of inorganic powder that you need manufacture granules



















Technical Parameters for Rotary Drum Granulator



Model

Barrel

Power

Prod Capacity

Overall dimensions L× W ×H

weight

Inclination

Internal diameter

length

Rotation speed

0

m

m

r/min

kw

t/h

m

t

ZG1.2×4

2-2.5

1.2

4

17

5.5

1-3

4.6×2.2×2.0

2.7

ZG1.4×5

2-2.5

1.4

5

14

7.5

3-5

4.8×2.8×2.3

8.5

ZG1.6×6

2-2.5

1.6

6

11.5

11

5-8

7.0×3.2×3.1

12.0

ZG1.8×7

2-2.5

1.8

7

11.5

15

8-10

8.3×3.5×3.3

18.5

ZG2.0×8

2-2.5

2.0

8

11

18.5

10-15

9.1×3.6×3.5

22.0

ZG2.2×8

2-2.5

2.2

8

10.5

22

15-20

9.5×4.4×3.9

28.0



Features and Advantages



1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.

2. Adopts advanced rotary drum granulator, granulating ratio is up to 70%, high intensity of granules.

3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.

4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.

5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.

6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.

7Adjustable capacity according to customers’ requirements.



Ball Shape Compound Granulator Equipment , Dry Powder Fertilizer Pellet Granulator 0
