Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant

Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant
Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant

Large Image :  Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Detailed Product Description
Service: Engineer Available Service Overseas Raw Material: NPK,Urea, Ammonium Nitrate, Etc.
Power(W): Different Model Color: Demand
Dimension(L*W*H): Customized Voltage: 380V/50HZ (Customized)
Condition: New Material: Carbon Steel
Highlight:

fertilizer manufacturing plant

,

fertilizer production plant

High Efficiency Rotary Drum Fertilizer Plant Line For NPK Compound Fertilizer



Introduction For Producing Compound Fertilizer



Rotary Drum Fertilizer Plant Line is widely applied to produce compound fertilizer and the capacity ranges from5000-200,000 tons/year. It can granulate NPK, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles in one processing line. This equipment can specially used for manufacturing compound fertilizers with different concentrations and types, such as organic fertilizers, inorganic fertilizers, biological fertilizers and magnetic fertilizers, etc. It is mainly used for producing spherical particles with a diameter ranging from 1mm to 4mm.



Raw Material For Producing Compound Fertilizer



Compound fertilizer is the fertilizer containing two or all three of the three basic plant nutrients—Nitrogen, Phosphorus, and Potassium, as well as microelements, such as B, Mn, Cu, Zn, and Mo. The raw material can be powder or bulk, mostly are as below:



Nitrogen Phosphorus Potassium
Calcium nitrate urea Single superphosphate Kainit
Ammonium bicarbonate Ammonium chloride Rock phosphate Potassium chloride
Nitrate of soda Ammonium sulphate nitrate Dicalcium phosphate Potassium sulphate
Ammonium sulphate Ammonium nitrate Triple superphosphate Potassium nitrate



Working Principle Of Producing Compound Fertilizer



To produce high nitrogen compound fertilizer, one important equipment is needed in the granulating process: the spraying system. The melting tank melt the urea and then spray the melted liquid into the granulating machine so that it will mix with powder phosphate fertilizer, potash fertilizer and other nitrogen fertilizer. Then with the help of the granulator, the liquid and other raw materials will be mixed and granulated. This production technology is used to produce compound fertilizer or complex fertilizer with high nitrogen content from 25%-45%.

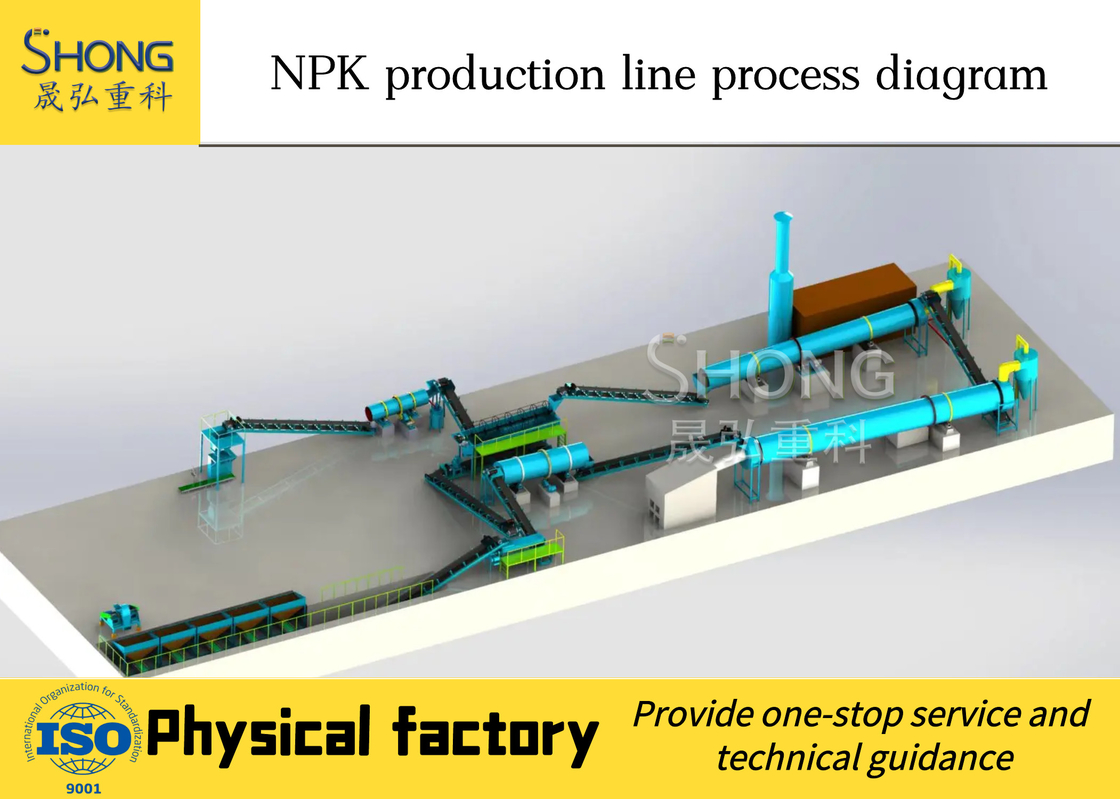

Main Equipments of Producing Compound Fertilizer



No. Processes Machines Function of machines

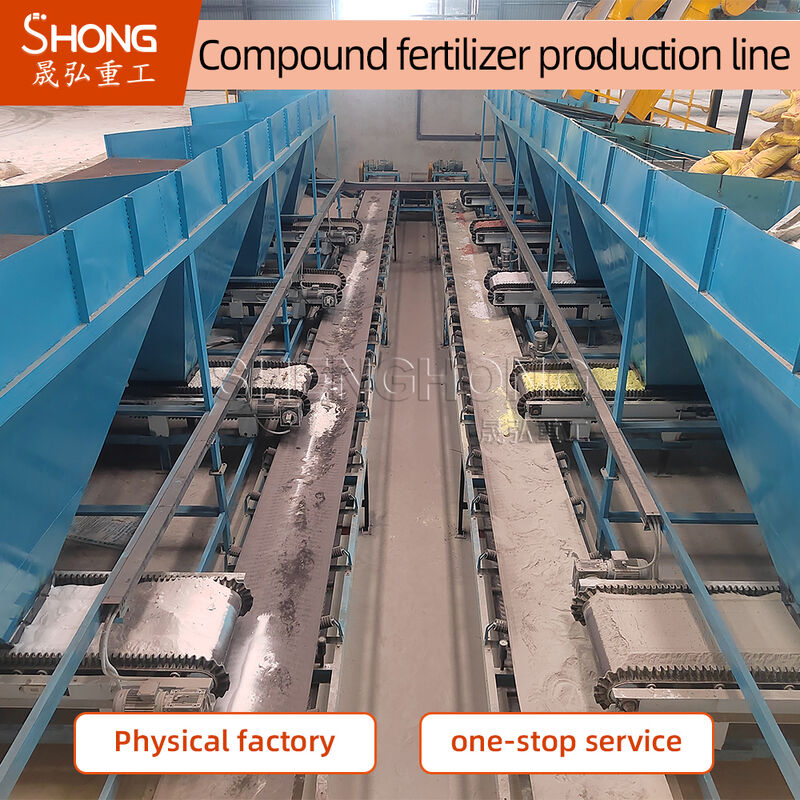

1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags



Advantanges of Producing Compound Fertilizer



1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.

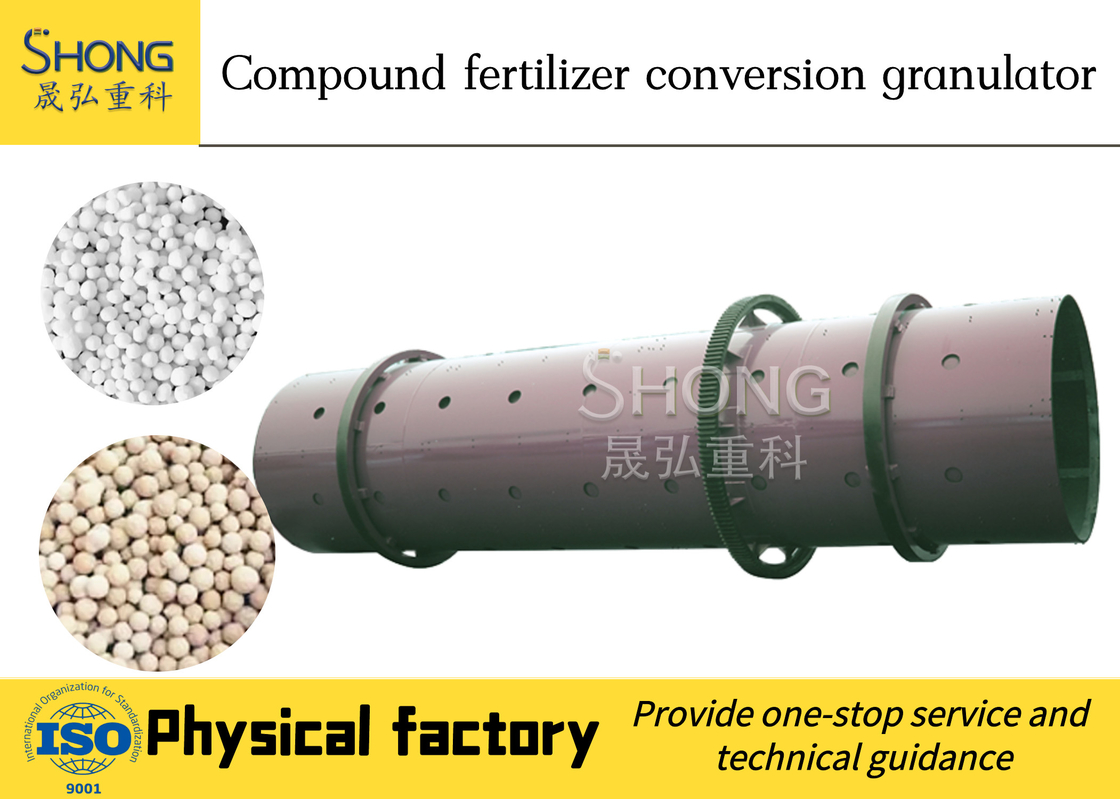

2. Adopts advanced rotary drum granulator, granulating ratio is up to 90%, high intensity of granules,

3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.

4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.

5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.

6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.

7. Adjustable capacity according to customers requirements.



Rotary Drum Fertilizer Production Line , High Efficiency NPK Fertilizer Plant 0
