Place of Origin:
Zhengzhou, China
Brand Name:
Shenghong
Certification:
BV, SGS, ISO
Model Number:
XZ-25F
15 TPH Organic Fertilizer Packing Machine With Double Station
Features of packing machine
1. Use high-stability, high-precision load cells and weighing modules; the interface is simple to operate and intuitive to display.
2. Independent packaging weight input and weighing weight display window, the display window adopts high-brightness LED display; the menu operation is simple, intuitive and friendly; manual assistance in bagging (or barrel), pneumatic bag clamping.
3. Independent weighing system weighs, with high weighing accuracy and fast speed. The weighing sensor adopts Toledo weighing sensor.
4. Asynchronous motor controls spiral feeding, frequency converter speed regulation, large and small double spiral fast and slow metering and feeding, high control accuracy.
5. The whole machine is made of stainless steel except for the motor, cylinder, electrical accessories, pneumatic components, and sewing machine.
Introduction of packing machine
The automatic weighing and packaging machine is mainly composed of four parts: automatic weighing device, conveying device, sewing device and computer control. It has the characteristics of reasonable structure, beautiful appearance, stable operation, energy saving and power saving, convenient operation and accurate weighing. The main machine adopts fast, medium and slow three-speed feeding and special feeding auger structure, advanced digital frequency conversion technology, sampling processing technology, anti-interference technology, and realizes automatic error compensation and correction, which is suitable for powder and granular materials. package.
Electronic packaging scales, fertilizer packaging machines, powder packaging machines are used in the quantitative packaging of powdery or granular materials in chemical, fertilizer, port, grain, feed, food, biomedicine and other industries and require high weighing speed.
working principle of packing machine
After the bag clamping signal is input, the material is added to the "weighing hopper" (consisting of the bag clamping mechanism and the packaging bag) by the feeding mechanism. After the controller receives the weight signal from the sensor, it controls according to the preset program value and turns on the cutting Behind the material gate, perform fast (feeding, when the weight ≥ (target value-fine measurement value), the large screw auger stops feeding and enters slow feeding; when the weight ≥ (target value-overshoot value), The feeding is stopped, the cutting door is closed, and the fixed value weighing is completed. After the automatic vibration bag (optional action), the material bag automatically loosens and falls on the conveyor belt, and is sent to the sewing machine to enter the next process after sewing the bag. The controller enters the next control loop
Parameter of packing machine
Weight range: 25-50kg
Packing speed: 300-480 bag/h
Error: 0.2%
Voltage:220V/380V
Gas source: 0.6Mpa
Power: 2.62kw
Dimension:4000*1580*3350mm

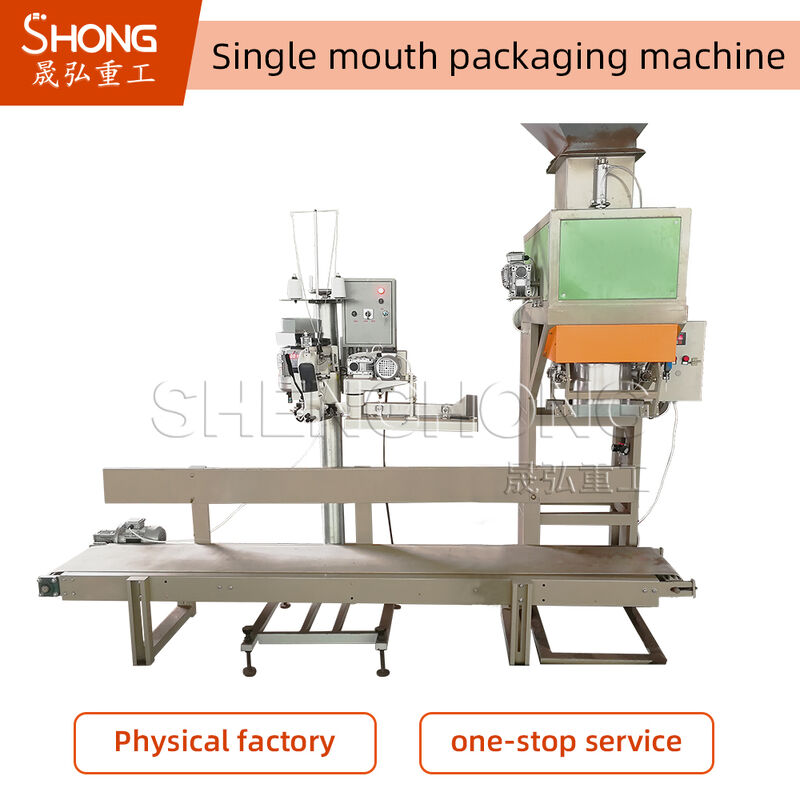

Picture of packing machine
