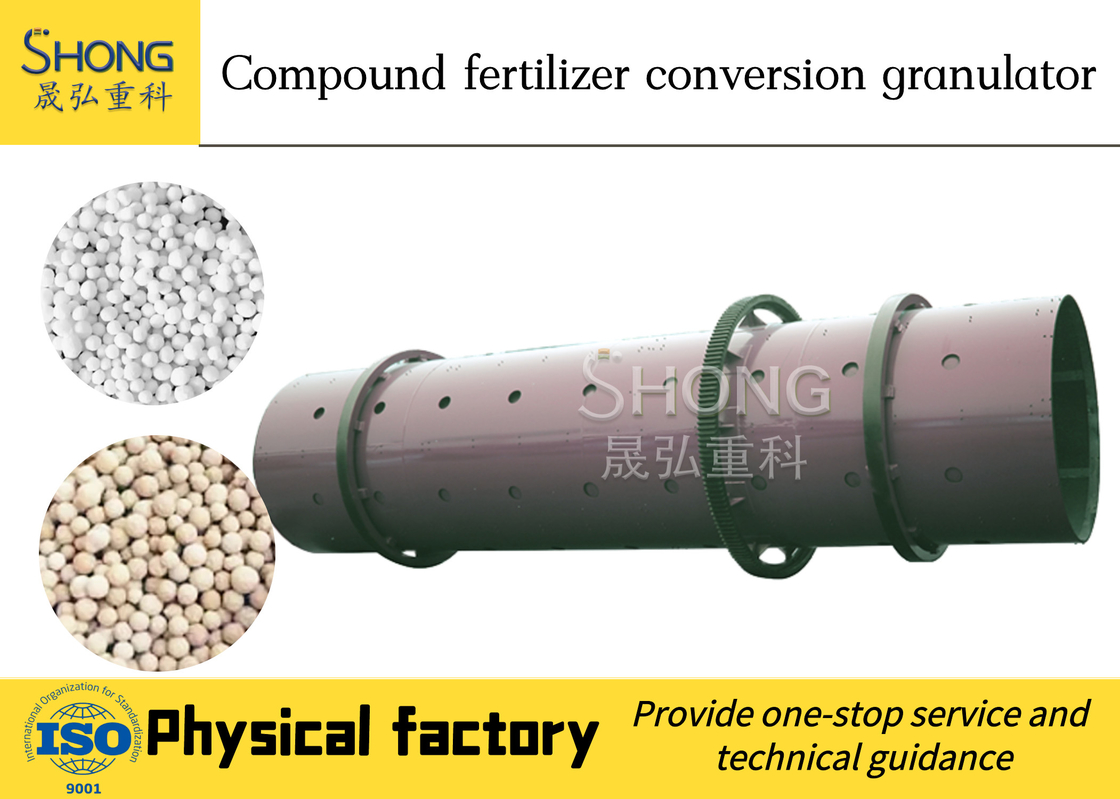

15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter

15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter
15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter 15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter

Large Image :  15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Tianci or OEM
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Detailed Product Description
Usage: Making Fertilizer Granules Raw Material: NPK,Urea, Ammonium Nitrate, Etc.
Function: Making NPK Compound Fertilizer Granules Shapes: Ball Shape
Guarantee: 1 Year Color: Demand
Application: NPK Compound Fertilizer Making Drum Diameter: 1500mm-2400mm
High Light:

fertilizer manufacturing plant

,

compound fertilizer production line

ISO Rotary Drum NPK Compound Fertilizer Making Production Line In 15-20t/h
15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter 0
Introduction For Compound Fertilizer Production Line

Compound Organic Fertilizer Making Machine is the key equipment in compound fertilizer industry.
It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.

Description For Compound Fertilizer Production Line

1, We provide single machine, such as material crusher,material mixer,fertilizer dryer, fertilizer cooling machine and so on. We can also provide the whole line of compound fertilizer pellets production line.
2, Chemical compound fertilizer material is many kinds of chemical single fertilizer.
3, Chemical compound fertilizer pellets produciton line includes the organic raw material crushing, mixing, granulating,drying,cooling,packing.

Raw Material For Compound Fertilizer Production Line


1. Urea,ammonium sulfate,ammonium chloride,producyion.

2. Monoammonium phosphate,diammonium phosphate,calcium superphosphate,calcium-magnesia phosphate fertilizer
3. Potassium chloride,potassium sulphate,potassium sulphate magnesium


Flow Chart For Compound Fertilizer Production Line

Compound fertilizer production line usually includes 9 processes, batching, grinding, mixing, granulating, drying, cooling, screening, coating and packaging. Batching, mixing, granulating, drying, and screening processes are necessary. Other processes are optional based on different capacity.

Main Equipments For Compound Fertilizer Production Line

1. Crushing machine: vertical grinder and horizontal grinder
2. Mixing machine: vertical mixer and horizontal mixer
3. Granulation machine:disc granulator roller granulator and drum granulator
4. Rotary dryer:Drying fertilizer granule after granulating to low down moisture
5. Rotary cooler:Cooling fertilizer granule to make it stable.
6. Coating machine:Coating machine to produce different colors fertilzier granule
7. Screening machine:Grading non-standard fertilizer granules from standard fertilizer granules.
8. Packing machine:Pack fertilizer granule into 10/20/50kg bags.


No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags


Features For Compound Fertilizer Production Line


1. Our rotary drum fertilizer making production line is widely used for producing NPK fertilizer, organic fertilizers, inorganic fertilizer, biological fertilizers, and magnetic fertilizers, etc.

2. The rotary drum fertilizer making production line can convert the urea, ammonium, phosphate fertilizer, potash fertilizer, ammonium sulfate, ethylamine into compound fertilizer.

3. With 20years of experience, our rotary drum fertilizer making production line received good reputation from the customers at home and abroad against its high quality and good performance.

4. Our company owns a high efficiency technology team with 30 senior engineers, most of them are the leading technicians in the line of rotary drum fertilizer making production line and even are specialist.

5. This technology team is dedicated to research and develop new products to meet customers’ requirements. Their hard work got good comments from customers. 3.Besides, advanced inspection equipment and strict operation procedure ensures our rotary drum fertilizer making production line to be high quality and good performance.

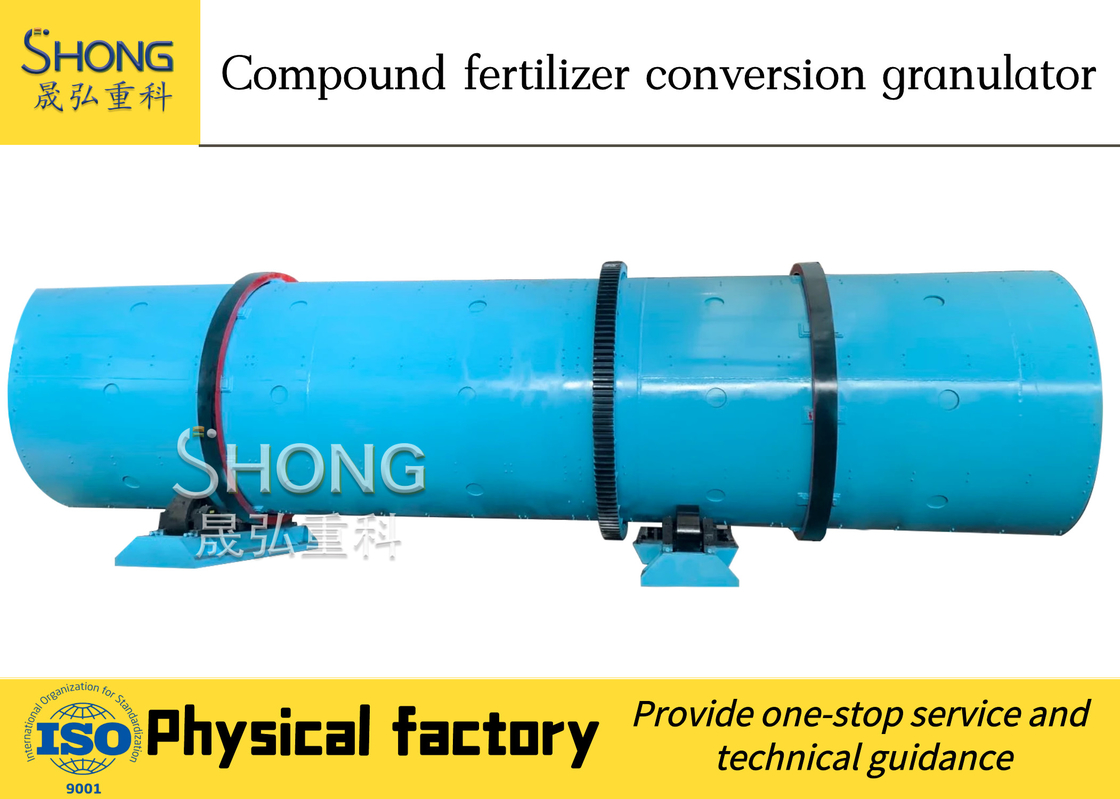

15 - 20T/H NPK Compound Fertilizer Production Line 1500 - 2400mm Rotary Drum Diameter 1
