Place of Origin:
Zhegzhou, Henan Province China
Brand Name:
Shenghong
Certification:
BV, SGS, ISO
Model Number:
ZG series
Rotary Drum Compound Fertilizer Production Line , Granulation Equipments
Description For Compound Fertilizer Production Line
1, We provide single machine, such as material crusher,material mixer,fertilizer dryer, fertilizer cooling machine and so on. We can also provide the whole line of compound fertilizer pellets production line.
2, Chemical compound fertilizer material is many kinds of chemical single fertilizer.
3, Chemical compound fertilizer pellets produciton line includes the organic raw material crushing, mixing, granulating,drying,cooling,packing.
Raw Material For Compound Fertilizer Production Line
1. Urea,ammonium sulfate,ammonium chloride,producyion.
2. Monoammonium phosphate,diammonium phosphate,calcium superphosphate,calcium-magnesia phosphate fertilizer
3. Potassium chloride,potassium sulphate,potassium sulphate magnesium
Flow Chart For Compound Fertilizer Production Line
Compound fertilizer production line usually includes 9 processes, batching, grinding, mixing, granulating, drying, cooling, screening, coating and packaging. Batching, mixing, granulating, drying, and screening processes are necessary. Other processes are optional based on different capacity.
Main Equipments For Compound Fertilizer Production Line
1. Materials crushing
Crushing materials into small pieces.
2. Mixing
The mixed material should be mixed completely,then get into granulator.
3. Granulation

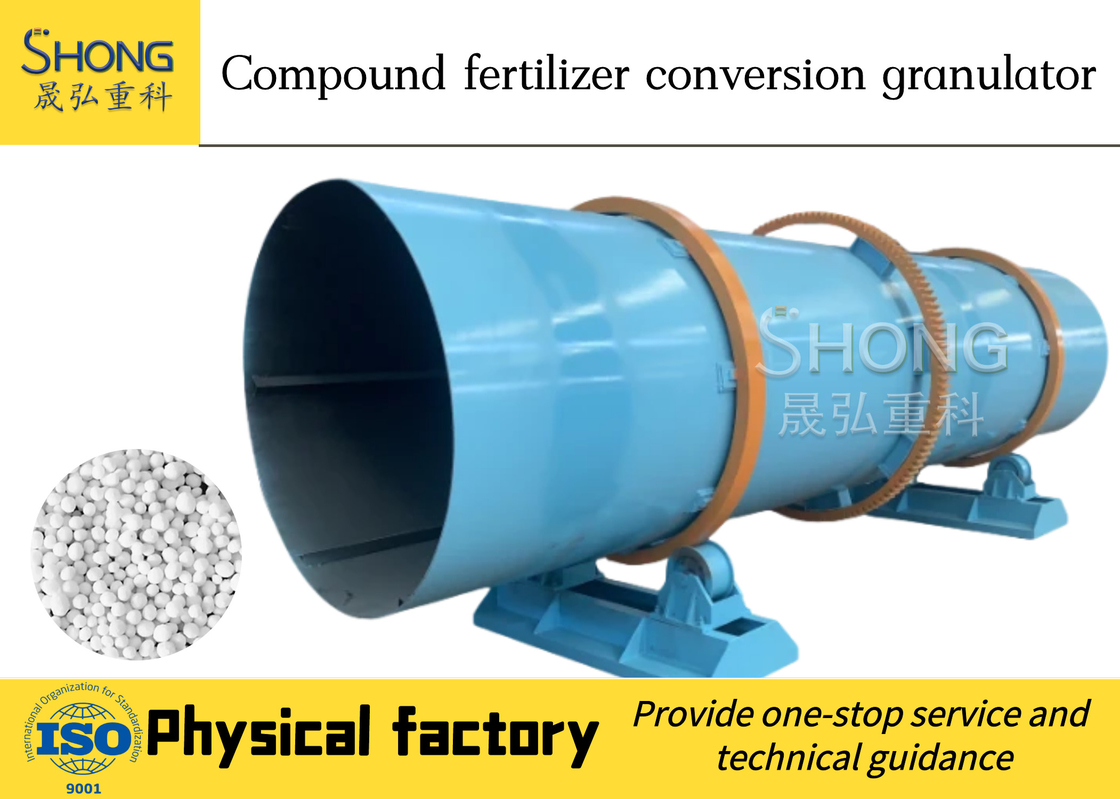

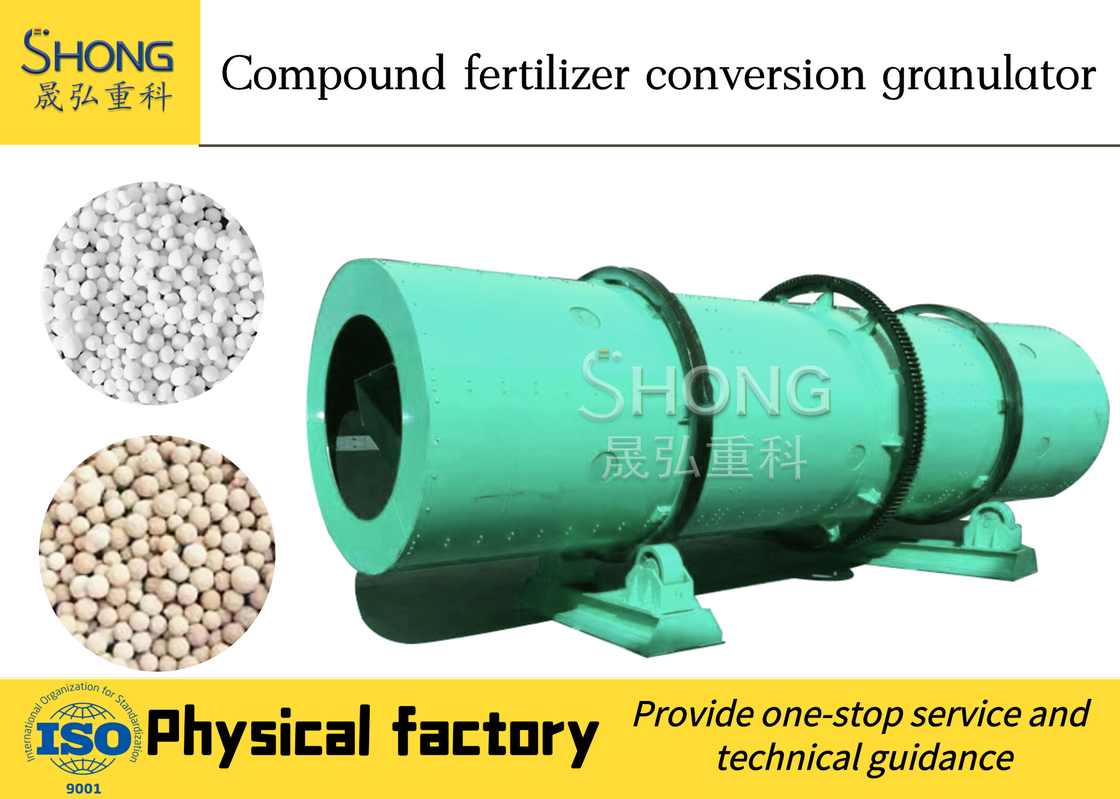

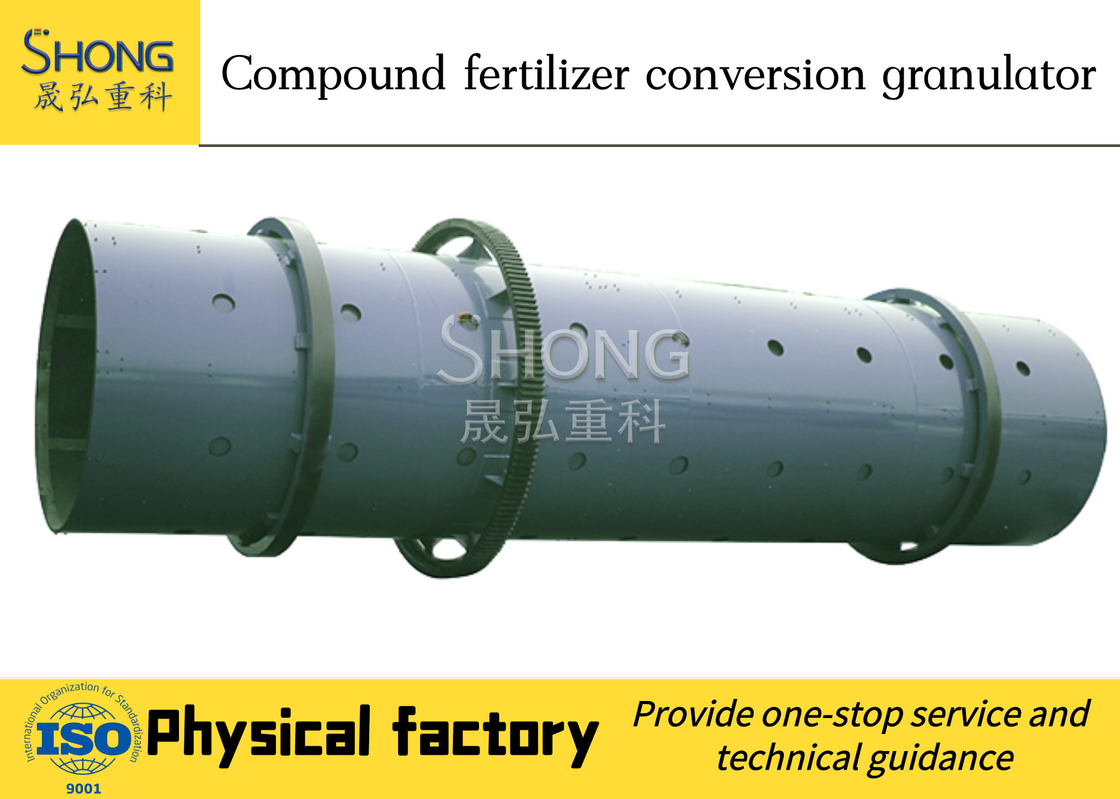

The drum granulator can make the materials into granules.
4. Drying
After granulating,the moisture of fertilizer is bit high,it is not suitable for long-term storage so we need send make drying process.
5. Cooling
The cooling machine is used to cool the hot fertilizer.
6. Screening
There are some non-uniform particles,after sieved screening machine,the small particle diameter may be screened down for twice processing.
7. Coating
Under the particle surface is not uniform,sleek case,we need to be coat the surface of fertilizer granules.
8. Packaging
After package,the fertilizer can be sold.
| No. | Processes | Machines | Function of machines |
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine | Feed mixed powder into granulator evenly |
| Granulator | Make mixed powder into fertilizer granules | ||
| 5 | Drying process | Dryer | Dry fertilizer granules to low moisture by hot air |
| Hot stove | Generate hot air to dryer | ||
| Cyclone | Collect dust from dryer | ||
| 6 | Cooling process | Cooler | Cool fertilizer granules to normal temperature |
| Cyclone | Collect dust from cooler | ||
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 9 | Packaging process | Air compressor | Generate power to packaging machine |
| Packaging machine | Package fertilizer granules into bags |
Features For Compound Fertilizer Production Line
1. Compound fertilizer production line can production NPK fertilizer,DAP and other materials into compound fertilizer particles.
2. Compound fertilizer production line mainly used for producing spherical particles with a diameter ranging from 1-3mm.
3. Raw material widely,the production formula easy to operate,used to produce high,mediumand,low grade of compound fertilizer.
4. Compound fertilizer production technology is mature,equipments running stable and high effciency.
