Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Product Name: | Organic Fertilizer Granulator |
|---|---|---|---|
| Warranty: | 12 Month | Raw Material: | Organic Material |
| Condition: | New | Voltage: | 380V/415V |
| After-sales Service: | Engineer Available To Service | Power: | 1 Year |
| Highlight: | Carbon steel Organic material fertilizer granulator,Organic Granulator machine for Compound Fertilizer,415V fertilizer granulator machine |
||
Stirring teeth organic fertilizer granulator with new design
Working Principle of organic fertilizer granulator
Organic fertilizer granulator, using the high-speed rotary mechanical stirring force and the resulting aerodynamic force, makes fine powder be in continuous mixing, granulation, spheroidization and dense process in the machine, so as to achieve the purpose of granulation. Particle shape is spherical. Spherical degree is ≥ 0.7.Particle size is generally between 0.3-3 mm. Granulation rate is ≥ 90%. The size of the particle diameter can be adjusted by the amount of mixing material and spindle speed. Under normal conditions, the lower the amount of mixing materials are add and the higher speed , the smaller the particles are, and vice versa. The finer the basic particles of the fine powder material, the higher the sphericality of the particles and the better ball quality. The qualified rate of the machine is as high as 80-90%, which is suitable for many different formulations. The ball rate is less than 15%, and the uniformity of particle size can be adopted according to user's requirement.
Application of organic fertilizer granulator
New organic fertilizer granulator has specialty for organic fermentation fertilizer granulation of livestock manure, pile retting fertilizer, green manure, cake fertilizer, peat, soil miscellaneous fertilizer, microbial and other municipal solid waste. It can adapt to a variety of different formulations. Organic fertilizer compressive strength is higher than disc fertilizer granulator and rotary drum fertilizer granulator. Wet type organic fertilizer granulator is suitable for organic fertilizer direct granulation after fermentation, saving drying process and greatly reducing manufacturing costs.
Feature of organic fertilizer granulator
1) New type organic fertilizer granulator pellet is ball.
2) The organic content can be high to 100%, make pure organic granulate.
3) Production is massy, It can sieve directly after granulation to reduce the energy consumption of drying.
4) After fermentation organics don’t need to dry, moisture of the raw material can be in 20% - 40%
Parameter of organic fertilizer granulator
| Model | YSL-120 |
| Capacity(t/h) | 5-8 |
| Power(kw) | 75 |
| Dimendion(mm) | 4800*3000*1900 |
| Moisture | 20%-40% |
| Organic content | 100% |

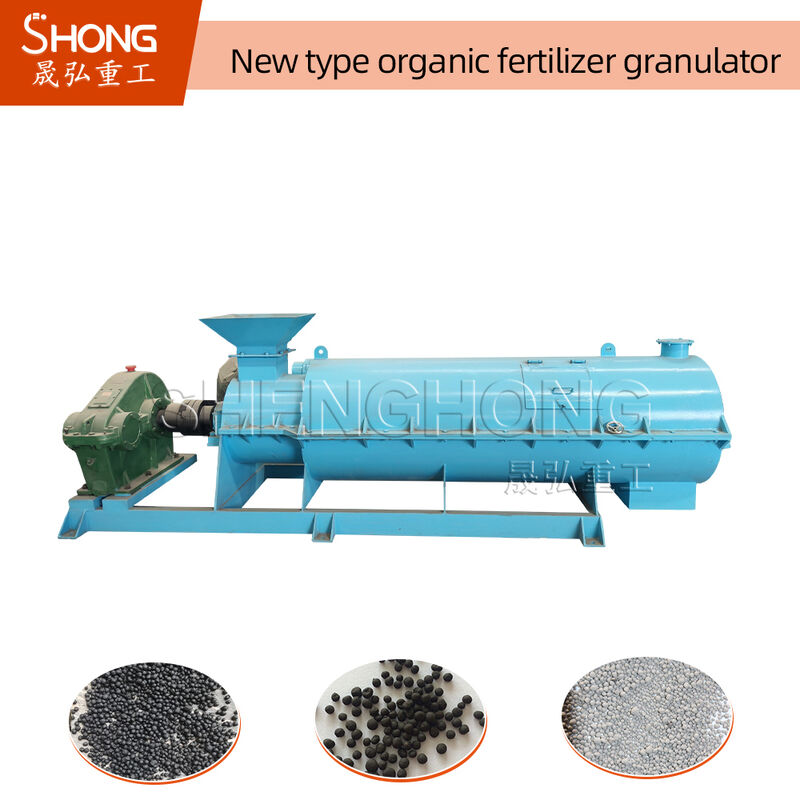

Picture of organic fertilizer granulator
