380V 8mm Organic Fertilizer Granulator Machine Animal Manure

380V 8mm Organic Fertilizer Granulator Machine Animal Manure

Animal Manure Organic Fertilizer Granulator

8mm Fertilizer Granulator machine

380V Organic Fertilizer Granulator

Place of Origin:

Zhengzhou, China

Brand Name:

Shenghong

Certification:

BV, SGS, ISO

Model Number:

SHZ-120

Contact Us
Request A Quote
Product Details
Raw Material Of Fertilizer:
Organic Raw Material
Moisture Of Material:
Under 40%
Particle Size:
1-8mm
Raw Material Of Machine:
Carbon Steel
Condition:
New
Voltage:
380V, 50HZ
Usage:
Organic Fertilizer Granulator
Color:
Customized
Highlight:

Animal Manure Organic Fertilizer Granulator

,

8mm Fertilizer Granulator machine

,

380V Organic Fertilizer Granulator

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
customer demand, usually in container
Delivery Time
5-8 working days
Payment Terms
L/C, T/T, D/A, Western Union
Supply Ability
120 sets per month
Product Description

Animal Manure Organic Fertilizer Granulator Organic Fertilizer Machinery



Introduction of organic fertilizer granulator

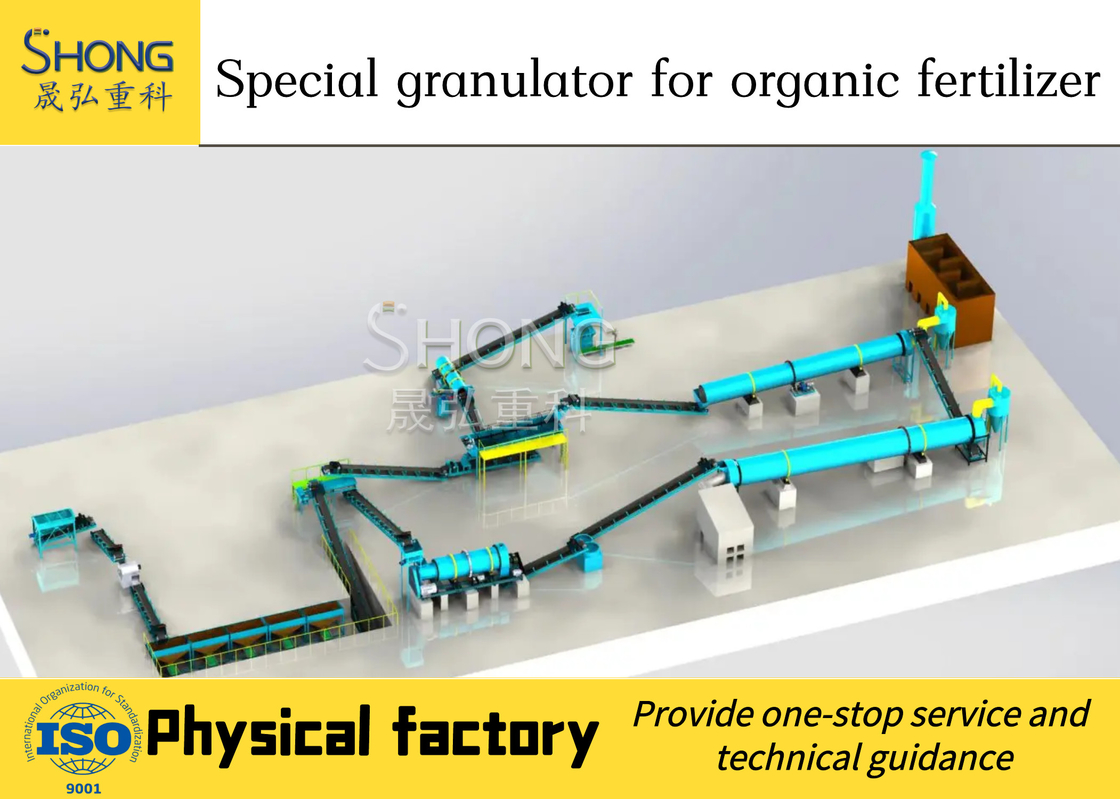

organic fertilizer granulator machine has wide series, including the compost turner, mixing and crusher, granulating machine, screening machine and polishing machine, final packing machine and delivering parts; Here we mainly talked the organic fertilizer granulating machinery.
our new designed organic fertilizer granulator machine is a kind of high efficient granulating machine, also called pin or stirred granulating machine, it can be used to the compost manure fertilizer production, can produce 2-5mm ball size granules; its inner structure is high rotating shaft with many granulating teeth; it is introduced in the middle to large fertilizer production factory or farm; the only shortness is the large power in the use but high efficient to keep the performance final granules.

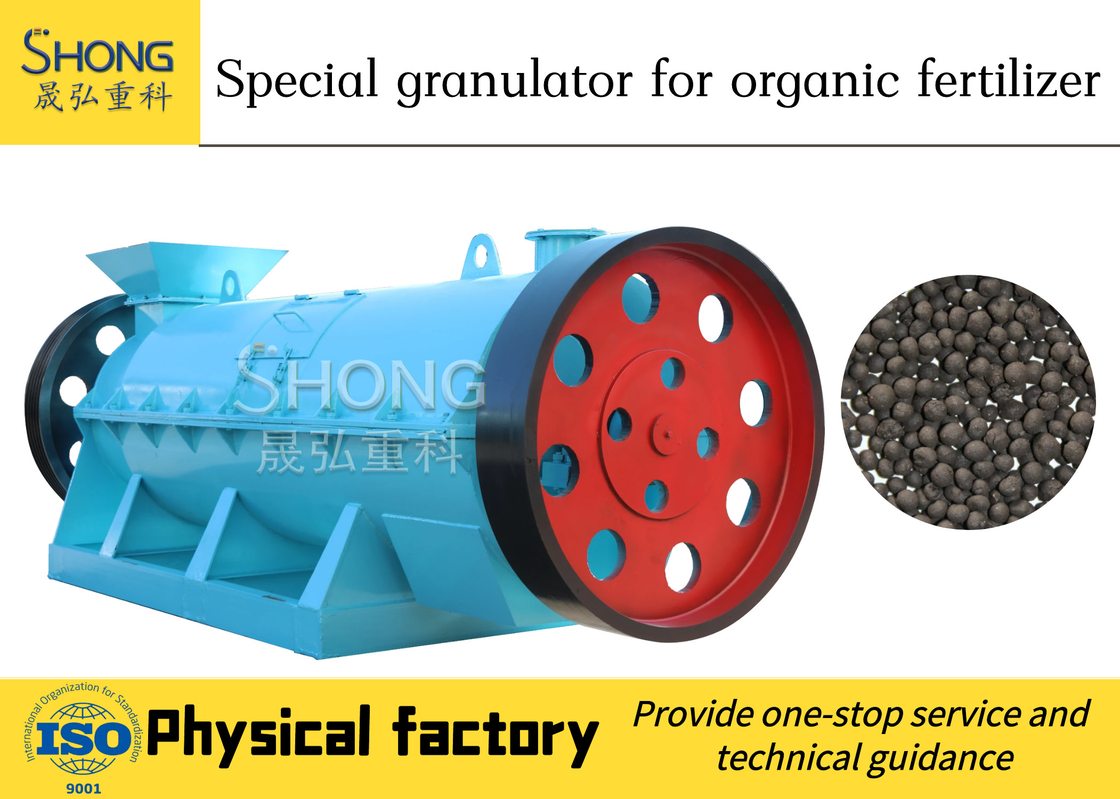

380V 8mm Organic Fertilizer Granulator Machine Animal Manure 0

Working Principle of organic fertilizer granulator

Organic fertilizer granulator, using the high-speed rotary mechanical stirring force and the resulting aerodynamic force, makes fine powder be in continuous mixing, granulation, spheroidization and dense process in the machine, so as to achieve the purpose of granulation. Particle shape is spherical. Spherical degree is ≥ 0.7.Particle size is generally between 0.3-3 mm. Granulation rate is ≥ 90%. The size of the particle diameter can be adjusted by the amount of mixing material and spindle speed. Under normal conditions, the lower the amount of mixing materials are add and the higher speed , the smaller the particles are, and vice versa. The finer the basic particles of the fine powder material, the higher the sphericality of the particles and the better ball quality. The qualified rate of the machine is as high as 80-90%, which is suitable for many different formulations. The ball rate is less than 15%, and the uniformity of particle size can be adopted according to user's requirement.

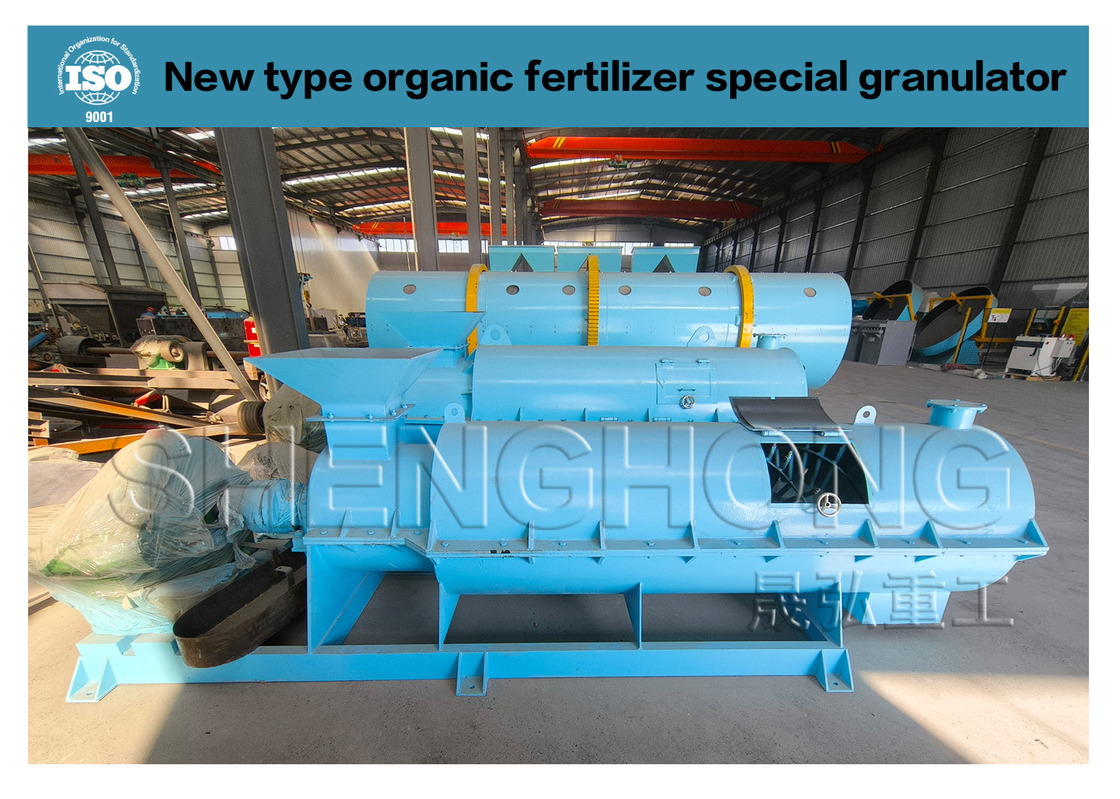

380V 8mm Organic Fertilizer Granulator Machine Animal Manure 1

Features of organic fertilizer granulator
1.Both the concentration of organic raw materials and the granulation rate are high, so it can produce 100% pure organic fertilizer granules, which meets the needs of customers directly.
2.The final granules are spherical and uniformly shaped, which prolongs the quality of the organic fertilizer granules.
3.This machine produces particles with high hardness, which can be screened immediately after the granulation process. Thus, it can save the energy that is wasted in the fertilizer drying process.
4. Organic raw materials don't need to be dried or crushed, which makes the producing process more effective and economic.



Parameter of organic fertilizer granulator

Model

power

(kw)

Rotation speed (r/min) Capacity (t/h)

Length × width × height

(mm)

SHZ-60 30 312 1-1.5 3660*950*1050
SHZ-80 45 242 2-3 3665*1200*1280
SHZ-100 55 373 3-5 3660*1400*1500
SHZ-120 75 450 5-7 5410*1500*1610



Picture of organic fertilizer granulator

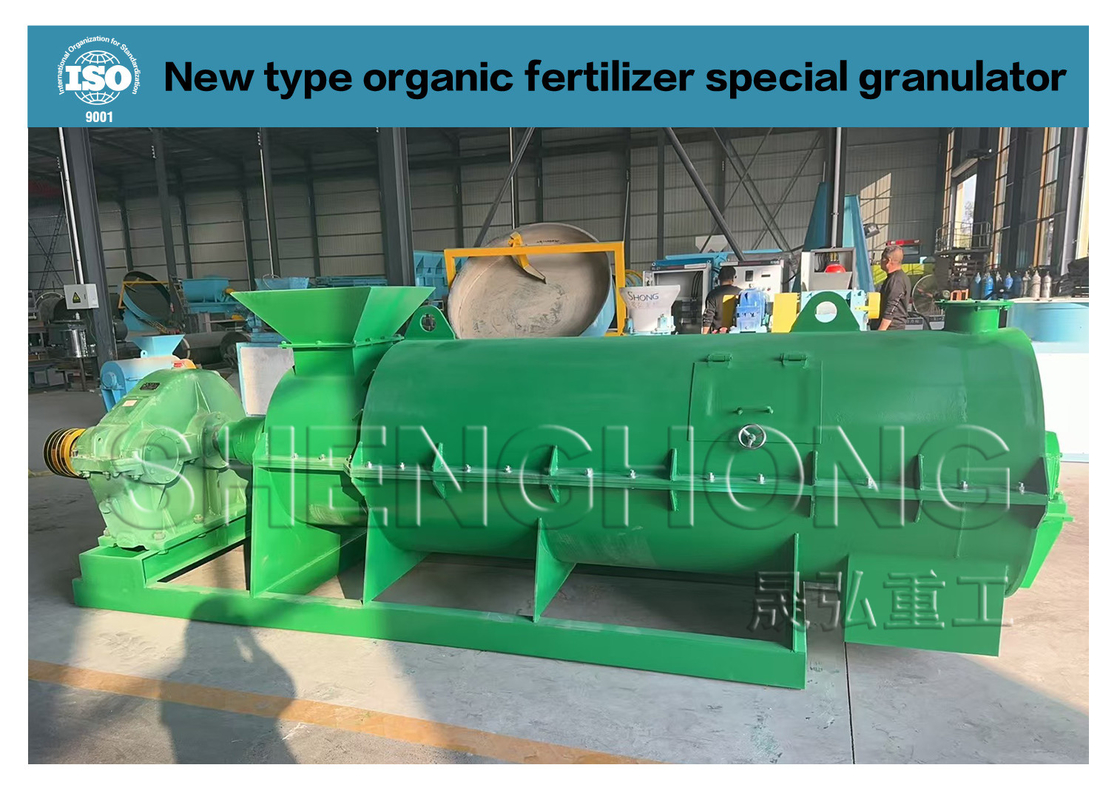

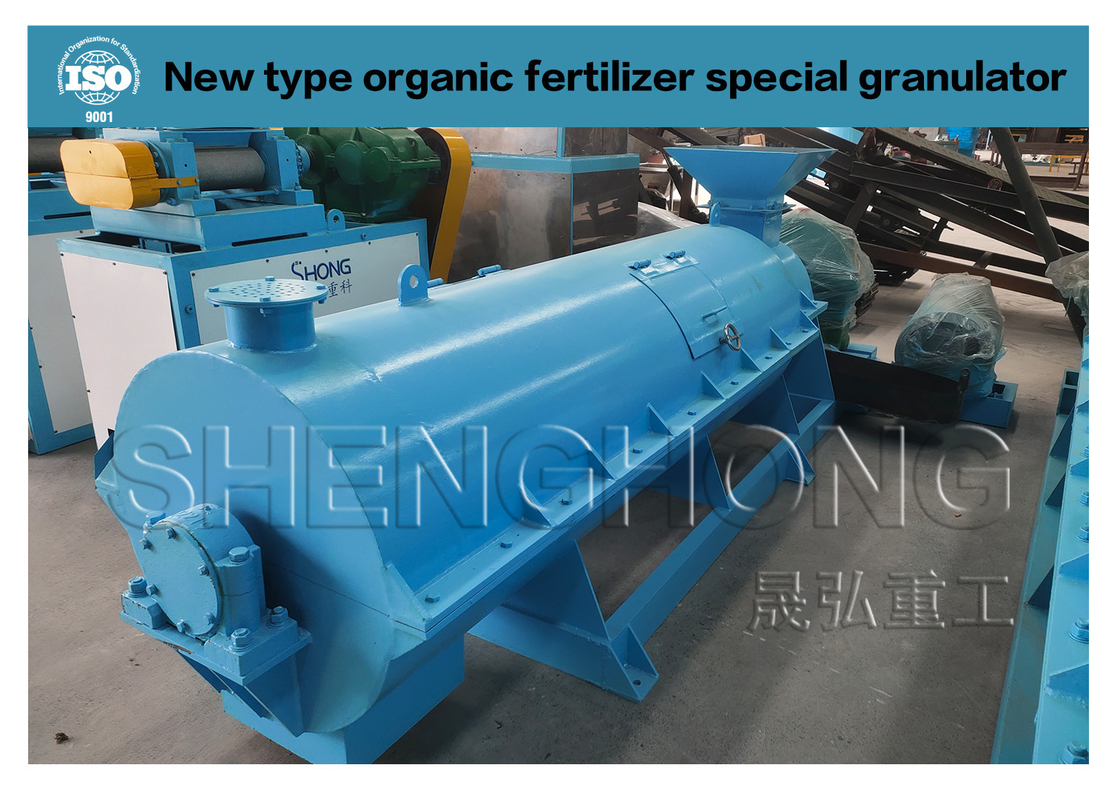

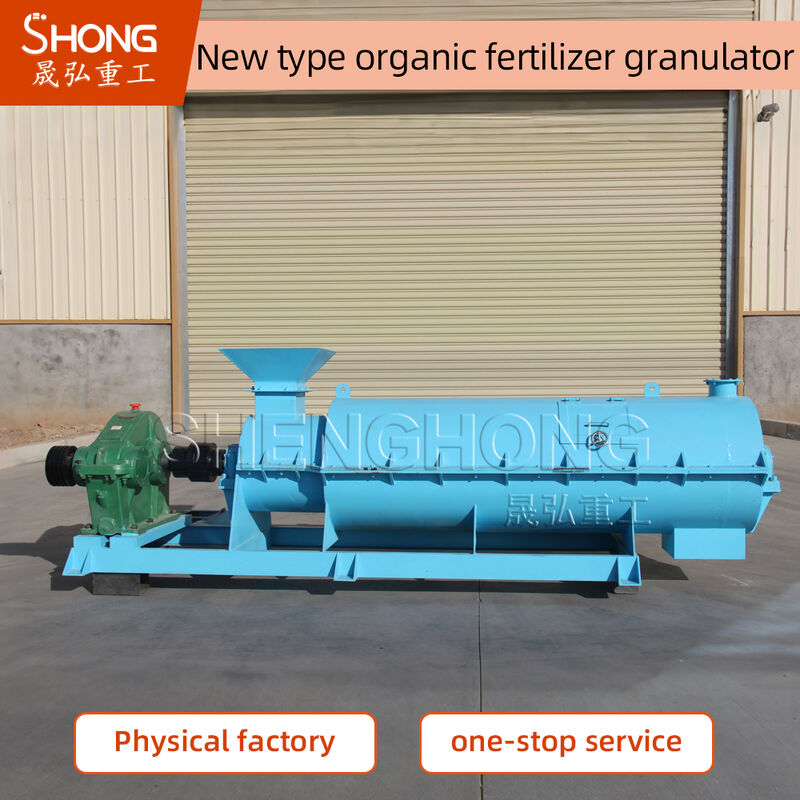

380V 8mm Organic Fertilizer Granulator Machine Animal Manure 2
