Place of Origin:
Zhengzhou, China
Brand Name:
Shenghong
Certification:
BV, SGS, ISO
Model Number:
DZJ-II-2.0
Double Roller Extrusion Compound Fertilizer Granulator With CE Certificate
Introduction of compound fertilizer granulator
Double roller press compound fertilizer granulator, belong to the extrusion slip model, its working principle is: the motor drive the belt and pulley, transfer to the drive shaft through the speed reducer, through the open gear synchronously with the driven shaft, the double rollers rotate in the opposite direction. The raw material input through the feed hopper, and after the extrusion molding, demoulding granulating, through a chain transfer to crushing and screening, after separating , the finished granules come out, and the powder will be back to the mixer, for granulation again. With the continuous rotation of the motor, the continuous input of material, to achieve mass production.
Our compound fertilizer granulator is a key fertilizer equipment in compound fertilizer granulation. Roller-type granulator is a new-designed fertilizer roller compaction granulation device developed & researched by ourselves. Materials are granulated at room temperature, and there is no drying process, more energy-saving and cost-reducing. With the characteristics of small investment, large profits, and quick results, the double roller compactor granulator will bring investors bigger economic returns. It can be used in compound fertilizer production with high, medium and low concentration.
Application of compound fertilizer granulator
The compound fertilizer granulator is used in 30,000 t/y compound fertilizer production line & other products manufacturing, such as capsule filling particles, pigments, detergents, catalysts, fertilizer, inorganic salts, calcium hypochlorite, pesticides, oxides, etc., industrial dust recovery materials: such as foundry dust, lead, zinc, aluminum dust, converter dust, grinding dust, etc.
Parameter of compound fertilizer granulator
Model | DZJ-II-2.0 |
Product name | Compound fertilizer granulator |
Voltage | 380V/50Hz, as your request |
Capacity | 1.5-2.5 tons per hour |
Granular dia | 2.5-20mm |
Moisture | 2%-5% |
Feeding size | <=0.5mm |
Power | 18.5kw |

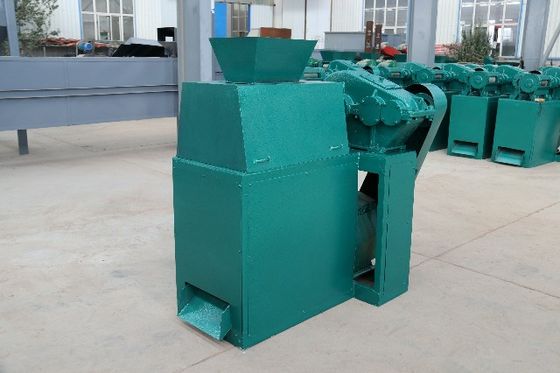

Picture of compound fertilizer granulator
