Fertilizer Pellet Making Machine Compound Fertilizer Granulator For Agriculture

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : customer demand, usually in container Delivery Time : 5-8 working days
Payment Terms : L/C, T/T, D/A, Western Union Supply Ability : 80 sets per month
Place of Origin: Zhengzhou, China Brand Name: Tianci
Certification: BV, SGS, ISO Model Number: DZJ-I-2.0

Detail Information

Raw Material Of Fertilizer: NPK Fertilizer Raw Material Of Machine: Carbon Steel
Condition: New After-sales Service: Engineer Available To Oversea
Power: 15KW Type Of Machine: Mixing Machine
Diameter: 2.5-20mm Capacity: 1.5-2.5 T/H
High Light:

fertilizer blending machine


fertilizer mixing equipment

Product Description

Fertilizer Pellet Making Machine Compound Fertilizer Granulator For Agriculture


Working principle of compound fertilizer granulator
A pair of mating gear roller is used as the working part for overstocking material. The type of double roller compound fertilizer granulator working principle is continuously extruding granulation of positive-displacement. The plant can be adapted widely, and the end products possess higher intensity and uniform length. The shape of particle is circular. The diameter of particle is generally from3.5 mmto10mm.The rate of end products is above 85%. As the material is extruded by means of rolling of gears and positive-displacement compressing, roller extruding granulator possess a wider adaptability to varying material, and is especially suited for granulation with thixotropy. The Scraping cutter installed inside made the particle have the same length. Wetness required for granulation is lower and the particle granulated by this plant is more intensive than screw type granulator.


Introduction of compound fertilizer granulator

The double roller compound fertilizer granulator is suitable for compound fertilizer, medicine, chemical industry, feeding field etc. The roller compound fertilizer granulator can produce all kinds of thick high, a variety of types compound fertilizer (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizers, etc.)the compound fertilizer granulator is especially used for the rare earths, potash, producyion series compound fertilizer granulation. Besides, there is no need the drying equipment, and low temperature, low energy consumption. The raw material can be compressed directly in the normal temperature. FGZL roller squeezing granulator is our development of a new generation of fertilizer pellet machine.The roller compound fertilizer granulator makes the products once at the room temperature without drying by production process, three specifications of the capacity for1-1.5 tons/hour,1.5 - 2 tons/hour and 2-3tons/hour. The roller squeezing compound fertilizer granulator equipment is less investment, quick effect, good profit. Complete sets of compound fertilizer granulation equipment,layout is compact, rational and scientific with the advanced technologies.

This NPK compound fertilizer granulator equipment belongs to dry type granulation. So you don't need to use rotary drum drying machine and rotary drum cooling machine to remove the moisture of the NPK fertilizer pellets. That will save your production time and the costs of cooling machine and drying machine.

You can choose various particle shape by using NPK fertilizer double roller compound fertilizer granulator. Such as pillow shape, semicircle shape, stick shape, pill shape, walnut shape, flat shape and square bar shape, etc.

ln addition, NPK compound fertilizer granulator machine is the specialized equipment for making NPK fertilizer. Thus, this granulator is more efficient and professional.


Parameter of compound fertilizer granulator

Model DZJ-I-2.0
Capacity(t/h) 1.5-2.5 t/h
Power 18.5kw
Voltage 380V/50Hz
Dimension 1650*650*1450mm
Weight 1200 kg
Granules dia 2.5-20mm

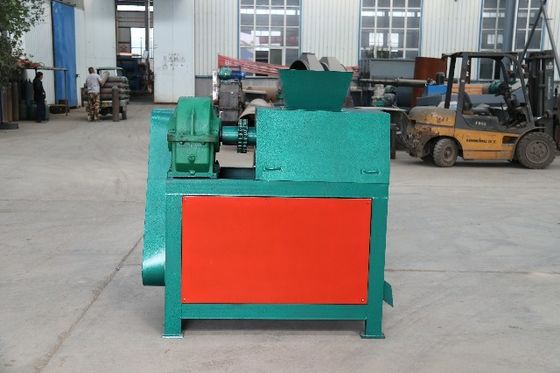

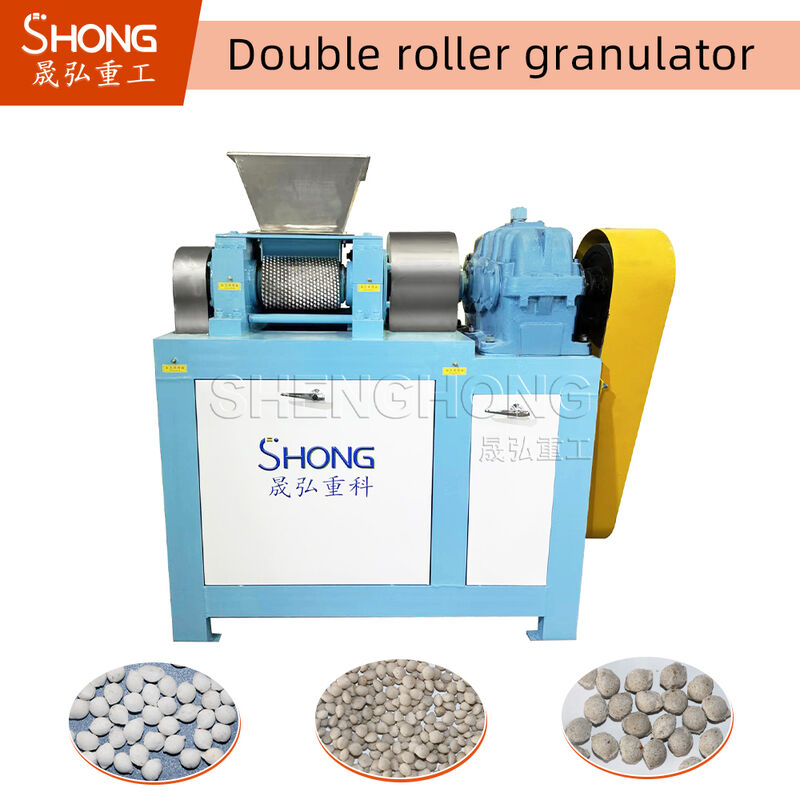

Picture of compound fertilizer granulator

Fertilizer Pellet Making Machine Compound Fertilizer Granulator For Agriculture 0Fertilizer Pellet Making Machine Compound Fertilizer Granulator For Agriculture 1Fertilizer Pellet Making Machine Compound Fertilizer Granulator For Agriculture 2
