Double Roller Press Compound Fertilizer Granulator With Low Investment

Double Roller Press Compound Fertilizer Granulator With Low Investment

Process advantages of compound fertilizer granulator
1. The compound fertilizer granulator belongs to dry granulation. It is not necessary to adjust the dryness and humidity of the material during the granulation process, and there is no need to increase the drying equipment.
2. Compound fertilizer granulators can be used to process granules containing heat-sensitive materials.
3. Because it is dry granulation, no waste water or waste gas will be emitted during the production process.
4. The compound fertilizer granulator has simple process, easy automatic control, and high production efficiency.
5. The flexibility of the compound fertilizer granulator is good, and the fertilizer production plan can be unaffected at any time.
6. The uniformity of the particle size of the compound fertilizer granulator is a significant advantage, because the ball socket size of the roller is the same.

Main use of compound fertilizer granulator
The main purpose of the compound fertilizer granulator produced by Gat Heavy Industry: filling particles, pigments, detergents, catalysts, barium carbonate, fertilizers, silica, inorganic salts, chloroisocyanuric acid, bleaching powder, pesticides , oxides, etc., as well as industrial recycling dust materials: such as iron, dust, lead, zinc, aluminum dust, converter dust, dust, grinding and other dust. Material is forced compression molding by mechanical pressure, without adding any wetting agent, product purity Guaranteed. The roll extrusion granulator has a short process flow, low energy consumption and large output. The direct granulation of the dry powder does not require a subsequent drying process, which is more conducive to the connection and transformation of the existing production process. High particle strength, increased bulk specific gravity is more significant than other granulation methods.

Description of compound fertilizer granulator

Compound fertilizer granulator, belong to the extrusion slip model, its working principle is: the motor drive the belt and pulley, transfer to the drive shaft through the speed reducer, through the open gear synchronously with the driven shaft, the double rollers rotate in the opposite direction. The raw material input through the feed hopper, and after the extrusion molding, demoulding granulating, through a chain transfer to crushing and screening, after separating , the finished granules come out, and the powder will be back to the mixer, for granulation again. With the continuous rotation of the motor, the continuous input of material, to achieve mass production.

Parameter of compound fertilizer granulator

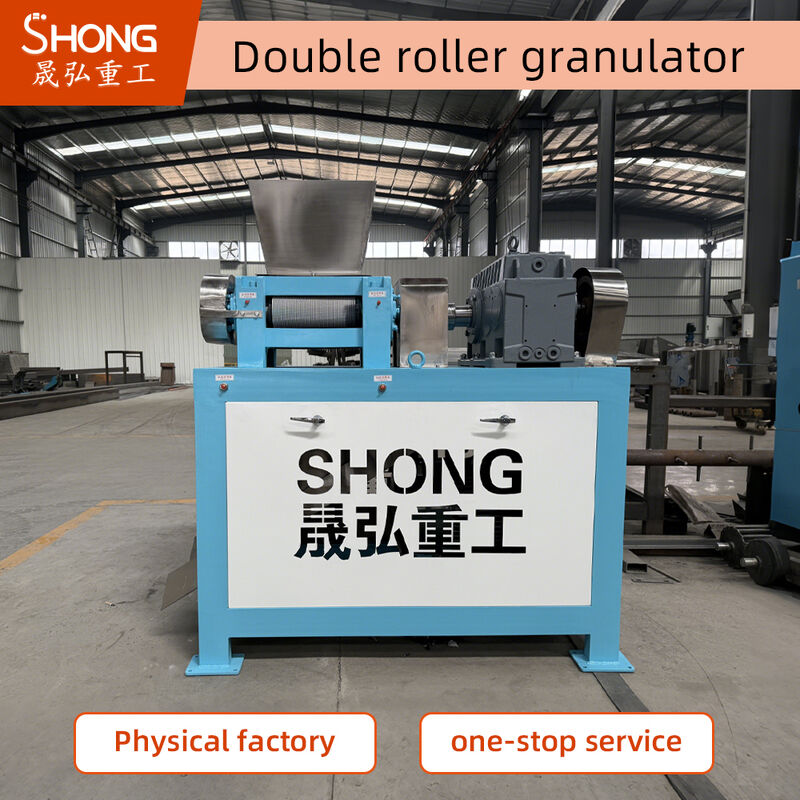

Picture of compound fertilizer granulator
