Roller Press Compound Fertilizer Granulator Machine With Oblate Shape
Compound Fertilizer Granulator
Without any intermediates or additives, this machine can produce uniform and densified particle products directly from raw powdery material. The design of this roll compactor is reasonable, and easy to operate, it’s an idea choice for dry powder granulation.
Less investment, quick results, good economic benefits. The compoud fertilizer granulator can produce fertilizer by normal temperature without no more drying technology, pellets formed only once extrusion.
Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
The compound fertilizer granulator can be used for the granulation of earth, carbon ammonium and ammonium sulfate compound fertilizer, filling the domestic blank.
The complete equipment is less investment, quicker and good economic returns. It is also compact, scientific and rational, and advanced technology. The whole equipment is saving energy, no waste discharge, stable operation, reliable operation and easy maintenance. Wide adaptability of raw materials includes fertilizer, pharmaceuticals, chemicals, feed and other raw materials. The ratio of forming particles is high. It can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, fertilizer, and magnetic fertilizer) fertilizer, in particular, rare earth, ammonium bicarbonate series of fertilizer granulation. The production line fills the gap, leading in China.
The raw materials have wide adaptability and high granulation rate It can produce compound fertilizers of various comcentra ions and types
Product Details of compound fertilizer granulator
1. Ball forming rete can reach 85%.no drying
2. Double roll pressure determines particle strength
3. Roll speed is adjusted by changing the belt pulley transmission ratio
4. Roll skin adopts new wear-resistant material
Working principle of compound fertilizer granulator
A pair of mating gear roller is used as the working part for overstocking material. The type of compound fertilizer granulator working principle is continuously extruding granulation of positive-displacement. The plant can be adapted widely, and the end products possess higher intensity and uniform length. The shape of particle is circular. The diameter of particle is generally from3.5 mmto10mm.The rate of end products is above 85%. As the material is extruded by means of rolling of gears and positive-displacement compressing, compound fertilizer granulator possess a wider adaptability to varying material, and is especially suited for granulation with thixotropy. The Scraping cutter installed inside made the particle have the same length. Wetness required for granulation is lower and the particle granulated by this plant is more intensive than screw type granulator.
Paramater of compound fertilizer granulator
Model: DZJ-I-2.0
Capacity: 1.5-2.5 tons per hour
Power: 18.5kw
Voltage: 380V/50Hz
Color: As your request
Granules dia: 2.5-20mm
Material moisture: 2%-5%

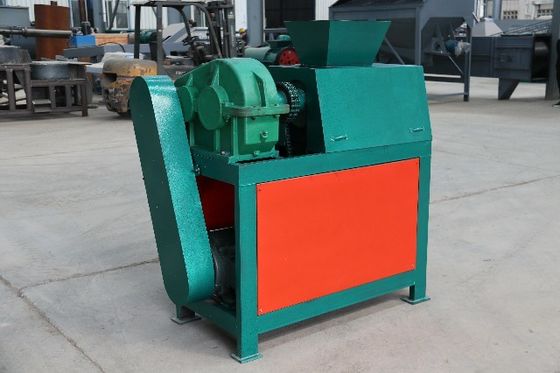

Picture of compound fertilizer granulator
