Product Details:
Payment & Shipping Terms:
|
| Raw Material Of Machine: | Carbon Steel | Additional Capability: | Compound Fertilizer Granulator |
|---|---|---|---|
| Max. Loading Capacity: | 0.5 T/h | Power: | 2.2KW |
| Condition: | New | Installation: | Guidance Of Engineer |
| Color: | Customized | After-sale Service: | Oversea Service Available |
| Highlight: | fertilizer blending equipment,fertilizer blending machine |
||
Pan Type Compound Fertilizer Granulator With Round Ball Shape
Introduction of compound fertilizer granulator
Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.
Working Principle of compound fertilizer granulator
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Characteristics of compound fertilizer granulator
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.
Features of compound fertilizer granulator
1.The flat pan adopts circular arc structure, promising 93% compound fertilizer yield.
2.The disk uses strong iron material, sturdy and durable. Due to strong,stable and lasting base design, there is no need fixing the base with Anchor Bolt.
3.The inside lining of the pan adopts high strength and strong corrosion-resistance plastics glass, with simply structure, high fertilizer granulesyield, and easier to maintenance.
4.This fertilizer granulator machine is stable and reliable in operation, low noise.
5.lt is used in our compound fertilizer production line, such as our tailor-made 50,000 tons/year compound fertlizerproduction line.
Parameter of compound fertilizer granulator
| Model | Inner dia | Height | Volume | Speed | Power | Capacity |
| ZL10 | 1000mm | 250mm | 0.4m3 | 24r/min | 2.2kw | 0.3-0.5t/h |
| ZL15 | 1500mm | 300mm | 1.1m3 | 22r/min | 5.5kw | 0.5-0.8t/h |
| ZL18 | 1800mm | 300mm | 1.4m3 | 18r/min | 5.5kw | 0.6-1.0t/h |
| ZL20 | 2000mm | 350mm | 1.8m3 | 18r/min | 7.5kw | 0.8-1.2t/h |
| ZL25 | 2500mm | 350mm | 2.5m3 | 18r/min | 7.5kw | 1.0-1.5t/h |
| ZL28 | 2800mm | 400mm | 3.3m3 | 18r/min | 11kw | 1.0-2.5t/h |
| ZL30 | 3000mm | 450mm | 3.9m3 | 16r/min | 11kw | 2.0-3.0t/h |
| ZL32 | 3200mm | 500mm | 4.3m3 | 13.6r/min | 15kw | 2.0-3.5t/h |
| ZL36 | 3600mm | 550mm | 5.5m3 | 11.3r/min | 18.5kw | 3.0-5.0t/h |
| ZL45 | 4500mm | 600mm | 6.5m3 | 8r/min | 22kw | 4.0-6.0t/h |

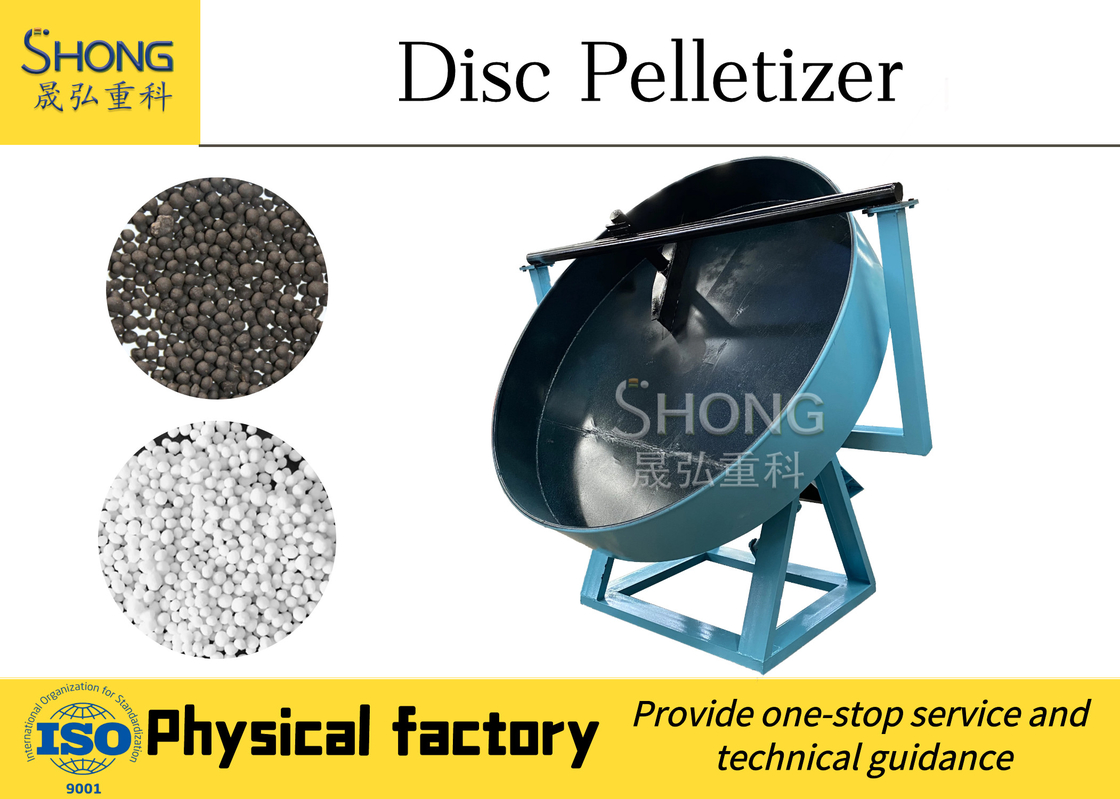

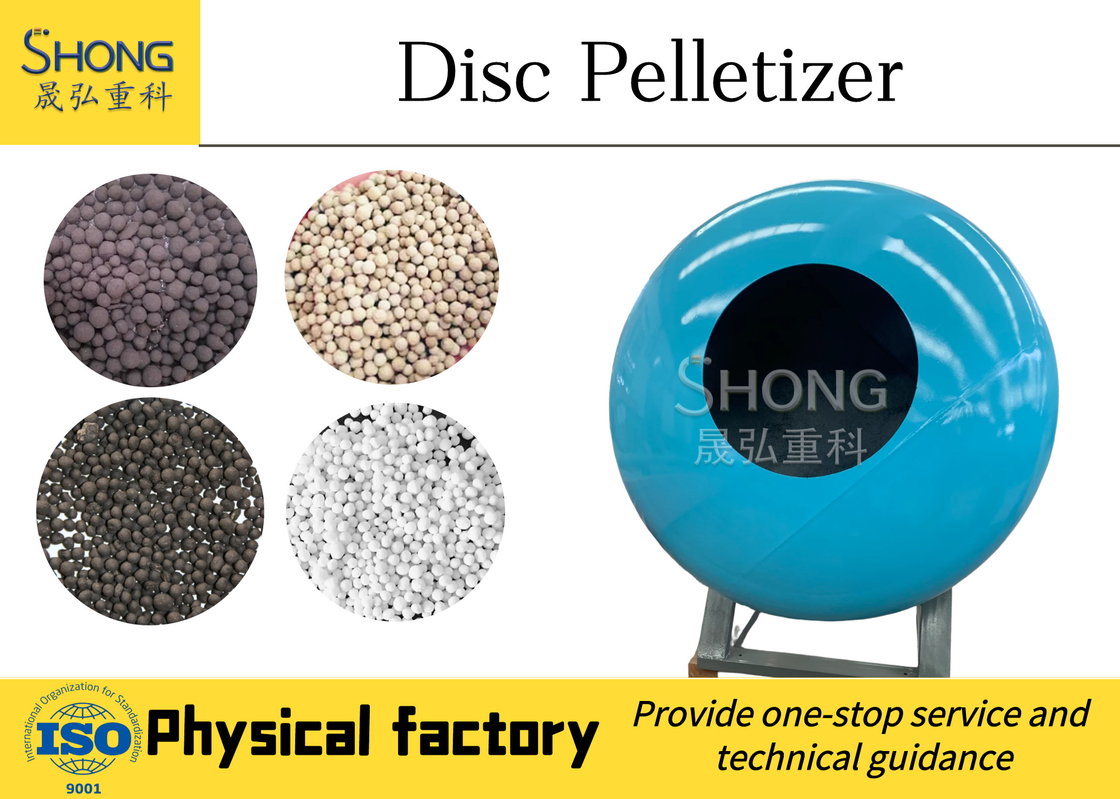

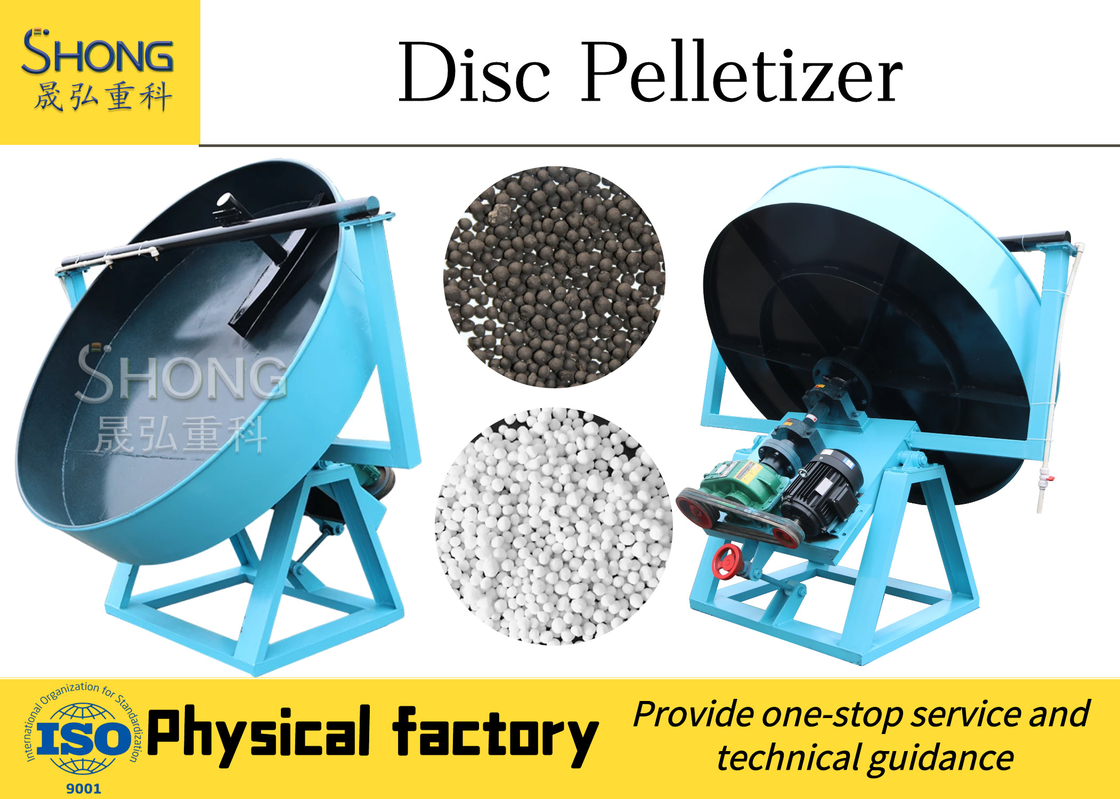

Picture of compound fertilizer granulator
