Highlight:
fertilizer bagging machine
, fertilizer bagging equipment
Nut Flour Packaging Scale With Carbon Steel , 600-800 Bag Per Hour

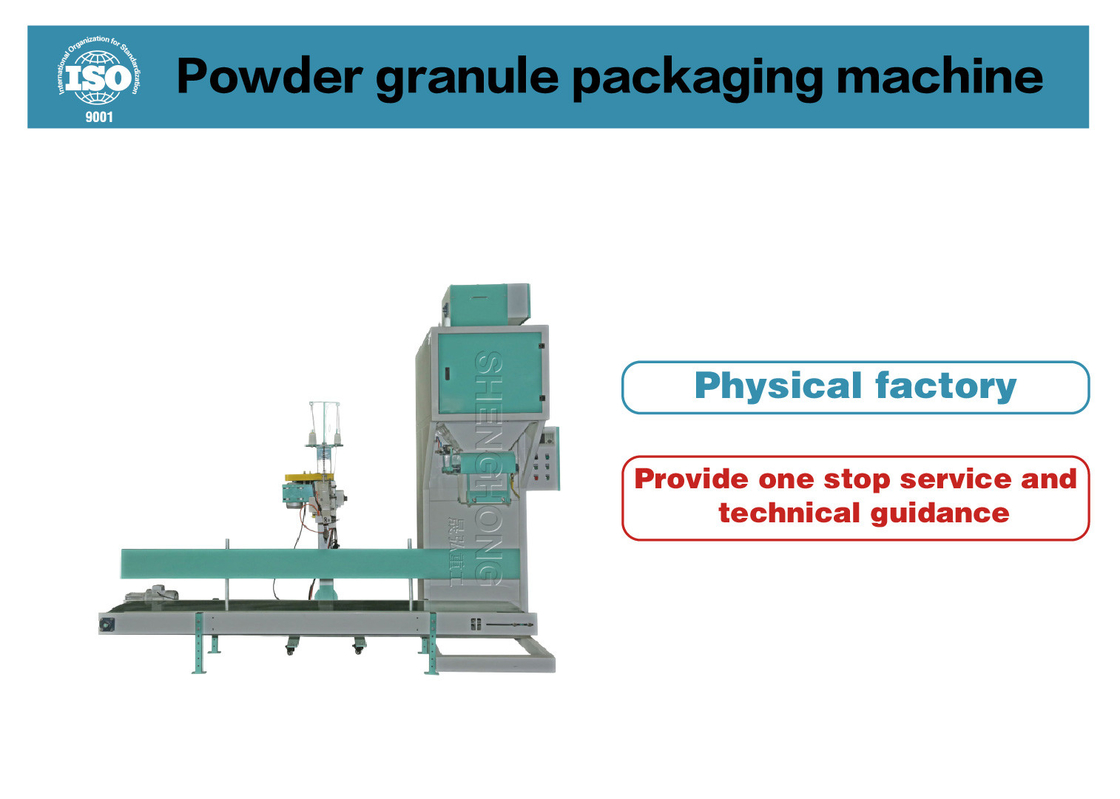

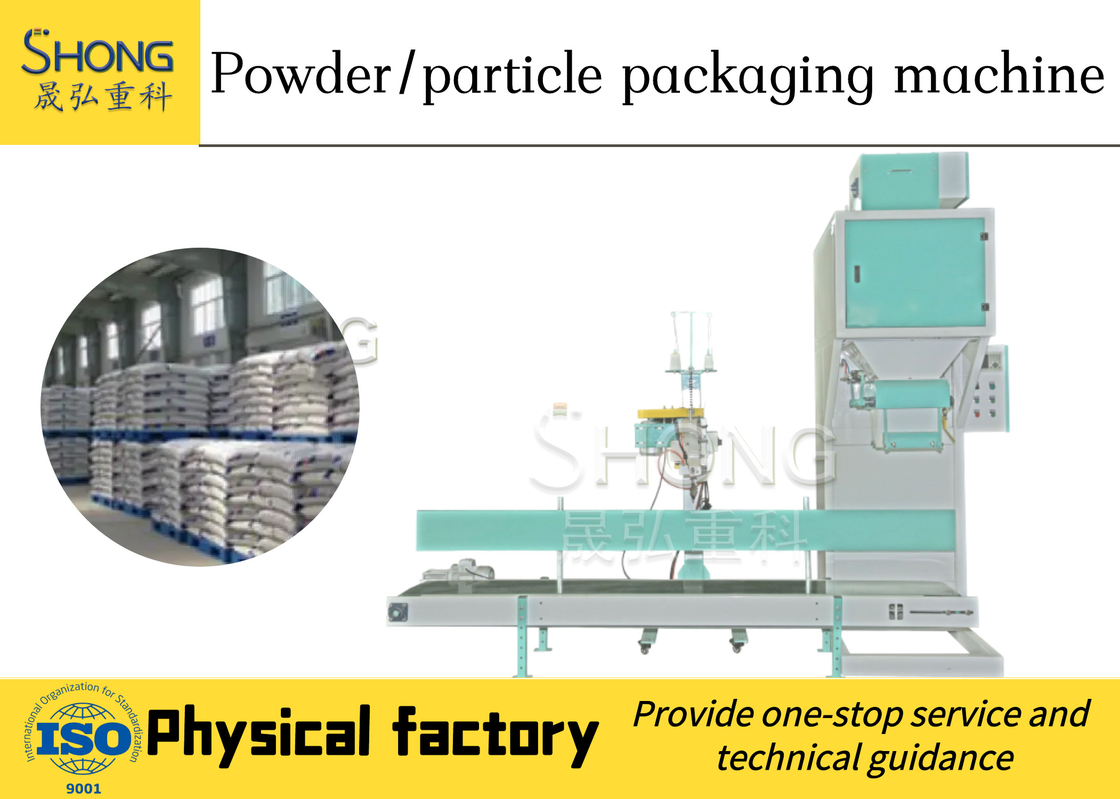

Introduction Of Fertilizer Packaging Machine
Fertilizer bagging scale system has an ideal weighing system by adopting advanced microelectronic technologies , it provides perfect control and management of the weighing and packing process.
It's suitable of packing the powder materiel, such as the flour, agricultural product and chemical etc.
One Semi-automatic bagging scale system includes:
- One Automatic Packing Scale
- One Elevator
- One Air Compressor
- One Conveyer Belt
- One Bag-sewing machine (or bag heat-sealing machine)
Feature Of Fertilizer Packaging Machine
High calculating precision, rapid packaging speed, stable function, easy operation.
Adopt advanced techniques on control instrument, sensor, and pneumatic components.
Advanced functions: automatic correction, error alarm, automatic error detection.
All components which have direct contact with bagging materials are made fromstainless steel.
Raw Material Of Fertilizer Packaging Machine
| No. |
Category |
Raw materials list |
| 1 |
Agricultural waste |
straw, dregs of beans, cotton dregs, rice bran, etc. |
| 2 |
Animal waste |
Mixture of poultry litter and animal waste, such as slaughterhouse waste, fish market, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc. |
| 3 |
Industrial waste |
Wine lees, vinegar residue, manioc waste, sugar scum, etc. |
| 4 |
Home scrap |
Food waste, bones, the roots and leaves of vegetables, etc. |
| 5 |
Mineral |
Humic acid, Bentonite, dolomite, etc. |
| 6 |
Municipal sludge |
River silt, sewage sludge, etc. |
Technical Parameters of Fertilizer Packgaing Machine
| No. |
Device Name |
Technical parameters |
DCS-25F |
| 1 |
Computer quantitative scale |
Weighing range (kg) |
10-50 |
| Weighing speed |
200-3000 |
| Permissible error |
0.20% |
| Equipped with power |
2.2KW |
| Air supply |
0.4-0.6Mpa,0.1m3/min |
| Weight (kg) |
500 |
| 2 |
Weighing control instrument |
|
GM8804C |
| 3 |
Folder bag body |
Weight (kg) |
60 |
| 4 |
conveyor |
Conveying distance(m) |
2 |
| Equipped with power |
0.37 |
| Weight (kg) |
240 |
| 5 |
hemming machine |
Equipped with power |
0.55 |
| Weight (kg) |
100 |
| 6 |
overall dimensions |
Overall dimensions(mm) |
2332×1225×1058 |
| Weight (kg) |
450 |
Application Of Fertilizer Pacaging Machine
Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
Easy to install film, auto correcting the excursion of the film.
Apply advanced operating system, easy to use and reprogrammable. To be used on Jintian High quality machine, it makes your packing work easily and efficiently.
