Pig Waste Fertilizer Granulator Machine 380V With 2-3 Ton Per Hour

Pig Waste Fertilizer Granulator Machine 380V With 2-3 Ton Per Hour

fertilizer granulation equipment

fertilizer pellet machine

Place of Origin:

Zhengzhou City China

Brand Name:

Shenghong

Certification:

SGS BV ISO

Model Number:

ZL10-ZL30

Contact Us
Request A Quote
Product Details
Moisture Of Material After Granulator:
30%-40%
Voltage:
380V
Product:
Fertilizer
Using Usage:
Making Fertilizer Granules
Powder:
2.2-11kw
Size Of Input Materials:
Under 0.5mm
Shape Of Fertilizer:
Ball Shape
Moisture Of Material Before Granulator:
20%
Highlight:

fertilizer granulation equipment

,

fertilizer pellet machine

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
Wooden Package or Container
Delivery Time
5-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 pcs per month
Product Description



Feature of Fertilizer Granulator Machine



1.The granulating rate can be reached more than 93%.

2.The design of granulator which greatly reduce the labor intensity and improves labor efficiency.

3.The disc is sturdy,durable,anti-corrosion,has long life and requires very less maintenance.

4.Easy operation and maintenance.

5.Long service life.

6.Quick profit,good economic returns



Specification of Fertilizer Granulator Machine





Model Inner diam Side height Volum Motor power Capacity
(mm) (mm) (m³) (kw) (t/h)
ZL10 1000 250 0.4 2.2 0.3-0.5
ZL15 1500 300 1.1 5.5 0.5-0.8
ZL18 1800 300 1.4 5.5 0.6-1.0
ZL20 2000 350 1.8 7.5 0.8-1.2
ZL25 2500 350 2.5 7.5 1.0-1.5
ZL28 2800 400 3.3 11 1.0-2.5
ZL30 3000 450 3.9 11 2.0-3.0



Introduction of Fertilizer Granulator Machine

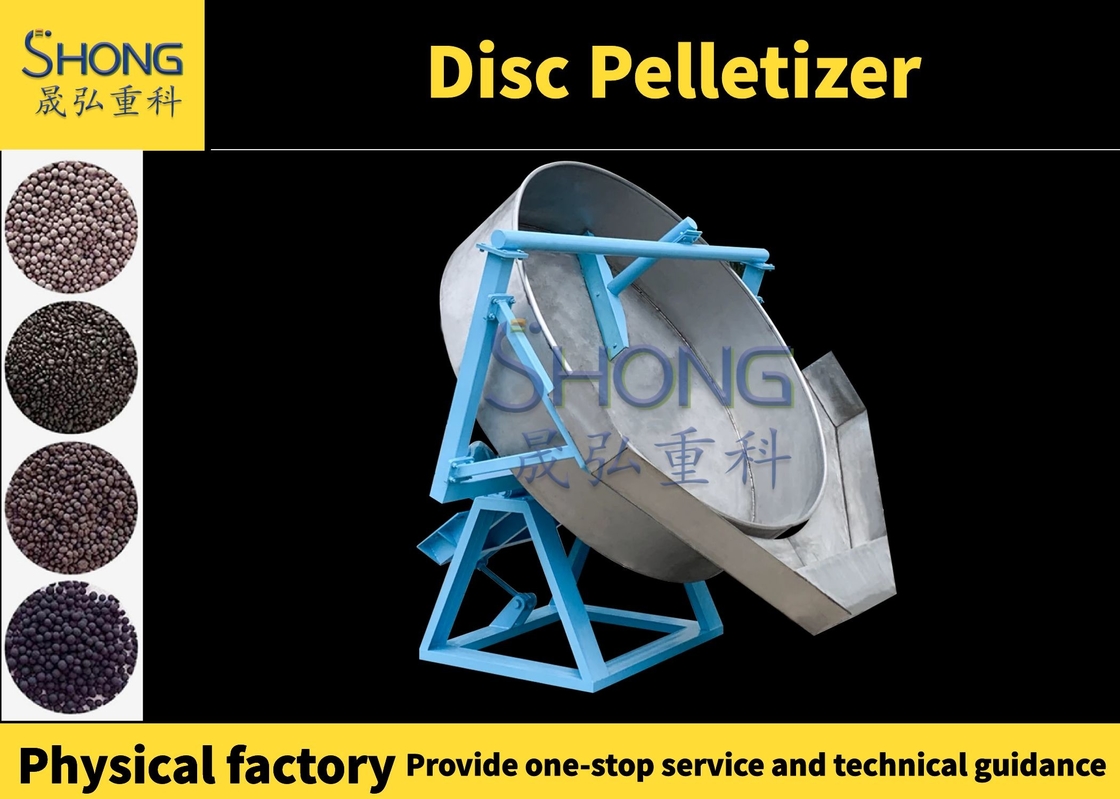

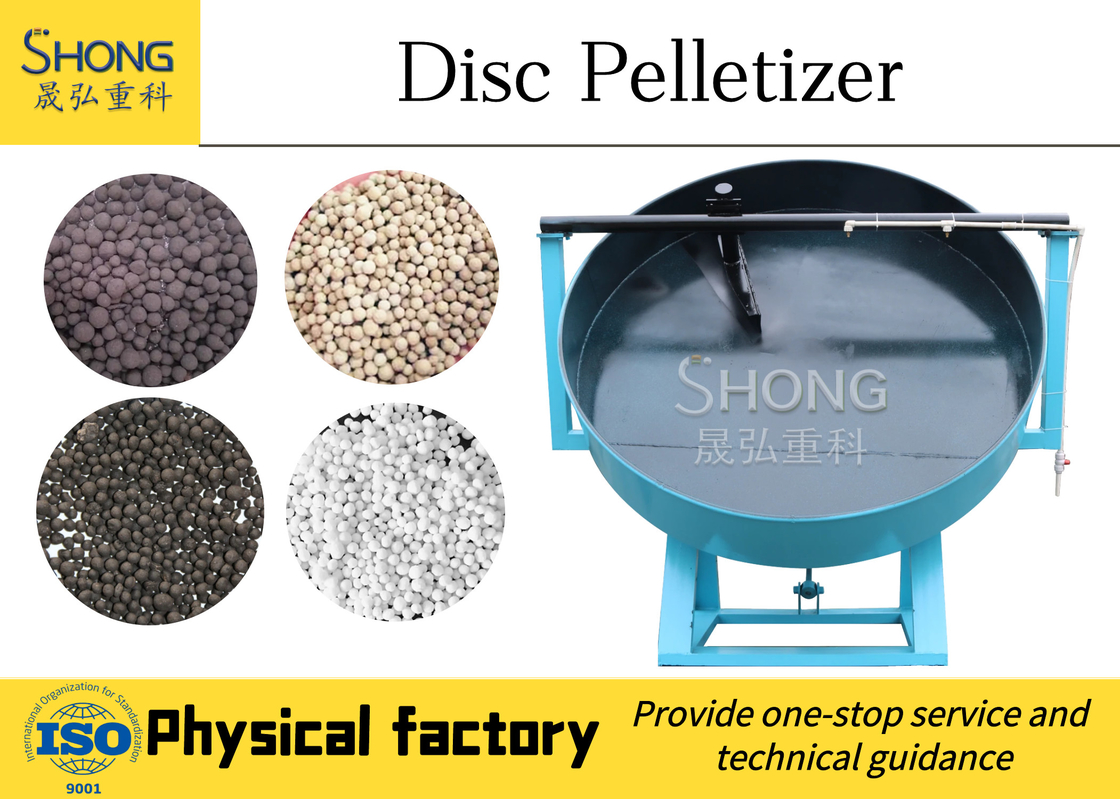

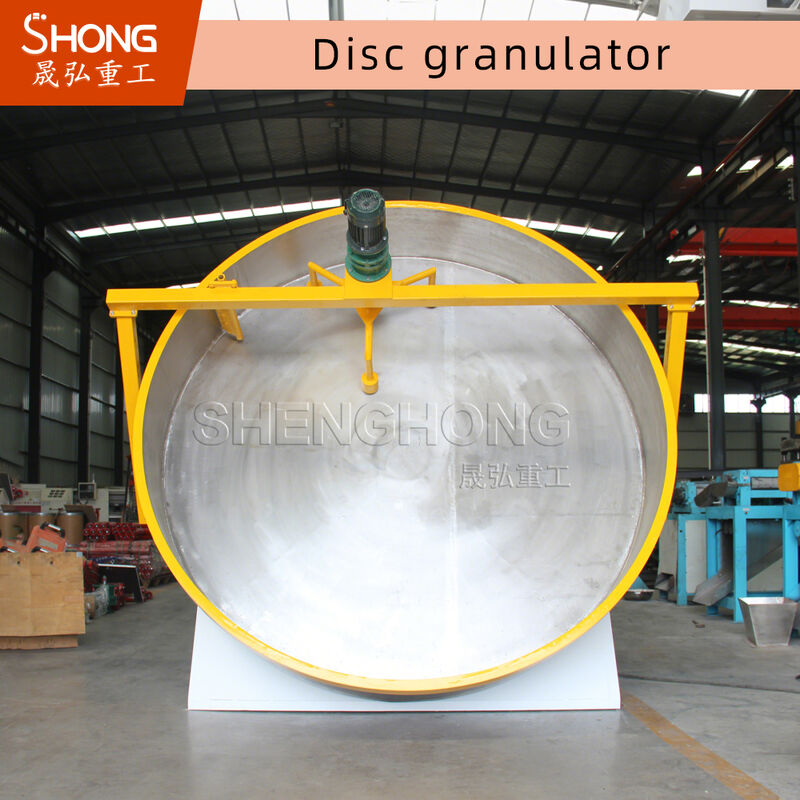

A high quality disc pelletizer is an ideal solution when creating a uniform pellet from dry or slightly moist materials. Also known as pan granulators or pan pelletizers, their heavy-duty structure and easy control capabilities offer reliability and operational flexibility. So it means that disc granulator is good at both NPK and organic fertilizer.A high quality disc pelletizer is an ideal solution when creating a uniform pellet from dry or slightly moist materials. Also known as pan granulators or pan pelletizers, their heavy-duty structure and easy control capabilities offer reliability and operational flexibility. So it means that disc granulator is good at both NPK and organic fertilizer.



The structure of Fertilizer Granulator Machine

The following components are standard disc pelletizer mechanisms:

Base- The base is fabricated using structural members and heavy welded plates. It provides a solid foundational structure pelletizers.

Disc- The disc, also referred to as the pan, is constructed of heavy-duty carbon steel plates. The plates are welded and reinforced to strengthen the overall structure. Included in the disc system is a hand-wheel operated jacking screw. This device easily adjusts the disc’s horizontal angle .

Drive Unit- The drive unit is comprised of automated mechanisms such as the motor, parallel or concentric shaft reducer, and V-belt drive. Both the motor and the reducer are mounted on a bracket behind the disc. The disc is then mounted to the reducer’s output shaft.

Plow / Scraper- Plows and scrapers are independently mounted vane-type components that control the material layer as it tumbles over the surface of the disc. The scrapers of larger diameter discs are covered with a ceramic, wear resistant coating/facing that protects the scraper from abrasive materials.

Plow Support- The plow support is constructed of heavy, welded, structural members. It is fabricated to provide rigidity to the disc support system and permit quick adjustments to the disc angle without requiring a separate plow adjustment.
