Product Details:
Payment & Shipping Terms:
|
| Function: | Making Organic/eco/bio Fertilizer | Main Market: | AFRICA,Southeast Asia Etc Organic Fertilizer Granulator |
|---|---|---|---|
| Raw Material:: | All Kinds Of Organic Materials | Output Capacity: | 8-10t/h |
| Granule Size: | 0.3-3.0 Mm Can Ba Adjustable | Machine Type: | Granulator |
| Dimension(l*w*h): | Customized | Condition: | New |
| Voltage: | All Countries Are Ok | Color: | Customer's Request |
| Installation: | Guided By Our Engineer | ||
| Highlight: | fertilizer granulation equipment,fertilizer pellet machine |
||
organic fertilizer granulation machine; fertilizer granule making machine
Raw materials of organic fertilizer granulation machine
This machine is used to all kinds of organic matter after fermentation for granulation, break through the conventional organic prilling, before granulation need not to dry and crush the raw materials, it can direct burdening to work out cylindrical grain, can save a lot of energy.
1. Agricultural Waste: straws, cottonseed meals, mushroom residues, bio-gas residues etc.
2. Industrial Waste: vinegar residues, sugar residues, lees etc.
3. Animal Manure or Sludge: chicken manure, cow manure, horse manure, drainage sludge, river sludge etc.
4. Household Garbage: kitchen waste, food waste, restaurant garbage etc.
Working principle of organic fertilizer granulation machine

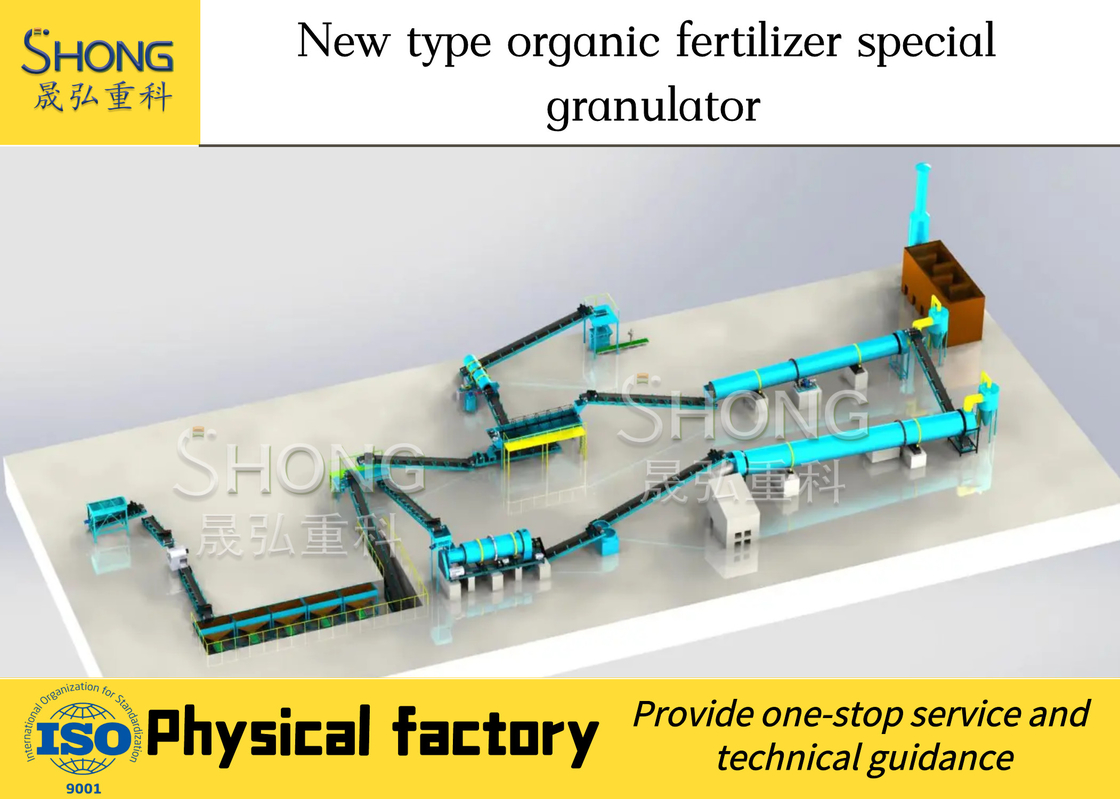

Working flow:Raw materials fermentation( compost turning machine). input ( If blocked, use chain crusher to deal with ) ---- granulation -- drying--cooling--screening (select the right sieving hole diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be more accurate.2,drying machine (to dry the finished fertilizer)3, cooling machine(fast cooling of finished fertilizers) 4, coating machine: make the appearance of the granules more good. 5, weighing and package: facilitate the sale and transportation of products.
Diamater of organic fertilizer granulator making machine
| Installation Angle | 2º-2.5º |
2º-2.5º | 2º-2.5º | 2º-2.5º | 2º-2.5º |
| Capacity | 1-1.5T/H |
1.5-2.5T/H | 2-4T/H | 4-6T/H | 6-8T/H |
| Total Power | 37KW |
55KW | 75KW | 90KW | 110KW |
| Moisture of feeding material | 20%-40% |
20%-40% | 20%-40% | 20%-40% | 20%-40% |
| Size of feeding material | 50mesh | 50mesh | 50mesh | 50mesh | 50mesh |
| Dimension | 4.1*1.6*1.15m | 4.25*1.85*1.3m | 4.7*2.35*1.6m | 4.9*2.55*1.8m |
5.5*2.8*2m |

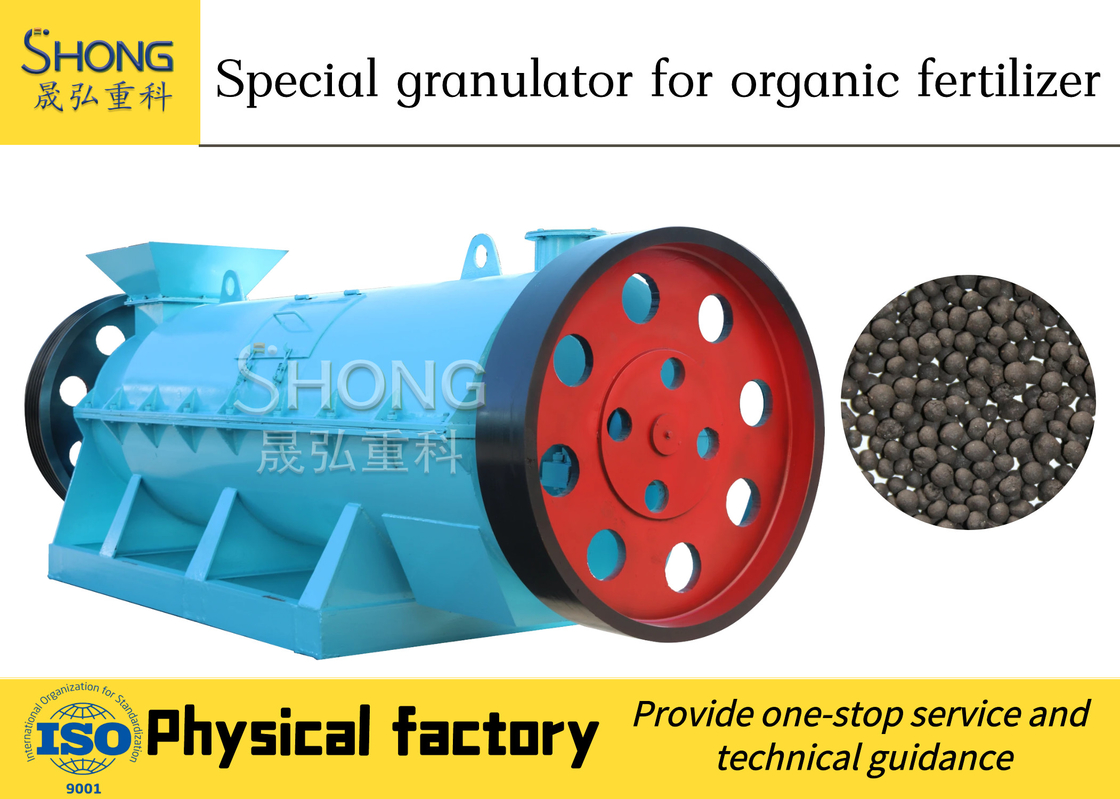

Features of Organic Fertilizer Granulator
High capacity new type pig manure recycling granulator of Characteristics
The organic content can be high to 100%, make pure organic granulate
The product granule is round ball
Using organic matter particles with mutual mosaic growing up under a certain force, no need to add binder when granulating.
No need drying to reduce the energy consumption, moisture of the raw material can be in 20%-40%
Why choose us:
1.Founded in 1995, owns professional design, R&D, inspection and excellent after-sale service team.
2.Our production equipment had realized numerical control and intelligence.
3.We can provide all production line machines 3D and CAD drawings.
4.We can advise full production line equipment according to raw materials and output demand, special equipment can provide customized service.
5.We can arrange technician to guide installation, training workers on site.
Other fertilizer granulator
Rotary drum fertilizer granulator
Double roller press fertilizer granulator
