Ammonium Sulfate Npk Fertilizer Production Line Double Roller Press

Minimum Order Quantity : 1 Packaging Details : Wooden packing, 20GP, 40GP, 40HQ
Delivery Time : within 10 days Payment Terms : L/C, T/T
Supply Ability : 50 Piece per month
Place of Origin: China Brand Name: TIANCI
Certification: CE, ISO9001, AAA Model Number: DZJ-I-2.0

Detail Information

Product Name: Ammonium Sulfate Double Roller Press Npk Fertilizer Production Line Material: Carbon Steel
Capacity: 1.5-2.5t/h Power: 18.5kw
Feeding Size: <=0.5mm Moisture: 2%-5%
High Light:

Press Npk Fertilizer Production Line

,

Double Roller Npk Fertilizer Production Line

,

Ammonium Sulfate Npk Fertilizer Production Line

Product Description

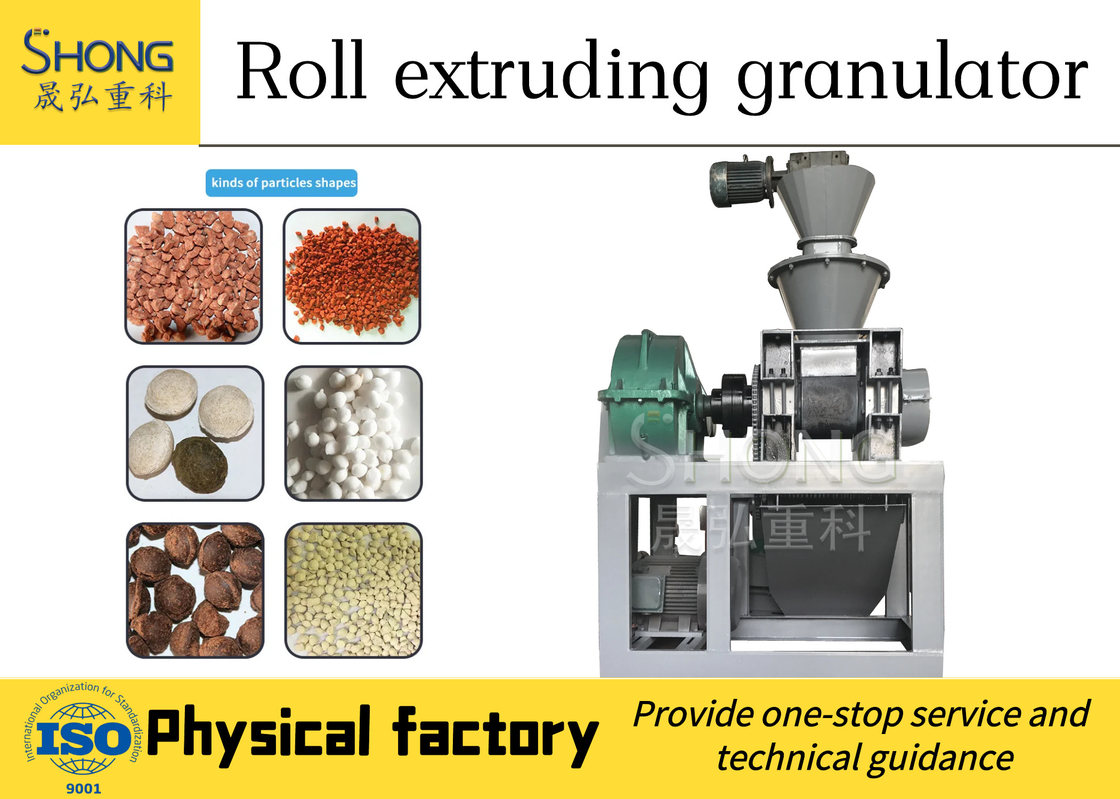

Ammonium Sulfate Double Roller Press Npk Fertilizer Production Line

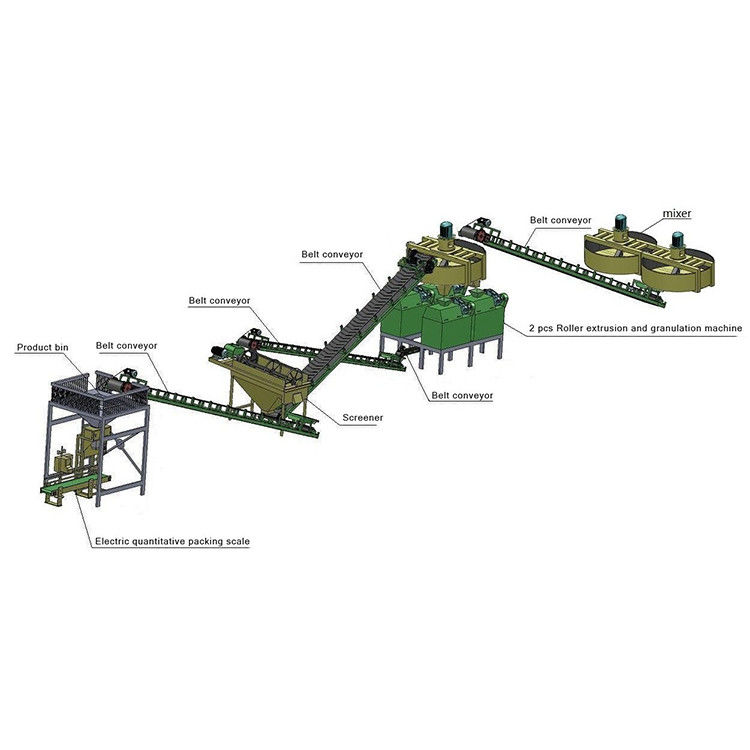

Introduction of NPK fertilizer Production Line

The roller extrusion granulator is the key equipment of compound fertilizer granulation and has the characteristics of advanced technology, reasonable design, compact structure, novelty and utility and low energy consumption; it is equipped with corresponding equipment, which can form a small production line, thus forming the continuous production of certain production capacity and mechanization production. The machine adopts the eugenic formula without drying and produce fertilizer by normal temperature; the product once rolled and formed, meeting the requirements of technical specifications of compound fertilizer. Therefore, it is the upgraded machine for the production of high, medium and low concentration special compound fertilizer and the renewable energy consumption of the compound fertilizer industry.



Features of NPK fertilizer production line

1. Less investment, quick results, good economic benefits. The roller extrusion granulator can produce fertilizer by normal temperature without no more drying technology, pellets formed only once extrusion.
2. Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
3. The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
4. The roller extrusion granulator can be used for the granulation of earth, carbon ammonium and ammonium sulfate compound fertilizer, filling the domestic blank.



Working principle of NPK fertilizer production line

This series of roller granulation is extruded model, and its working principle is: Electromotor drive the belt and pulley, then it is transmitted to the driving shaft by the speed reducer, and by synchronizing the open gear with the passive shaft, achieving the working in the same direction. Material is added from the hopper, after the roll extrusion forming, demoulding pelletizing; and through a chain, the balls are transferred to the broken screen studio, sieving and isolate the finished products (the balls), then return to mix with new materials and granulate again.



Parameter of NPK fertilizer production line

Model DZJ-I-2.0
Capacity 1.5-2.5t/h
Power 18.5kw
Roller size 150*300mm
Feeding size <=0.5mm
Finished product 2.5-20mm
Reducer type ZQH400
Moisture 2%-5%



Picture of NPK fertilizer production line

Ammonium Sulfate Npk Fertilizer Production Line Double Roller Press 0Ammonium Sulfate Npk Fertilizer Production Line Double Roller Press 1Ammonium Sulfate Npk Fertilizer Production Line Double Roller Press 2
