Place of Origin:
Zhengzhou China
Brand Name:
Shenghong
Certification:
SGS BV ISO
Model Number:
ZL10~ZL45
Video
Video
Video
Video

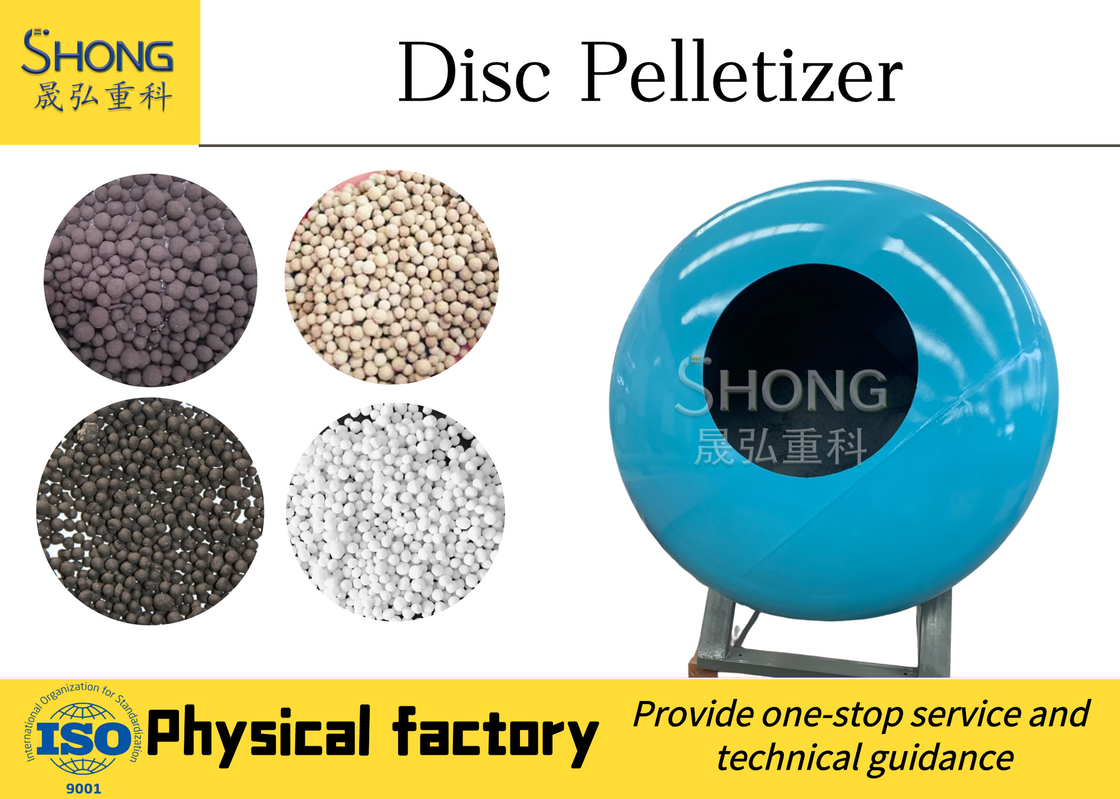

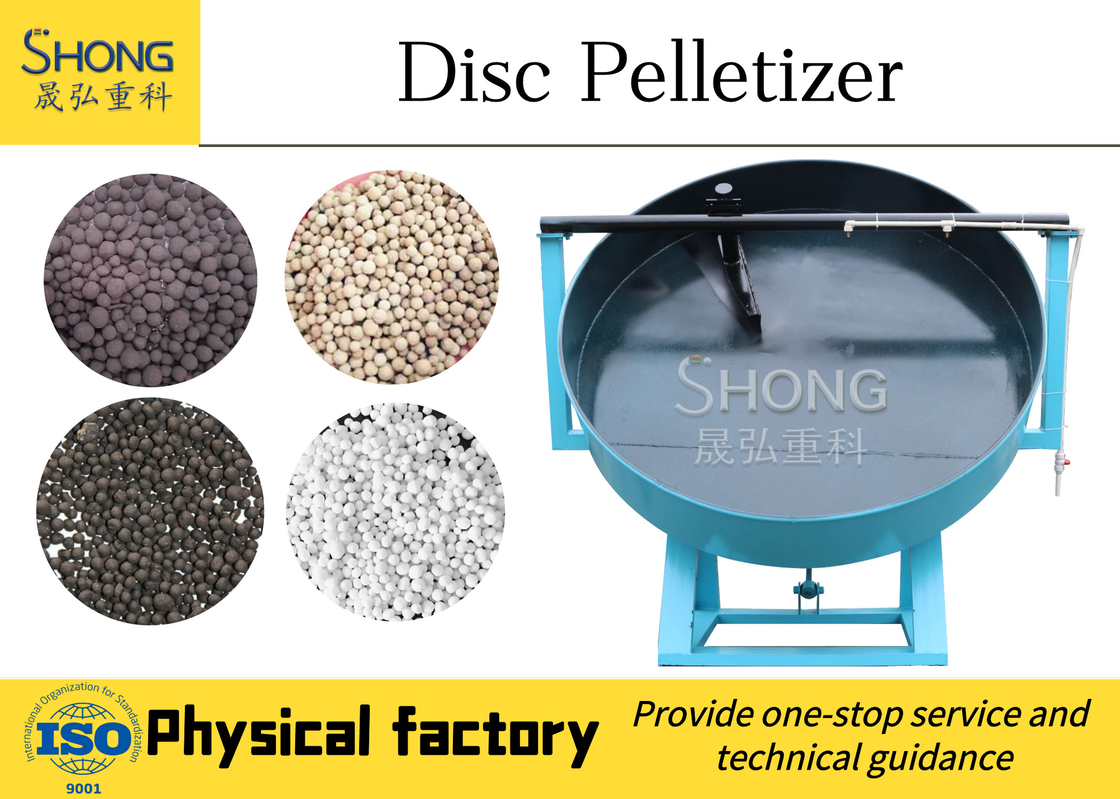

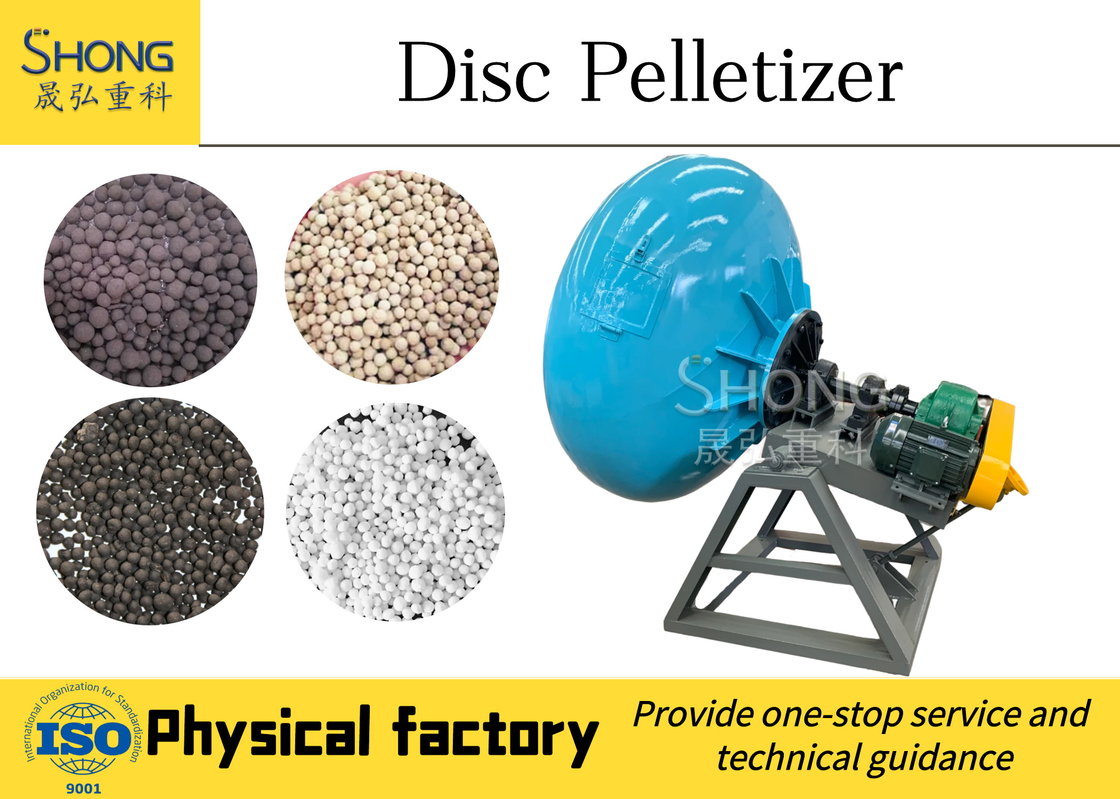

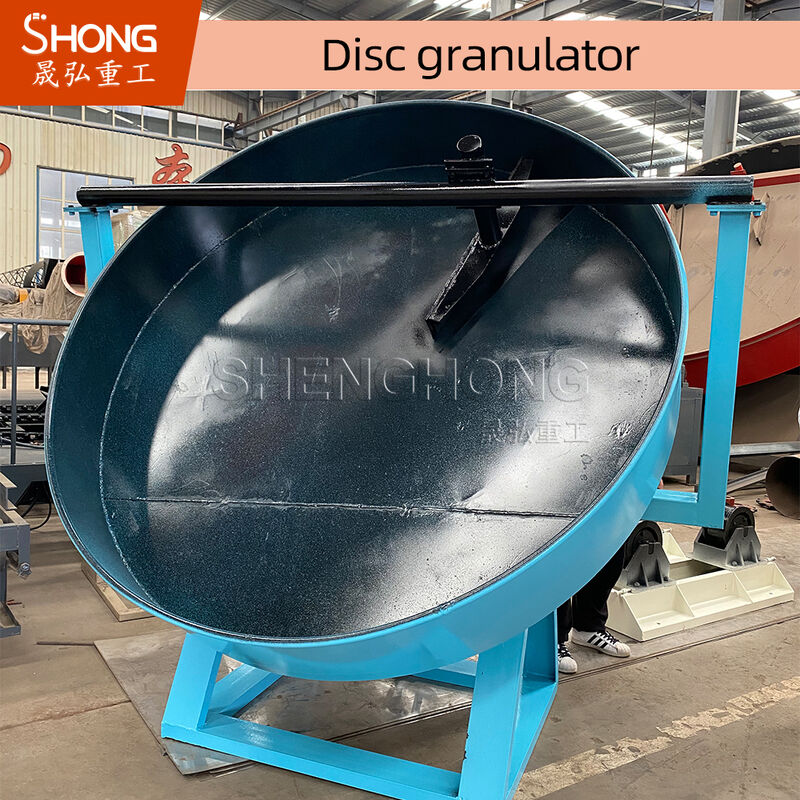

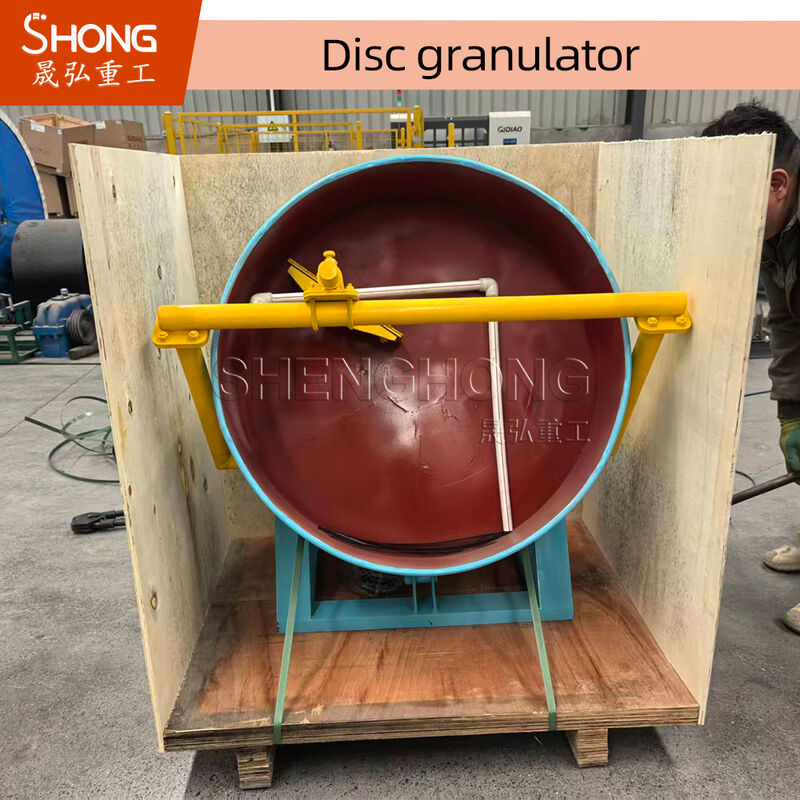

Disc Pan Fertilizer Granulator Machine For Chemical Powder
Instruction Of Organic Fertilizer Pellets Granulator Machine
ZL disc granulator is divided into non-powered scraper disc granulator (PQW) and power scraper disc granulator (PQ). Both types of disc granulators have the characteristics of simple structure, convenient operation, easy control of particle moisture, and high hardness. The disc granulator adopts a block structure, and the bottom of the disc is reinforced by multi-layer radiant steel plates. The motor and reducer are driven by flexible belts, which can start smoothly, have less impact, and prolong their service life.
Advantage of Fertilizer Granulator Machine
1. Novel structure with light weight and low height, and convenient process layout;
2. Disc inclination convenient to adjustment
3. Disc granulator composed by disc bottom and section, the section can adjust up and down along disc body, the pellet can’t be strain guarantee by flange at the end of disc section.

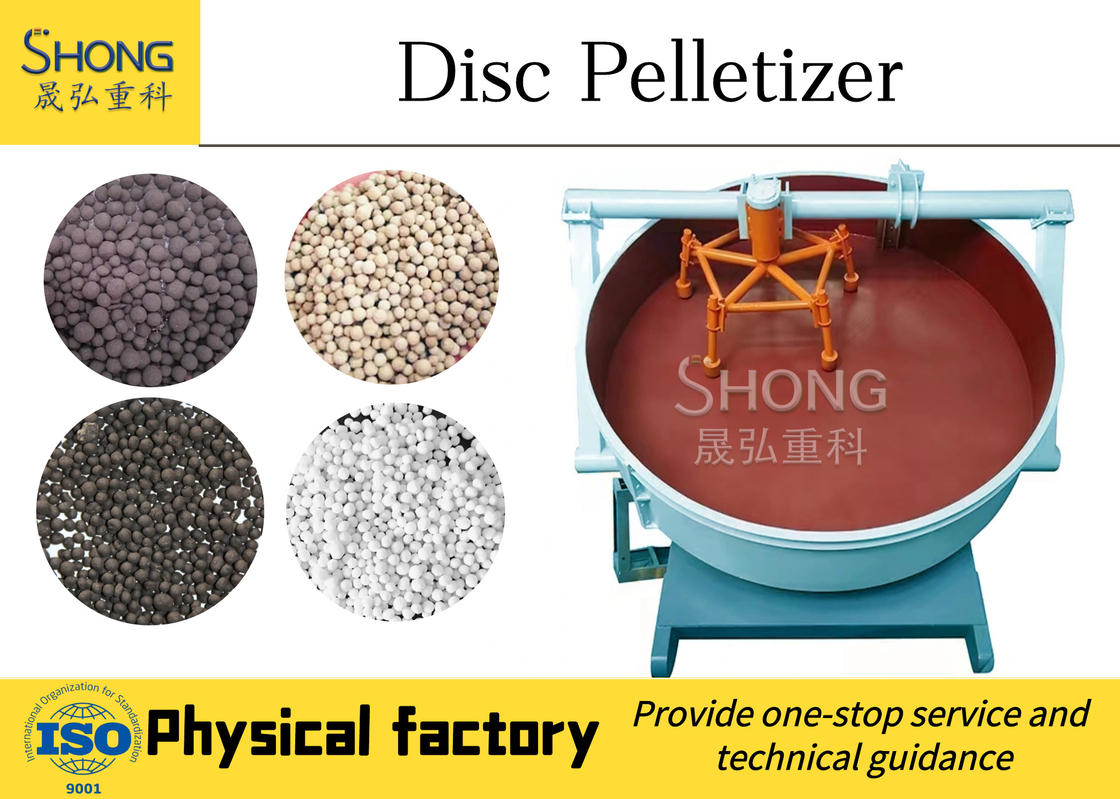

4. The scraper device composed by unpowered scraper and powered scraper, which supporting the use of optimized disc when cleaning the bottom and side, then the pelletizing result is very well and qualified pellets can be reached over 90%.
Disc granulation machine could product
| Raw material classification | Specific application |
| Inorganic fertilizer | BB and compound fertilizer powder |
| Biologics | Western medicine granules etc |
| Coal industry | Carbon granule etc |
| Others | Kinds of inorganic powder that you need manufacture granules |
Main technical parameters
| Model no. | ZL10 | ZL15 | ZL18 | ZL20 | ZL25 | ZL28 | ZL30 | ZL32 | ZL36 | ZL45 |
| Production(t/h) | 0.3-0.5 | 0.5-0.8 | 0.6-1.0 | 0.8-1.2 | 1.0-1.5 | 1.0-2.5 | 2.0-3.0 | 2.0-3.5 | 3.0-5.0 | 4.0-6.0 |
| Motor Power (kw) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
| Innerdiam(mm) | 1000 | 1500 | 1800 | 2000 | 2500 | 2800 | 3000 | 3200 | 3600 | 4500 |
| Side height(mm) | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | 550 | 600 |
| Volume(m³) | 0.4 | 1.1 | 1.4 | 1.8 | 2.5 | 3.3 | 3.9 | 4.3 | 5.5 | 6.5 |
| Rotation speed(r/min) | 2.2 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 |
FAQ:
1.Are you manufacturer or trade company?
We are a professional manufacturer for producing fertilizer process machines and related machine(granulator, crusher, mixer, packing, feeding machines and conveyor belt) etc.
2.How about the delivery time?
It can be shipped immediately for the machine in stock,and 5-7days for the machine out of stock
3.How long is the guarantee?
Warranty for 12 months without artificial and deliberate damage.
4.How should to do if I meet some trouble while using?
The English manual book and video will be provide for showing how to resolve the problems, if necessary, we will dispatch our engineer to your factory.
5. Do you provide the installation service after ordering your machines?
As for the single machine, we provide the users instruction and operation video.
As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workers.
6.Can we visit your factory for machine testing operations?
We warmly welcome the clients to visiting our factory for trying machine.
7.Can we see some fertilizer plant with your machine?
We can take the customer to visit fertilizer plants with our equipment.
