Chicken Manure Granulated Fertilizer Production Line 10t/H

Chicken Manure Granulated Fertilizer Production Line 10t/H
Chicken Manure Granulated Fertilizer Production Line 10t/H
video play

Large Image :  Chicken Manure Granulated Fertilizer Production Line 10t/H

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO, CE
Model Number: YSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days Ex-work
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Month
Detailed Product Description
Product Name: Organic Fertilizer Production Line Granulation Rate: >98%
Capacity: 1-10t/h Application Materials: Waste
Type: Organic Fertilizer Production Advantage: Full Auto, Simple Operation, Save Labor
Dimension(L*W*H): 3680*1225*1300mm Usage: Making Fertilizer Granules
High Light:

10t/H Fertilizer Production Line


Granulated Fertilizer Production Line


Chicken Manure Organic Fertilizer Granulator

Chicken Manure Granulated Fertilizer Production Line 10t/H 0

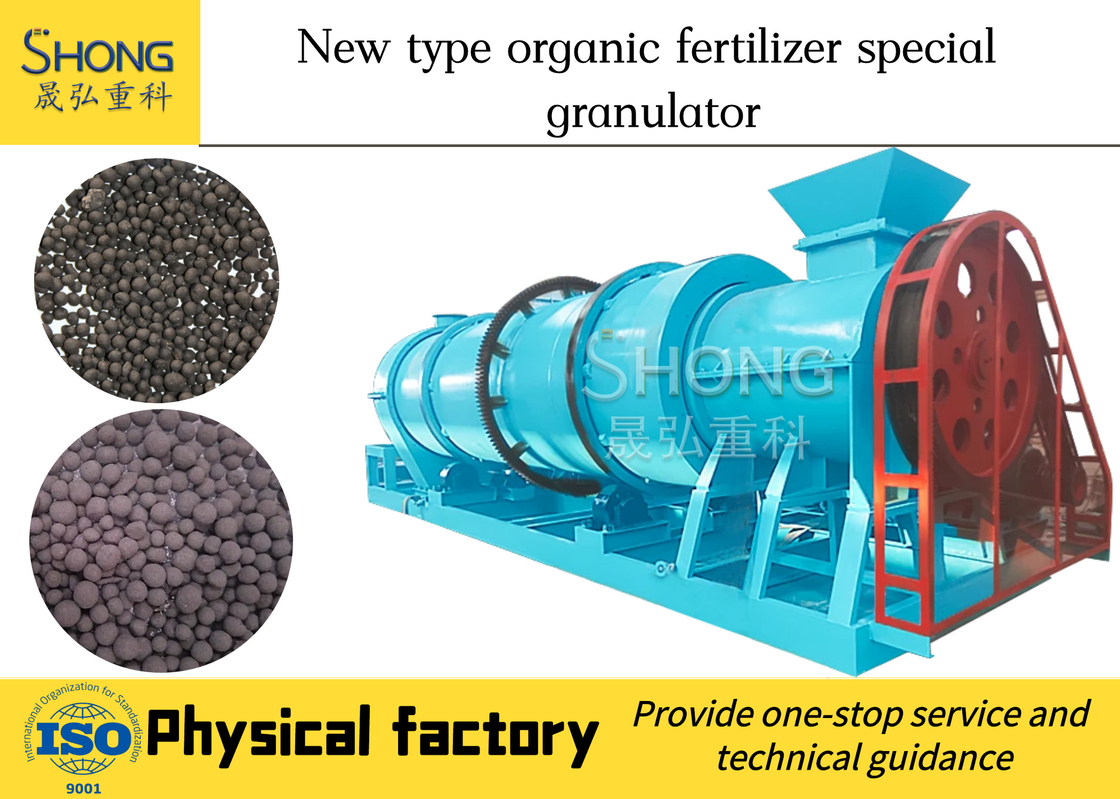

Chicken Manure Organic Fertilizer Production Line Fertilizer Granulator


Introduction of Fertilizer Production Line


Material into the inlet end of the machine body, continue to be pushed together by mechanical movement of the rotor and the casing granulation, granulation purposes. Finished particles are introduced at the other end of the machine body.


The rotor is driven by a drive motor and a reducer section. Most of the body portion and the drive portion is fixed on the same frame. This structure is not only strong and stable, but also very easy to install. It is a new era of environmentally friendly fertilizer production equipment.

The Raw Material of Fertilizer Production Line

No. Category Raw materials list
1 Agricultural waste straw, dregs of beans, cotton dregs, rice bran, biogas waste, mushroom waste, etc.
2 Animal waste slaughterhouse waste, fish market waste, urine and dung of chicken, pig, cattle, sheep ducks, geese, goat, etc.
3 Industrial waste wine lees waste, vinegar waste, manioc waste, sugar waste, etc.
4 Home waste food waste, bones, the roots and leaves of vegetables, etc.
5 Mineral humic acid, bentonite, dolomite, etc.
6 Sludge river sludge, pond sludge, sewage sludge, city sludge, etc.

















The Process of Fertilizer Production Line


Biological fermentation of organic raw materials plays a considerable role in the foundation of the entire production process, fully fermented for the quality of the final product has laid a solid foundation. Trough compost turning machine can be completely turning compost heap high fermentation materials, large production capacity.

Organic fertilizer production line typically comprises fermenting, grinding, mixing, granulating, drying, cooling, screening, and packaging step 8. Fermentation, crushing, mixing, granulating and screening process is necessary. Depending on the capacity of other processes is optional.


No. Processes Machines Function of machines
1 Fermenting process Fermentation turner Mix and blend compost during fermentation evenly
2 Grinding process Hopper for forklift Feed compost into grinder evenly
Grinder Grind compost to powder.
3 Mixing process Mixer Mix compost powder evenly, If necessary, add water, beneficial bacteria, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags




The Benefits of Fertilizer Production Line


1, the fertilizer production line using advanced fertilizer production process, a complete fertilizer granulation.
2, the use of advanced drum granulator, granulation of up to 70%, high particle strength,
3, the inner cylinder made of high quality rubber sheet liner structure to prevent the material sticking plate.
4, wide adaptability of raw materials for fertilizer, medicine, chemicals, feed and the like.
5. The quality, stability, corrosion resistance, low wear material parts, wear, power consumption, long life, easy maintenance operation.
6, high efficiency, high economic efficiency, less back to the material, can be pelletized again.
7. The capacity can be adjusted according to customer requirements.
