ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD.
Home ProductsCompound Fertilizer Production Line

Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H

China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
China ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. certification
The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H

Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H
Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H

Large Image :  Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H

Product Details:
Place of Origin: Zhegzhou, Henan Province China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: ZG series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: can be negotiated
Packaging Details: Container or Plywood Box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets Per Month
Detailed Product Description
Capacity: 12-15 Tons Per Hour Service: Long Term
Usage: Making Fertilizer Granules Raw Material: NPK,Urea, Ammonium Nitrate, Etc.
Installation: Engineer Guided Function: Making NPK Compound Fertilizer
Granules Shapes: Ball Shape Guarantee: 12 Months
Highlight:

Ball Shape Compound Fertilizer Production Line

,

15T/HCompound Fertilizer Production Line 15T/H

,

Wear Resistance Fertilizer Production Line

Fully automatic compound fertilizer production line

Introduce:

Automatic compound fertilizer production line equipment includes automatic batching machine, grinder, mixer, drum granulator, dryer, LQ series cooler, screening machine, automatic packaging machine, coating machine, automatic weighing machine. What are the functions of these devices? The functions, uses and prices of these devices will be introduced in detail below.



Compound fertilizer making process:

1. Raw material ingredients: urea, ammonium nitrate, ammonium chloride, ammonium sulfate, ammonium phosphate (monoammonium phosphate, diammonium phosphate, heavy calcium, ordinary calcium), potassium chloride (potassium sulfate) and other raw materials are equipped in a certain proportion (according to Market demand and soil testing results in various places).

2. Mixing of raw materials: Stir the prepared raw materials evenly to increase the uniform fertilizer efficiency content of the overall fertilizer particles.

3. Raw material granulation: Feed the uniformly stirred raw materials into the granulator for granulation (rotary granulator or extrusion granulator can be used).

4. Granule drying: The granules made by the granulator are sent to the dryer, and the moisture contained in the granules is dried to increase the strength of the granules and facilitate storage.

5. Granule cooling: The temperature of dried fertilizer granules is too high and easy to agglomerate. After cooling, it is convenient to store and transport in bags.

6. Particle classification: The cooled particles are classified, the unqualified particles are crushed and re-granulated, and the qualified products are screened out.

7. Finished film: Coating qualified products to increase the brightness and roundness of the particles.

8. Finished product packaging: Pack the film-coated particles, that is, the finished product, and store it in a ventilated place.

Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H 0

Raw Material For Compound Fertilizer Production Line

Compound fertilizer is the fertilizer containing two or all three of the three basic plant nutrients—Nitrogen, Phosphorus, and Potassium, as well as microelements, such as B, Mn, Cu, Zn, and Mo. The raw material can be powder or bulk, mostly are as below:



Nitrogen Phosphorus Potassium
Calcium nitrate urea Single superphosphate Kainit
Ammonium bicarbonate Ammonium chloride Rock phosphate Potassium chloride
Nitrate of soda Ammonium sulphate nitrate Dicalcium phosphate Potassium sulphate
Ammonium sulphate Ammonium nitrate Triple superphosphate Potassium nitrate

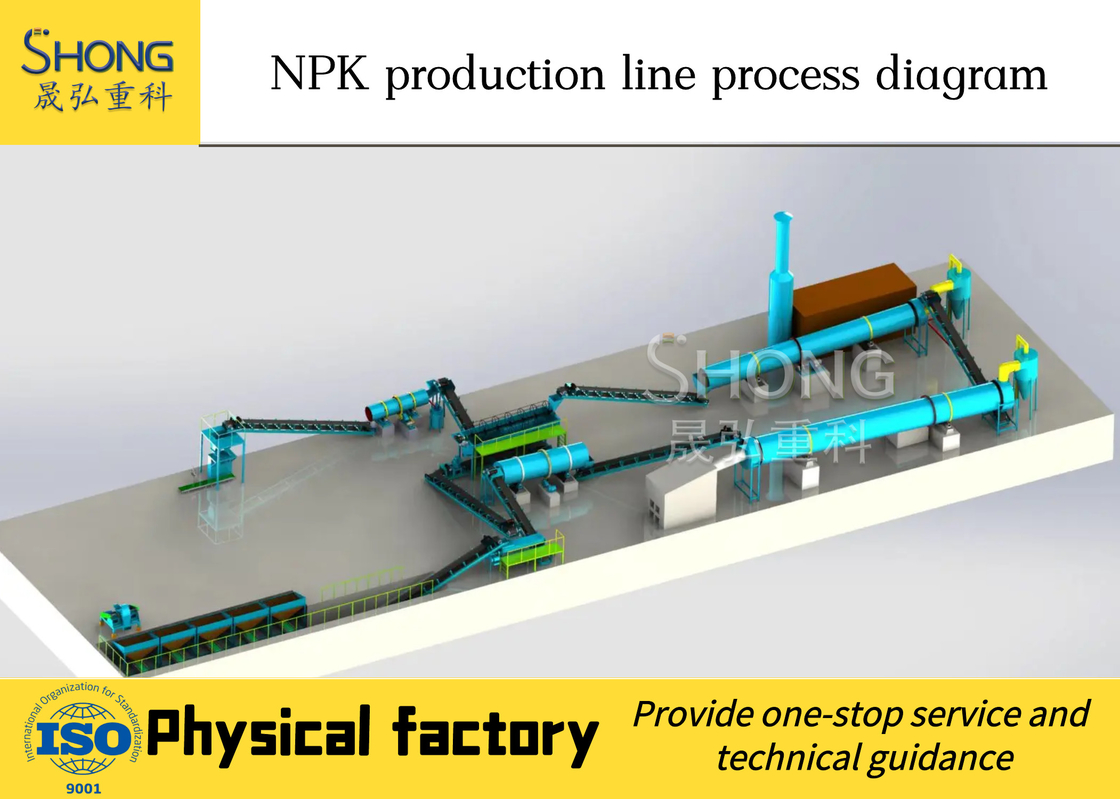

Flow Chart For Compound Fertilizer Production Line



Compound fertilizer production line usually includes 9 processes, batching, grinding, mixing, granulating, drying, cooling, screening, coating and packaging. Batching, mixing, granulating, drying, and screening processes are necessary. Other processes are optional based on different capacity.



Main Equipments For Compound Fertilizer Production Line



No. Processes Machines Function of machines
1 Batching process Automatic batching machine Ratio raw materials by formula
2 Grinding process Grinder Grind granules to powder
3 Mixing process Mixer Mix powder evenly, If necessary, add water, or other micro-elements
4 Granulating process Feeding machine Feed mixed powder into granulator evenly
Granulator Make mixed powder into fertilizer granules
5 Drying process Dryer Dry fertilizer granules to low moisture by hot air
Hot stove Generate hot air to dryer
Cyclone Collect dust from dryer
6 Cooling process Cooler Cool fertilizer granules to normal temperature
Cyclone Collect dust from cooler
7 Screening process Screener Screen out required size from fertilizer granules
8 Coating process Coating machine Coat color, anti-blocking agent, microelements etc on fertilizer granules
9 Packaging process Air compressor Generate power to packaging machine
Packaging machine Package fertilizer granules into bags

Fully Automatic Ball Shape Compound Fertilizer Production Line 15T/H 1

Features For Compound Fertilizer Production Line

1. The shell of the machine uses special rubber slab lining or acidresistant stainless lining board

which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

2. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.

1. The ball granulator uses the new processes of extrusion granulation, polishing and shaping ball

2. The ball shaping machine takes the template hole diameter to control the granule size, change the template according to the granule size.

3. The granule is even, smooth, round with high strength and good liquidity.

4. The forming rate of the organic fertilizer is above 95%.

5. The ball shaping machine takes the unique 3-in-1 machine to finish the whole process of drying with low temperature, cooling and screening in one time.

6. The equipment is with the low investment and operating cost. The survival rate of the microbial flora is larger than 90%.

7. The shell of the machine uses special rubber slab lining or acidresistant stainless lining board

which realizes auto scar removal and de-tumor instead of traditional drawknife equipment

8. High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance,etc.
