5t/h Capacity NPK Compound Fertilizer Production Line with 70% Granulation Rate and 380V Voltage

Product Details

Place of Origin: Henan, China

Brand Name: Shenghong

Certification: CE, ISO9001, BV, SGS

Model Number: SHZ

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: can be negotiated

Packaging Details: Plywood packing, 20 GP, 40 GP, 40 HQ

Delivery Time: within 10 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 50 piece per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    NPK Compost Fertilizer Production Line, Chemical Powder Compound Fertilizer Production Line, Compound Fertilizer Manufacturing Plant


Product Name:	NPK Fertilizer Production Line	Raw Material:	Chemical Powder
Moisture:	2%-6%	Voltage:	380V
Installation:	Engineer's Guide	Capacity:	5t/h

Product Name:	NPK Fertilizer Production Line
Raw Material:	Chemical Powder
Moisture:	2%-6%
Voltage:	380V
Installation:	Engineer's Guide
Capacity:	5t/h

Product Description

NPK Compound Fertilizer Production Line Chemical Powder Fertilizer Manufacturing Plant

NPK Compound Fertilizer Production Line / Fertilizer Manufacturing Plant

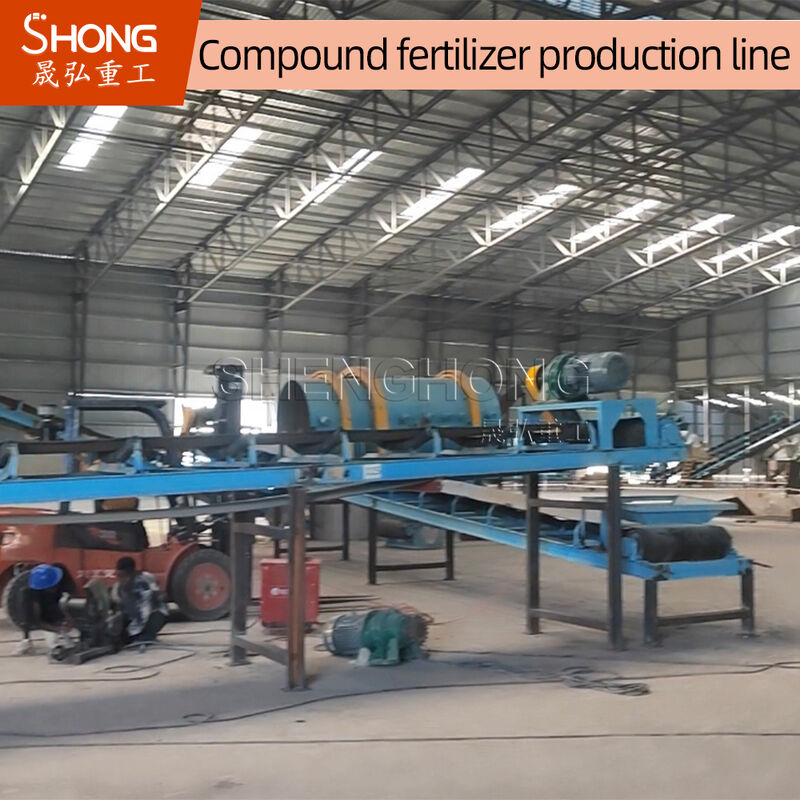

This Rotary Drum Granulation production line is equipped with a static batching machine, double-shaft mixer, rotary drum granulator, chain crusher, rotary drum dryer & cooler, rotary drum screening machine, and other auxiliary fertilizer equipment. The annual output can be 30,000 tons. As a professional fertilizer production line manufacturer, we also supply customers with other granulation lines with different production capacities, such as 20,000 T/Y, 50,000 T/Y, 100,000 T/Y, etc.

Key Advantages

Adopts advanced rotary drum granulator with granulation rate up to 70%
Key parts use wear-resistant and corrosion-resistant materials for long service life
Plastic plate or stainless steel plate lining prevents material sticking to inner walls
Stable operation, easy maintenance, high efficiency, and low energy consumption
Belt conveyor system enables continuous production throughout the line
Two sets of dust settling chambers for environmentally friendly tail gas treatment
Two-stage screening process ensures uniform granule size and quality
Even mixing, drying, cooling, and coating for superior finished product quality

Production Process Flow

Raw materials batching → Mixing → Granulating → Drying → Cooling → Finished products screening → Sub-standard granules crushing → Coating → Finished products packing → Storage

This production line is for your reference only.

Detailed Production Steps

1. Raw Materials Batching

According to market demand and local soil analysis results, raw materials including urea, ammonium nitrate, ammonium chloride, ammonium sulphate, ammonium phosphate (monoammonium phosphate, diammonium phosphate, heavy calcium, general calcium) and potassium chloride (potassium sulphate) are proportioned using belt scales. Additives and trace elements are weighed and mixed according to formula ratios, ensuring accurate formulation and enabling efficient continuous batching.

2. Mixing

Prepared raw materials are thoroughly mixed and stirred evenly using horizontal or disc mixers, laying the foundation for efficient and high-quality granular fertilizer production.

3. Materials Granulating

After crushing, materials are transported into the rotary drum granulator by belt conveyor. As the drum rotates, materials form a rolling bed and move along a specific path. Under extrusion forces, materials agglomerate into small particles that become cores, attaching surrounding powder to form qualified spherical granules.

4. Fertilizer Drying

Granulated material is dried to reach standard water content. Internal fins lift material along the dryer's inner wall during rotation. When material reaches sufficient height, it falls back through hot gas streams. Independent air heating system and centralized waste discharge result in energy and cost savings.

5. Fertilizer Cooling

Rotary drum cooler removes fertilizer moisture and lowers temperature, working in conjunction with the rotary dryer in organic and inorganic fertilizer production. This system significantly increases cooling speed and reduces work intensification, and can also cool other powdered and granular materials.

6. Fertilizer Screening

After cooling, unqualified granules are screened out through the rotary screening machine and transported by belt conveyor to the mixer for reprocessing with other raw materials. Finished products proceed to the compound fertilizer coating machine.

7. Coating

This process applies a uniform protective film to granule surfaces, effectively extending preservation periods and creating smoother granules. After coating, the final packaging process begins.

8. Packaging

Automatic quantitative packaging machine handles this final process. The system includes automatic weighing and packing machines, conveying systems, sealing machines, and optional hoppers configured to customer requirements. Quantitative packaging of bulk materials like organic and compound fertilizer is widely used across various industries.
