Bio Compound Fertilizer Production Line Compost Making Machine

Bio Compound Fertilizer Production Line Compost Making Machine
Bio Compound Fertilizer Production Line Compost Making Machine
video play

Large Image :  Bio Compound Fertilizer Production Line Compost Making Machine

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: Shenghong
Certification: BV, SGS, ISO
Model Number: YSL-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: customer demand, usually in container
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 80 Sets per month
Detailed Product Description
Raw Material Of Fertilizer: Animal Manure,straw Usage: Organic Fertilizer Granulator
Moisture Of Material: 20%-40% Capacity: 3-5ton /hour
Raw Material Of Machine: Carbon Steel After-sales Service: Engineer Available To Service
Condition: New Voltage: 380V, 50HZ
High Light:

Bio Compound Fertilizer Production Line


Bio Compound Fertilizer Making Machine


Compost Fertilizer Making Machine

Bio compound fertilizer production line compost fertilizer making machine


Oragnic Fertilizer Plant Raw material:

1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.

2. Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,

Slaughterhouse Waste,Fish Market,Urine and dung of cattle,Pigs,Sheep,Chicken,

Ducks, Geese,Goat.etc.

3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue etc.

4. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.

5. Sludge: the sludge of the river, the sewer, etc.

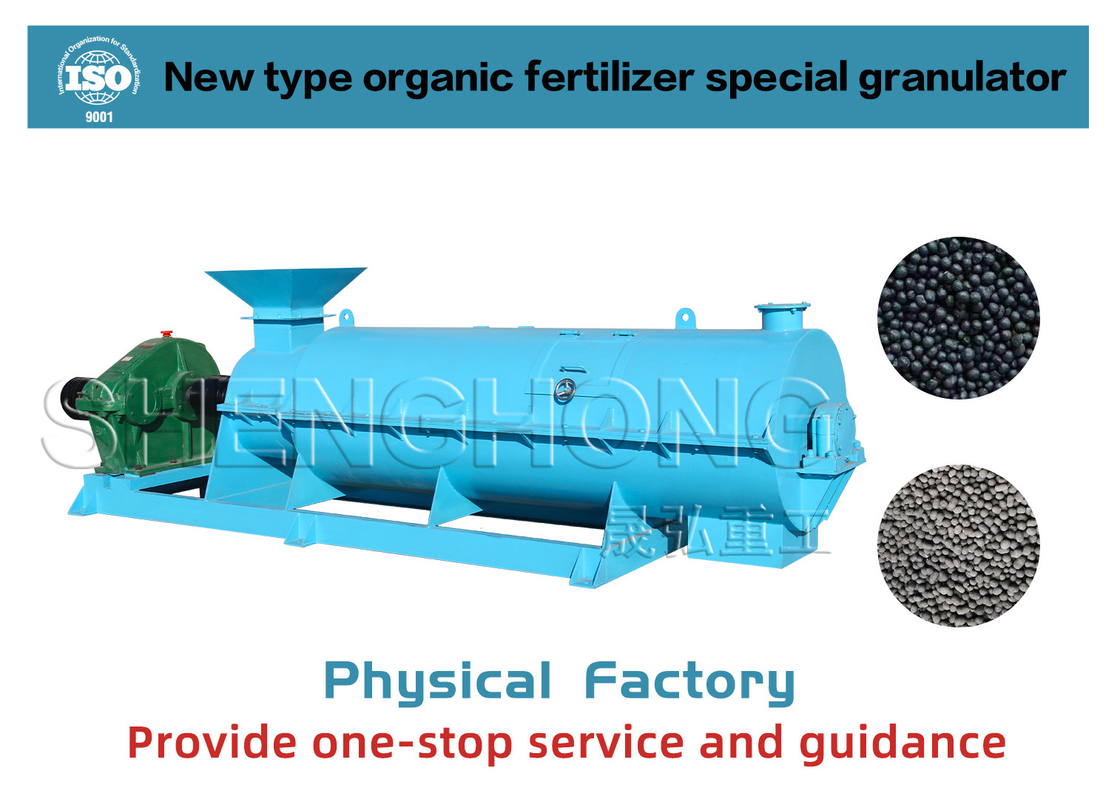

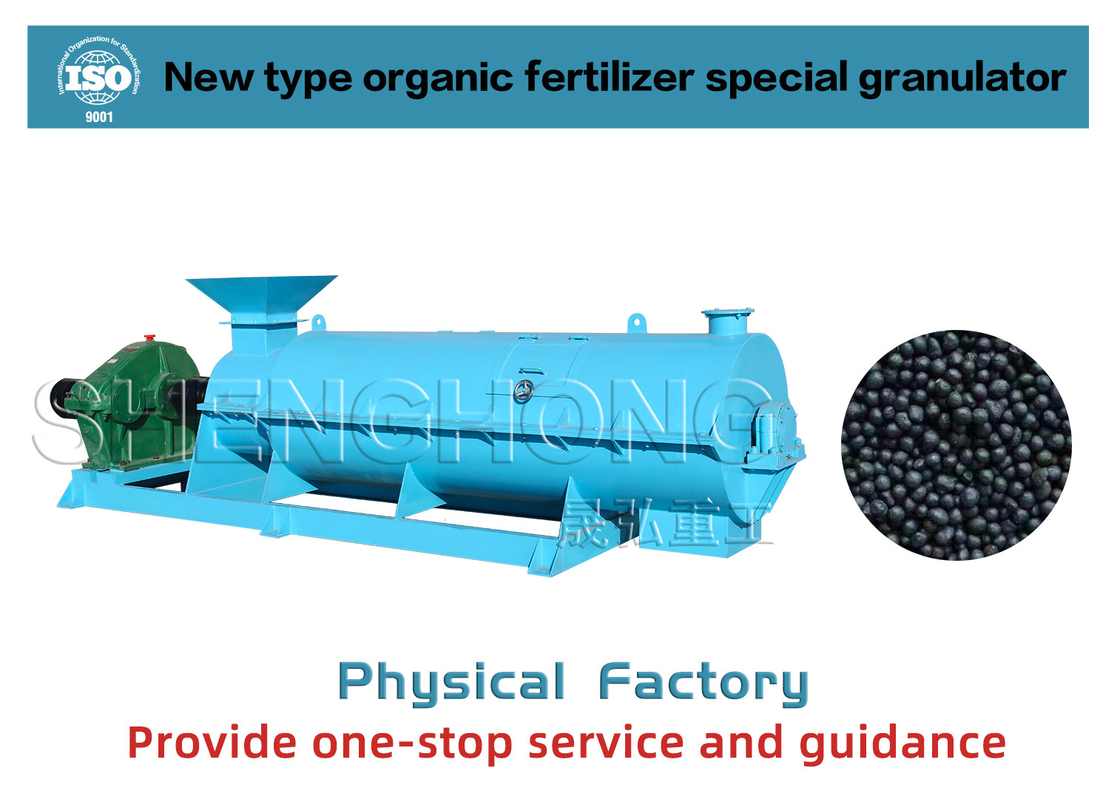

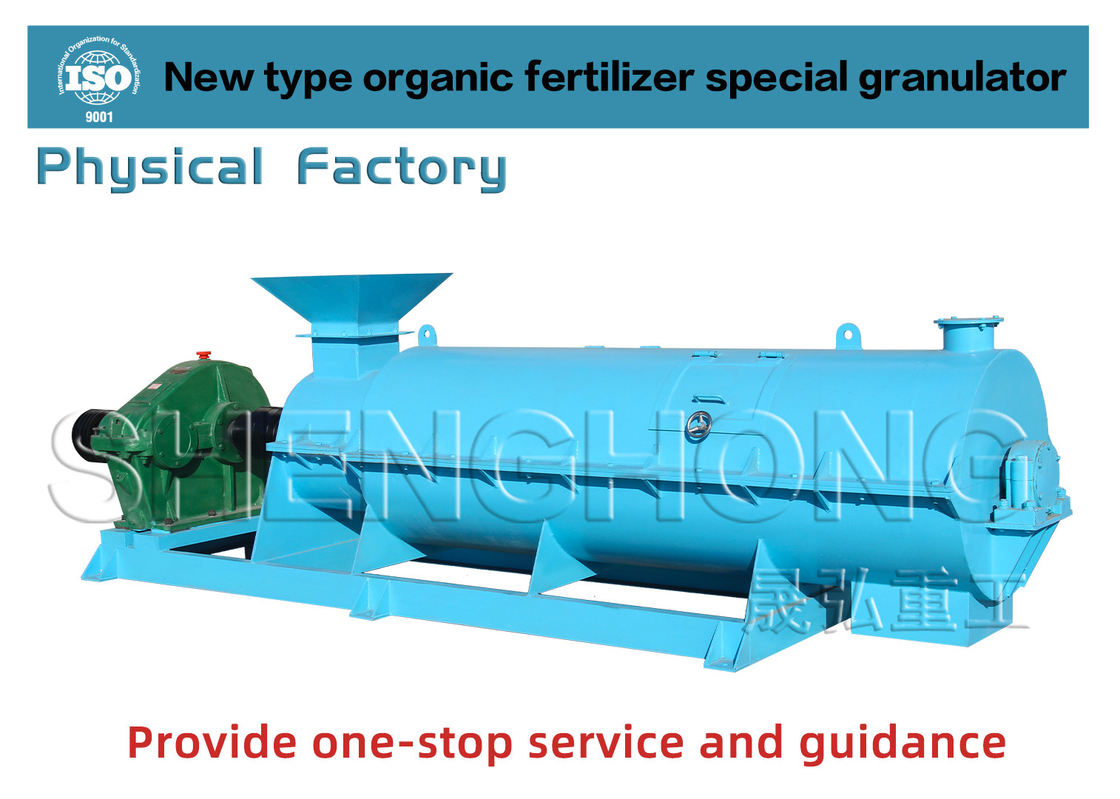

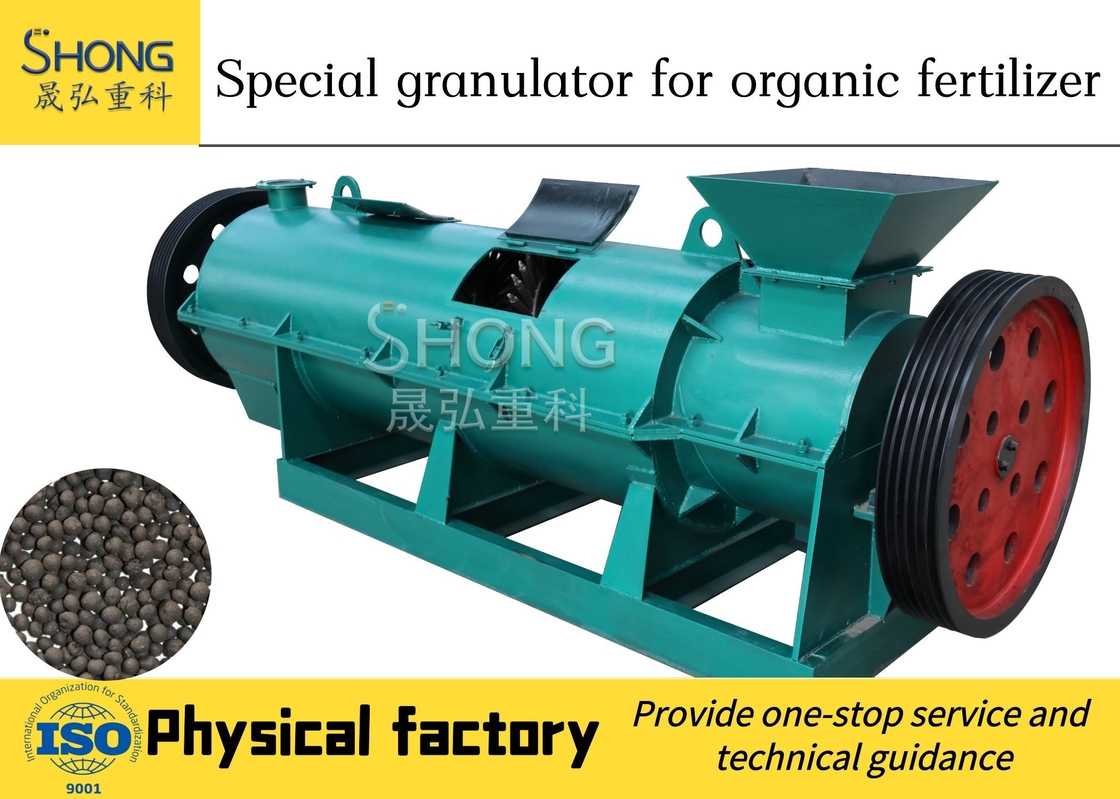

Main granulation machine for organic fertilizer

Bio Compound Fertilizer Production Line Compost Making Machine 0

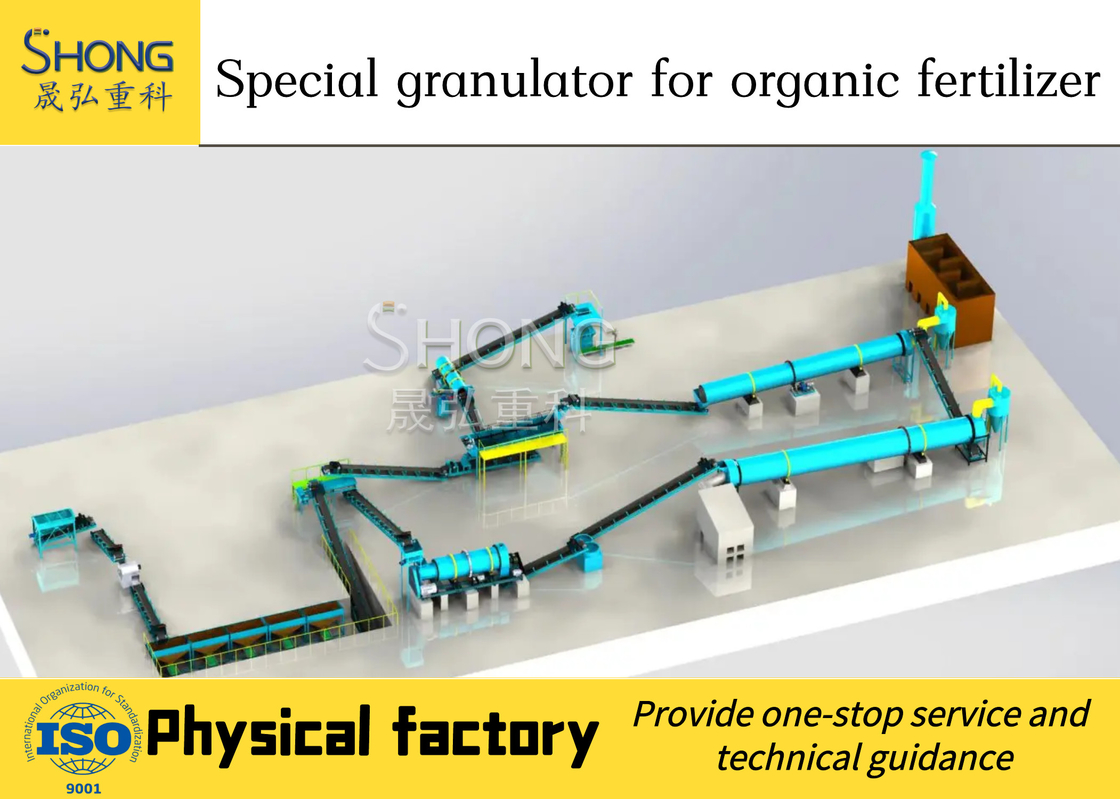

Working Process of Bio organic Fertilizer Production Line


Organic fertilizer production line is a complete set of equipment from raw materials collection to the organic fertilizer packing.

1) Organic Materials Fermentation Process: Which plays the preliminary but indispensable role in the whole production line. Two main types of compost turner are widely used to turn and mix the compost and accelerate the fermentation speed, Self-propelled compost turner and hydraulic compost turner.

2) Crushing Process: The compost lump materials should be grinded before the granulating process. But we can leave out crushing process when the compost material is fine enough. Vertical chain crusher and double-shaft horizontal crusher, two types of crushing machine can be used to crush lump compost fertilizer raw materials.

3) Mixing Process: two types of mixing machine are applied to mix raw materials in the fertilizer production line: horizontal mixer and vertical mixer.

4) Granulator Process: Granulating process is the core part in this production line, so we choose the suitable model of fertilizer granulator according to customers detailed requirements. Disc granulator machine can be chosen to granulate the materials evenly.

5) Drying Process: When granulating, the moisture of fertilizer raw materials should be less than 25%, so we should dry the raw materials if the moisture is more than 25%.Rotary drum drying machine is mainly used for drying the fertilizer with a certain degree of humidity and particle size.

6) Rotary Drum Cooling Machine: Which is used for cooling fertilizer to make fertilizer particles stronger.

7) Rotary Drum Screening Machine: which is used to separate the granules from the large particles which need to be returned for the second crushing and granulating. Rotary drum coating machine is used to coat the fertilizer and prevent the fertilizer from sticking together.

8) The last process is packaging process: Fertilizer packaging machine can package bags quantitatively and automatically. We also need some auxiliary equipment for connection such as belt conveyor, bucket elevator, etc.

Bio Compound Fertilizer Production Line Compost Making Machine 1


20,000 tons/year Pan Granulator Production Line

Pan granulator production line is manufactured to produce organic/bio-organic fertilizers. It has a wide application of raw materials. This organic fertilizer plant is suitable for both enterprises and individuals.

30,000 Tons/year Flat Die Granulator Production Line

This 30,000 T/Y organic fertilizer production line greatly increases value of output per unit of labour and production value profit margin. The flat die granulator is specially designed for organic fertilizer production.

30,000 Tons/year Rotary Drum Granulator Production Line

Granulating fermented materials with rotary drum granulator can achieve large quantities organic fertilizer production. Customized fertilizer production line achieves the aim of materials & premises optimization.

50,000 Tons/year New Type Granulator Production Line

This organic/bio-organic fertilizer production line is with an annul output of 50,000 tons. It is equipped with fertilizer turner, new type fertilizer granulator, rotary drum cooler/dryer/screen, with high output and good performance.

Bio Compound Fertilizer Production Line Compost Making Machine 2


30,000 tons/year Extrusion Granulator Production Line

This production line can produce compound fertilizer with 30,000 tons/year. Adopt double roller extrusion granulator, no drying process, low power consumption, wide application, short process flow.

50,000 Tons/year Pan Granulator Production Line

Our pan granulator compound fertilizer production line is specially designed for fertilizer manufacturers who want to produce large quantities compound fertilizer and want a good economic returns in a short period of time.

100,000 tons/year Rotary Drum Granulator Production Line

This rotary drum granulator line can produce compound fertilizer with the annual output of 100,000 tons. Stable operation, long service life, high granulation rate, good fertilizer quality.
