Organic NPK Fertilizer Granulator Machine Rotary Drum Carbon Steel

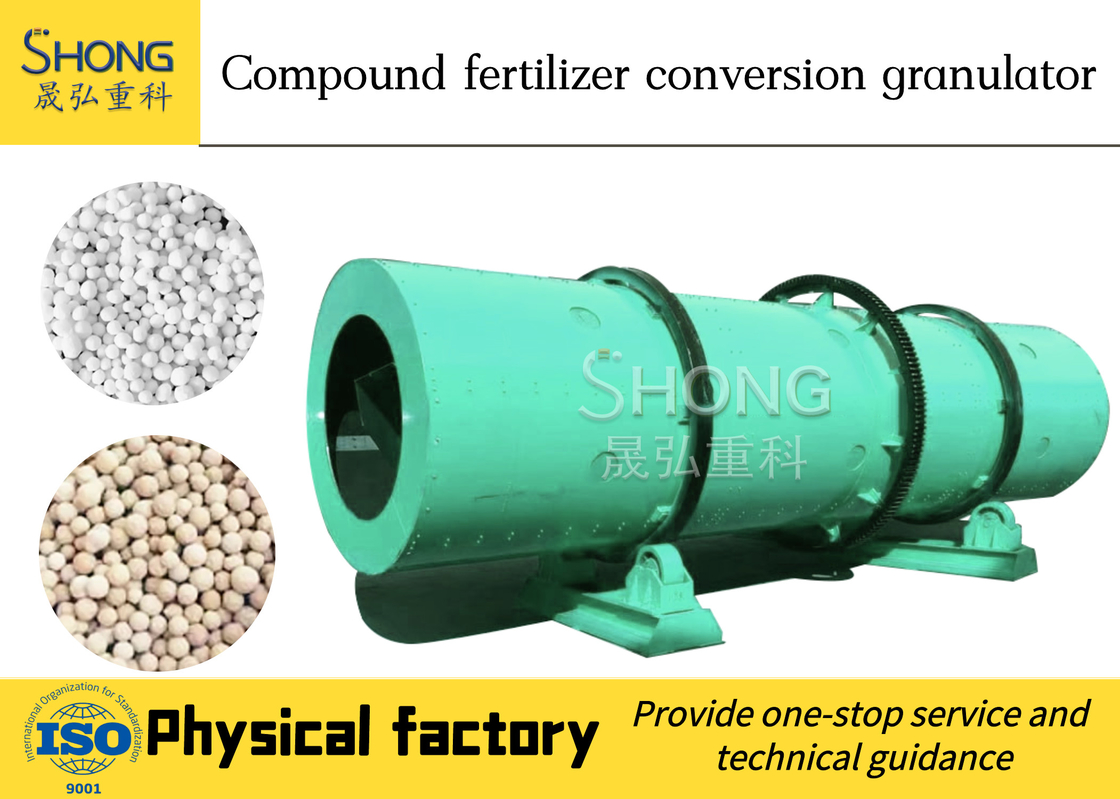

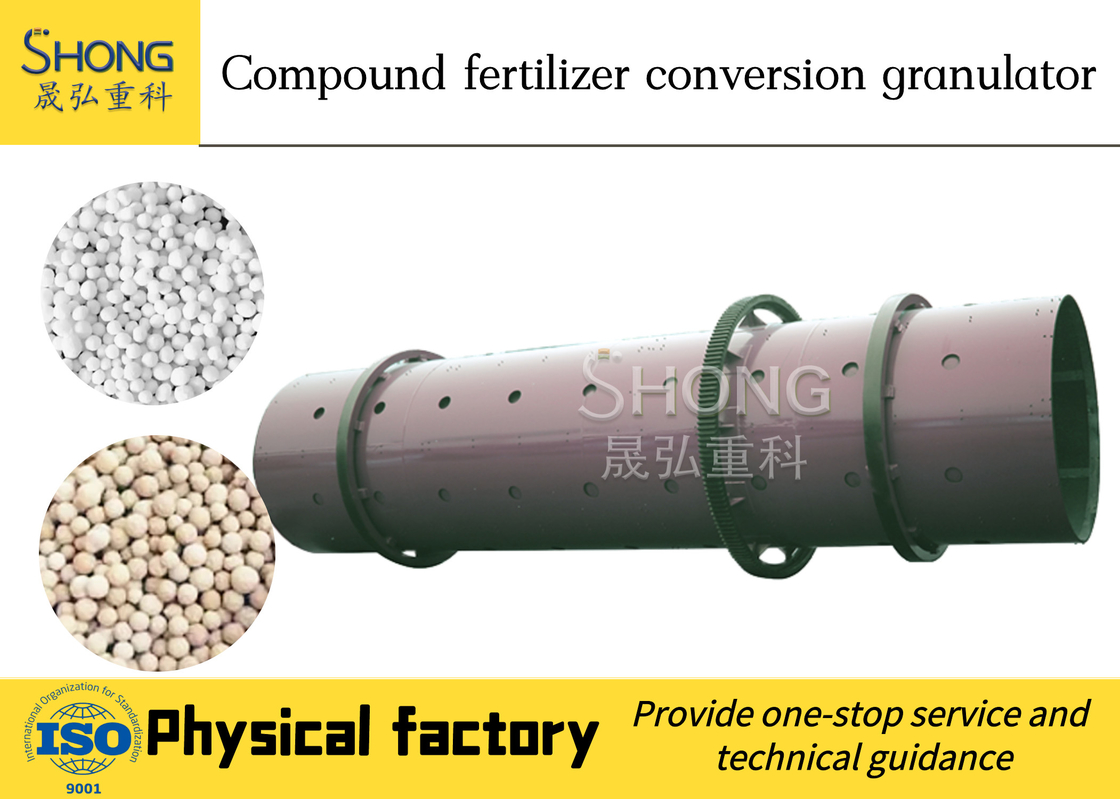

Organic and NPK Fertilizer Rotary drum granulator machine

Structure:

Granulator bracket. The whole rotating part which bears large force is supported by bracket, therefore it adopts medium carbon steel plates,channel beam material which are welded and satisfies strict quality standard.
Drive part. The gear frame is welded of high quality channel beam. The main motor in gear frame and reduction gears are both ISO National Free-inspection Product. Motor drives belt sheave,trianguler belt and reduction gears and offers power to granulator.
Large gears. Fixed on granulator and meshes with small transmission gears to drive the whole machine working in the opposite direction. High-tech wear-resisting materials extends granulator service life.
Rolling belt. Fasten on both sides of granulator for supporting

Introduce

Rotary drum churning granulator is just like the combination of rotary drum granulator and newly designed stirring tooth pellet machine. Both the inner rotary shaft and main body can rotate. When the raw material enter granulator. The interaction between stirring tooth and main body will convert powdery material into small particles. With the moving, they will gradually become rounder and harder. It is one of patent product of us and it is newly designed and widely used for Manure, Sludge, Grain sludge,sugarhouse filter mud, Cereal Slug, Straw, Sawdust, agaricus bisporus plant and also for Compound fertilizer(Organic fertilizer with NPK fertilizer).

Advantage

(1) High fertilizer particles rolling rate about 70%, less returning fertilizer created,but can be regranulated.
(2)Vapour or water adding improves fertilizer temperature and creates high quality fertilizer particles.
(3)Engineering plastics are used for inner lining, no stick to liners,Anti-corrosion and thermal insulation.
(4)Large granulating capacity,low enrgy consumption and low maintenance cost.
(5)Flexible fertilizer particles diameter according to different formulation, processing procedure and raw materials.
(6)Super quality steel materials,strict quality requirements and control.
(7)Low noise,stable performance;rational structure like shoveling plates to clean drums

Application:

1.Sludge drum granulation process
2. Sludge organic and inorganic fertilizers drum granulation process
3. Livestock manure organic drum granulation process
4. Industrial waste organic fertilizer drum granulation process
5. Compound fertilizer steam drum granulating process
