Organic Fertilizer Granulation Machine Production Line For Pig Sheep Horse Manure

Organic fertilizer granulation machine production line for pig sheep horse manure cow dung

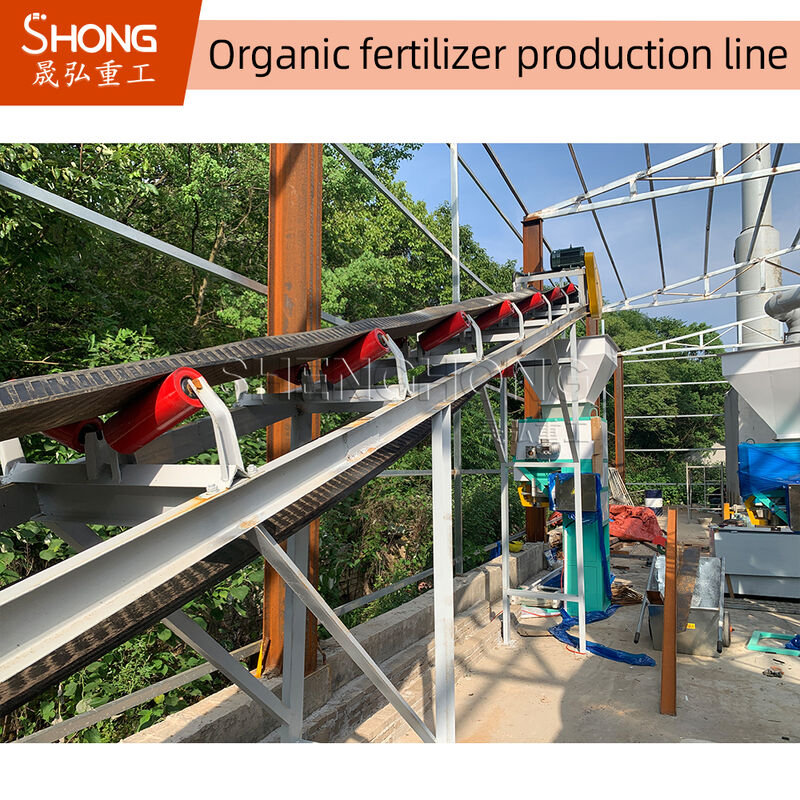

Organic powder fertilizer granulation production line

The organic fertilizer production line project planned by our company for you is a high-tech project with significant economic and environmental benefits through the use of microbial fermentation and organic waste granulation to produce organic fertilizer.

Process flow

1. Mainly organic waste materials (cow dung, sheep dung, pig dung, chicken dung, sludge, rice straw, corn stalks, mushroom residue) and other animal dung organic wastes are fermented and decomposed. The moisture content is about 30%-35%. After the waste is crushed and screened, it is measured with the binder (bentonite, humic acid) and other ingredients that need to be proportioned in the batching mixing system according to the proportioning requirements. (Adding functional bacteria can produce bio-organic fertilizer, adding nitrogen , Phosphorus and potassium (the total nutrient content is less than 15%) can produce organic and inorganic fertilizers) ingredients, mix, the fully mixed materials are uniformly and continuously fed into the granulator by the belt conveyor, and then rounded into a ball by the polishing and shaping machine The pellets are cooled and sieved after being dried by a dryer at low temperature and large air volume. The finished pellets are conveyed to the finished product silo by a belt, and are measured and packed into the warehouse by the computerized quantitative packaging system.

Organic powder fertilizer granulation production line
1.Strong adaptability. Suitable for the different formulations, different moisture content, and different concentrations of the
compound fertilizer and organic fertilizer.

2.Unique drying and cooling processing and handling. It can be sufficient to drying and cooling material, and again spheronization
and polishing on pellets.

3.Low temperature drying technology. It can produce the rich in active microbial ecological fertilizer.

4.Advanced technological processing design. The advantage of equipment layout is reasonable, compact structure, small spatial
footprint.

5.Using the rotary drum dryer by the main hosts of system. The advantage is strong adaptability, easy operation, and running
stability, and most reliability.

6.The hot air furnace could choose oil, gas, coal, biomass and other efficient automatic (or manual) hot air furnace as heat
source. The advantage is reasonable design, high thermal efficiency, and low drying cost.

7.Unique sealing device. It can be increasing the efficiency, without dust particles, and improve the operating environment

8.Suitable for the different desired customers that have different production capacity requirement. For example, the requirement
capacity of 1-20 million tons per year.
