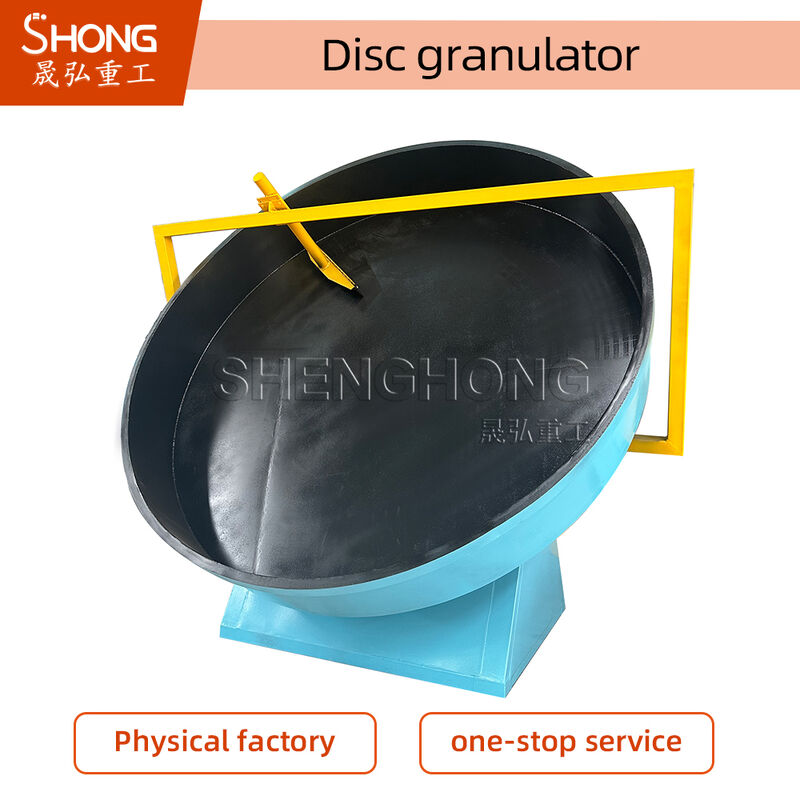

380V Environment Friendly Organic Fertilizer Ball Granulator with High Granulation Rate

Disc pelletizer is one of the common equipment in the compound fertilizer industry. Generally, disk granulator is applicable to smaller scale fertilizer production of medium and low concentration. The slope degree of its pan can be adjusted from 35° to 55°. The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer.

The powder will rise along with the revolving pan under the friction between the powder and the pan; on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder slips to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge.

This series of disc granulator features granulating disc plate angle using arc structure. Granule rate can reach more than 93%.

Applications:

• Organic fertilizer granulation using organic sludge, chicken manure, straw after fermentation as raw materials
• Mixed feed granulation with corn flour, grass meal, soybean meal as raw material
• Deodorization sterile efficient fertilizer with livestock and poultry manure, city life garbage by microbial fermentation technology
• Crude fibre granulation, rice husk, cotton seed, construction waste, etc.

Fertilizer ball granulator is widely used in transporting powdery, beaded or small state of all kinds of viscous material, such as coal, cement, clinker, fertilizer and other materials.

This series of products is driven by the main motor through pulley and belt, via the reducer drive pinion. The pinion interlocks with the big gear which is fixed in the bottom, working opposite. The big gear features special rational design, installed on the main shaft fixed on the frame to adjust plate, supporting the work of the granulating disc.

The material enters the granulating disc, and after continuing rotation of the granulating disc and spray device, material sticks evenly to form particles together. This machine features an automatic cleaning device in the granulation upper plate, preventing wall material viscosity, thus greatly improving the service life of the machine.

With the constant rotation of motor and continuous material input, mass production can be achieved to meet user requirements.

The main gear adopts high frequency sudden fire to double service life. Granulation plate lining uses high strength glass fiber reinforced plastic, providing corrosion resistance and durability. The machine offers uniform granules, high granule rate, smooth operation, robust construction and long service life.

• The disc of the plate disc adopts overall circular structure and its granulation rate may reach above 93%
• The design of granulation plate is convenient for intermittent continuous production, which greatly reduces labor intensity and improves labor efficiency
• The reduction gears and the electrical machine adopt flexible belt. The equipment start is steady, slowing down impulse and enhancing working life
• The plate bottom adopts multiple steel plates which are firm, durable, and not deforming
• The design of plate bottom is thicker, heavier and more stable, not requiring fixation by anchor bolts
• Granulator adopts high temperature quenching, doubling the working life
