380V Organic Cow Manure Fertilizer Ball Granulator Environment Friendly

Environment-Friendly Organic Cow Manure Fertilizer Ball Granulator

Introduce

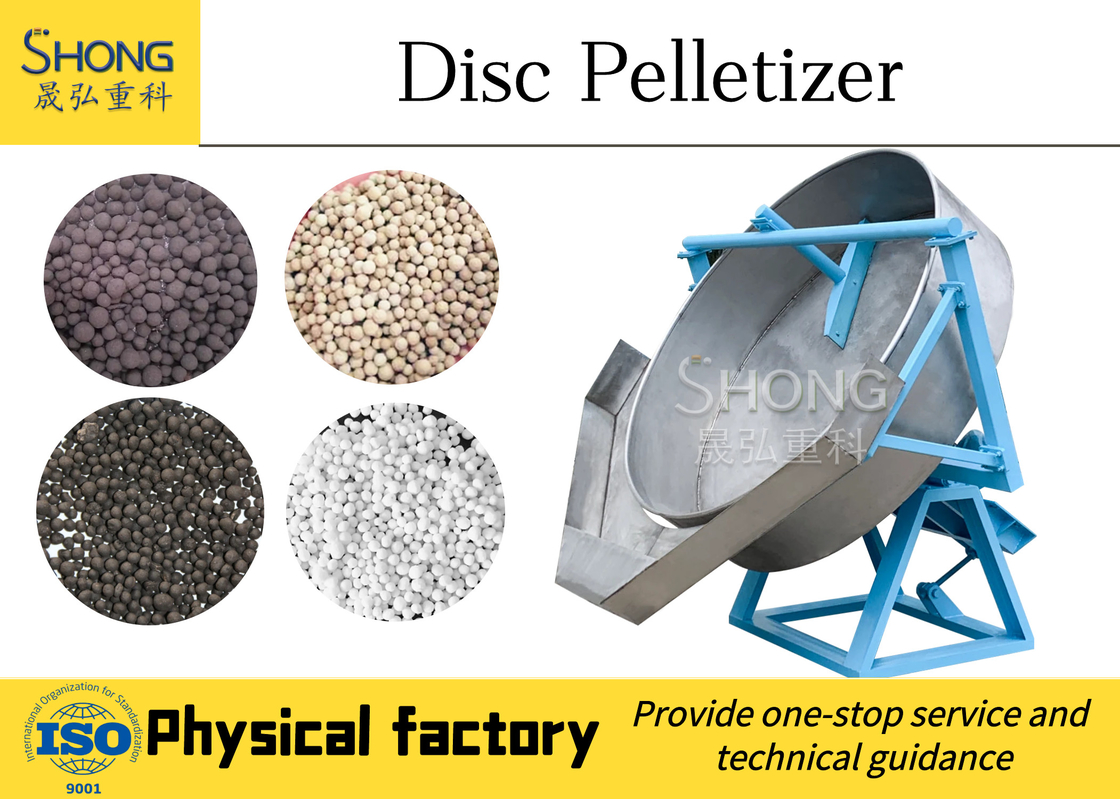

Disc pelletizer is one of common equipments in compound fertilizer industry. Generally, disk granulator is applicable to smaller scale fertilizer production of medium and low concentration. The slope degree of its pan can be adjusted from 35°to 55°. The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer. The powder will rise along with the revolving pan under the friction between the powder and the pan; on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder slip to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge.

Product Description of Fertilizer Ball Granulator

This series of disc granulator, granulating disc plate angle using arc structure. Granule rate can reach more than 93%. Organic fertilizer granulation use organic sludge, chicken manure, straw after fermentation as raw materials.
Mixed feed granulation With corn flour, grass meal, soybean meal as raw material Deodorization sterile efficient fertilizer with livestock and poultry manure, city life garbage by microbial fermentation technology.
Fertilizer ball granulator can be applied to crude fibre granulation, rice husk, cotton seed, construction waste, etc.

Fertilizer ball granulator is widely used in transporting powdery, beaded or small state of all kinds of viscous material, such as coal,cement, clinker, fertilizer and other materials.

Fertilizer ball granulator working principle:

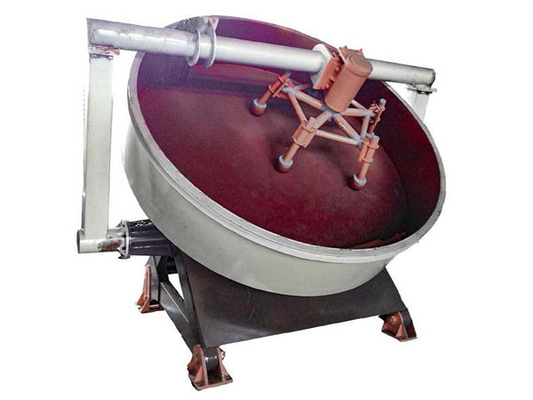

This series of products by the main motor drive pulley and belt, through the reducer drive pinion, pinion interlocking with big gear which fixed in the bottom, work opposite. Big gear with special reasonable design, installed on the main shaft fixed on the frame to adjust plate, to support the work of the granulating disc (this machine is used to spraymachine). The material enter the granulating disc, after continuing rotation of the granulating disc and spray device, material sticking evenly to be particles together. In this machine granulation upper plate has design of the automatic cleaning device, preventing the of wall material viscosity, thus greatly improving the service life of the machine. With the constant rotation of motor, materials into unceasingly, can realize the mass production, has reached to the needs of the user.

Fertilizer ball granulator main gear adopts high frequency sudden fire to double service life. Granulation plate lining of high strength glass fiber reinforced plastic, anticorrosion and durable. The machine has advantages of uniform granules, high granule rate, smooth operation, equipment is strong and durable and long service life.

Advantage

1) The disc of the plate disc adopts overallcircular structure and its granulation rate may reach above 93%.
2) The design of granulationplate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
3) The reduction gears and the electrical machine adopt flexible belt. The equipment start is steady. It can slow down the impulse and enhance the working life.
4) The plate bottom adopts multiple steel plates which are firm, durable, not deforming.
5) The design of plate bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.
6) Granulator adopts high temperature quenching, doubling the working life
