380V Organic Fertilizer Drying Pelleting Production Line Below 10%

The NPK production line has finished installed, very pleased with your job! i have also checked the organic line design, looks great! This is what we want!

—— Robinson

Thank you for your great work! The organic products look very good! Later i will discuss with you about the NPK line!

—— Ahmed

I'm Online Chat Now

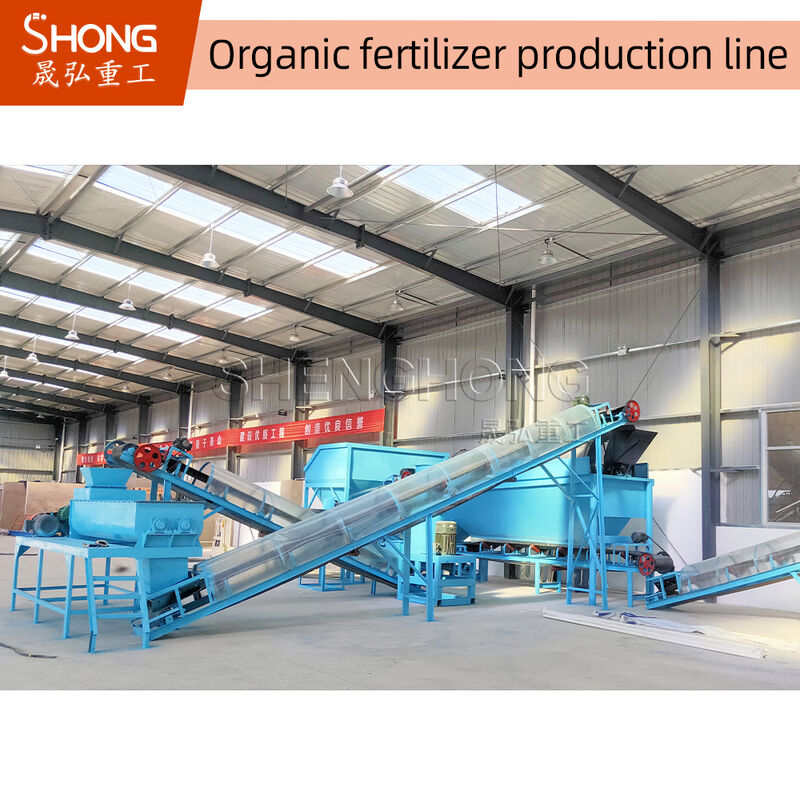

380V Organic Fertilizer Drying Pelleting Production Line Below 10%

380V Organic Fertilizer Drying Pelleting Production Line Below 10%
380V Organic Fertilizer Drying Pelleting Production Line Below 10%
video play

Large Image :  380V Organic Fertilizer Drying Pelleting Production Line Below 10%

Product Details:
Place of Origin: China
Brand Name: Shenghong
Certification: CE, ISO9001
Model Number: Organic Fertilizer Pellet Production Line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 piece per month
Detailed Product Description
Granules Shapes: Powder Application: Organic Fertilizer Production
Voltage: 380V Or 220V Or Demand Moisture Of Material: Below 10%
Name: Organic Fertilizer Production Line Raw Material: Chicken Manure, Cow Manure, Pig Manure, Etc.
Productivity: 1-20 Thousand Tons Per Year Type: Fertilizer Plant, Fertilizer Production
High Light:

Organic Fertilizer Pelleting Production Line


380V Organic Fertilizer Drying Production Line

Organic Fertilizer (Drying & Pelleting) Production Line


Product Description

With the rapid development of intensive farms, livestock and poultry manure, agricultural waste, food, and kitchen waste have become increasingly serious environmental pollution. But these materials are valuable resources for the production of feed and fertilizers. If they can be developed and used, this is essential for developing animal husbandry and crop production, saving food, and helping increase agricultural production and income.

Jiutian has developed a complete set of equipment for the production line of organic fertilizer, rapid fermentation, drying, granulation, and mixing of animal waste and various waste residue agricultural, food, kitchen, and other materials. This is complete equipment from raw material collection to finished product packaging.

380V Organic Fertilizer Drying Pelleting Production Line Below 10% 0


1. Cow manure: The cow dung contains 14.5% organic matter, N:0.30 ~ 0.45%, P:0.15 ~ 0.25%, K:0.10 ~ 0.15%, It is a kind of high value of the soil fertilizer. The organic matter and nutrient content of cow dung are lowest than the livestock manure. A slow-acting fertilizer.
2.Pig manure:
Pig manure contains 15% organic matter and the total nutrient content is not high,N:0.5 ~ 0.45, P:0.6% ~ 0.5%, K:0.35 ~ 0.45%,Pig manure texture is fine, composition is complex, containing protein, fat, organic acids, cellulose, semi cellulose and inorganic salt. Pig manure containing more nitrogen, carbon, and nitrogen ratio (14:1). Generally easy to be microbial decomposition.
3.Chicken manure:
Chicken manure contains rich nutrients, Contains: dry matter:89.8%, crude protein:28.8%, crude fiber:12.7%, digestible protein:14.4%, nitrogen-free extract:28.8%, phosphorus:2.6% Calcium:8.7%,Histidine:0.23%,methionine:0.11%, leucine:0.87%, lysine:0.53%, phenylalanine:0.46%.Through proper processing and utilization, it can be a very good green organic fertilizer or chicken feed, Chicken manure as farm manure, have higher efficiency than pig manure, cow dung etc. each ton sticky chicken manure containing plant nutrients :N:11.35 kg, P(P2O5):10.44 kg, K (K2O):5.45 kg.
In addition, the chicken manure contains a lot of organic matter, also can be used for making biogas feedstock.

380V Organic Fertilizer Drying Pelleting Production Line Below 10% 1

Technological Process

1. Fermentation Process: The initial stage of the production line is organic matter fermentation. During the preparation stage, the compost will be fed into the mixer to be tumbling action and mixed, in order to further increase the efficiency of the fermentation speed.
2. Crushing Process: During this process, through the crusher crushing the compost block, be ready for the pelleting process, If the efficiency of compost fermentation is good, without lumps, this step can be omitted.
3. Quantitative composition process: If you need to add many kinds of material in the processing. In order to improve the processing efficiency and the exact proportion of the ingredients in the processing. You can use the automatic batching system. The system contains a number of quantitative belt scales. On the other hand, if the production is pure organic fertilizer, this step can be omitted.
4. Pelleting process: The disc pellet mill (also named rotary drum pellet mill) is widely used in fertilizer granulation. As the core step of the production line, our equipment can automatically sieve the most suitable shape of the pellets according to our customer's demand. After the granulation of fertilizer, it can keep the release of fertility, greatly slowing the number of artificial fertilization.
5. Drying process: In order to reshape the pellet shape and better storage. The humidity of the fertilizer should no more than 14%. The rotary drum dryer is widely used for drying fertilizer pellets.
6. Cooling process: In order to increase the hardness of fertilizer pellets. We need to cool the fertilizer pellets after drying them. The Roller cooling machine can be satisfied with this demand.
7. Screening process: Through the drum screen sieve machine to sieving the moderate size pellets. The too small or too large size of fertilizer pellets will be re-crushed and re-granulation.
8. Coating process: Use the roller coating machine to carry on the coating to the fertilizer granule. In order to prevent particle adhesion.
9. Packing process: The packing process is the end stage of the whole plant. Generally, the automatic packing machine is more efficient in bags for sale.
10. Dust collector system: The ash and dust will be collected from the whole production line.
11. Associated Equipment: Such as the belt conveyor and bucket elevator, etc.

380V Organic Fertilizer Drying Pelleting Production Line Below 10% 2
